Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 03.06.2026
Report code: 1780495748
PHILIPS HEARTSTART XL Defibrillator Analysis Report
Device Identification and Brand Model Information

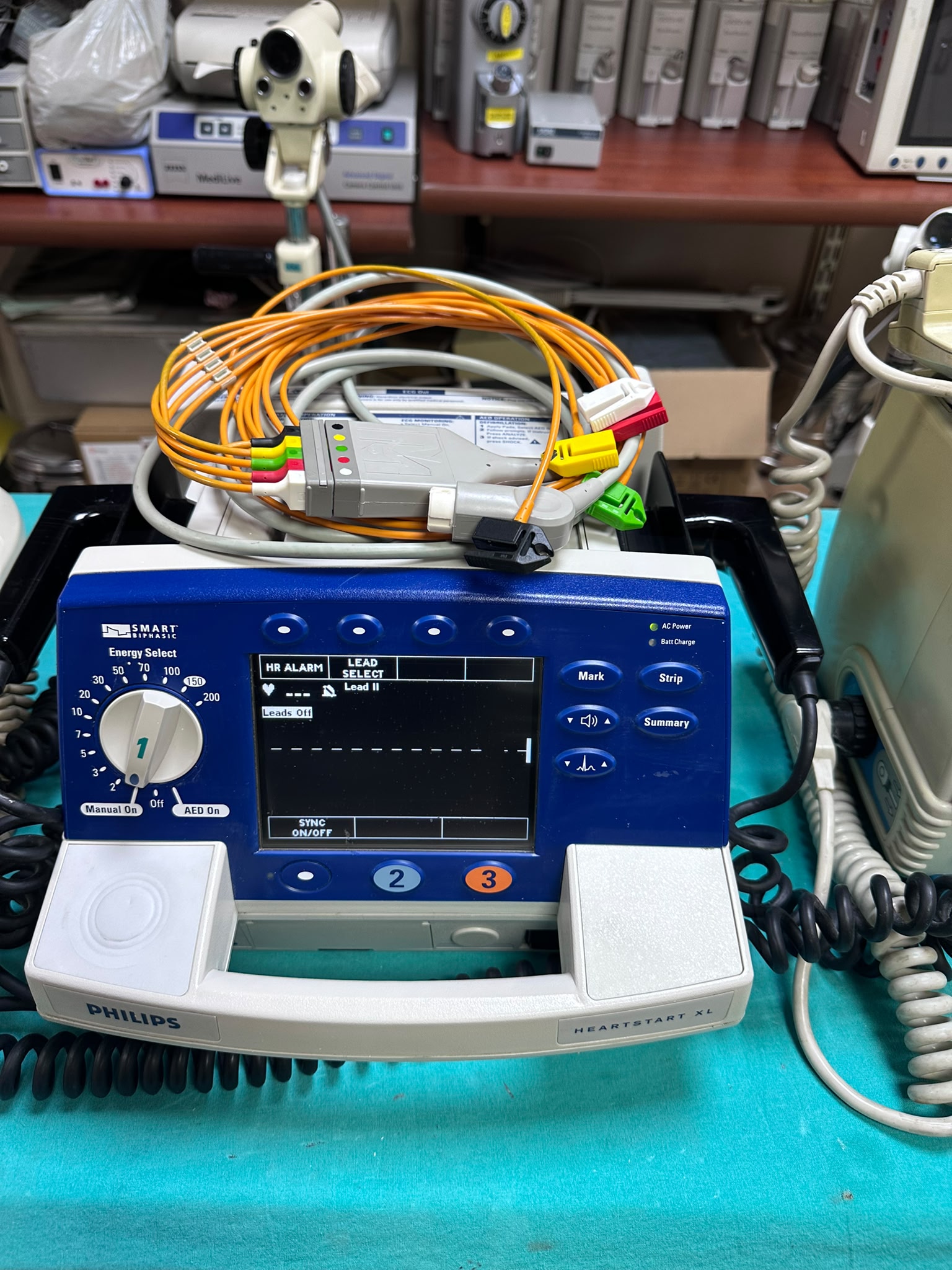

The product examined in the images is a defibrillator device. Upon reviewing the logos and inscriptions on the front face and the carrying handle of the device, the brand is clearly identified as PHILIPS and the model as HEARTSTART XL. This device is a medical piece of equipment that provides electrical shocks to restore the heart to its normal rhythm during cardiac rhythm disturbances.
Authenticity Assessment
Considering the quality of the PHILIPS logo on the device, the placement of the labels, and the general craftsmanship details, the impression is that the product is an original medical device. No signs of counterfeiting have been observed.
Usage Areas
The PHILIPS HEARTSTART XL defibrillator is used in cases of cardiac arrest and life-threatening arrhythmia incidents such as ventricular fibrillation or ventricular tachycardia. The device is designed to provide life support in various healthcare settings, including emergency departments, intensive care units, operating rooms, cardiology clinics, and ambulances. It features both manual defibrillation and automated external defibrillation (AED) modes.
Quantity Information
- Main Defibrillator Device: 1 unit
- ECG Patient Cable (5-lead): 1 unit
- Electrode Connection Module: 1 unit
- Defibrillator Paddles: 2 units (integrated on the right and left sides of the device)
General Condition and Physical Deformation
Although the device has been used, it is in good condition. No physical deformations such as significant scratches, dents, cracks, or color fading have been detected on the casing. There is no damage or deformation on the screen surface either. The device appears clean and does not contain heavy dirt or dust.
Mechanical and Electronic Component Inspection
The mechanical components of the device, such as the energy selection dial, other control buttons, and the carrying handle, appear to be intact. No broken or loose parts have been observed. Regarding the electronic components, the screen is functional and displays information clearly. The “AC Power” indicator light on the top of the device is lit green, indicating that the device is operating on mains power.
Accessories and Connections
The device comes with an orange 5-lead ECG patient cable and a gray electrode connection module. The physical condition of these cables and connections is good, with no signs of breakage or crushing. There is a defibrillator paddle connected to the right side of the device via a coiled cable. Socket inputs for the ECG cable are available on the front face of the device. No expiration date information is visible on the accessories.
Battery Status
There is a “Batt Charge” indicator light on the top panel of the device. This light is not illuminated in the image. This may indicate that the battery is fully charged or that the device is operating solely on AC power. Based on visual evidence, no comments can be made regarding the physical condition of the battery (swelling, leakage, etc.).
Label Information and Technical Details
- SMART BIPHASIC: This logo indicates that the device uses smart biphasic waveform technology. Biphasic technology provides more effective and safer shock delivery with lower energy levels for defibrillation.
- Energy Select: The values 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200 Joules are indicated around the energy selection dial. These values are used to set the energy amount of the electrical shock to be delivered.
- Manual On / Off / AED On: These options determine whether the device operates in manual mode, is turned off, or is in automated external defibrillator (AED) mode.
Specific label information such as serial number, lot number, or REF code is not clearly readable in the image.
Screen Analysis
The device’s screen is on and functional. The following information and warnings are visible on the screen:
- HR ALARM: Shows the heart rate alarm setting. The image indicates that the alarm is turned off (“—“).
- LEAD SELECT: Shows the lead selected for ECG monitoring. “Lead II” is selected in the image.
- Leads Off: A warning message indicating that the ECG electrodes are not connected to the patient or that the connection has been lost.
- SYNC ON/OFF: An option that determines whether the shock will be synchronized with the patient’s R wave.
There is a grid area for the ECG waveform on the right side of the screen, but no waveform is being drawn due to the “Leads Off” warning.
Size and Compatibility
There is no direct information in the images regarding the specific dimensions of the device or user compatibility. However, it is understood from the visuals that the device has a portable structure and a compact design that can be used quickly in emergency situations. Such devices are generally designed to be compatible with different electrodes for adult and pediatric patients.
Year of Manufacture
There is no concrete label or document regarding the year of manufacture of the device in the images. The general design and physical condition of the device point to a modern but not brand-new production period.
Documents
No invoices, warranty certificates, user manuals, or other documents belonging to the device are visible in the images.
Usage Duration
No information regarding the total usage hours or duration of use has been detected on the device’s screen, labels, or in the images.
Existing Faults
There is no clear evidence of a fault in the images, such as a broken part that would prevent the device from working, an error message (the “Leads Off” on the screen is a warning indicating connection status, not an error message), a broken cable, or missing components.
Potential Fault Risk
The general condition of the device appears good. No concrete situation that could pose a potential fault risk, such as severe wear, rust, or cable crushing, has been observed. The device is considered to be intact based on its external appearance.
