Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 13.07.2026
Report code: 1783938724
PHILIPS HD11 Ultrasound Device Analysis Report
Device Identification and Brand Model Information

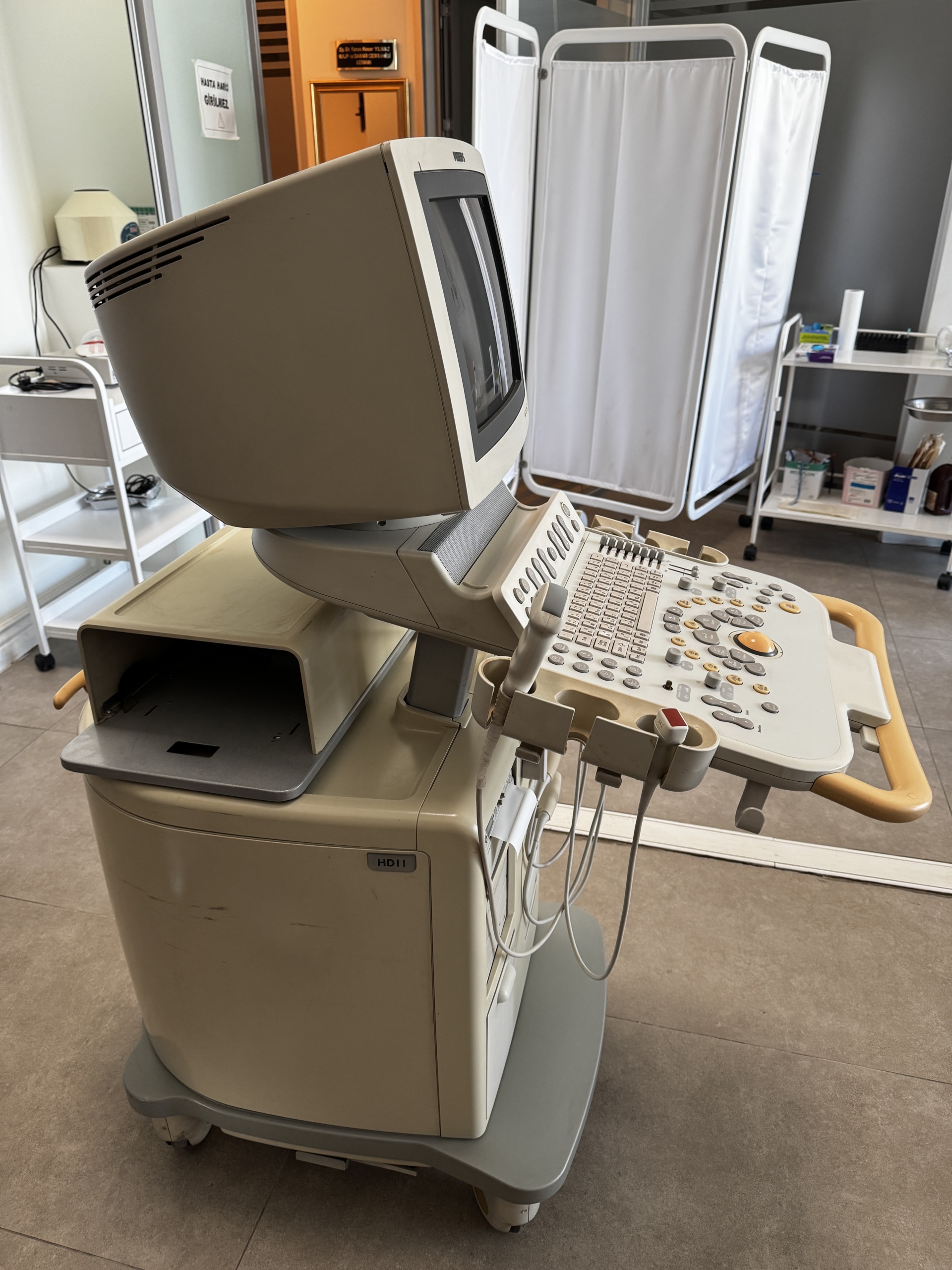

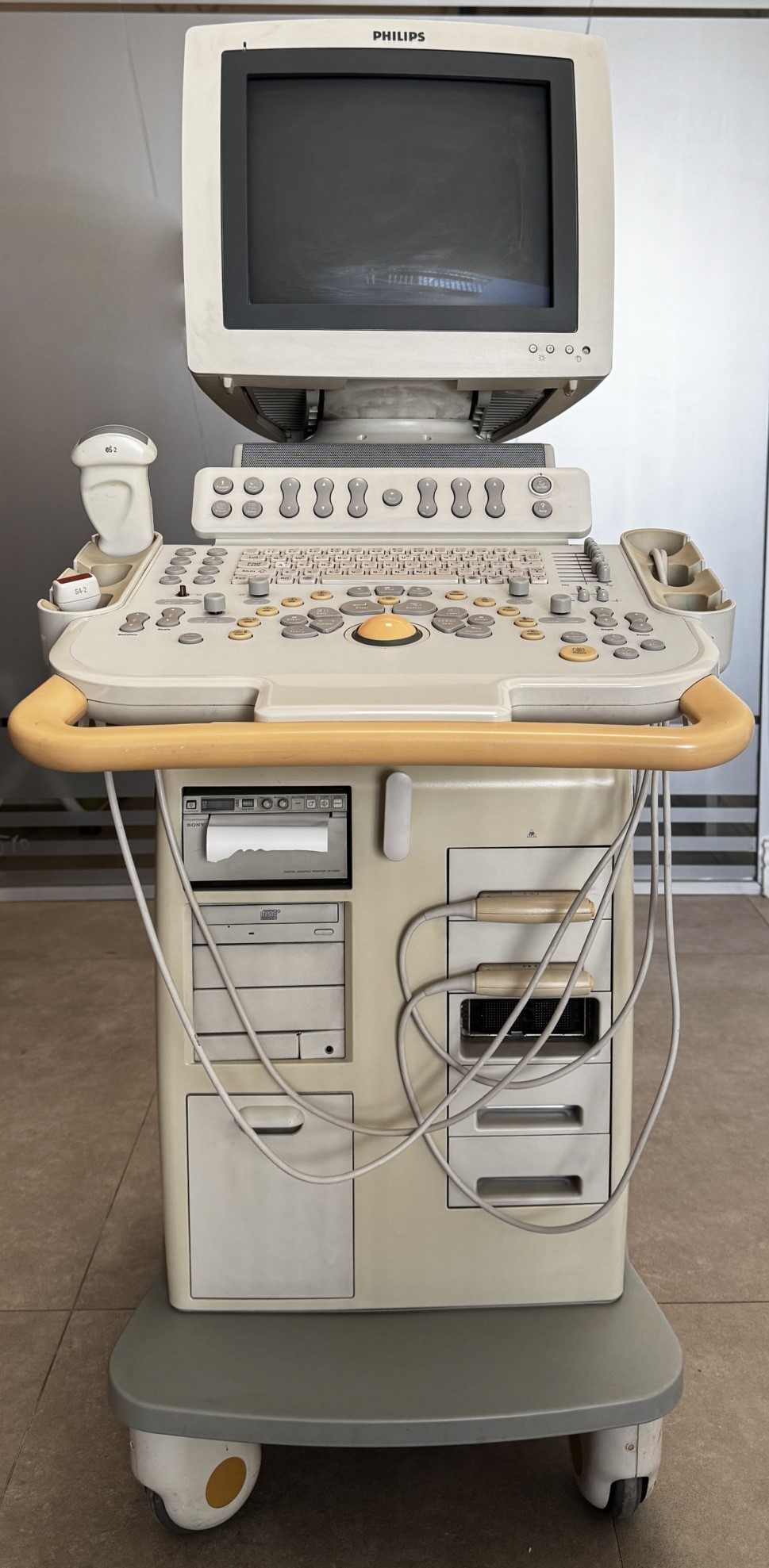

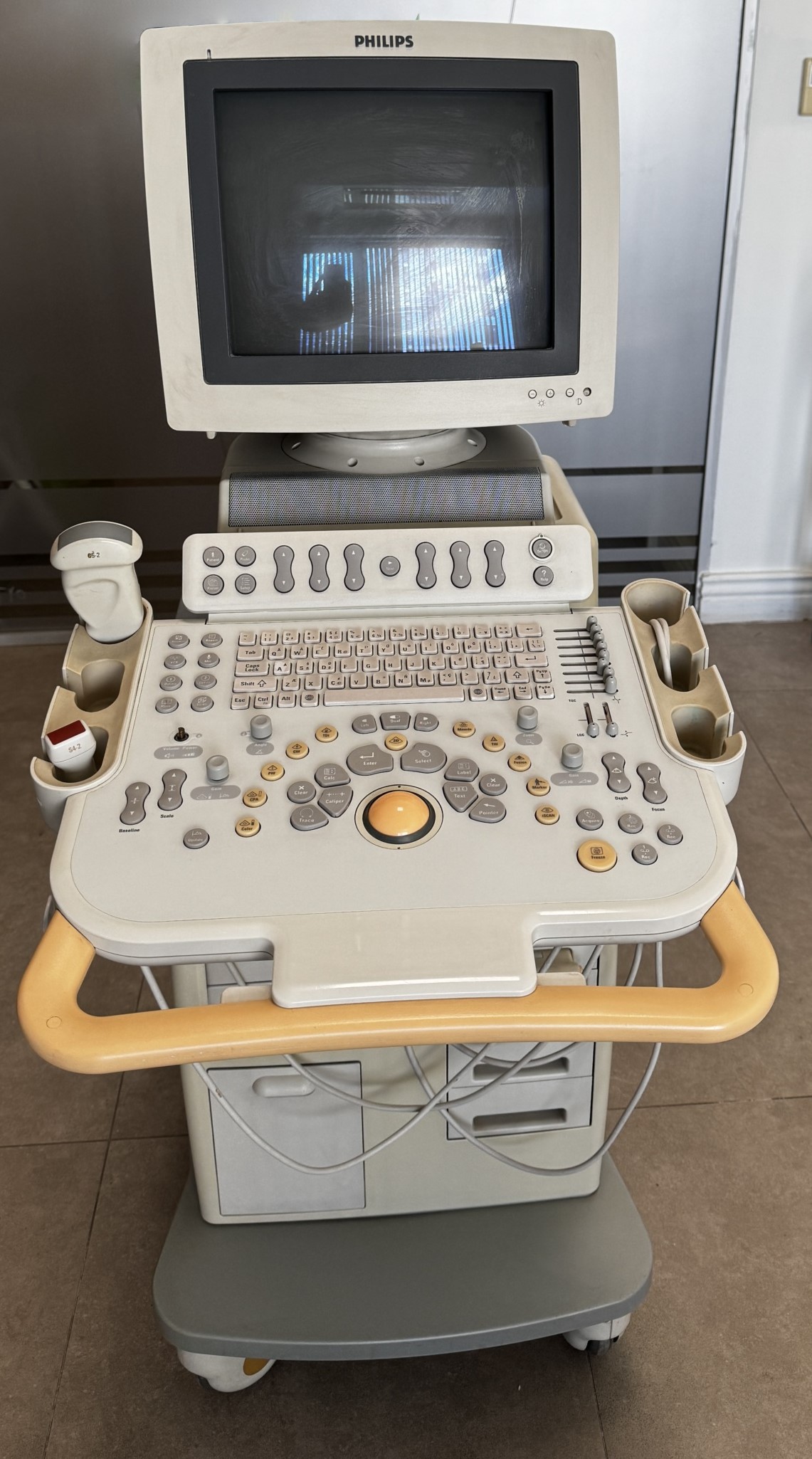

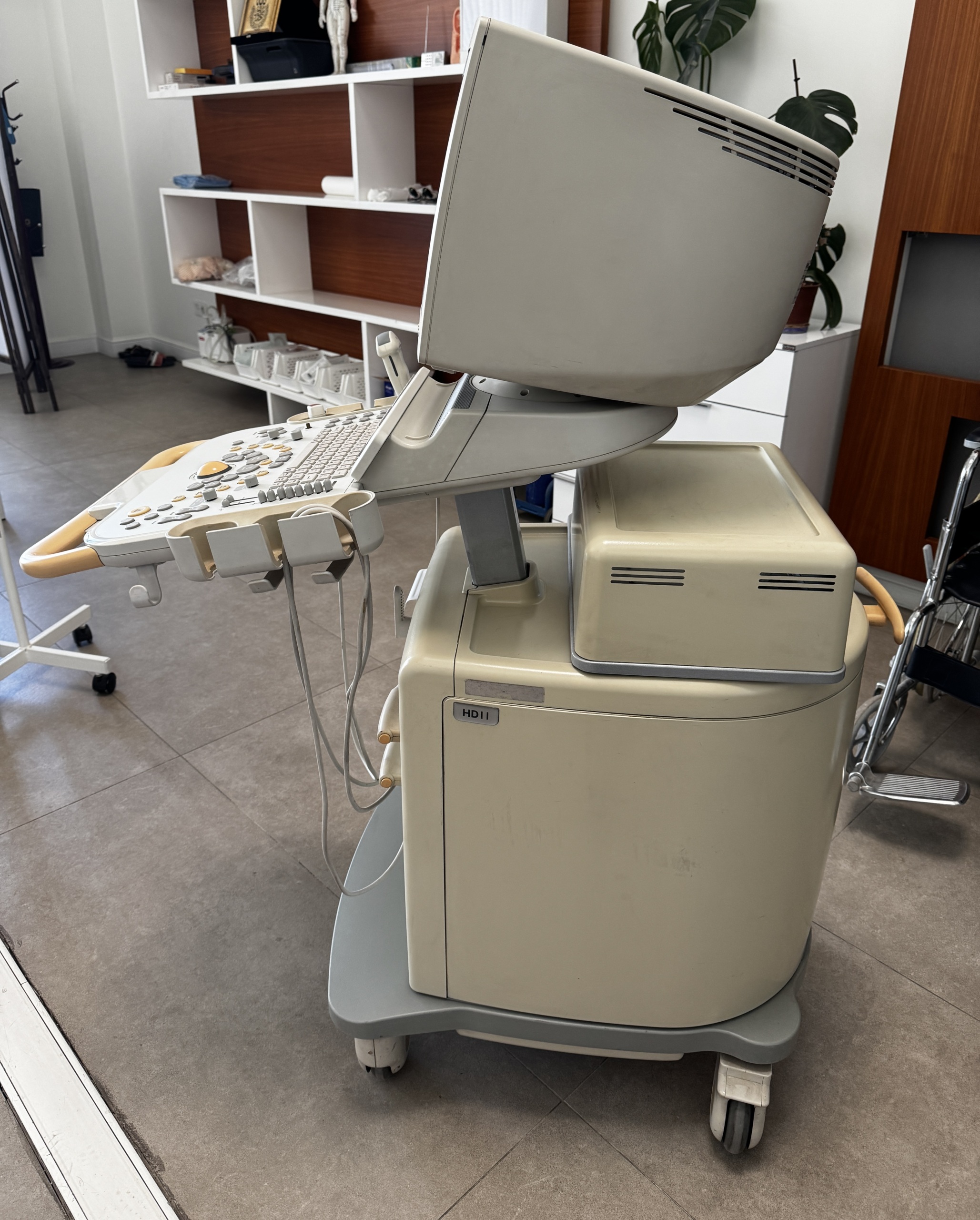

The product examined in the images is an ultrasound device used for medical imaging, positioned on a wheeled stand. The “PHILIPS” brand and “HD11” model are clearly legible on the monitor and the labels located on the side of the main unit. This information indicates that the device is a PHILIPS HD11 model ultrasound system.
Authenticity Assessment
Upon examining the general structure of the device, the quality of the logo, and the appearance of the labels, the impression is that the product is an original PHILIPS manufacture. The workmanship and material quality meet the expectations of a standard medical device.
Usage Areas
The PHILIPS HD11 ultrasound device is designed for a wide range of medical diagnostic and imaging applications. Its primary areas of use include obstetrics and gynecology (OB/GYN), cardiology, musculoskeletal system, vascular examinations, small organ imaging, and pediatrics. The device provides detailed diagnostic information by offering 2D, 3D, and 4D imaging capabilities.
Quantity Information
- Main Ultrasound Unit: 1 piece
- CRT Monitor: 1 piece
- Ultrasound Probe: 2 pieces (one in the slot on the left side of the device, the other in the slot on the right)
- Connection Cables: Various power and signal cables are available.
General Condition and Physical Deformation
The device is generally in a used condition. Slight color fading that has occurred over time is observed on the outer surfaces of the casing and the monitor. There are superficial scratches and slight dirt accumulations on the upper part of the monitor and in some areas of the main unit. However, no significant dents or cracks that would compromise the integrity of the device or affect its functionality have been detected.
Mechanical and Electronic Component Status
There are no visible issues with the mechanical components such as the wheels, buttons on the control panel, and hinges. The general layout of the buttons and the control panel has been preserved. The status of the electronic components cannot be analyzed in detail as the screen is off or dark in the images.
Accessories and Socket Inputs

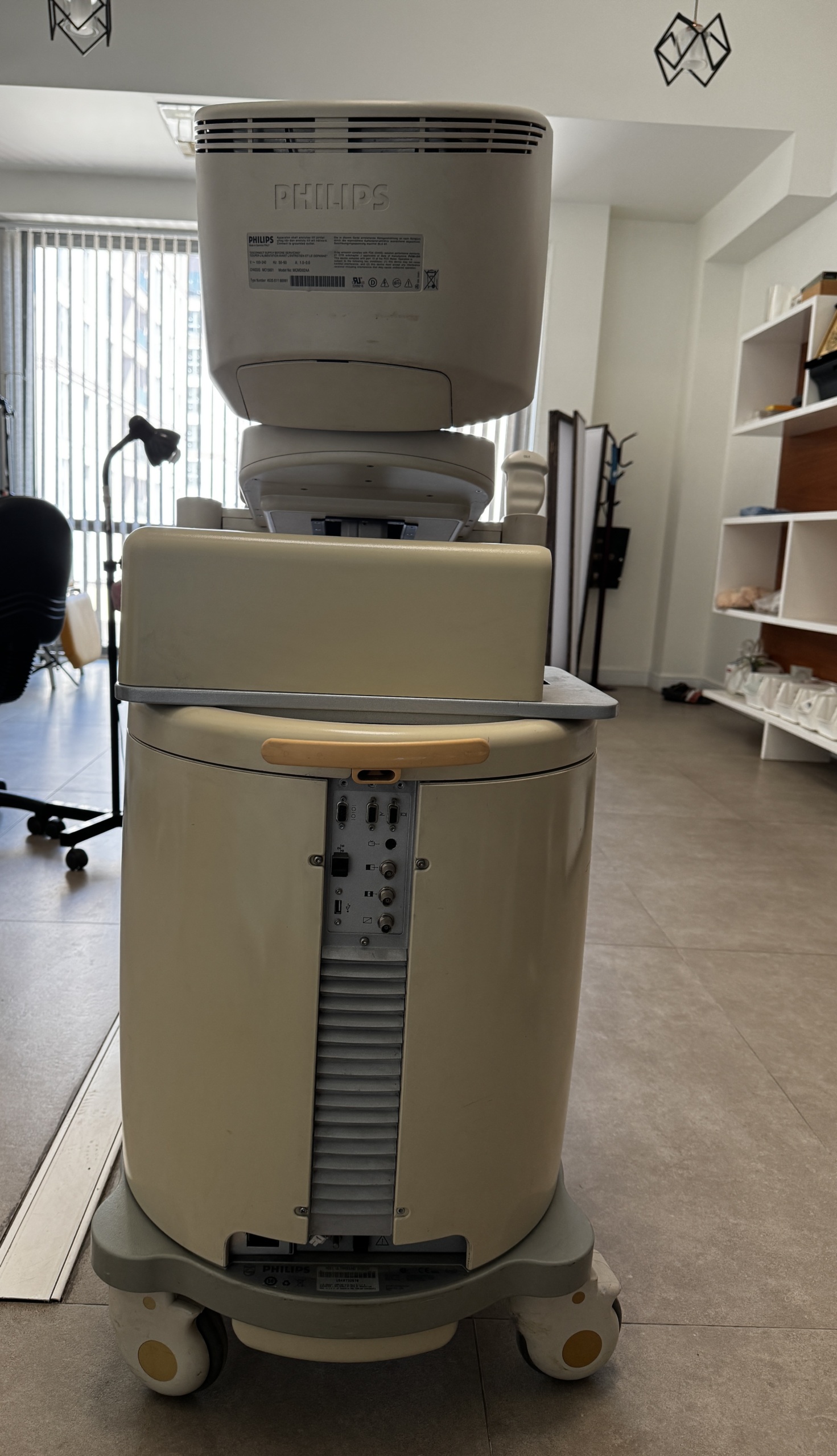

Two ultrasound probes are visible with the device. These probes are placed in special slots located on the left and right sides of the device. There are various cable connection points and socket inputs on the rear panel of the device. It is estimated that these inputs include power cable connections, video outputs, and ports for other peripheral units. There is no accessory with an expiration date in the image.
Battery Status
There is no information or visual evidence in the images suggesting that the device has an internal or external battery. Therefore, no comment can be made regarding the battery status.
Label Information
The following information is legible on the label located on the back of the monitor:
- PHILIPS: The manufacturer brand of the product.
- MEDICAL SYSTEMS: Indicates that the device belongs to the medical systems category.
- MADE IN USA: Shows that the product was manufactured in the United States of America.
- MODEL NO. M2424A: The specific model number of the monitor.
- SERIAL NO. US02120002: The unique serial number of the monitor. This number is used for product tracking and service operations.
- 100-240V~: Indicates that the device operates with 100 to 240 Volts alternating current.
- 50/60Hz: States that the device can operate at a frequency of 50 or 60 Hertz.
- 1.5-0.8A: Shows the current value drawn by the device.
- WARNING: A section containing warning messages.
- CAUTION: Specifies points that require attention.
Screen Analysis
The device’s monitor is in an off or dark state. Therefore, no text, warning, menu, or value analysis can be performed on the screen.
Size and Compatibility
The device is designed on a wheeled platform, allowing it to be easily moved in a clinical environment. It is known that the control panel and monitor are adjustable to offer ergonomic use. There is no direct information regarding the specific dimensions of the device or user compatibility in the images. However, based on its general appearance, it is of a size that a standard adult can easily use.
Year of Manufacture
There is no direct information regarding the year of manufacture on the labels in the images. However, considering that the device has a CRT monitor and that the PHILIPS HD11 XE model replaced the HD11 in 2007, it can be interpreted that this device was manufactured before 2007.
Documents
No invoices, warranty certificates, user manuals, or other documents belonging to the device are visible in the images.
Usage Duration
There is no information regarding the usage hours or total operating time on the device’s screen, labels, or any document in the images.
Existing Fault
No evidence of a significant fault such as a broken part, error message, severed cable, or missing component that would prevent the device from operating has been detected in the images.
Potential Fault Risk
Considering the general condition of the device, no serious potential fault risk has been observed other than color fading and superficial scratches. There is no significant wear or damage in the mechanical or electronic components that could lead to a failure in the near future.
