Secondhand Berchtold Elektrotom 640 Electrocautery Machine

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 17.12.2025

BERCHTOLD ELEKTROTOM 640 Electrosurgery Unit Analysis Report

Device Description and Brand/Model Information

As a result of the detailed visual inspection, the device shown has been identified as an electrosurgical (cautery) device used in medical procedures. In light of the prominent inscriptions and logos on the device’s front panel and casing, its identification details are as follows:

• Brand: BERCHTOLD
• Model: ELEKTROTOM 640
• Product Type: High-frequency electrosurgery unit (Cautery Device)

This information can be clearly read from the logo and model designation located on the upper left corner of the device’s front surface. It does not contain any speculative information.

Areas of Use and Purpose

The BERCHTOLD ELEKTROTOM 640 is a professional medical device designed for cutting tissue (cut) and stopping bleeding (coagulation) in surgical operations. It enables tissue processing using high-frequency electrical current in general surgery, orthopedics, urology, gynecology, and other surgical branches. The yellow and blue color codes in the visuals indicate that the device has both cutting (electrotomy) and coagulation functions.

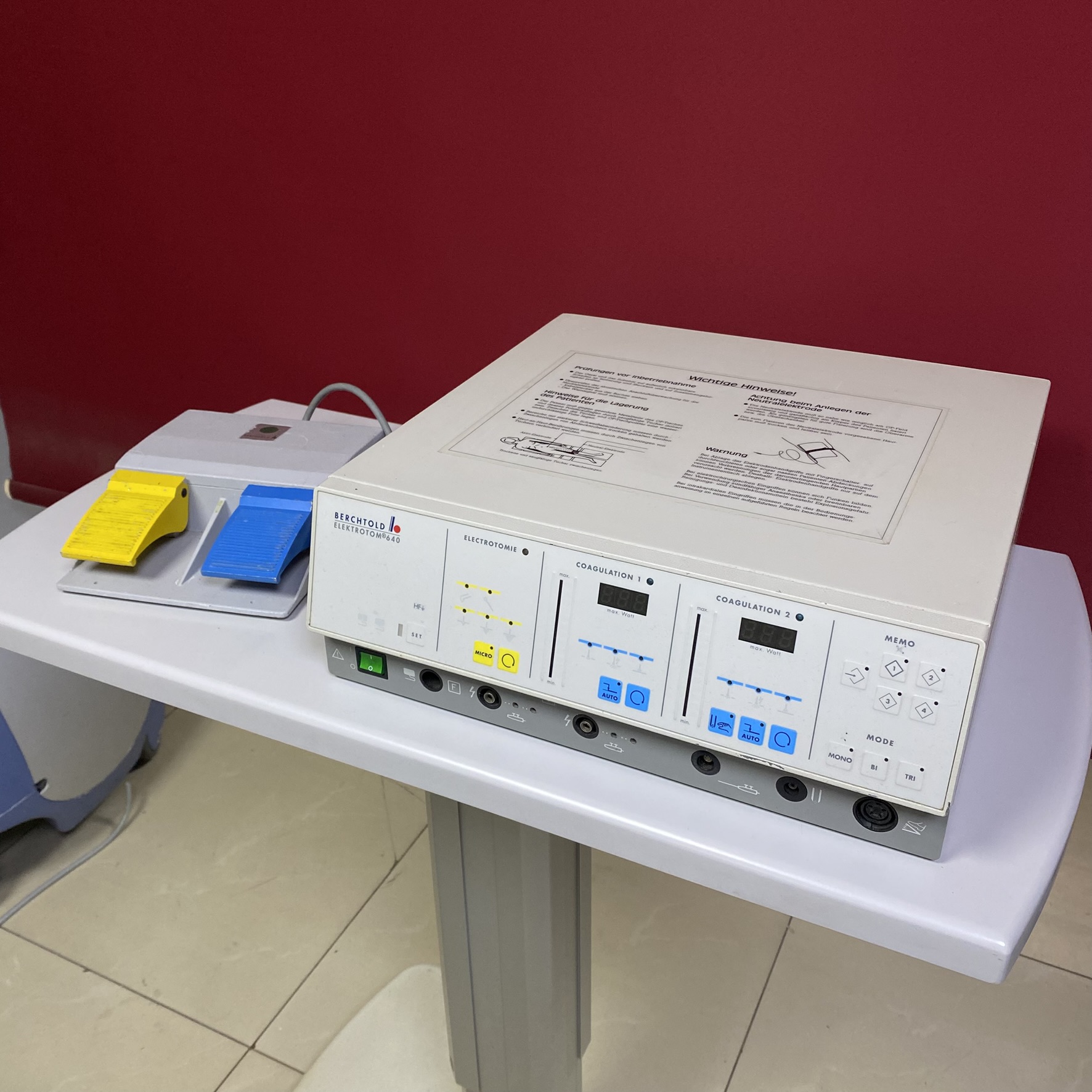

Quantity and Accessory Information

A total of 2 (two) main components are visible in the visuals:

• 1 unit BERCHTOLD ELEKTROTOM 640 main unit.
• 1 dual (yellow/blue) footswitch.

Other accessories belonging to the device, such as a power cable, patient plate, or electrode pencil (cautery pencil), are not present in the visuals. The footswitch’s connection cable is integrated with the pedal.

Physical Condition and Cosmetic Inspection

Observations regarding the device’s outer casing and general cosmetic condition are as follows:

• General Appearance: The device is in used condition. Its casing generally maintains its integrity, but slight color changes (from white to cream) due to age are observed.
• Deformation: No deep cracks, fractures, or dents have been detected on the main unit. However, slight dirtiness due to use may be present on the metal casing.
• Labels: There is a large label on the upper surface of the device containing German warnings and usage instructions (patient electrode placement diagram, etc.). This label is not worn out, and the texts/diagrams on it are legible.

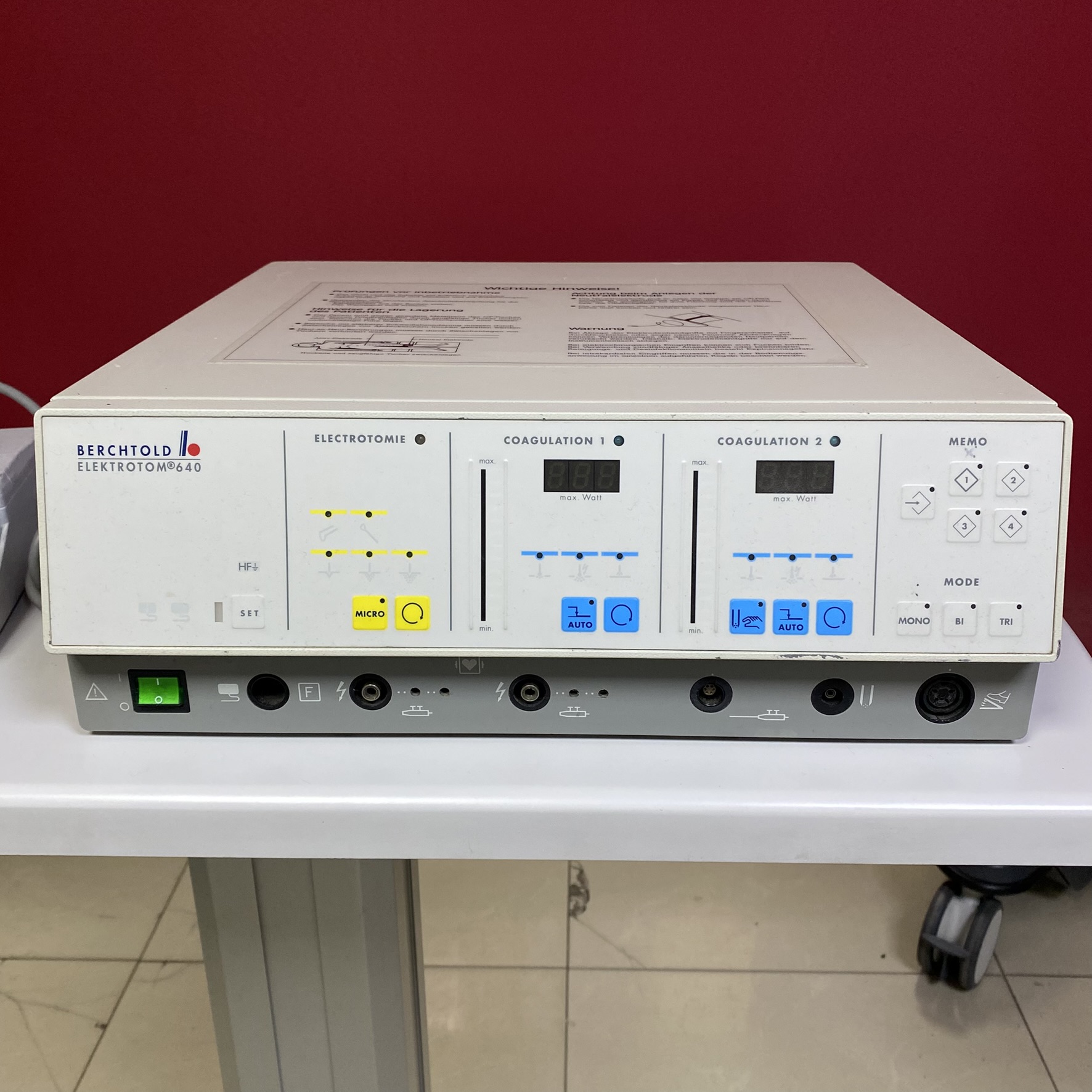

Control Panel and Electronic Components

The device’s front panel, user interface, and display areas have been analyzed as follows:

• Displays: The panel features digital display areas separated for “COAGULATION 1” and “COAGULATION 2” sections, showing “max. Watt” values. The displays are not active as the device is powered off.
• Buttons and Keypad: The buttons on the panel are of a membrane (touch-sensitive surface) type. The symbols on the buttons (Micro, Auto, hand/foot symbols) are not erased and can be clearly distinguished. No torn or punctured button area is visible.
• Sections:
  • Electrotomy (Cutting – Yellow): “MICRO” mode and power settings are in this area.
  • Coagulation 1 & 2 (Coagulation – Blue): Automatic (AUTO) mode options are available.
  • Memo & Mode: On the right side, memory (1-4) and mode (MONO, BI, TRI) selection buttons are located.
• Switch: The O/I power switch, presumed to be green-lit, is intact and in place at the bottom left corner.

Mechanical Components and Connection Points (Ports)

The connection sockets on the front lower part of the device have been examined in detail:

• Socket Condition: While the socket inputs appear physically intact, dust accumulations due to time may be present inside them. No broken pin or port has been distinguished in the visual.
• Connection Types:
  • Neutral electrode (Plate) input.
  • “F” and lightning icon ports symbolizing Monopolar and Bipolar outputs.
  • Footswitch connection input.

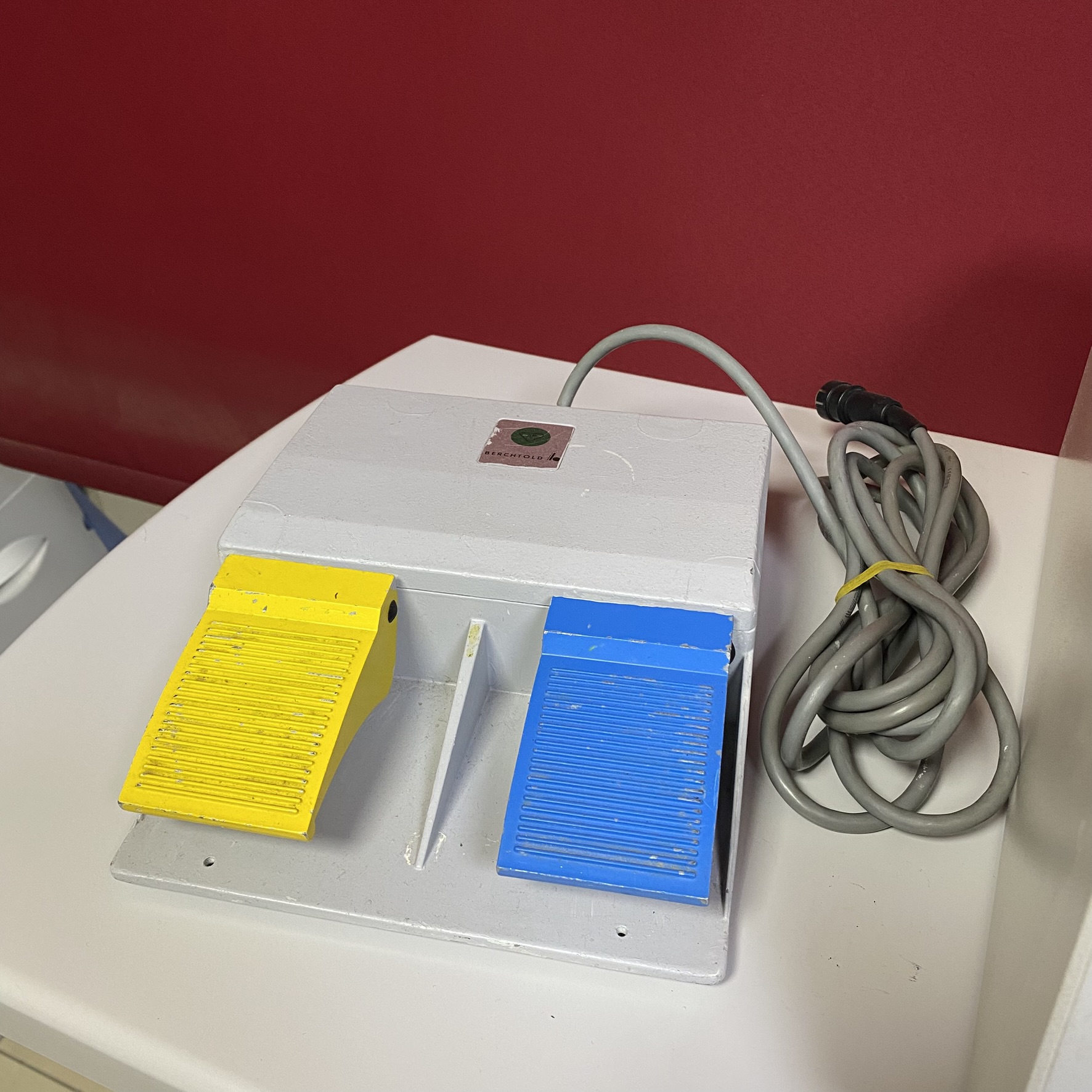

Footswitch Analysis

Details of the footswitch shown with the product are as follows:

• Brand/Compatibility: A “BERCHTOLD” brand label is present on the pedal, confirming its compatibility with the main unit, but the label is worn.
• Cosmetic Condition: The pedals (yellow and blue pressing surfaces) show significant paint chipping, scratches, and signs of heavy use. Stains indicating possible oxidation or initial rusting are visible on the metal parts.
• Cable: The grey connection cable of the pedal is gathered with a cable tie. No breaks or deep cuts have been detected in the visible parts of the cable. The multi-pin black connection socket at its end appears intact.

Potential Risk and Malfunction Assessment

The risk analysis based on the visuals is as follows:

• Cosmetic Wear: The device, especially the footswitch, has been used heavily. This indicates a long service history for the device. Although the spring stiffness of the pedal mechanism cannot be determined from the visual, cosmetic wear may be a sign of mechanical fatigue.
• Electronic Risk: The device is not visible in working condition (e.g., active screen lights). Given the device’s age, the condition of internal electronic components (capacitors, etc.) is unknown, which is an uncertainty, but no burnt, broken, or missing parts are visible externally.
• Conclusion: The visual inspection did not detect any physical break or integrity impairment that would prevent the device from operating. Its general condition is such that it can continue its function with maintenance.
