Erbe Elektromedizin Erbotom T 400 B Electrocautery Device Analysis Report
Device Identification and Identity Information

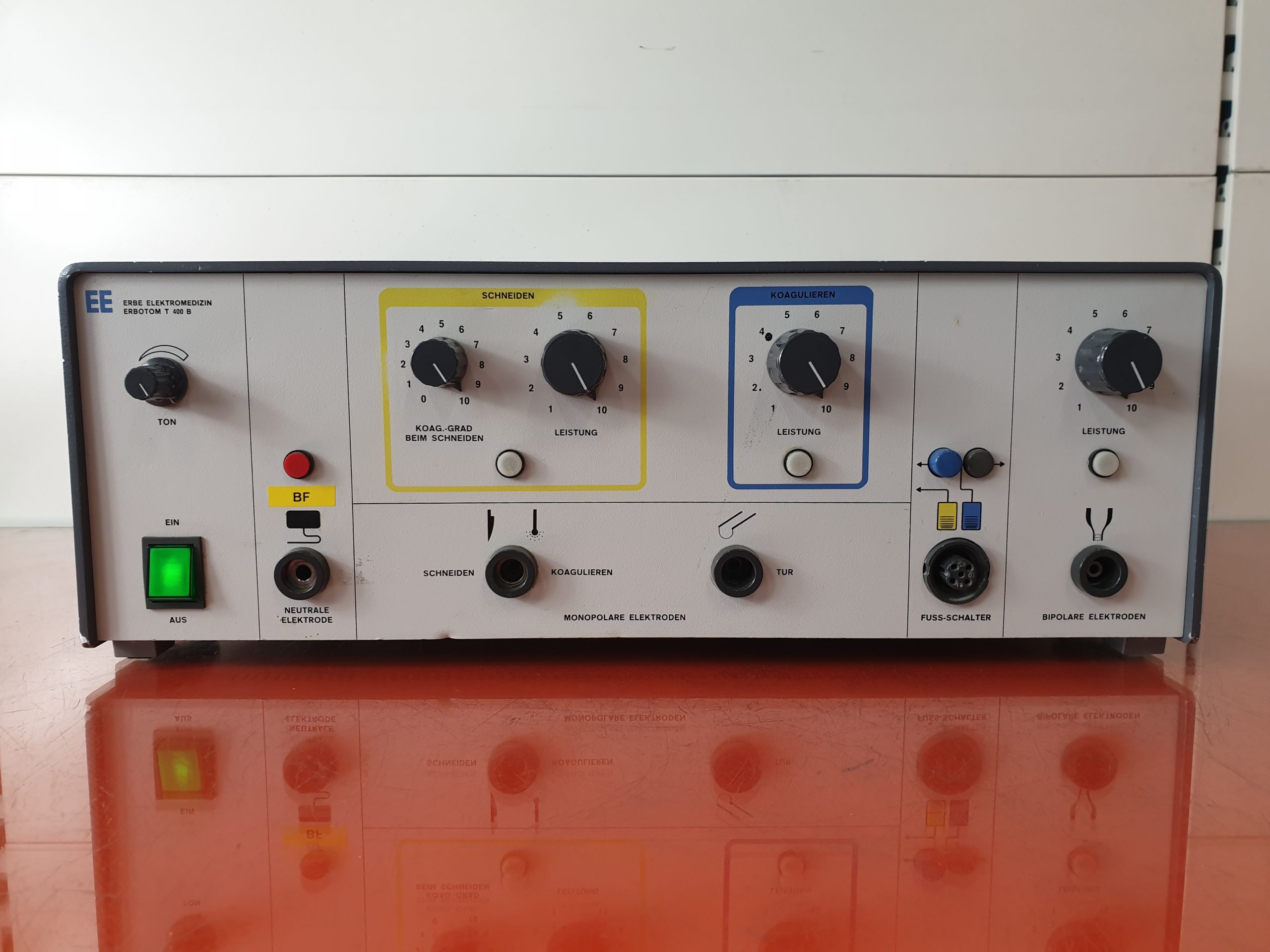

The device in the image is an electrocautery device used for tissue cutting and coagulation in medical operations. The brand and model information have been clearly identified from the text on the front panel of the device.
- Brand: Erbe Elektromedizin
- Model: Erbotom T 400 B
General Condition and Physical State
The general condition of the device appears to be used. There is contamination, stains, and slight discoloration on the front panel and around the control knobs due to usage. While no significant deep dents or cracks are visible on the metal casing, there are superficial scratches and signs of wear on the surface. The reflection under the device suggests that there is similar contamination on the lower parts as well.
Mechanical and Electronic Component Analysis
All rotary control knobs (potentiometers) and push buttons on the front panel are in place. There is contamination and wear on the plastic parts of the buttons. The green illuminated power (EIN/AUS) switch in the bottom left corner appears to be intact. Since the back of the device, its internal structure, or electronic boards are not visible in the image, no comments can be made regarding the condition of the electronic components.
Sockets and Connection Points
There are various socket inputs for different accessories on the front panel of the device. The condition of these inputs is as follows:
- Neutrale Elektrode: There is one single socket input. There is slight contamination around it.
- Monopolare Elektroden: There are two socket inputs for “Schneiden” (Cutting) and “Koagulieren” (Coagulation) operations.
- TUR: There is one socket input.
- Fuss-Schalter: There is a multi-pin, circular socket input for the footswitch connection. The internal structure of the socket appears to be intact.
- Bipolare Elektroden: There is one socket input.
All socket inputs are in place and do not contain any visible breaks or deformations, although there may be dust and dirt accumulation inside them.
Functional Features and Panel Markings
The front panel of the device is divided into color-coded sections according to its functions:
- Ton: There is a knob to adjust the volume of the device.
- BF: There is a yellow “BF” mark and a red warning lamp above the “Neutrale Elektrode” socket.
- Schneiden (Yellow Section): There are two adjustment knobs for the cutting function. One is for “Koag.-Grad beim Schneiden” (Coagulation degree during cutting) and the other is for “Leistung” (Power) adjustment. There is also one push button in this section.
- Koagulieren (Blue Section): There is one “Leistung” (Power) adjustment knob and one push button for the coagulation function.
- Bipolare Elektroden (Right Section): There is one “Leistung” (Power) adjustment knob and one push button for the bipolar mode.
The scaling markings from 0 to 10 around all knobs are legible.
Accessories and Documents
Only the main unit of the device is present in the image. Monopolar/bipolar electrodes, patient plate (neutral electrode), footswitch, power cable, or other accessories used with the device are not available. Furthermore, documents such as the user manual, warranty certificate, or invoice for the device are not included in the images.
Label Information and Technical Data
There is no label on the front panel of the device containing specific tracking information such as serial number, production year, REF code, or lot number. This information is likely located on the label on the back or bottom panel of the device.
Fault and Risk Assessment
No evidence of a fault such as a clear mechanical break, missing part, or burn mark that would prevent the device from operating is visible in the images. Although the physical condition of the device is worn due to its age and usage, it maintains its integrity. Contamination in the socket inputs may pose a risk of poor contact, but this situation can be resolved with simple cleaning. The general condition of the device is good, and no serious risk of failure has been observed.
