Secondhand Weinmann Ventilogic LS Home Mechanical Ventilator

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 11.11.2025

Weinmann Ventilogic LS Ventilator Analysis Report

Overview and Device Identification

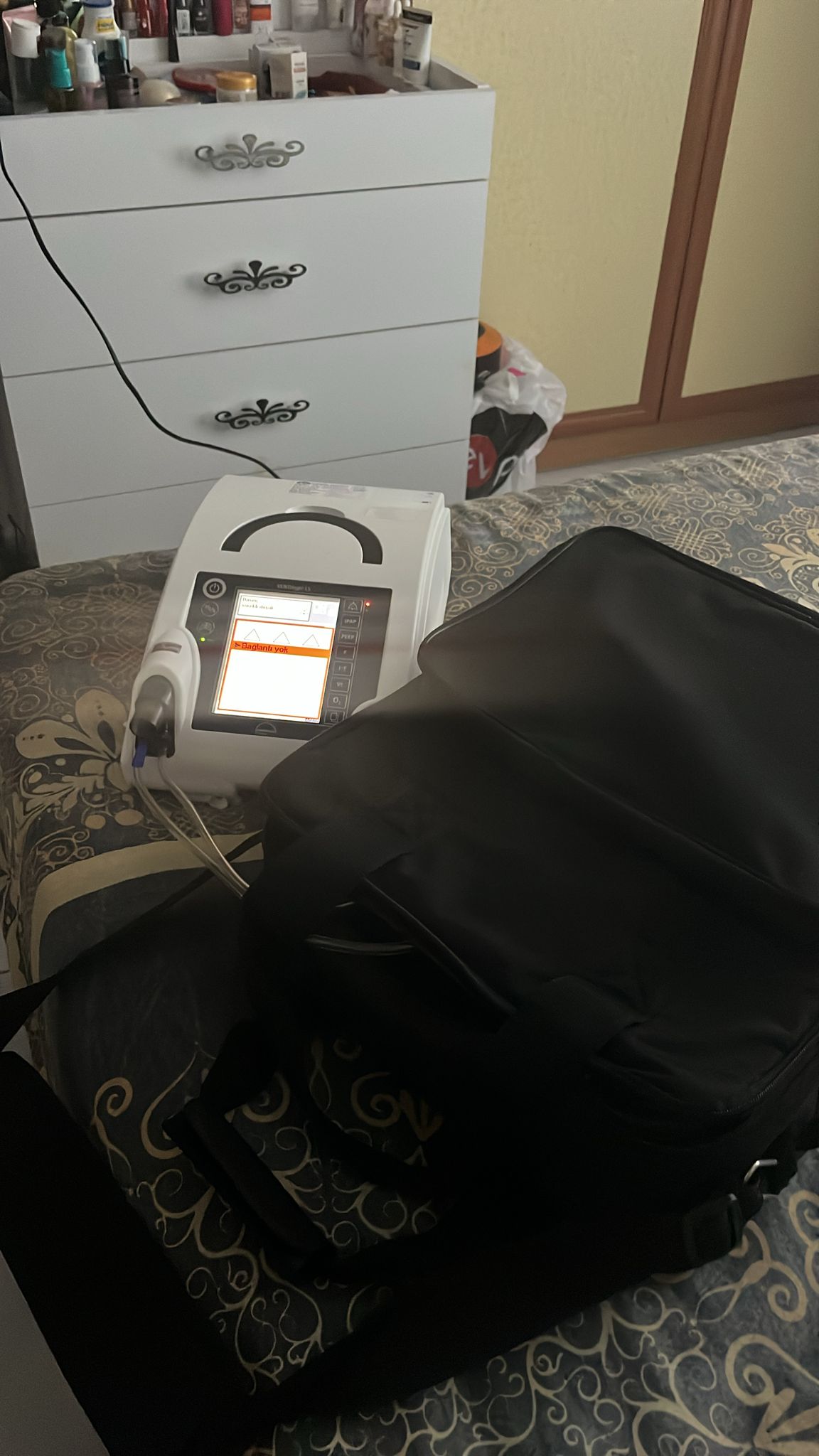

The visuals show a mechanical ventilator (respiratory device) used to provide invasive and non-invasive respiratory support, and a black carrying case belonging to this device. The purpose of the device is to provide controlled air or oxygen support to patients experiencing respiratory failure. A total of 2 items are visualized: 1 ventilator device and 1 carrying case.

Brand and Model Information

Through detailed visual analysis and the clear writing on the screen, the brand and model of the device have been clearly identified. The device is the Ventilogic LS model from the Weinmann (Löwenstein Medical) brand. This information is legibly displayed on the device’s screen when it is powered on and operational. It is understood from the professional structure, screen quality, and details on its casing that the product is an original device.

Physical Condition and Deformation Analysis

The general condition of the device is quite good, and it appears to have been used. No significant deformations such as scratches, dents, cracks, or discoloration are observed on its white main casing. The surface is generally clean. There is a label titled “Berdan Medikal” on the top part of the device. This label has slight lifting at its edges and handwritten notes that are difficult to read. Mechanical components such as the rotary control knob, power button, and other function keys appear visually sound and functional.

Screen and Operational Status Analysis

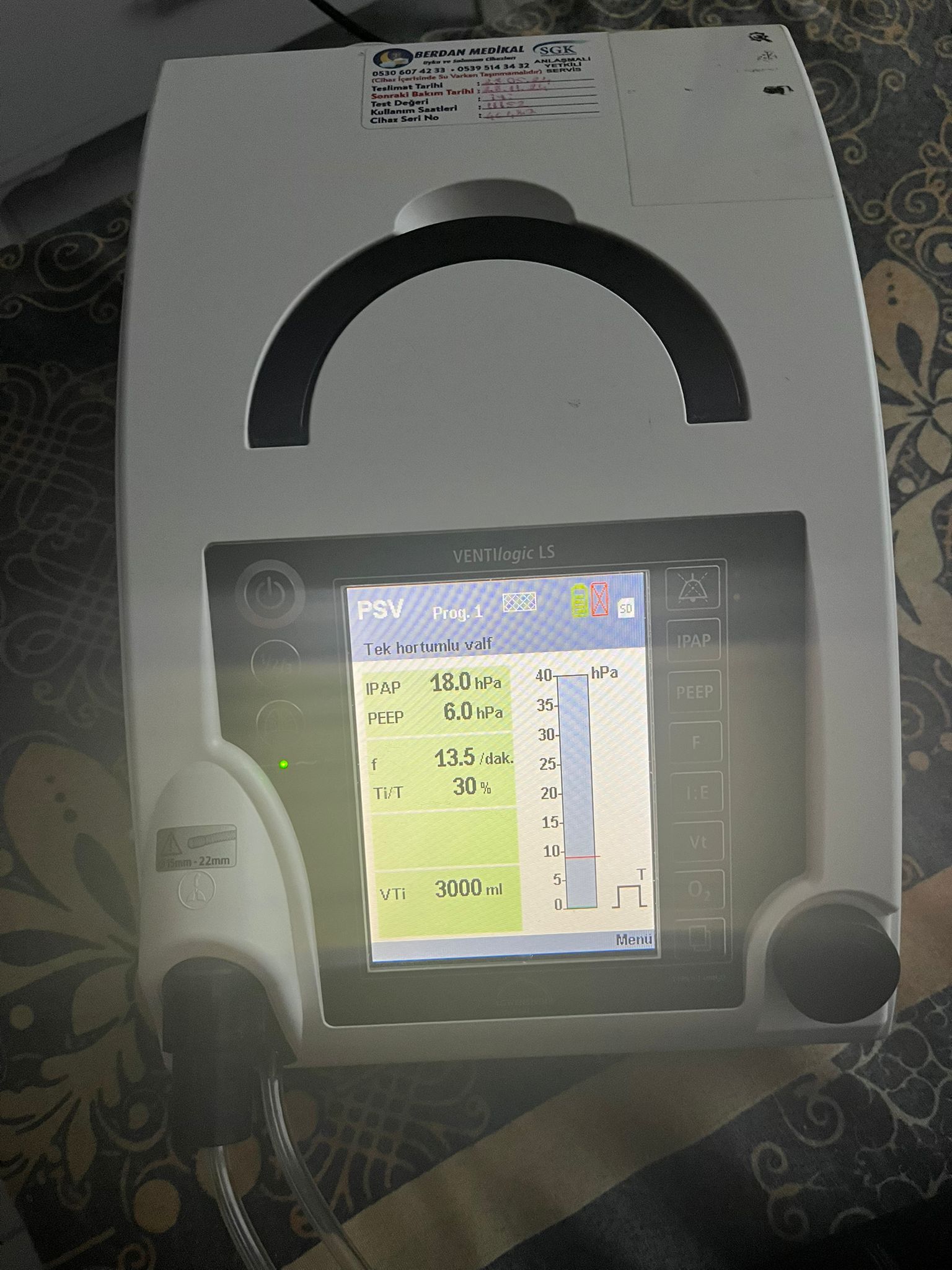

The device’s screen is operational, and the image quality is clear. The green light on the power button indicates that the device is active. There are no pixel errors, scratches, or darkening on the screen. The technical data and status information visible on the screen at the time of analysis are as follows:

• Model Name: VENTIlogic LS
• Active Mode: PSV (Pressure Support Ventilation)
• Program: 1
• Status Message: Single limb valve.
• IPAP Value: 18.0 hPa
• PEEP Value: 6.0 hPa
• Respiratory Rate (f): 13.5 /min.
• Inspiration Time (Ti/T): 30 %
• Tidal Volume (VTi): 3000 ml

Additionally, an SD card icon and a muted alarm icon are visible on the screen. This data indicates that the electronic components of the device are functioning and that it is set up for respiratory therapy.

Accessories and Complementary Equipment

In addition to the device, the visuals also show a black, original carrying case. A power cable connected to the device is visible, but other accessories such as the patient breathing circuit (hose and mask) are not present in the visuals. On the front panel of the device, there is an air outlet port where the breathing hose is attached, bearing the inscription “Ø 15mm – 22mm”. This indicates that the device is compatible with standard diameter breathing hoses.

Labels and Technical Details

An original manufacturer’s serial number or production date label is not clearly visible on the device. The service label on the top part contains the “Berdan Medikal” logo and contact information. Fields such as “Device Serial No” on this label were observed to be blank or illegible. This label indicates a technical service or supplier company, not the device manufacturer.

General Assessment and Potential Risk Analysis

Based on the examination of the visuals, it has been concluded that the device is in good technical and physical condition. The seamless operation of its electronic screen and the absence of any error messages indicate that the device is functional. No significant defects such as serious wear, rust, or crushed cables that could pose a potential risk of malfunction were detected on its casing. Cosmetically, only the slight wear observed on the upper service label is not a condition that would affect the device’s operation. The device’s overall condition suggests it has been used carefully.
