Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 02.04.2026
Report code: 1775125016
Ventil As Mechanical Ventilator Analysis Report
Device Identification and Brand Model Information
The device in the images is a mechanical ventilator used to provide respiratory support. Based on the logo and inscriptions on the device’s front panel, its brand and model have been definitively identified as Ventil As.
Originality
Upon examining the membrane keypad on the device, standard medical gas connection ports, body structure, and screen interface design, the product is assessed to be an original manufacture.
Areas of Use
This device is designed to provide mechanical ventilation support to patients suffering from respiratory failure. The parameters and hose connections on it indicate its suitability for use in home care or clinical environments.
Quantity Information
The images show 1 main ventilator device, 2 thick spiral breathing hoses, and 1 thin transparent control hose.
General Condition and State
The device is in used condition. The plastic frame on the front panel has been observed to be noticeably yellowed. There are slight superficial abrasions on the metal casing due to age and use, but the device maintains its overall structural integrity.
Physical Deformation
The plastic components on the front surface of the device show age-related discoloration and yellowing. No deep scratches, dents, or cracks have been observed on the casing. The metal hose connection ports at the rear are physically undamaged.

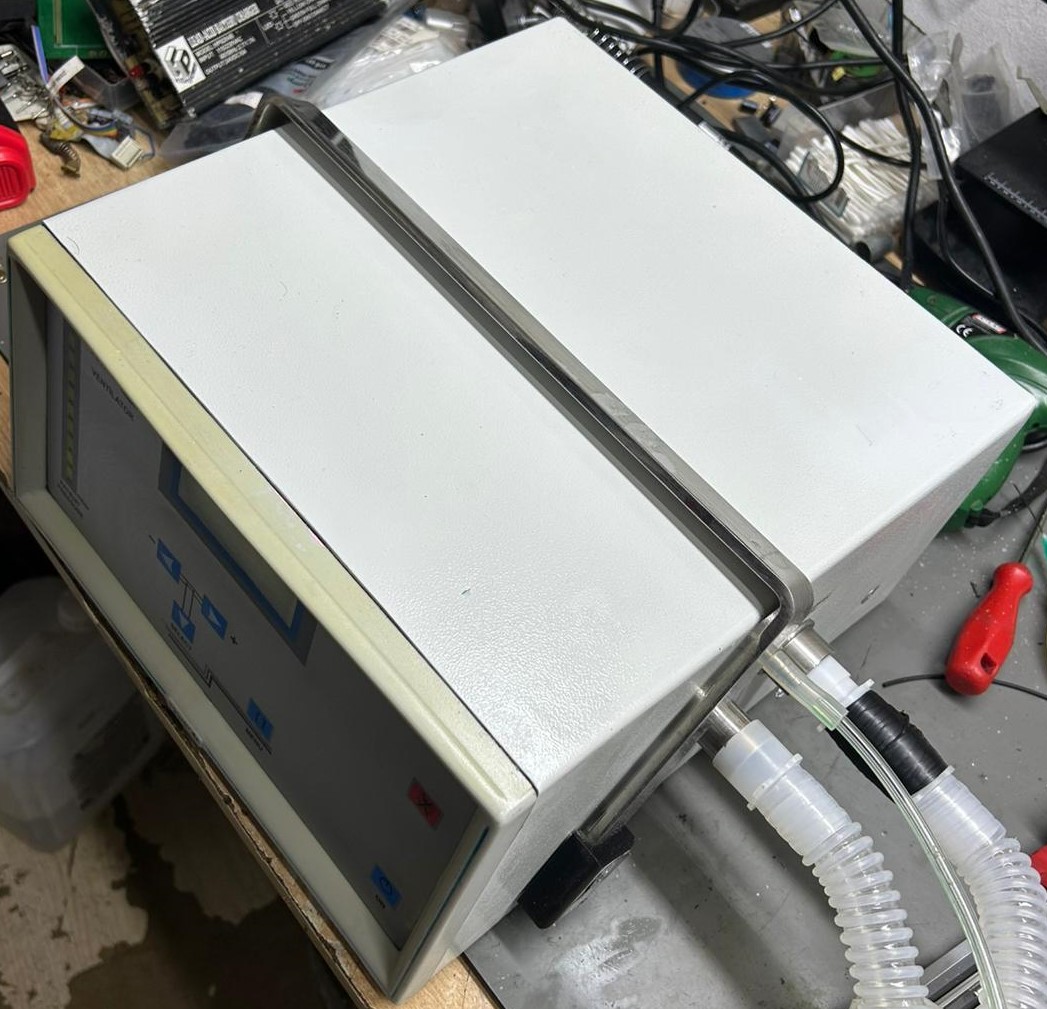

Mechanical Components
The metal carrying handle located on the upper part appears sturdy. There are no tears, erasures, or perforations on the membrane keypad of the front panel. The screws at the casing joints appear complete.
Electronic Components and Screen Analysis

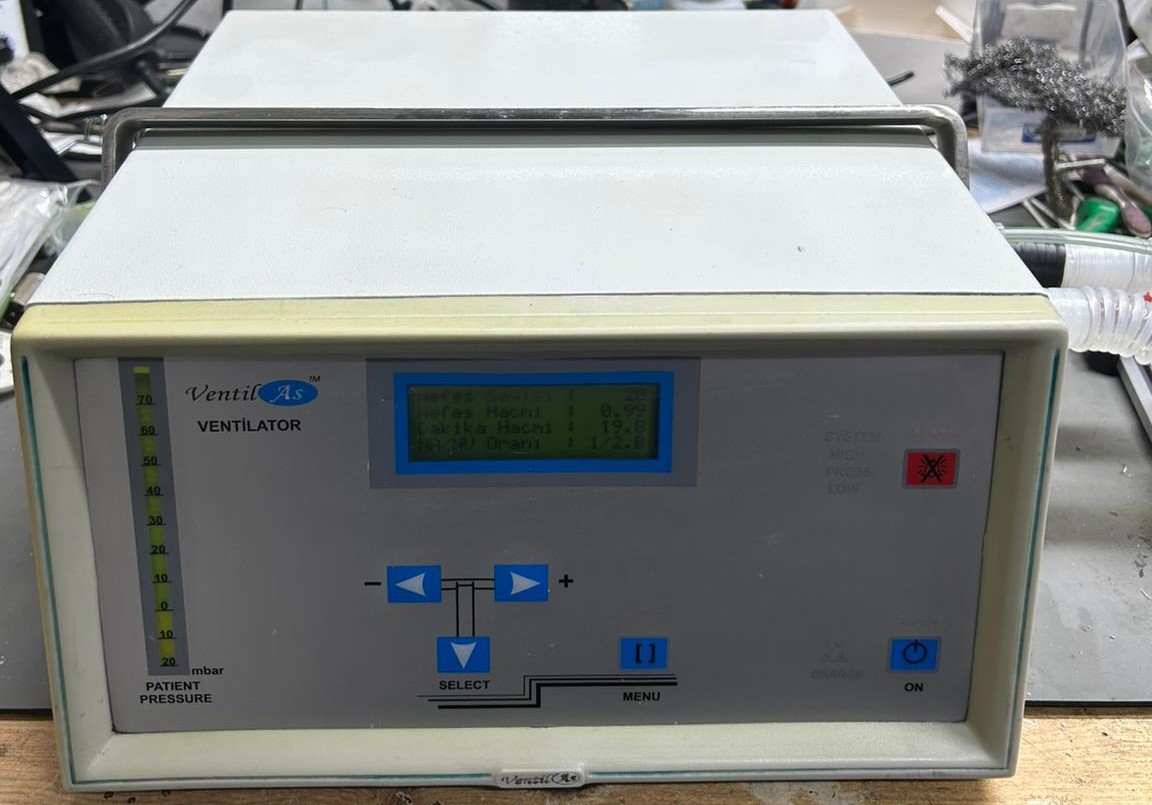

The device’s front panel features a blue backlit LCD screen. The screen is active and displays the following respiratory parameters:
- Breath Count 22
- Tidal Volume 0.99
- Minute Volume 19.8
- I/E Ratio 1/2.0
On the right side of the screen, there is a red, crossed-out bell icon indicating alarm statuses and LED indicator areas for system pressure warnings. Power and charging notification lights are located at the bottom.
Accessories and Connection Points

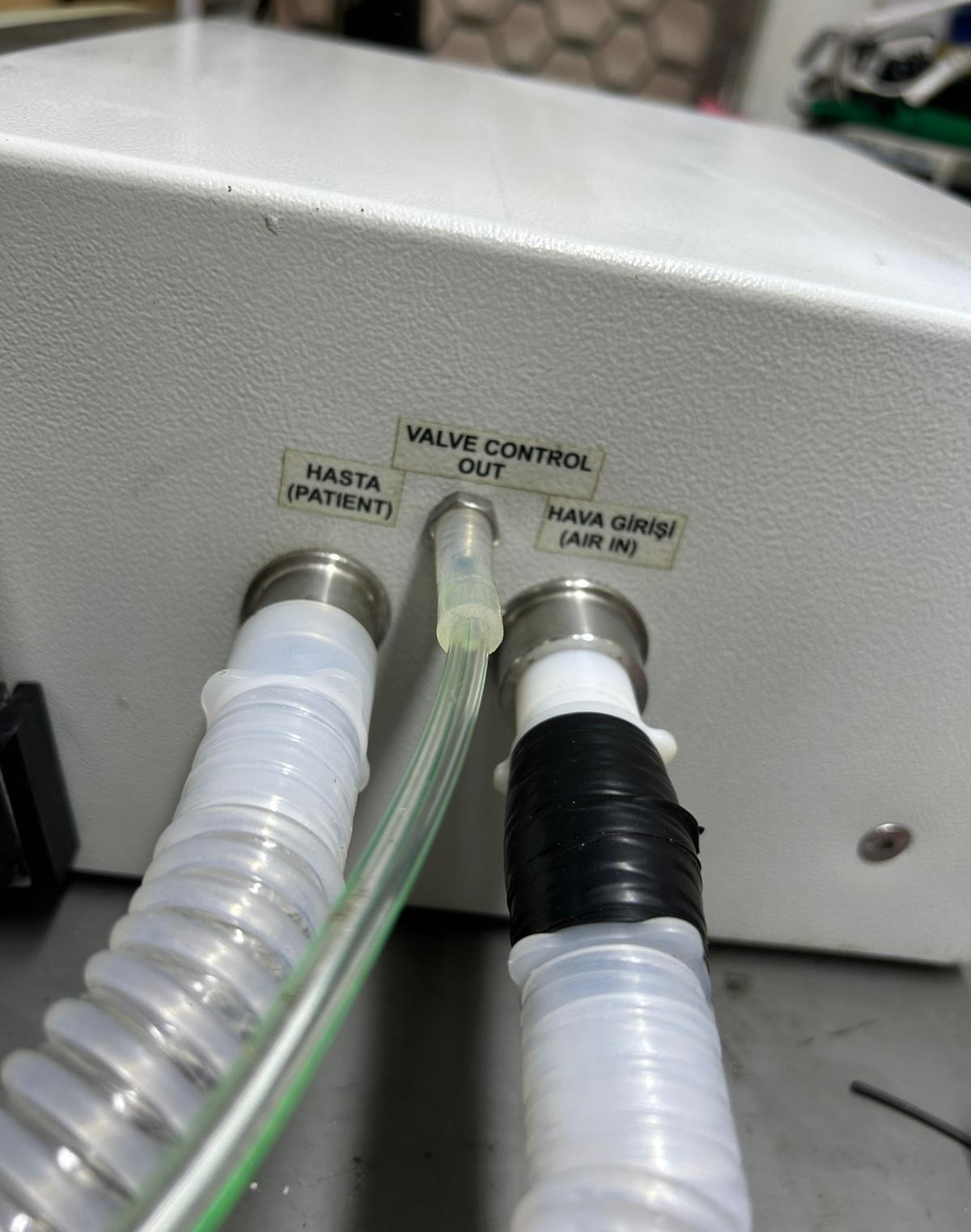

On the side/rear section of the device, there are three metal connection ports with hoses attached. These sections are as follows:
- One thick, transparent/white spiral hose connected to the HASTA (PATIENT) port.
- One thick, transparent/white spiral hose connected to the HAVA GİRİŞİ (AIR IN) port. There is an intervention wrapped with black electrical tape at the point where this hose connects to the device.
- One thin, transparent greenish hose connected to the VALVE CONTROL OUT port.
Labels and Inscriptions on the Device
The inscriptions on the device’s body and front panel are as follows:
- Ventil As TM (Front panel top left logo)
- VENTILATOR (Front panel top left)
- PATIENT PRESSURE mbar (Front panel left side, 0-70 pressure scale)
- SYSTEM HIGH PRESS LOW (Front panel right side)
- SELECT, MENU, ON, CHARGE (Front panel keypad)
- HASTA (PATIENT) (Connection port label)
- VALVE CONTROL OUT (Connection port label)
- HAVA GİRİŞİ (AIR IN) (Connection port label)
Battery Status
The presence of a CHARGE indicator on the front panel suggests that the device has an internal battery. However, there is no visual data regarding the battery’s capacity or current health status.
Existing Fault and Potential Fault Risk
No error codes or fault messages are displayed on the screen. However, a wrapping made with black electrical tape is observed at the base of the hose connected to the HAVA GİRİŞİ (AIR IN) port. This situation indicates a potential air leak or looseness in the hose or connection socket. This taped area poses a potential risk that could lead to pressure loss or ventilation inefficiency. Apart from this, the device’s general condition is operational.
