Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 14.08.2025
GE Healthcare 1.5T Express Coil HD Anterior Array Analysis Report
Overview and Product Description
The product shown in the images is a device component used in medical imaging systems. Based on the information and logo on the product labels, it has been clearly identified that its brand is GE Healthcare and its model is 1.5T Express Coil HD Anterior Array. This component is a coil unit compatible with 1.5 Tesla magnetic field strength MR (Magnetic Resonance) devices. The anterior array structure is typically used to capture high-resolution images from the anterior part of the patient’s body (e.g., torso, abdomen). The labels and logo on the product indicate that it is an original GE Healthcare component.
Physical Condition and Deformation Analysis

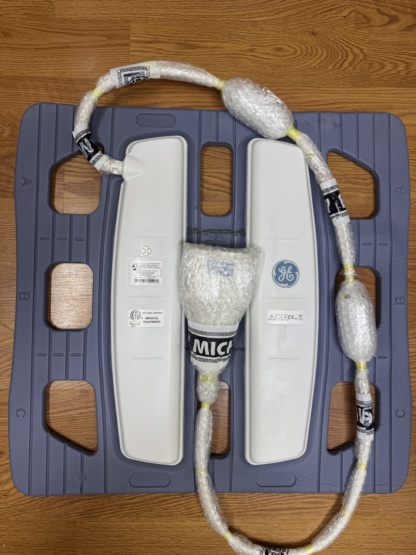

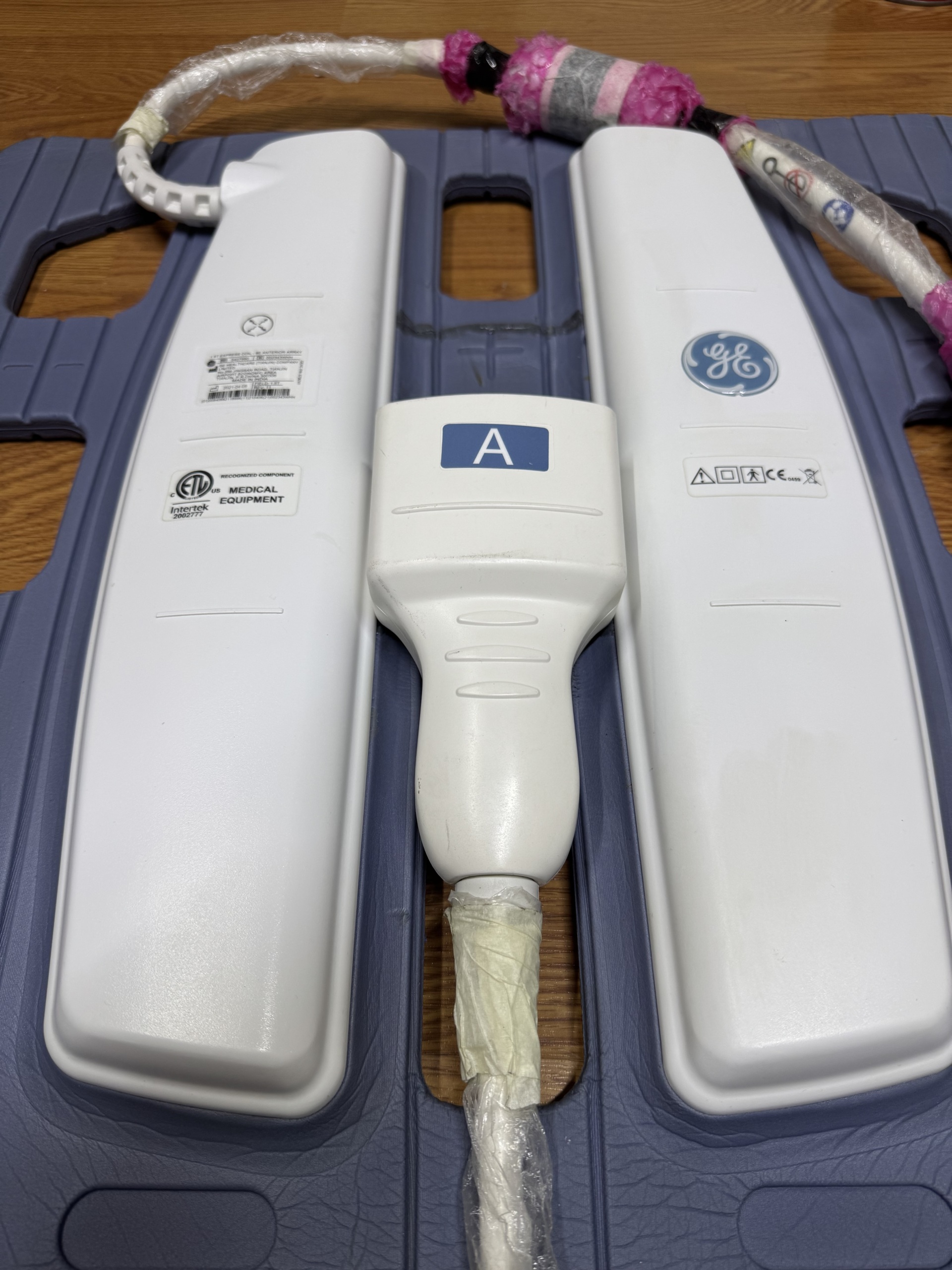

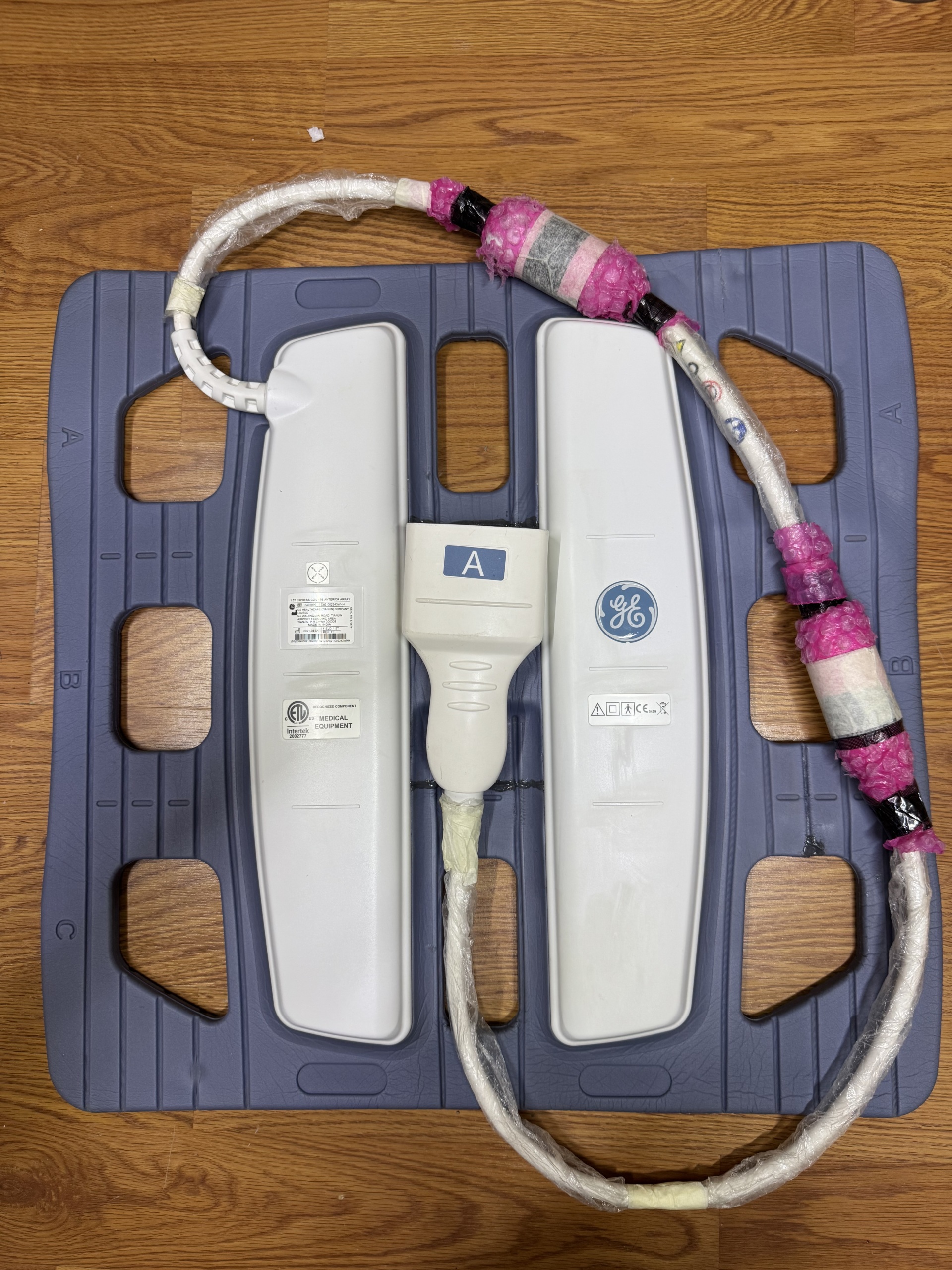

The product is generally in a used condition. There are superficial scratches, light dirt, and stains on the white main body parts in places. No cracks, breaks, or severe dents have been observed on the device’s plastic casing or the blue transport platform. However, intensive and non-standard wrapping has been applied to the cable connecting different parts of the component. A large portion of the cable is covered with clear stretch film, tape, and in some areas, a pink-colored material. This situation suggests that it might be a repair or reinforcement done to conceal or protect existing damage to the cable’s outer sheath. Aside from the cable, no significant physical deformation is present on the device’s main body or connector.
Technical Information and Label Data

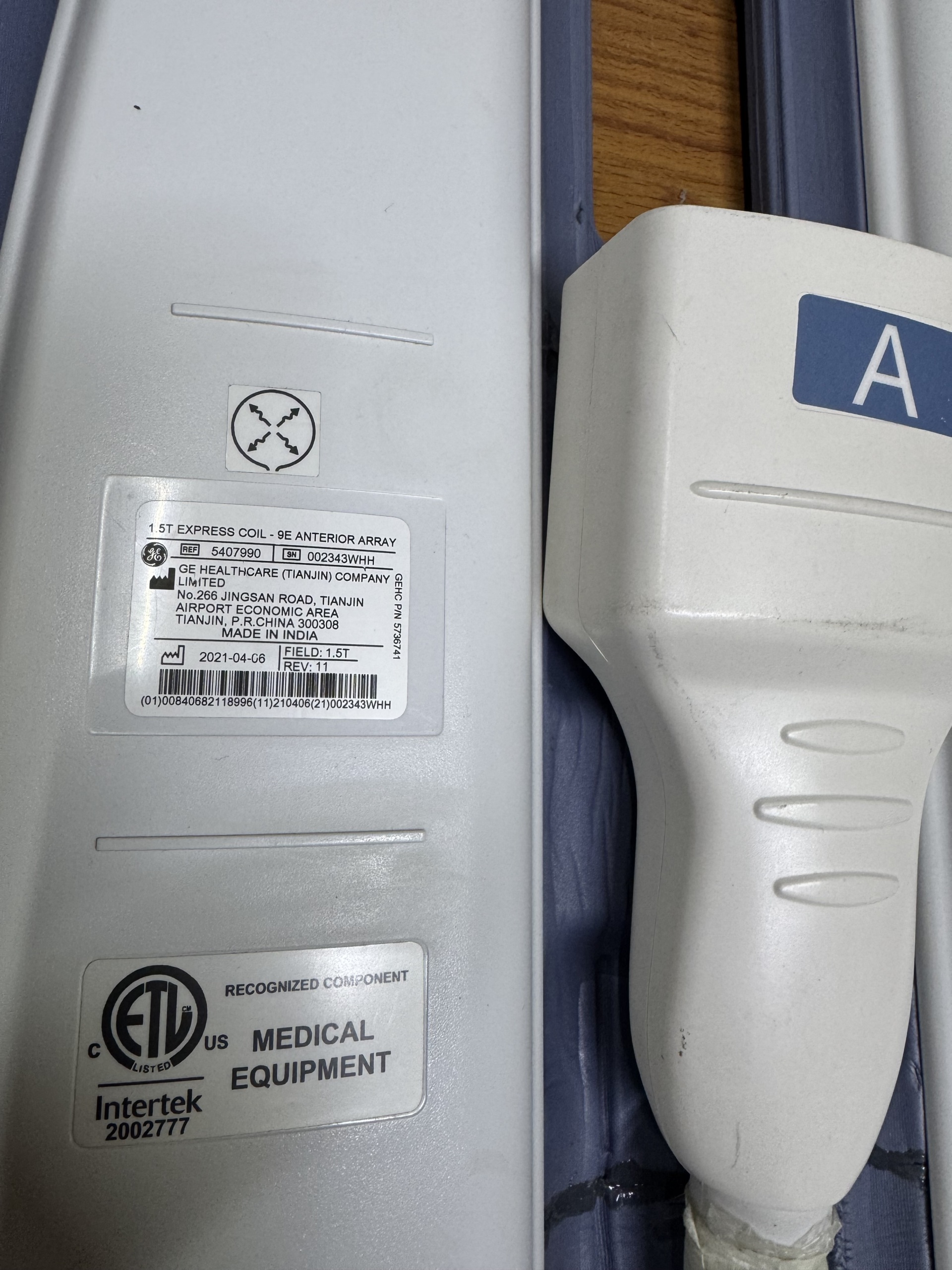

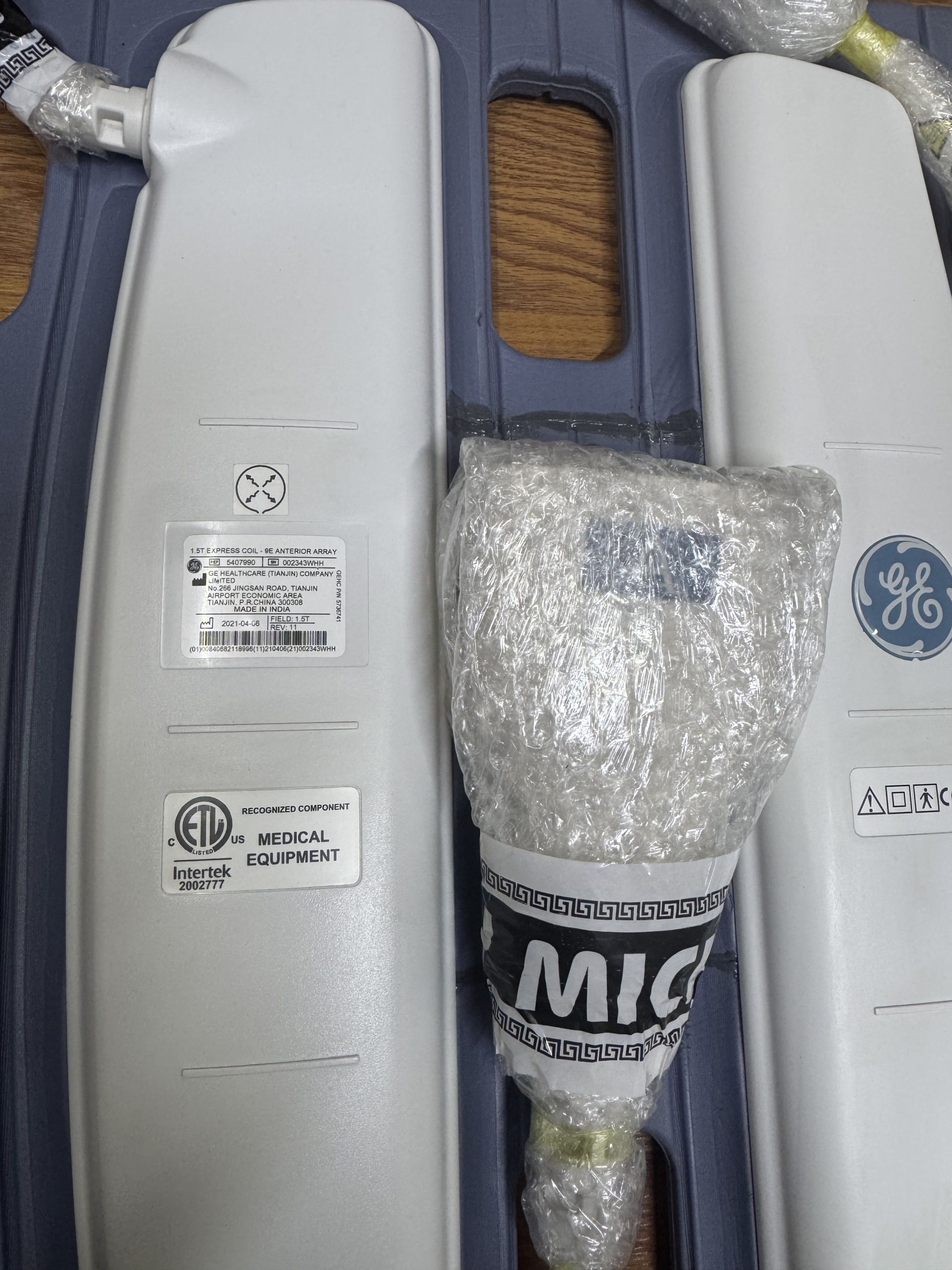

The label on the device contains the following technical information. This information verifies the product’s identity and specifications:
- Product Name: 1.5T EXPRESS COIL HD ANTERIOR ARRAY
- REF Code: 5407990
- Serial Number (SN): 002343WHH
- Manufacturing Date: 2021-04-06
- Magnetic Field Strength Compatibility: 1.5T
- Revision: REV: 10
- Manufacturer: GE HEALTHCARE (TIANJIN) CO.,LTD
- UDI Information: (01)00840682118996(11)210406(21)002343WHH
- Certification: Intertek ETL Listed (2002777)
Accessory and Quantity Information
The images show 1 unit of GE Healthcare 1.5T Express Coil HD Anterior Array and 1 blue positioning platform on which this coil is placed. The cable, connector, and coil units are integrated into a single piece. Besides these, no box, additional cable, user manual, or other accessories are present in the images.
Potential Risk Assessment
While the product’s general condition appears suitable for use, the most prominent potential risk factor is the extensive wrapping on the cable. This non-standard covering may indicate a weakness, crushing, or repair in the cable’s internal structure or outer sheath. The current state of the cable could pose a risk of signal interruptions or performance degradation. Therefore, it is important for the cable’s integrity to be professionally checked before the device is used. Apart from this, no significant wear or fault risk has been observed on the device’s main body.
