Secondhand GE 5145567-2 Breast Coil

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 14.08.2025

GE Brand Magnetic Resonance Imaging Coils Analysis Report

Device Identification and Description

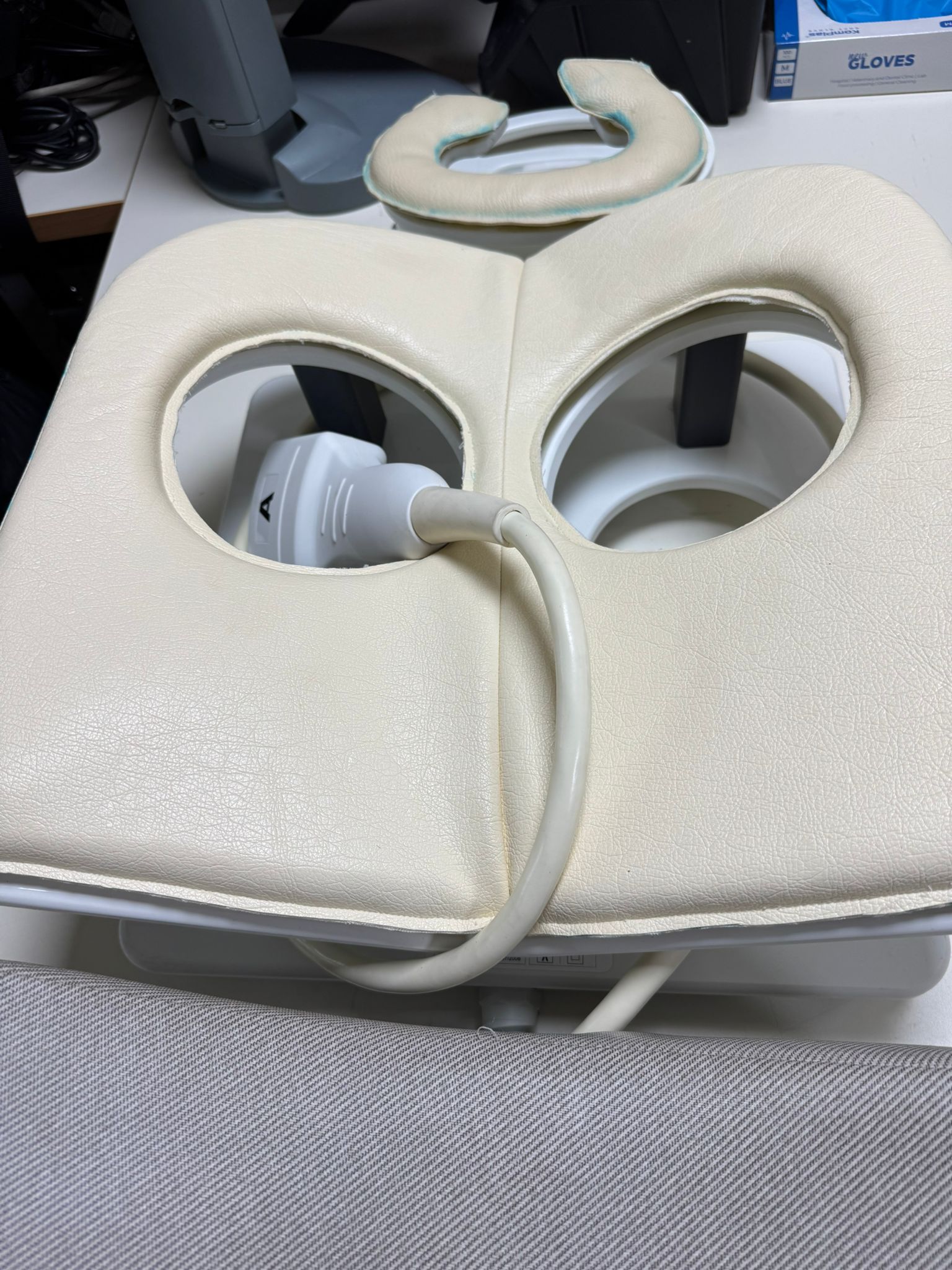

In the images, a coil specifically for breast imaging, used in Magnetic Resonance Imaging (MRI) systems, and a small accessory that can be used as a neck/head support were identified. The main device is covered with a cream-colored, artificial leather-like pad with circular openings inside.

Brand and Model Information

Two different product labels were identified in the images. Both labels belong to the GE brand and contain different model information.

• GE Healthcare HD 4Ch Breast Array: This model information is clearly legible on the label located under the large breast coil in the images.
• GE Medical Systems Breast Array Coil: This model information was identified on a separate label.

Authenticity Assessment

The logos on the device and its accessories, the print quality of the labels, the clarity of the texts, and the presence of the CE mark suggest that the products are original items belonging to the GE brand. The overall workmanship and material quality appear consistent with a professional medical device.

Areas of Use

The main product in the image, as stated on its label, with “Breast Array” and “Receive Only” features, is used for breast imaging in magnetic resonance imaging (MRI) devices. This coil helps create images by detecting signals from the MRI device. The small U-shaped accessory seen can be used to support the patient’s head or neck area.

Quantity Information

• One (1) large Magnetic Resonance Imaging (MRI) breast coil (main unit with pad).
• One (1) small U-shaped padded accessory (probable head/neck support).
• One (1) ‘A’ labeled probe/connection cable that can be attached to the coil.
• Label information for two (2) different MRI breast coils is available.

General Condition and Physical Deformations

The general condition of the device is assessed as used. The cream-colored pad of the main breast coil has some noticeable physical deformations and stains. Specifically, pinkish discoloration and staining are observed on the edges of the pad’s circular openings and in the stitching areas. Slight dirt and signs of wear are also present on the general surface of the pad. No visible cracks, dents, or major breaks were detected in the general structure of the device or its hard plastic components.

Mechanical and Electronic Components

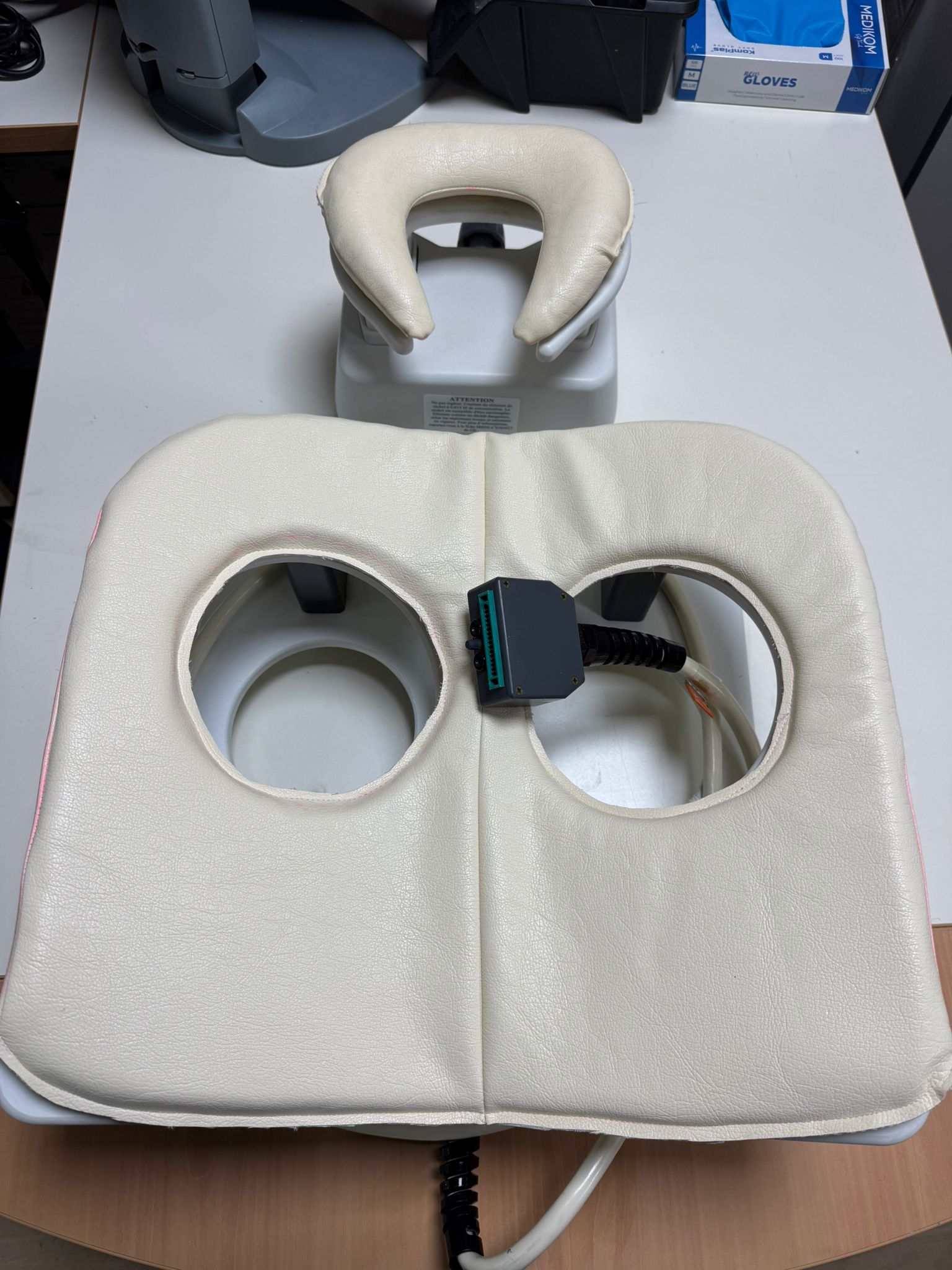

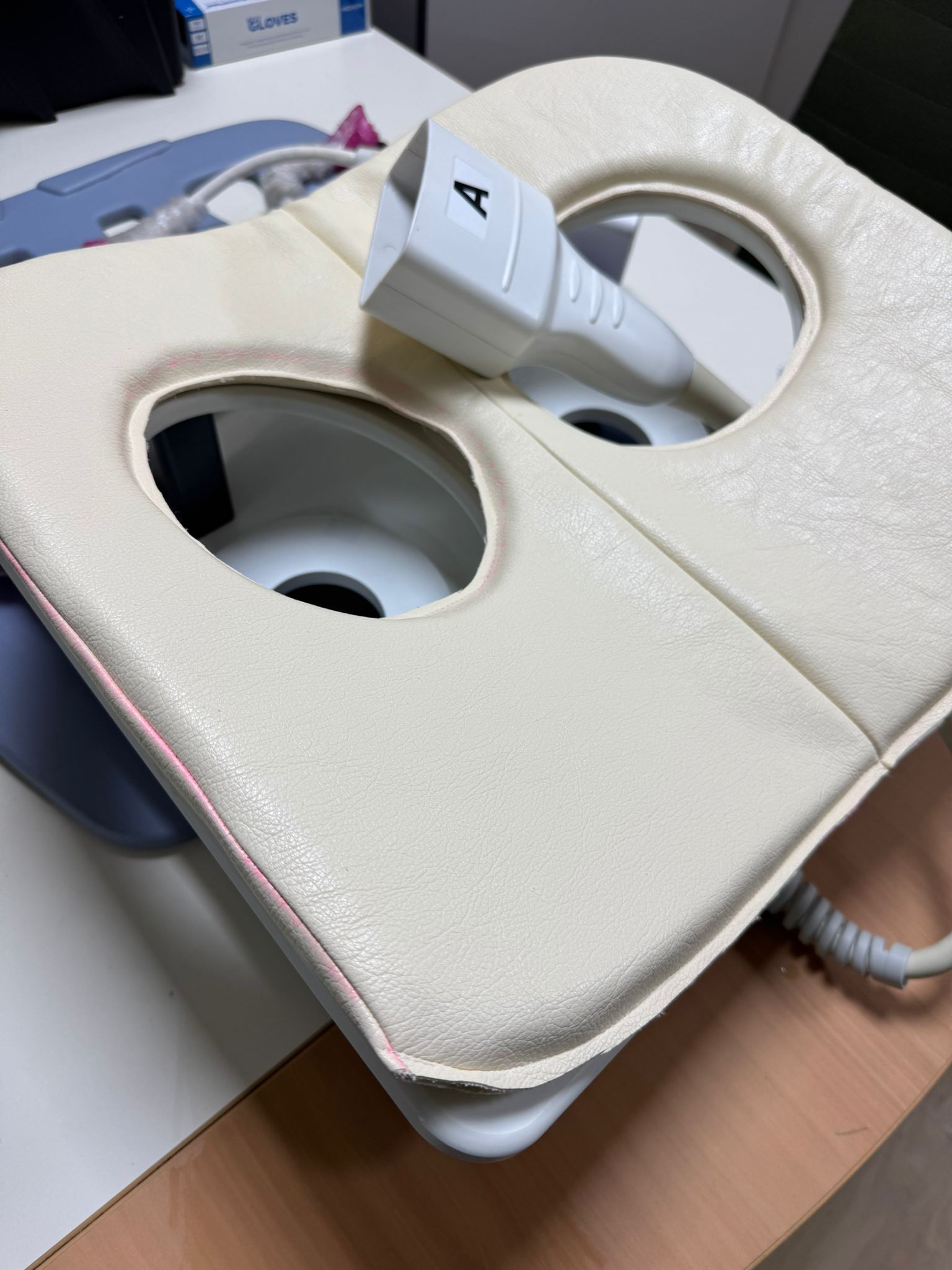

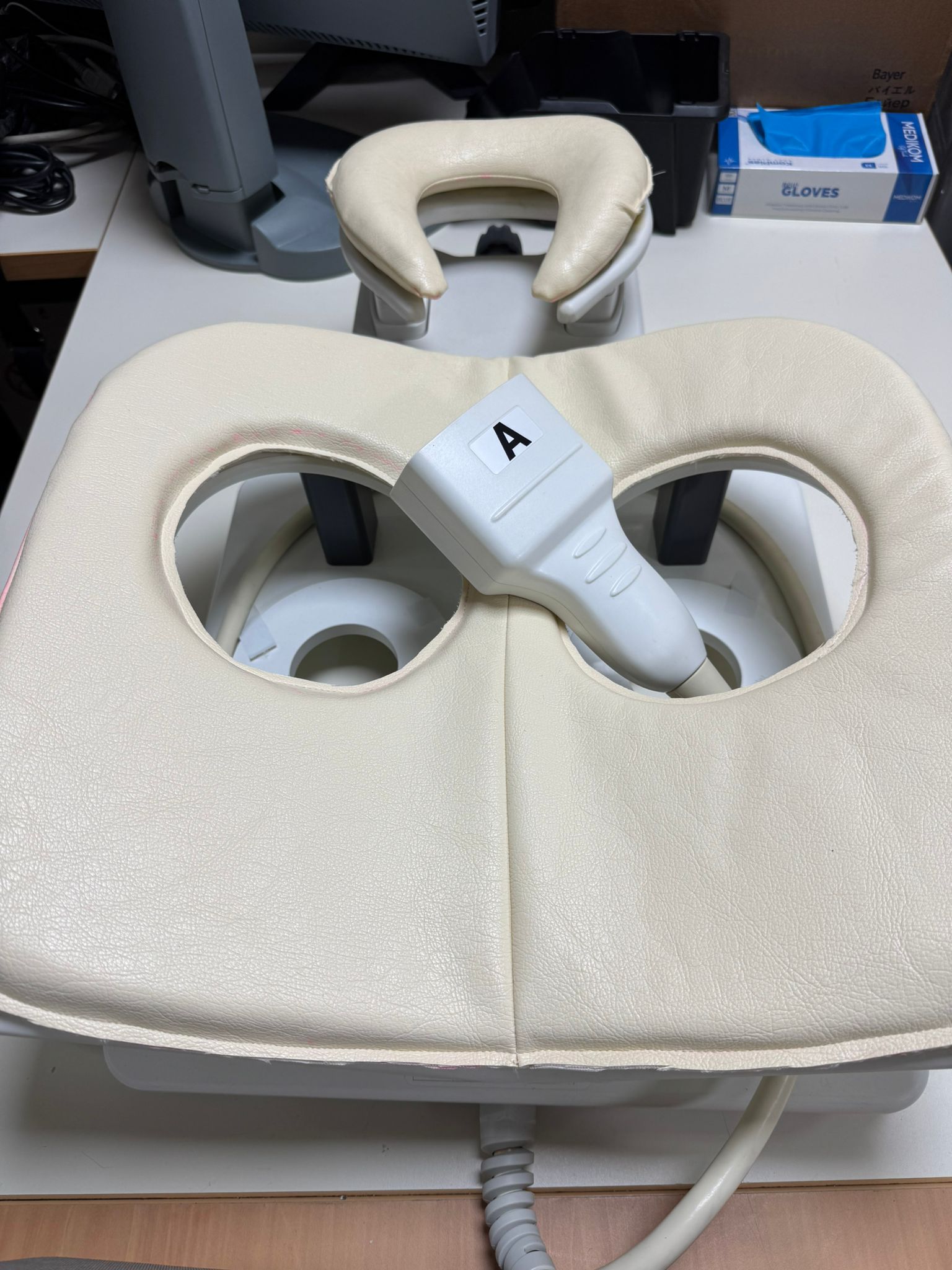

In terms of mechanical components, slight wear and color changes are observed in the stitching areas of the pads. The main coil has a cable and a green and black colored socket input connected to this cable. Additionally, a white, detachable probe with the letter “A” and its coiled cable are present in the image. The cable connection points and sockets of this probe and the main coil appear visually intact. No externally observable damage (such as broken cables, burn marks, etc.) is found in the electronic parts.

Accessories

In addition to the main breast coil, the following accessories were identified in the images:

• One small, U-shaped, cream-colored padded support accessory.
• An ‘A’ labeled probe that can be attached to the main breast coil, with its integrated coiled cable.
• A green and black, multi-pin socket input is present on the main coil.

No additional accessories such as a box, external cable set, or user manual are present in the images. There is no information regarding the expiration date of the accessories.

Label Information

Information obtained from two separate product labels in the images is detailed below:

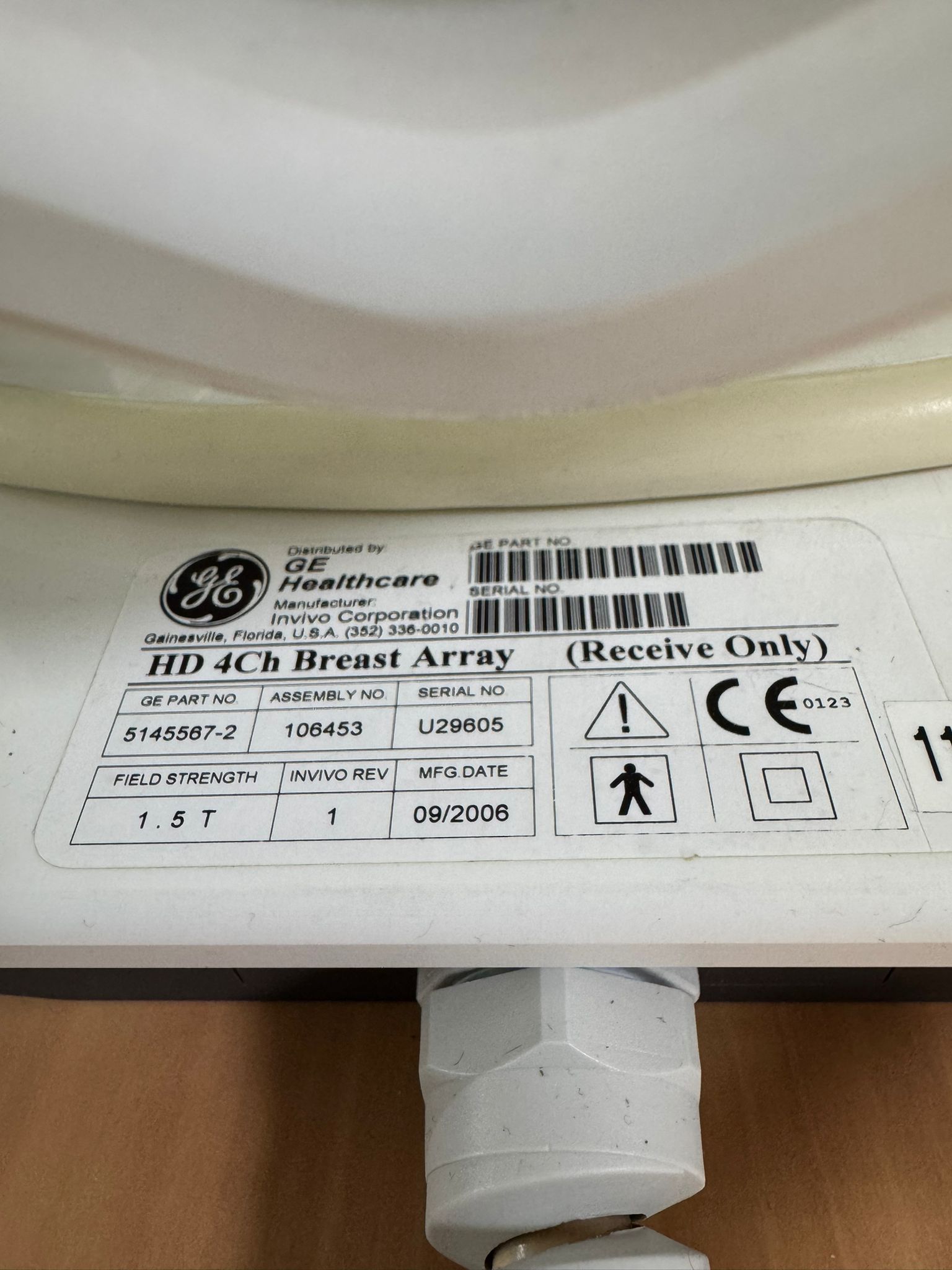

GE Healthcare HD 4Ch Breast Array Label Information:

• Distributor: GE Healthcare
• Manufacturer: Invivo Corporation
• GE PART NO: 5145567-2
• ASSEMBLY NO: 106453
• SERIAL NO: U29605
• FIELD STRENGTH: 1.5 T
• INVIVO REV: 1
• MFG DATE: 09/2006
• Other Codes/Information: “Receive Only” indication, CE 0123 mark, “Consult User Manual” symbol, “Type BF Applied Part” symbol, “Waste Electrical and Electronic Equipment (WEEE)” symbol.

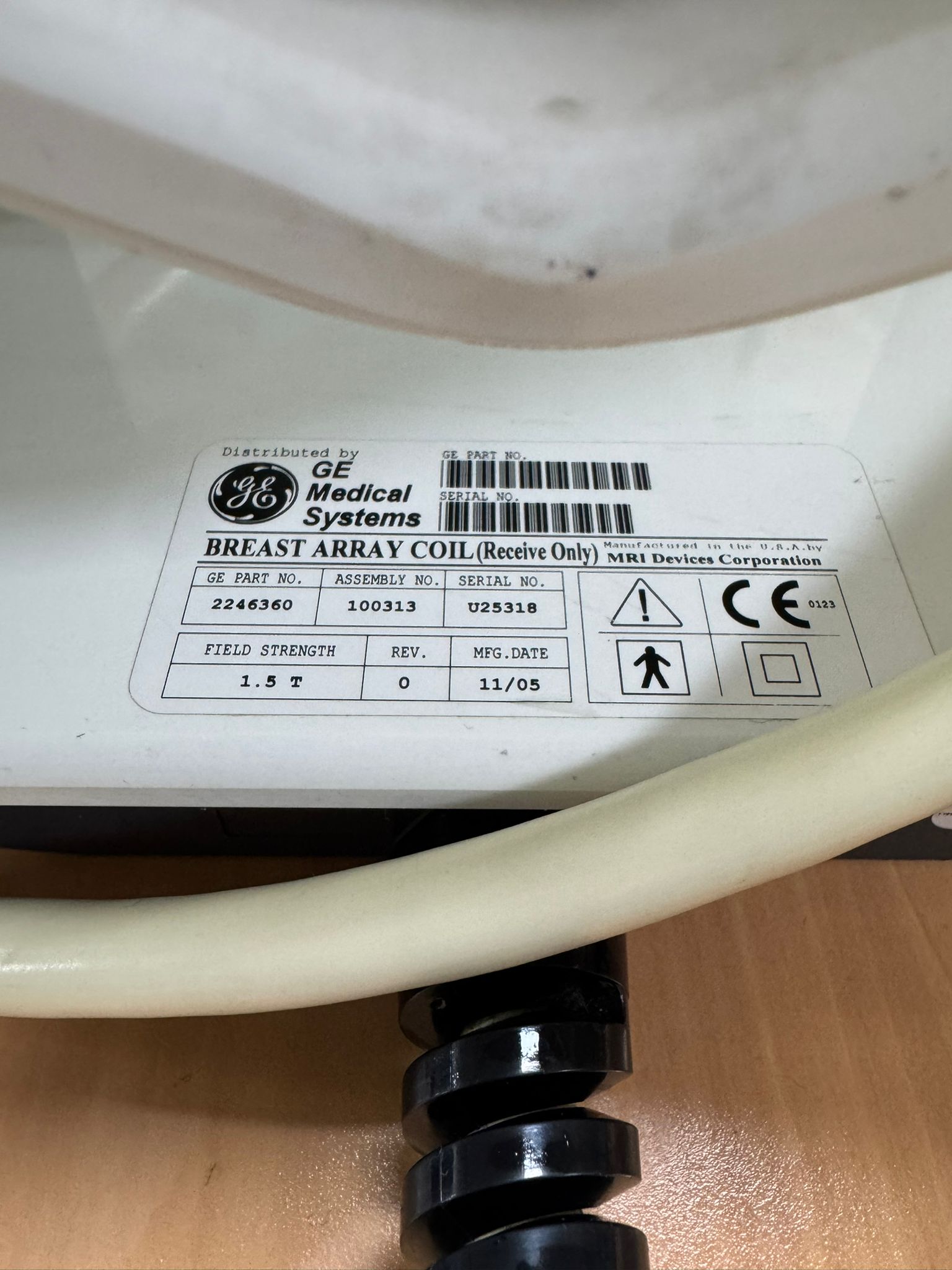

GE Medical Systems Breast Array Coil Label Information:

• Distributor: GE Medical Systems
• Manufactured in the U.S.A. by MRI Devices Corporation
• GE PART NO: 2246360
• ASSEMBLY NO: 100313
• SERIAL NO: U25318
• FIELD STRENGTH: 1.5 T
• REV: 0
• MFG.DATE: 11/05
• Other Codes/Information: “Receive Only” indication, CE 0123 mark, “Consult User Manual” symbol, “Type BF Applied Part” symbol, “Waste Electrical and Electronic Equipment (WEEE)” symbol.

Year of Manufacture

According to the label information, two different years of manufacture have been identified:

• GE Healthcare HD 4Ch Breast Array: September 2006 (09/2006)
• GE Medical Systems Breast Array Coil: November 2005 (11/05)

Document and Service Life Information

No invoice, warranty certificate, or counter/label information indicating the service life of the device is present in the images.

Malfunction Status and Potential Risks

No clear evidence of the device being faulty (such as broken parts, error messages, etc.) is found in the images. However, the pinkish stains and discoloration observed on the pad of the main breast coil indicate that the product is cosmetically worn and contains surface dirt. While such superficial deformations do not directly indicate a functional malfunction, they may suggest a potential need for maintenance regarding the device’s cleanliness and aesthetic condition. Its general condition appears good, apart from the mentioned cosmetic wear.
