Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI agent. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 14.09.2026
Report code: 1789368107
Konsung Oxygen Concentrator Analysis Report
Device Identification and Identity Information

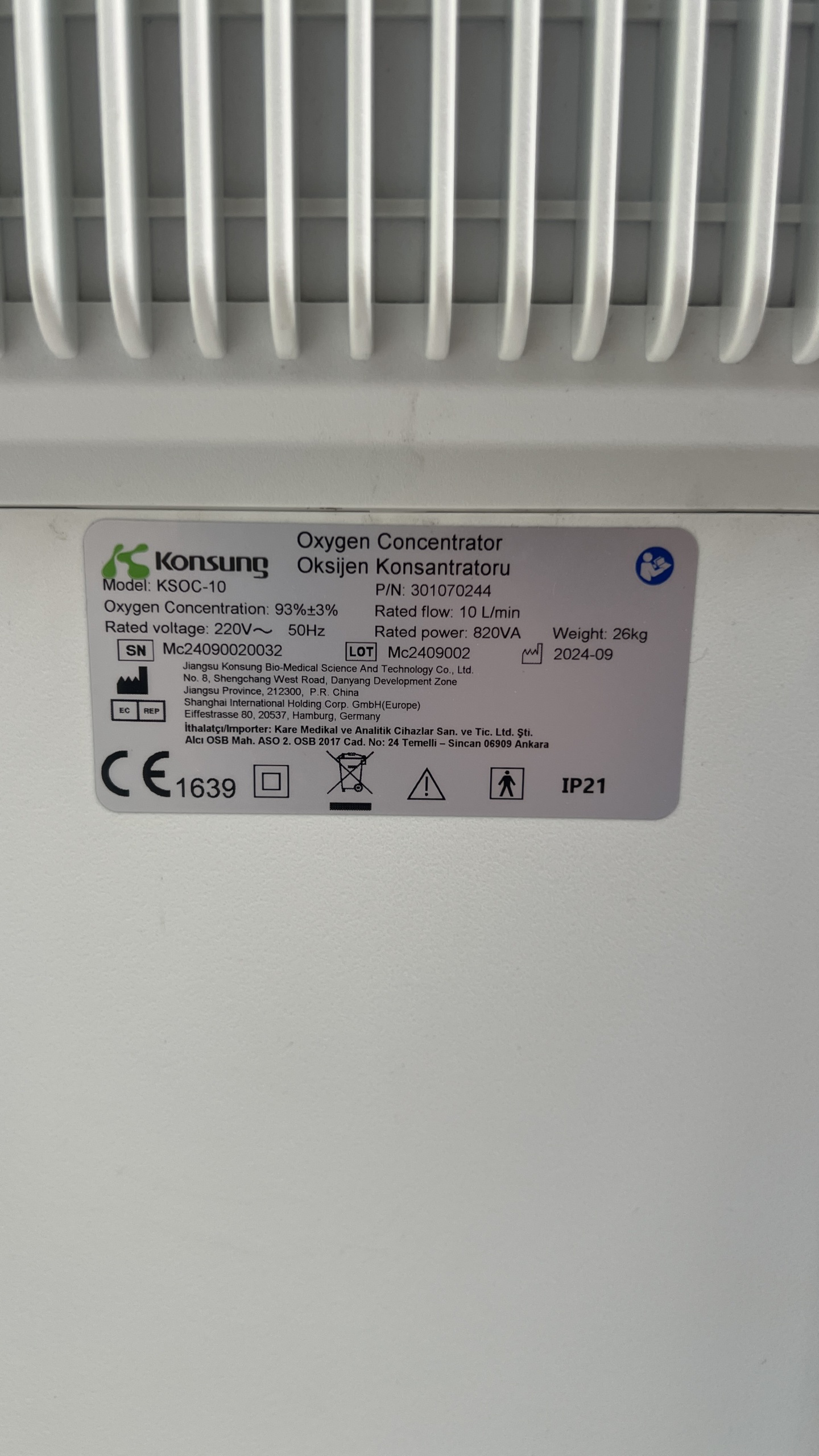

The examined visual data includes one main device and its original accessories located on it. According to the information obtained from the technical label on the rear panel of the device, the brand of the product is read as Konsung and the model code as KSOC-10. The serial number of the device is Mc24090020032, the lot number is Mc2409002, and the part number is P/N: 301070244.
Usage Areas and Compatible Environments
This device is an oxygen concentrator that provides high-purity oxygen by filtering the ambient air. It is suitable for use in hospitals, clinics, or home environments for the oxygen therapy of individuals suffering from respiratory failure, chronic obstructive pulmonary disease, or similar respiratory conditions.
Quantity Information and Physical Condition
The images show a total of one main oxygen concentrator, one humidification bottle, a connection hose attached to the device, and the main power cable. The general condition of the device is clean; there are no visible breaks or deep cracks on the outer casing. The wheels that provide ease of movement are attached to the bottom.
Technical Specifications and Electrical Values
According to the technical data on the label, the device operates with a 220V~ 50Hz rated voltage. The power consumption is 820VA. The oxygen concentration is stated as 93%±3%, and the rated flow value is at the 10 L/min level. The weight of the product is written as 26kg on the label.
Display and Operating Time Analysis

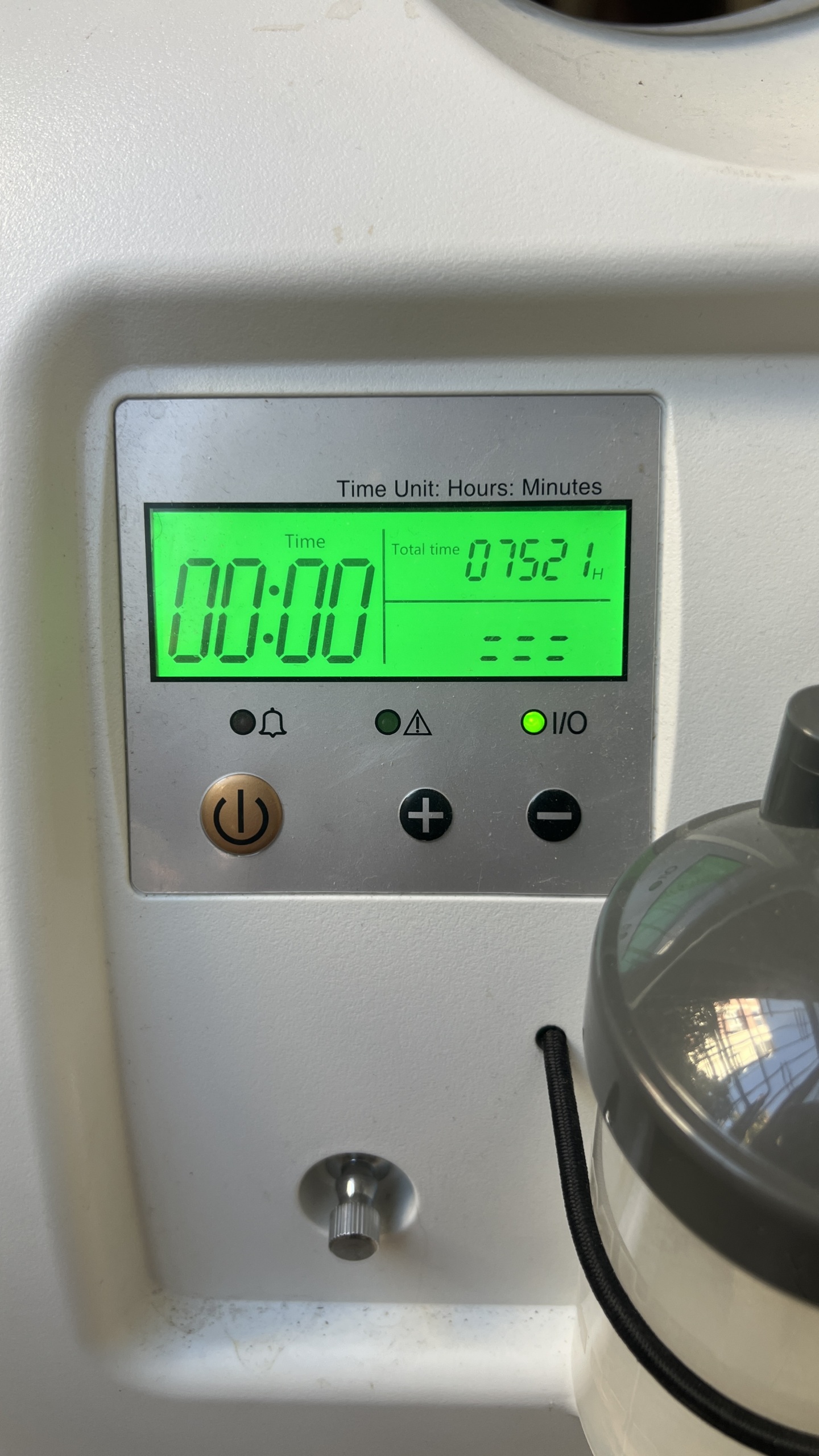

There is a digital display with a green backlight on the front panel. The phrase “Time Unit: Hours: Minutes” is located at the top of the display. While 00:00 is visible in the Time field, the 07521h value, which shows the total operating time of the device, is read in the Total time section. This value indicates that the device has been operated for a total of 7521 hours.
Label and Text Inventory

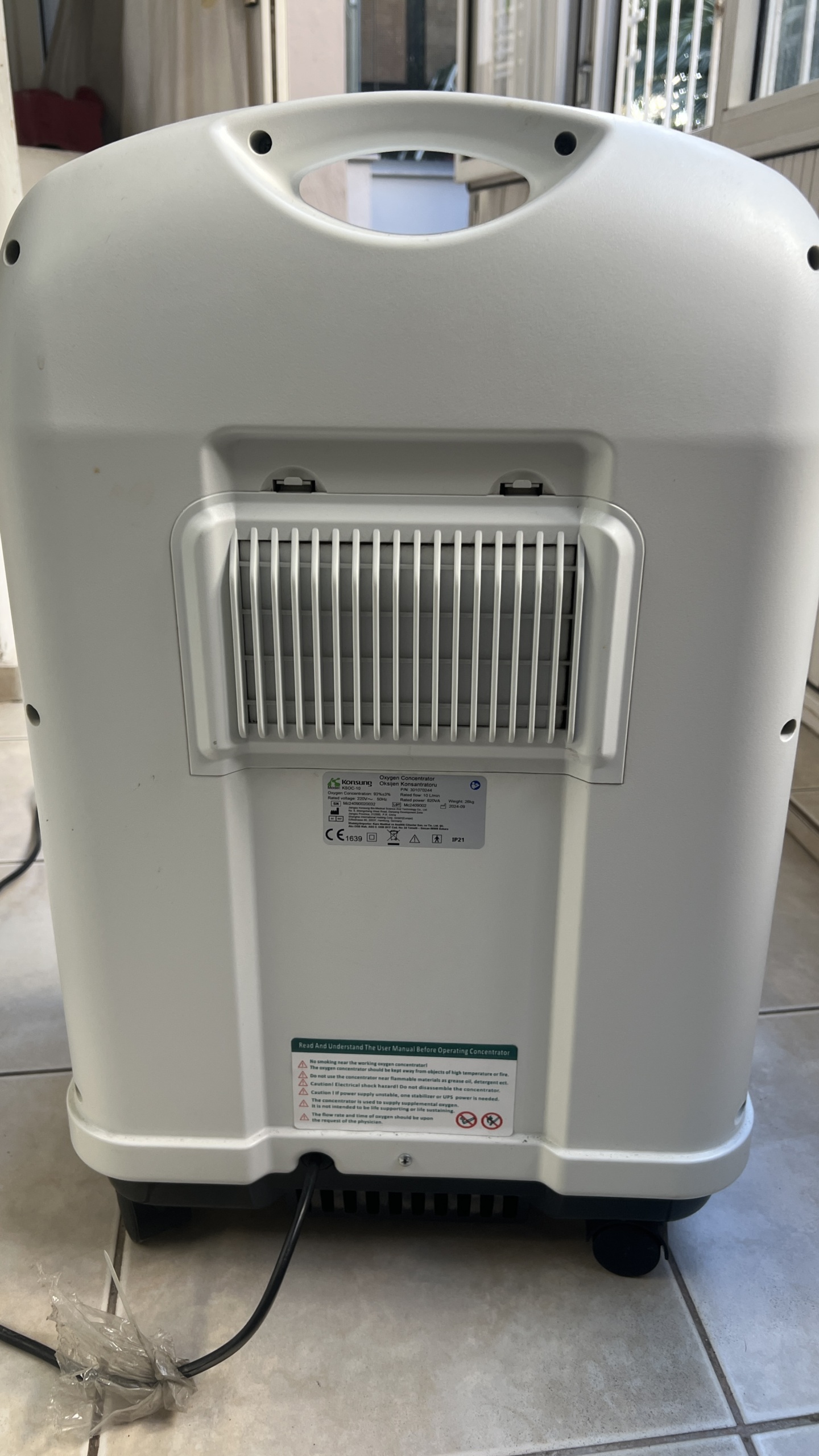

Various texts, symbols, and warning labels are present on the body and rear panel of the device. On the rear label, next to the CE mark, there is the 1639 notified body code, classification symbols, a square box icon, a crossed-out wheeled bin symbol, a caution sign, the IP21 code as the IP protection class, and a symbol indicating that the user manual should be read. Additionally, there are English safety warning texts at the bottom.
Safety Warnings and Standards
The warning texts on the label emphasize that smoking should not be allowed near the device, it should be kept away from open flames and oily substances, and the body should not be disassembled due to the risk of electric shock. The IP21 code indicates that the device is protected against falling water drops. The CE 1639 mark confirms that the product is manufactured in accordance with the relevant European directives.
Mechanical and Electronic Components

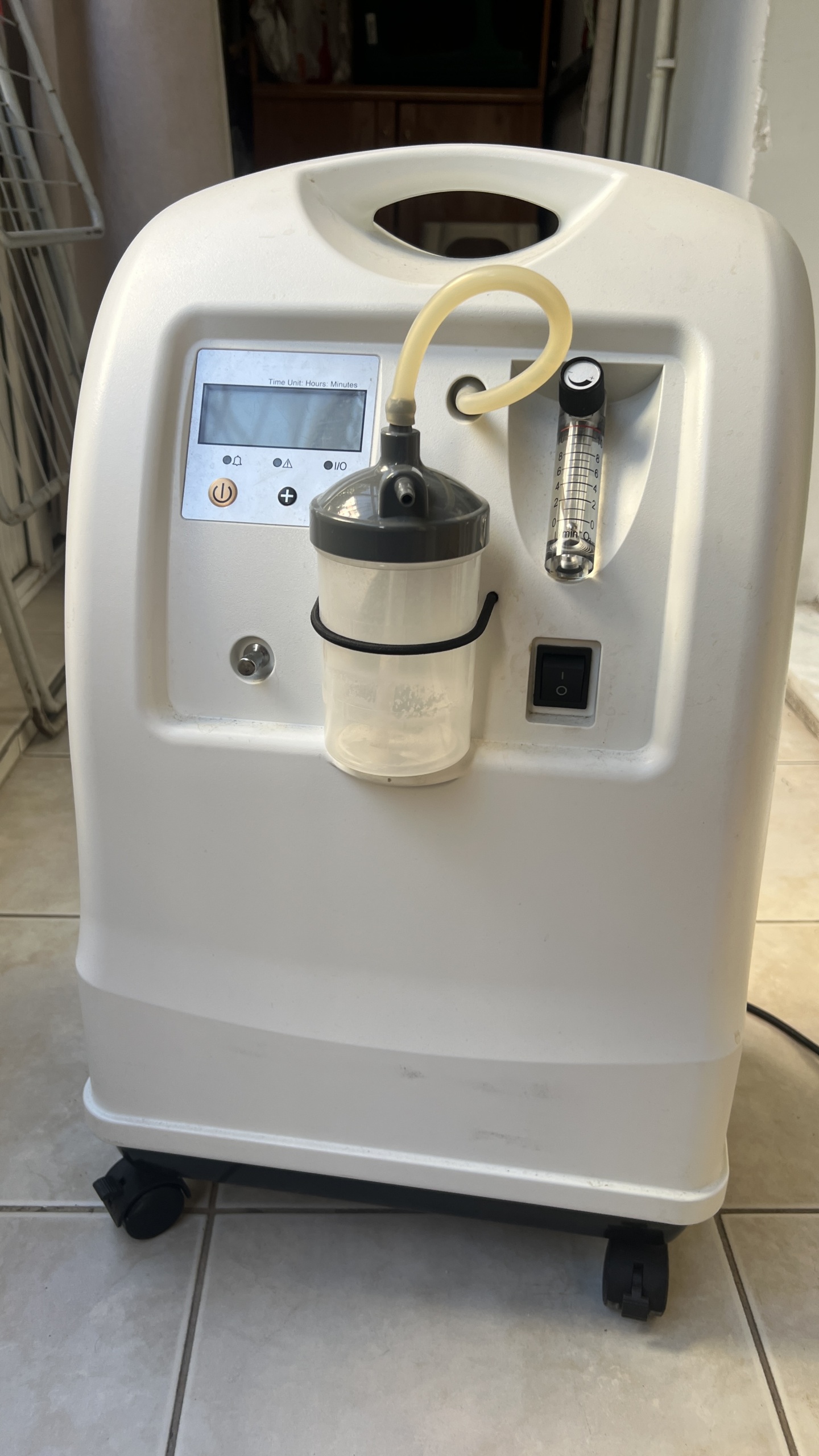

A mechanical flow meter tube and an adjustment valve are located on the front. There are graduation lines between 0 and 10 and the “min O2” phrase on the flow meter tube. The on/off switch is black and has I/O symbols on it. The electronic control panel includes the on/off button along with plus and minus adjustment buttons.
Accessories and Connection Points
There is a plastic humidification bottle integrated into the front body of the device and a flexible transparent hose connecting this bottle to the device. The bottle is held in place with a black fixing strap. The black power cable that provides the electrical connection of the device is plugged into the lower rear part.
Battery and Power Supply Status
There is no mention or visual evidence of an external or internal battery unit in the images. The device is designed to operate directly with mains electricity.
Dimensions and User Compatibility
There is no millimetric measurement regarding the physical dimensions of the device in the images. However, the 26kg weight information stated on the technical label highlights the importance of the wheeled structure for the portability of the device.
Production Year and Period
The 2024-09 phrase is clearly readable in the production date field on the rear technical label. This indicates that the device was manufactured in September 2024.
Documents and User Manual
No paper documents such as an invoice, warranty certificate, or printed user manual are visible in the images.
Existing Fault and Potential Risk Status
No evidence of any existing fault such as a broken part, error message on the screen, or a severed cable was detected during the visual inspection. The general condition of the device is clean and ready for operation. No serious wear or rusting has been observed.
