Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 29.07.2026
Report code: 1785312815
RespiroX KSW-5 Oxygen Concentrator Analysis Report
Device Identification and Brand Model Information

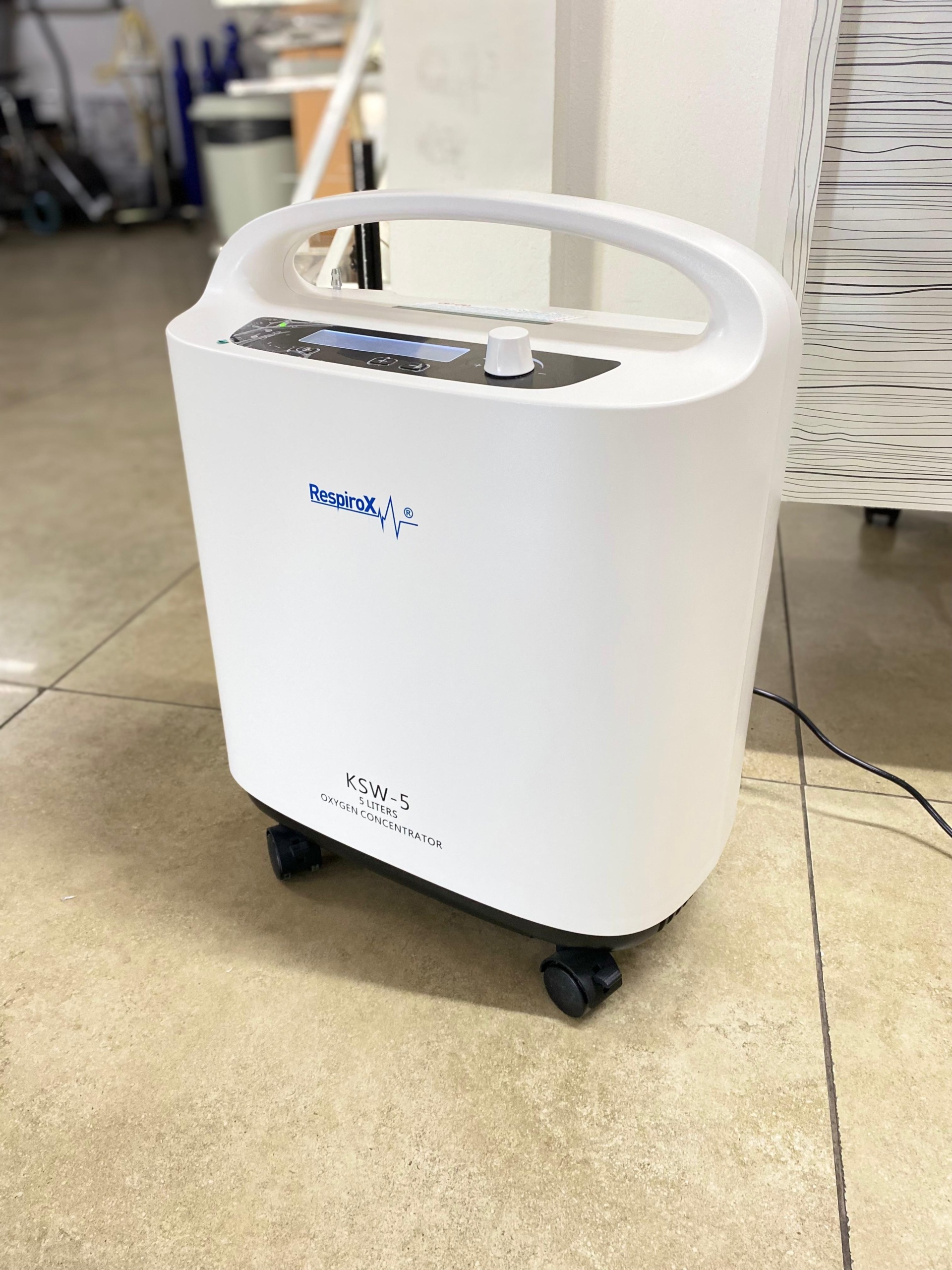

The product examined in the images is a medical oxygen concentrator. The RespiroX brand and KSW-5 5 LITERS OXYGEN CONCENTRATOR model information are prominently displayed on the front of the device. This information definitively indicates that the device is a RespiroX KSW-5 model oxygen concentrator.
Authenticity and General Condition Assessment
The general appearance of the device, the clarity of its logo and model inscriptions, the protective film on the control panel, and its overall cleanliness suggest that the product is authentic. No dirt, stains, or discoloration have been observed on its white casing. This indicates that the device has been lightly used or well-maintained. The overall condition of the device is very good and clean.
Usage Areas
This oxygen concentrator is designed to provide concentrated oxygen to the user by separating oxygen from ambient air. It is generally used for home oxygen therapy for patients with COPD (Chronic Obstructive Pulmonary Disease), asthma, or other respiratory insufficiencies. The device is capable of providing oxygen with a purity of over 90%. Furthermore, as understood from the statements on the box visible in the background of the image and the “Atomizer” outlet on the back of the device, it is believed that the product also possesses a nebulizer feature. Thanks to this feature, liquid medications can be administered by atomization through the respiratory tract. It is suitable for both hospital and home use.
Quantity Information
- Main Device: 1 unit of RespiroX KSW-5 Oxygen Concentrator
- Power Cable: 1 unit (appears to be connected to the device)
Physical Deformation and Mechanical Components
There are no visible scratches, dents, cracks, discoloration, dirt, or dust on the casing, screen, or other parts of the device. No breakage or deformation is observed on the black wheels located at the bottom of the device. The wide carrying handle on the top has an ergonomic design and appears physically robust. There is no wear or damage to the buttons on the control panel.
Electronic Components and Accessories

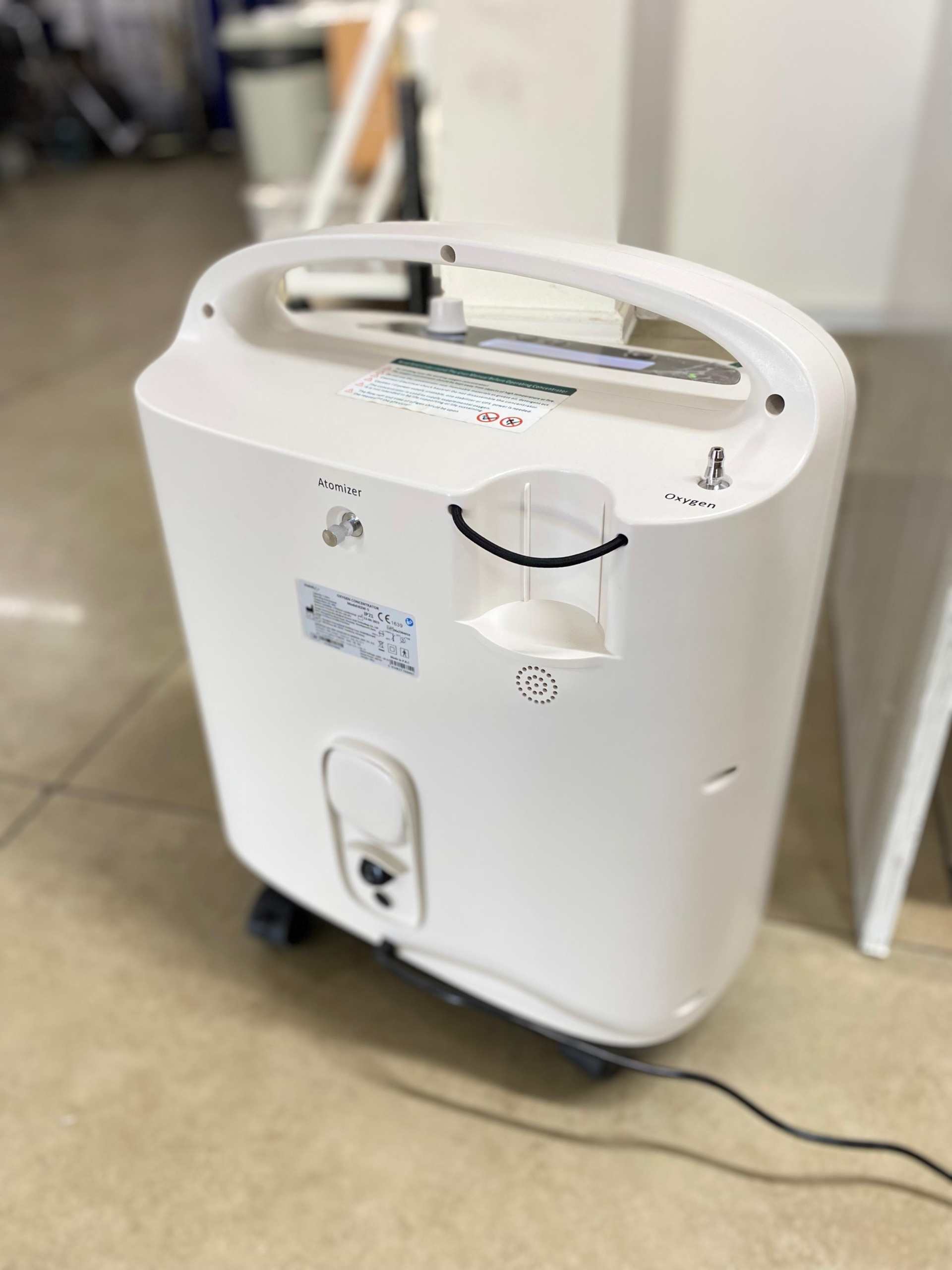

The electronic components of the device, including the control panel and screen, appear to be functioning without issues. There is a protective film on the control panel. There are “Atomizer” and “Oxygen” outlets on the back of the device. The power cable is seen connected to the device. No other accessories (box, additional cables, sockets, etc.) could be clearly identified in the images.
Battery Status
No internal or external battery is visible in the images. It is understood that the device operates on electricity.
Label Information
The following information can be read on the label located on the back of the device:
- REF: KSW-5
- SN: KSW5230800001
- POWER: 220-240V~ 50Hz 1.0A
- INPUT POWER: 120VA
- OXYGEN FLOW: 1-5L/min
- OXYGEN PURITY: 93%±3%
- NOISE: ≤54dB(A)
- WEIGHT: 17kg
- DIMENSION: 350x220x500mm
- TYPE: B
- CLASS: II
- IP21
- CE
- ISO 13485
- Manufacturing Year Symbol: 2023
REF Code (KSW-5): Indicates the reference or model code of the product. This code is used to identify a specific model of the product.
Serial Number (KSW5230800001): This is the unique identification number of the device. It is specific to each individual device and is used for tracking, warranty, or service procedures.
POWER (220-240V~ 50Hz 1.0A): Indicates the operating voltage, frequency, and current value of the device. This information specifies which electrical grid the device is compatible with.
INPUT POWER (120VA): Expresses the maximum power consumed by the device in volt-amperes.
OXYGEN FLOW (1-5L/min): Specifies the oxygen flow rate the device can produce per minute in liters. This device can provide between 1 and 5 liters of oxygen.
OXYGEN PURITY (93%±3%): Shows the purity rate of the oxygen produced by the device. This device offers 93% oxygen purity with a ±3% tolerance.
NOISE (≤54dB(A)): Specifies the maximum noise level produced by the device during operation in decibels. This value indicates the quiet operation feature of the device.
WEIGHT (17kg): Specifies the weight of the device in kilograms.
DIMENSION (350x220x500mm): Specifies the width, depth, and height dimensions of the device in millimeters.
TYPE B, CLASS II: Specifies the electrical safety classification of the device. Type B refers to the level of protection against electric shock for parts in direct contact with the patient, while Class II indicates that it is a double-insulated device.
IP21: Specifies the degree of protection of the device against solid objects and water. IP21 indicates protection against solid objects larger than 12.5 mm and vertically falling water drops.
CE: A mark indicating that the device complies with European Union health, safety, and environmental protection standards.
ISO 13485: Indicates compliance with the quality management system standard for medical devices.
Manufacturing Year Symbol (2023): Indicates that the device was manufactured in 2023.

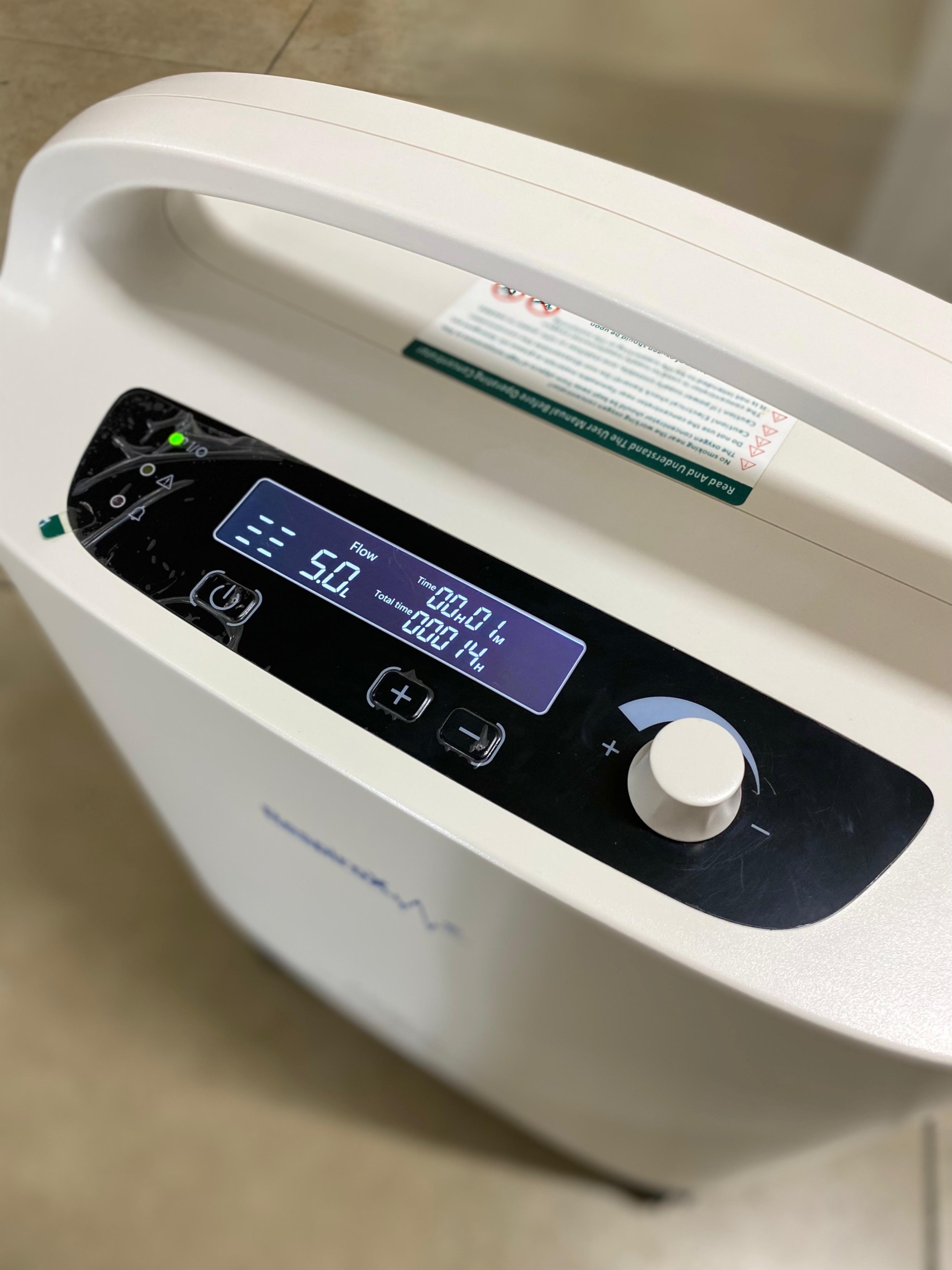

Screen Analysis
The digital screen on the device’s control panel is powered on and displays the following information:
- Flow: 5.0 (Indicates that the oxygen flow rate is set to 5.0 liters/minute.)
- Time: 00.01 H (Indicates that the current usage duration is 1 minute.)
- Total time: 0014 H (Indicates that the total operating time of the device is 14 hours.)
On the left side of the screen, there is an on/off button and menu/setting icons. On the right side, there is a rotary knob used to adjust the flow rate and plus/minus buttons.
Dimensions and Compatibility
In the label information, the dimensions of the device are stated as 350x220x500mm. These measurements indicate that the device is designed for portable yet stationary use. It can be easily moved with its 17 kg weight. With a 1-5 L/min oxygen flow rate and 93%±3% oxygen purity, it is suitable for patients with various respiratory support needs.
Manufacturing Year
The manufacturing year is clearly indicated as 2023 in the symbol located on the back label of the device.
Documents
No documents such as invoices, warranty certificates, or user manuals belonging to the device are visible in the images.
Usage Duration
The information “Total time: 0014 H” is displayed on the device screen. This indicates that the device has been used for a total of 14 hours.
Existing Faults and Potential Risk of Failure
There is no clear evidence of any fault in the images, such as broken parts, error messages, severed cables, or missing components. The general condition of the device is good. No concrete details that could pose a potential risk of failure, such as severe wear, rusting, or cable crushing, have been observed.
