Carl Zeiss Meditec AG Isolation Transformer 230 V Analysis Report
Device Identification and Basic Information

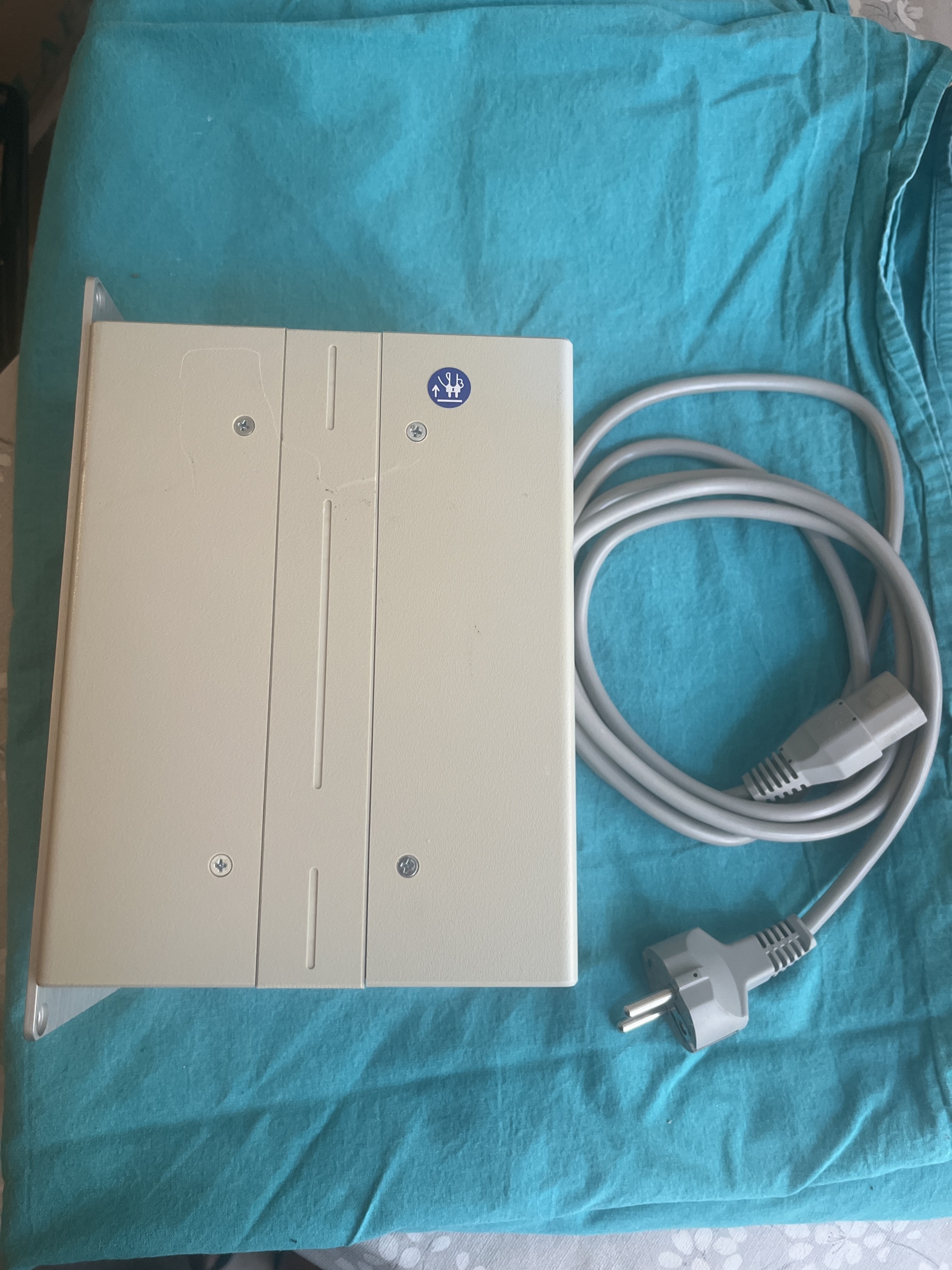

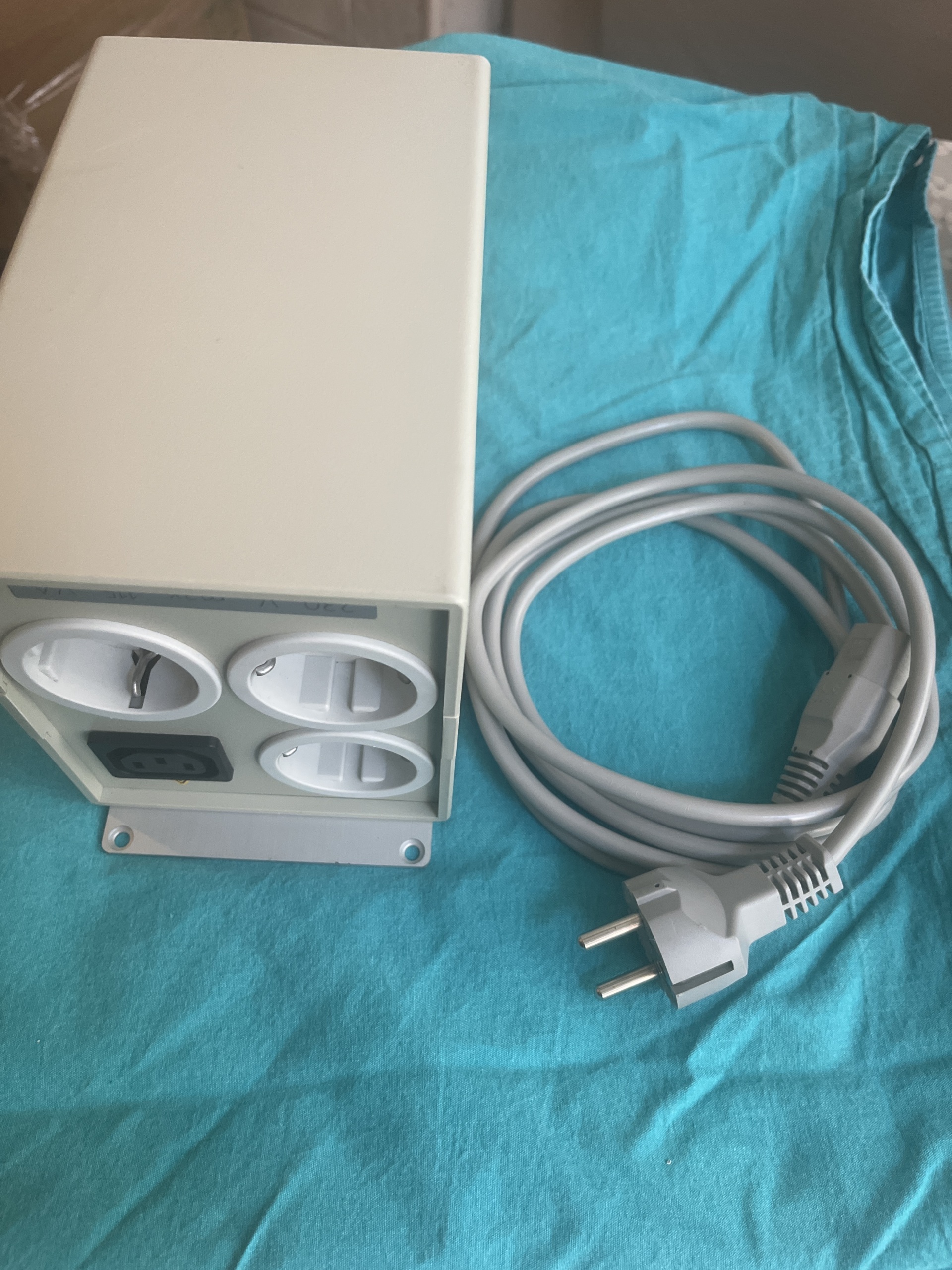

The device examined in the images consists of one isolation transformer and one gray power cable belonging to this device. The total number of parts is two. According to the label information on the device, the manufacturer is Carl Zeiss Meditec AG, and the place of production is the company SBA-Trafobau Jena.
Brand and Model Information

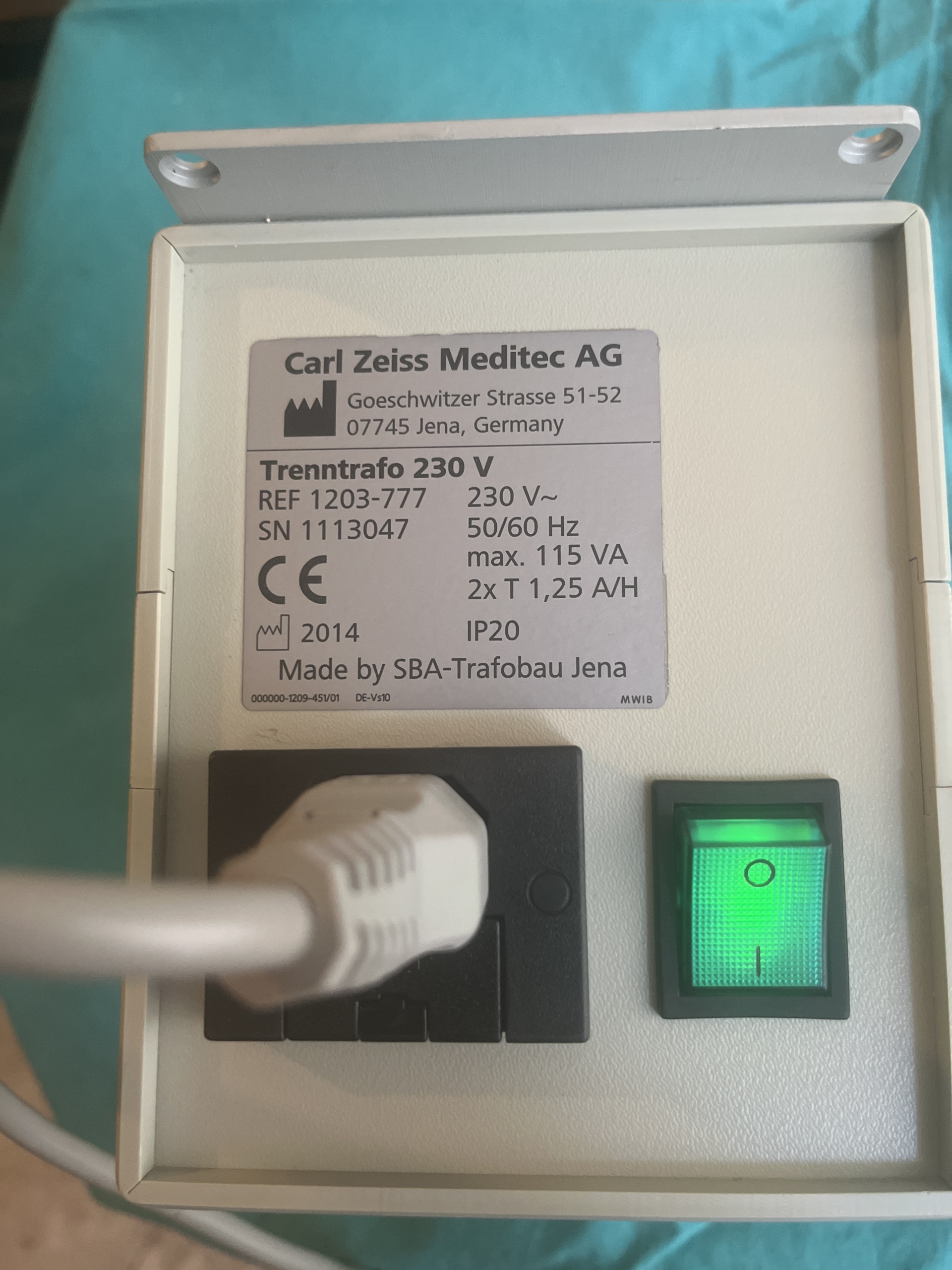

The brand name Carl Zeiss Meditec AG is displayed on the technical label located on the rear panel of the device. The official designation of the product is Trenntrafo 230 V. The model code is specified on the label as REF 1203-777. The serial number is read as SN 1113047.
Technical Specifications and Electrical Values
According to the technical data on the label, the device operates with a voltage of 230 V~. The mains frequency is 50/60 Hz. The power capacity of the device is determined as max. 115 VA. The protection class is in accordance with IP20 standards. The fuse rating is written as 2x T 1.25 A/H. The front surface of the device also features the statement 230 V, max. 115 VA.
Areas of Use
This device creates a safe working environment by providing galvanic isolation for sensitive medical electronic devices from the mains electricity. It is used in medical centers and hospitals to reduce the risk of electrical leakage during the maintenance, repair, or clinical use processes of medical devices.
General Condition and Physical State

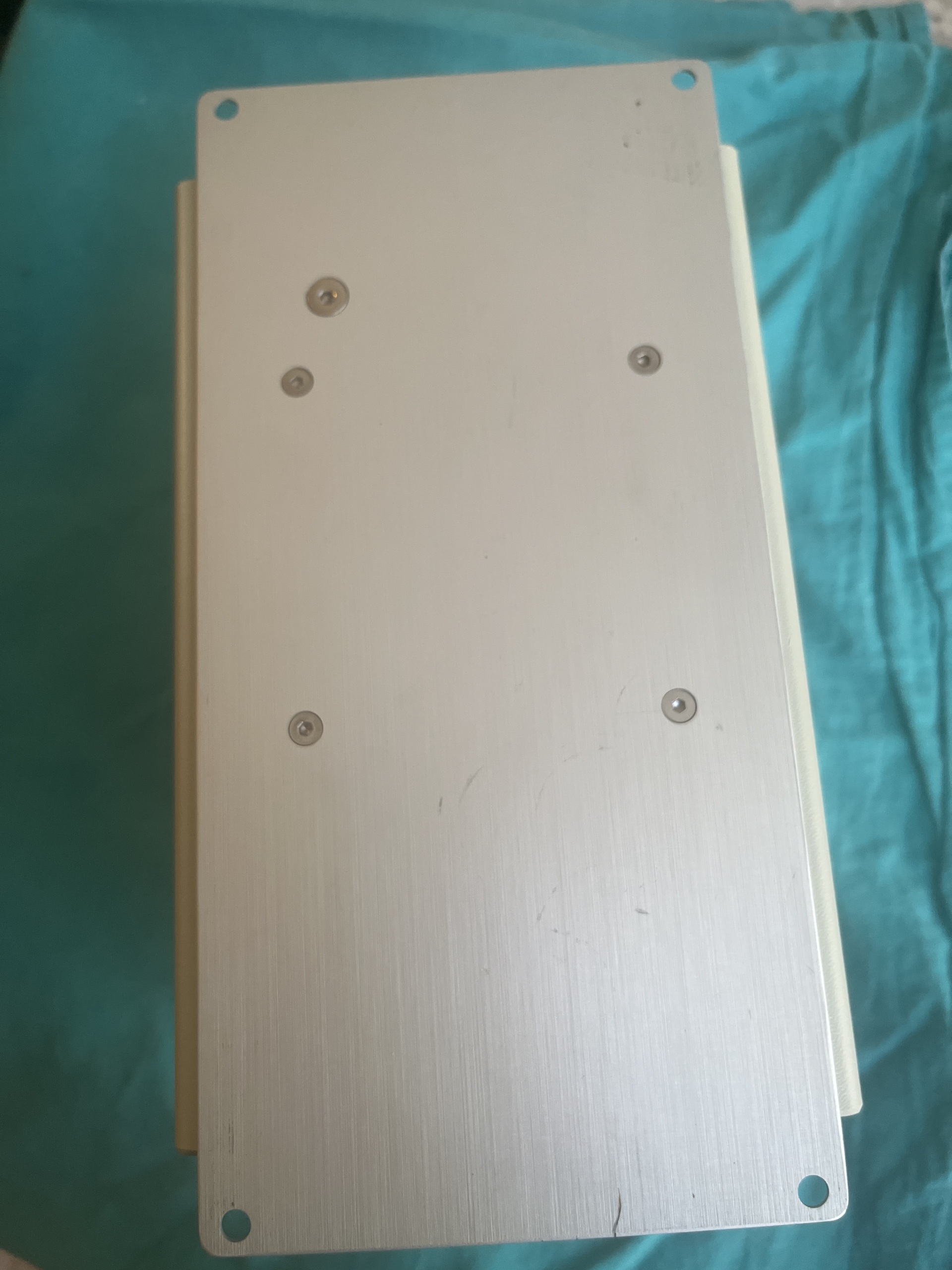

The metal casing of the device is generally in a clean and solid condition. There are slight friction marks and superficial signs of use on the bottom panel. There are no deep dents, breaks, or cracks on the outer surface.
Mechanical and Electronic Components

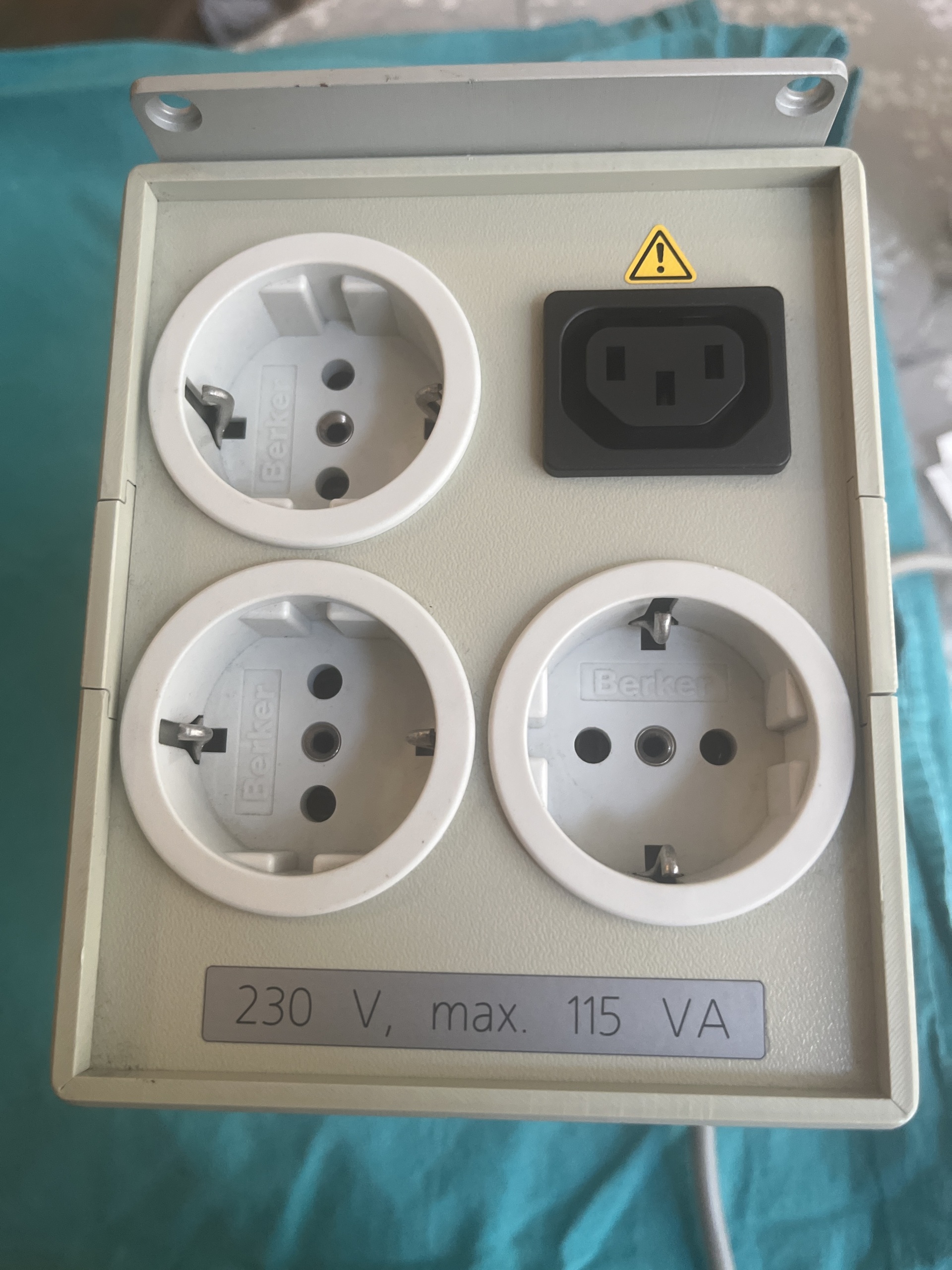

There is a green illuminated on/off switch on the front panel of the device. The top panel contains three Schuko-type socket outlets and one power input socket. The brand of the socket slots is labeled as Berker. No breakage or deformation is visible on the socket inputs or the switch. No dents or tears were detected in the insulation of the provided gray power cable.
Label and Text Inventory

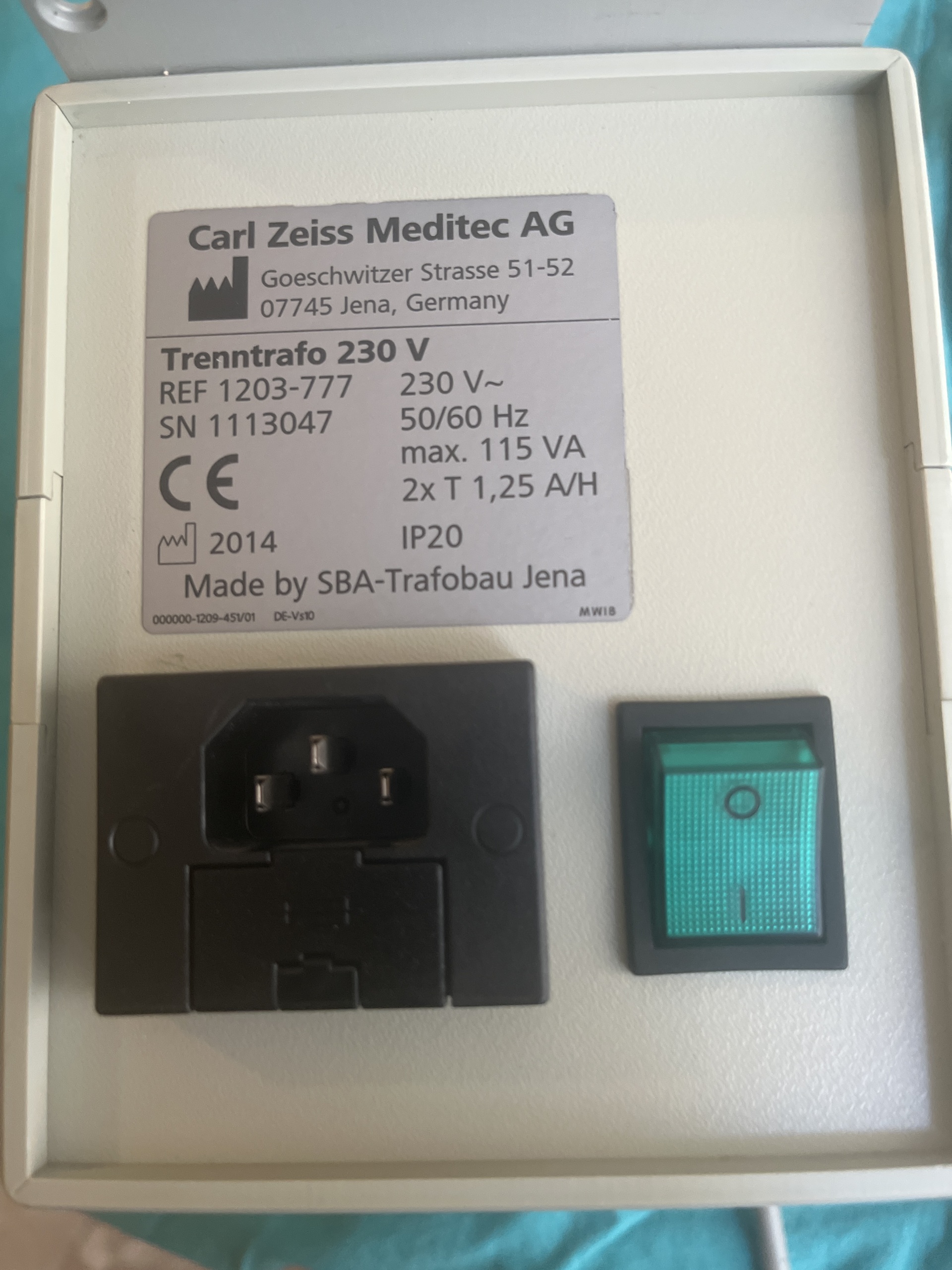

All texts read on the device labels are as follows: Carl Zeiss Meditec AG, Goeschnitzer Strasse 51-52, 07745 Jena, Germany, Trenntrafo 230 V, REF 1203-777, SN 1113047, CE mark, the year 2014 with the manufacturing date symbol, Made by SBA-Trafobau Jena, 000000-1209-451/01, DE-Vs10, MWIB, IP20, 230 V~, 50/60 Hz, max. 115 VA, 2x T 1.25 A/H, and a warning symbol. The CE mark indicates that the product complies with European standards. The IP20 rating indicates that protection against solid objects is provided, but there is no protection against water.
Dimensions, Display, and Documents
There is no official data regarding the physical dimensions or measurements of the device in the images. There is no digital or analog display on the device. There are no invoices, warranty certificates, or user manuals present in the images.
Usage Duration and Fault Status
There is no counter or data on the label or body of the device showing the total operating hours. In the visual inspection, no active fault findings such as broken parts, traces of burnt smell, severed cables, or error messages were encountered. No serious wear or rust was observed in the cable structure of the device; its condition is generally in good state.
Year of Manufacture
The year 2014 is clearly stated next to the manufacturing symbol on the label.
