Secondhand Medicraft Bilevel ST PAP Mainboard

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 02.04.2026
Report code: 1775130275

Medicraft Respiratory Support Device Control Card Analysis Report

Device Identification and Brand Information

The images show an electronic control card (printed circuit board – PCB) belonging to respiratory devices. According to the inscriptions on the card, the product’s brand has been identified as Medicraft. The full model and part name of the product is Respiratory Support Device Control Card V2.6. The print quality on the card, the clarity of brand logos, and manufacturer information indicate that the product is an original spare part.

Areas of Use and Quantity Information

This electronic card is used to manage home-type or clinical-type respiratory support devices (mechanical ventilator, BiPAP, etc.). From the operating mode information displayed on the screen, it is understood that the card is compatible with devices applying Bilevel ST therapy. A total of 1 electronic control card is present in the images.

General Condition and Physical State

The product is in the form of a bare electronic card removed from the device casing. No breaks, cracks, deep scratches, or burn marks were observed on the green surface of the card. Slight dust and stains are present in the black taped area at the bottom of the LCD screen. Its general condition suggests it is a used spare part.

Electronic and Mechanical Components

The card contains various microchips, resistors, capacitors, and test points (TP1, TP4-TP8). A black cylindrical audible alarm (buzzer) is located in the lower left corner. Immediately below the screen, there are three black push-button type mechanical buttons (S2, S3, S4), understood to be used for menu navigation and confirmation. No physical deformation is observed on the buttons. A white socket with red and black wires connected to the card for screen backlighting, and an orange flat film cable (ribbon cable) connection for screen data transfer are present. The connection points appear solid.

Battery Status

In the lower right corner of the card, there is a yellow slot containing a CR2032 3V lithium coin cell battery compartment. The battery is observed to be inserted into the slot. No signs of swelling or leakage have been detected on the battery.

Screen Analysis

In the middle lower section of the card, there is a blue backlit LCD screen. The images show the screen in working condition, displaying two different menu interfaces.

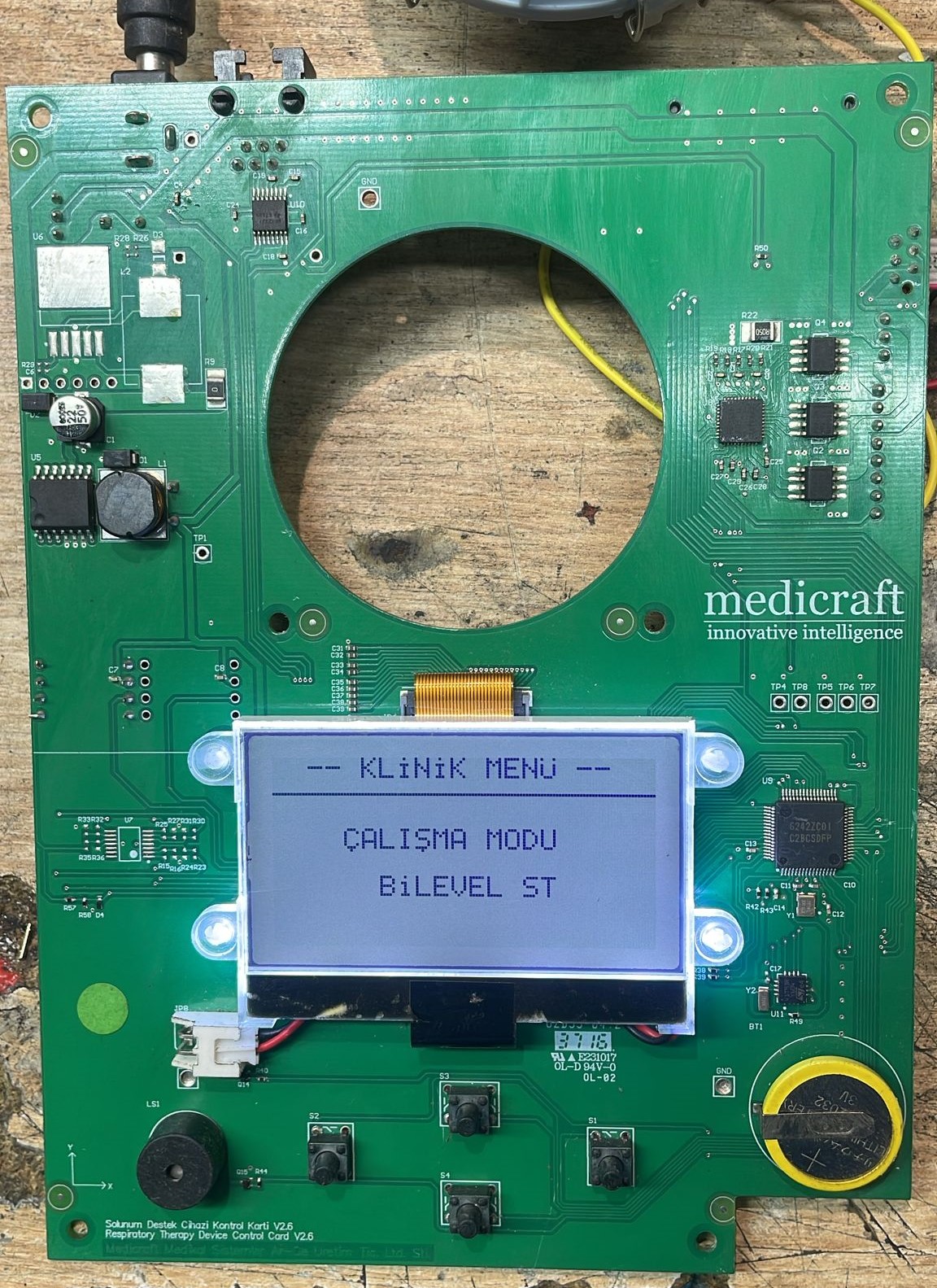

Screen data in the first image:

• — CLINICAL MENU —
• OPERATING MODE
• Bilevel ST

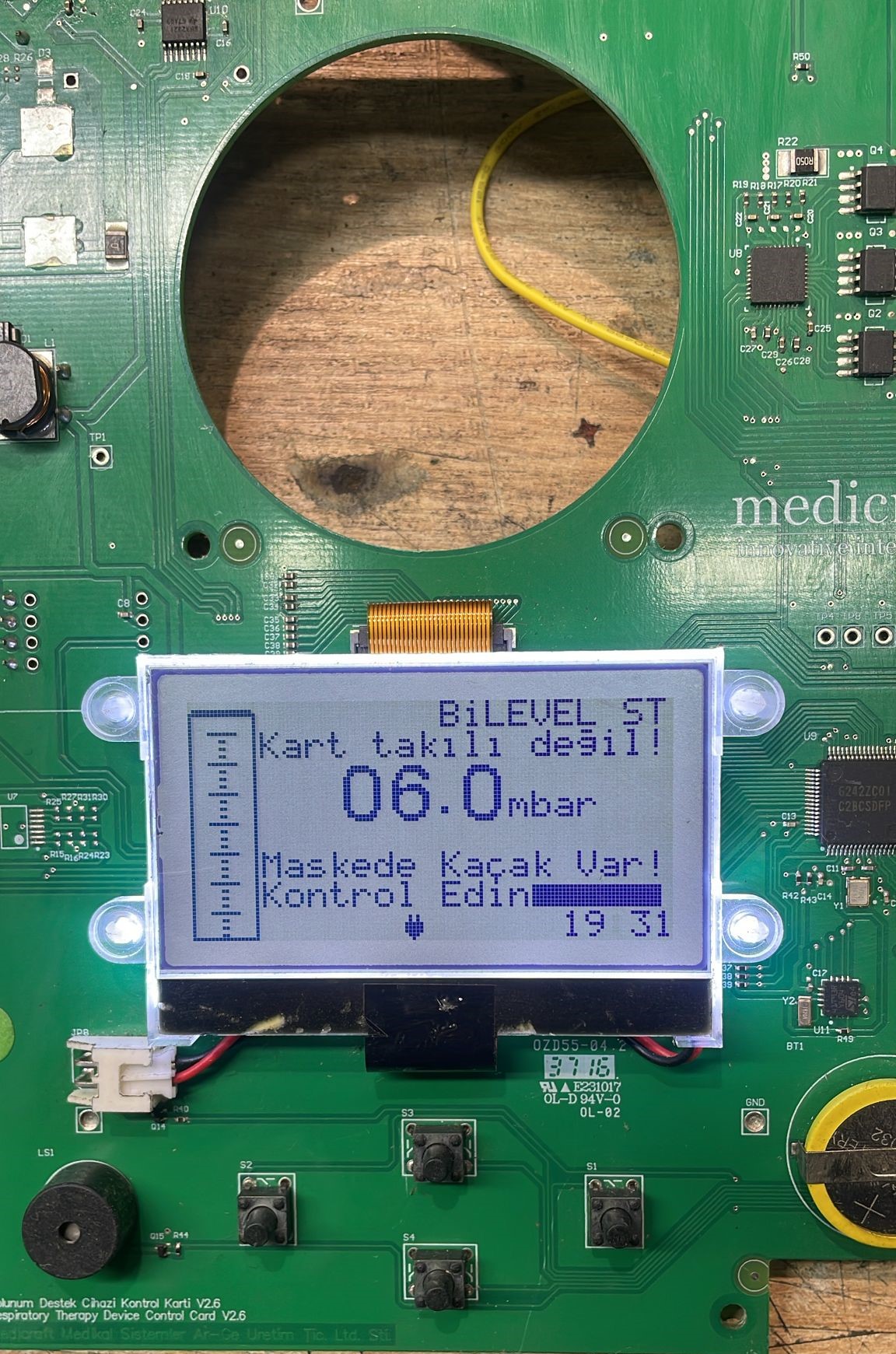

Screen data in the second image:

• Upper right corner: Bilevel ST
• Upper middle section: Card not inserted! (Warning indicating a missing memory or SD card belonging to the device)
• Middle section: 06.0 mbar (Instantaneous pressure value)
• Lower section: Mask Leak! Check (Air leak warning)
• Left part: Vertical bar graph showing pressure level
• Lower right corner: 19 31 (Time information)

Label and Print Information

The inscriptions and codes on the surface (silkscreen) of the electronic card are listed below:

• medicraft innovative intelligence
• Solunum Destek Cihazı Kontrol Kartı V2.6
• Respiratory Therapy Device Control Card V2.6
• Medicraft Medikal Sistemler Ar-Ge Üretim Tic. Ltd. Şti.
• OZD55-04.2
• 3716
• E231017
• OL-D 94V-0
• OL-02

Current Faults and Potential Risks

There are no visible burns, disconnections, or physical damage to the electronic components of the card. The phrases “Card not inserted!” and “Mask Leak! Check” appearing on the screen do not indicate a faulty card, but rather standard operational warnings resulting from the card not currently being connected to a device, mask, or memory card. However, the electronic card being exposed to the external environment without a protective casing poses a potential danger against risks of short circuits due to static electricity (ESD) or physical impact.
