Electronic Circuit Board Technical Analysis Report
Device Identification and Basic Information

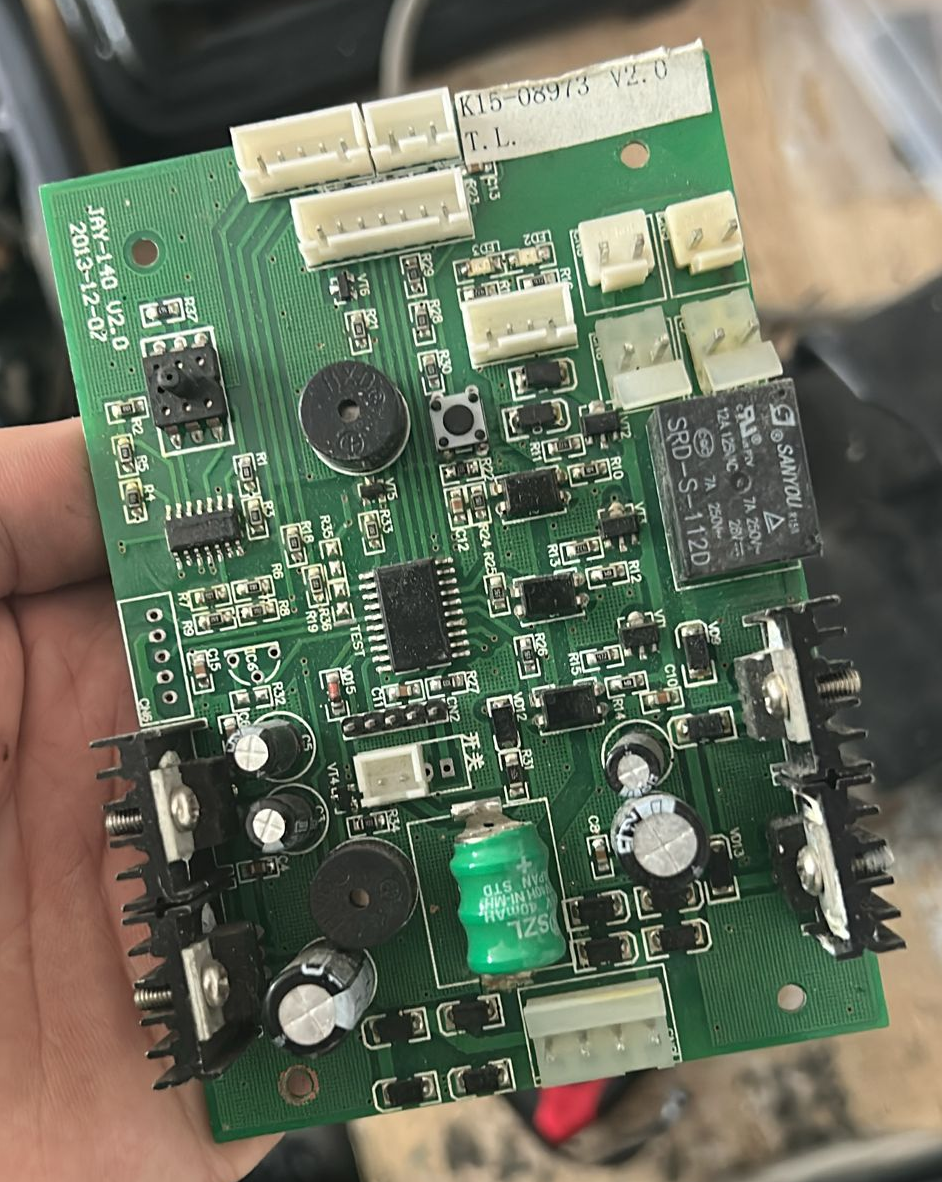

The examined image features an electronic circuit board. The product is an electronic component used in the power and control management of medical devices.
- Device Identification: Electronic circuit board
- Brand and Model: JAY-140 U2.0
- Authenticity: The serial printed codes, integrated circuits, and label layout reflect original manufacturer standards.
- Usage Areas: Used to provide power distribution and motor control in the internal systems of medical oxygen concentrators or similar respiratory devices.

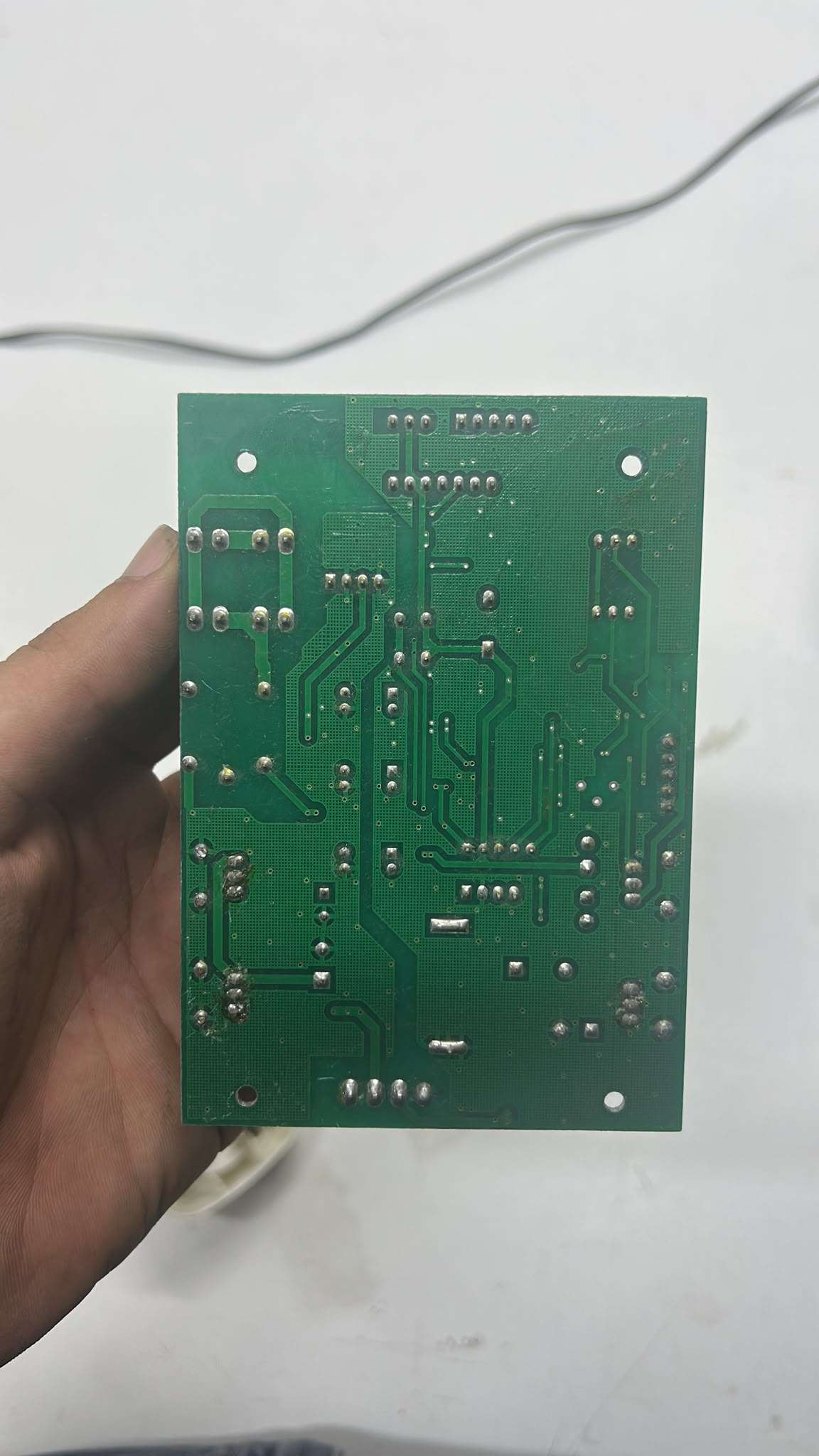

- Quantity Information: The images show a total of 1 electronic circuit board and its rear surface view.
Condition and Physical State Analysis
The general physical condition and mechanical components of the circuit board have been examined in detail.
- General Condition: It is in used condition, and there are reworked areas on the solder points.
- Physical Deformation: There is slight dust accumulation on the green surface of the board and signs of use on the edges.
- Mechanical Components: The plastic sockets, relay, and metal heat sinks on the board are in place.
- Electronic Components: It contains integrated circuits, resistors, capacitors, black cylindrical buzzer components, and a green battery.
- Accessories: There are no cables or external accessories other than the board; multi-pin socket inputs are attached to the board.
- Battery Status: A green, rechargeable cylindrical battery branded SZL is present on the board; the capacity value is read as 40mAh. This battery ensures the preservation of the clock or data memory when the device power is cut off.
Label, Text Inventory, and Screen Findings
The texts on the print and label located on the front surface of the board have been transcribed directly.
- Label and Text Inventory: The text JAY-140 U2.0 and the date 2013-12-02 are located in the upper left corner of the board. The codes K15-08973 V2.0 and T. L. are found on the white label in the upper middle section. The brand SANYOU, model SRD-S-112D, and electrical ratings 12A 125VAC, 7A 250V are written on the black relay on the right side. The inscriptions SZL and 40mAh are present on the battery.
- Screen Analysis: There is no screen on the product.
- Size and Compatibility: Dimension information is not available in the image; it is compatible with JAY-140 series devices.
- Production Year: The date 2013-12-02 is present in the print on the board.
Documents, Processes, and Risk Assessment
The documentation status, operating time, and potential risk factors of the product have been examined.
- Documents: There are no invoices, warranty certificates, or printed documents in the images.
- Usage Duration: There is no direct operating hour data on it; the production date is 2013.
- Existing Fault: No broken parts, burnt integrated circuit marks, or broken lines were detected in the images.
- Potential Fault Risk: No excessive wear was observed on the solder legs and conductive paths; its condition is at a medium level.
