Secondhand Siemens 3105652 RF AMP

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 16.08.2025

Siemens RF Power Amplifiers Analysis Report

Overview and Device Identification

The visuals show radio frequency (RF) power amplifiers manufactured by Siemens, along with additional modules presumed to belong to this system. The products are estimated to be used in industrial or medical fields. The analysis covers multiple electronic units seen in the visuals. It is understood that the products are original, based on the quality of their labels, logo imprints, and general workmanship details.

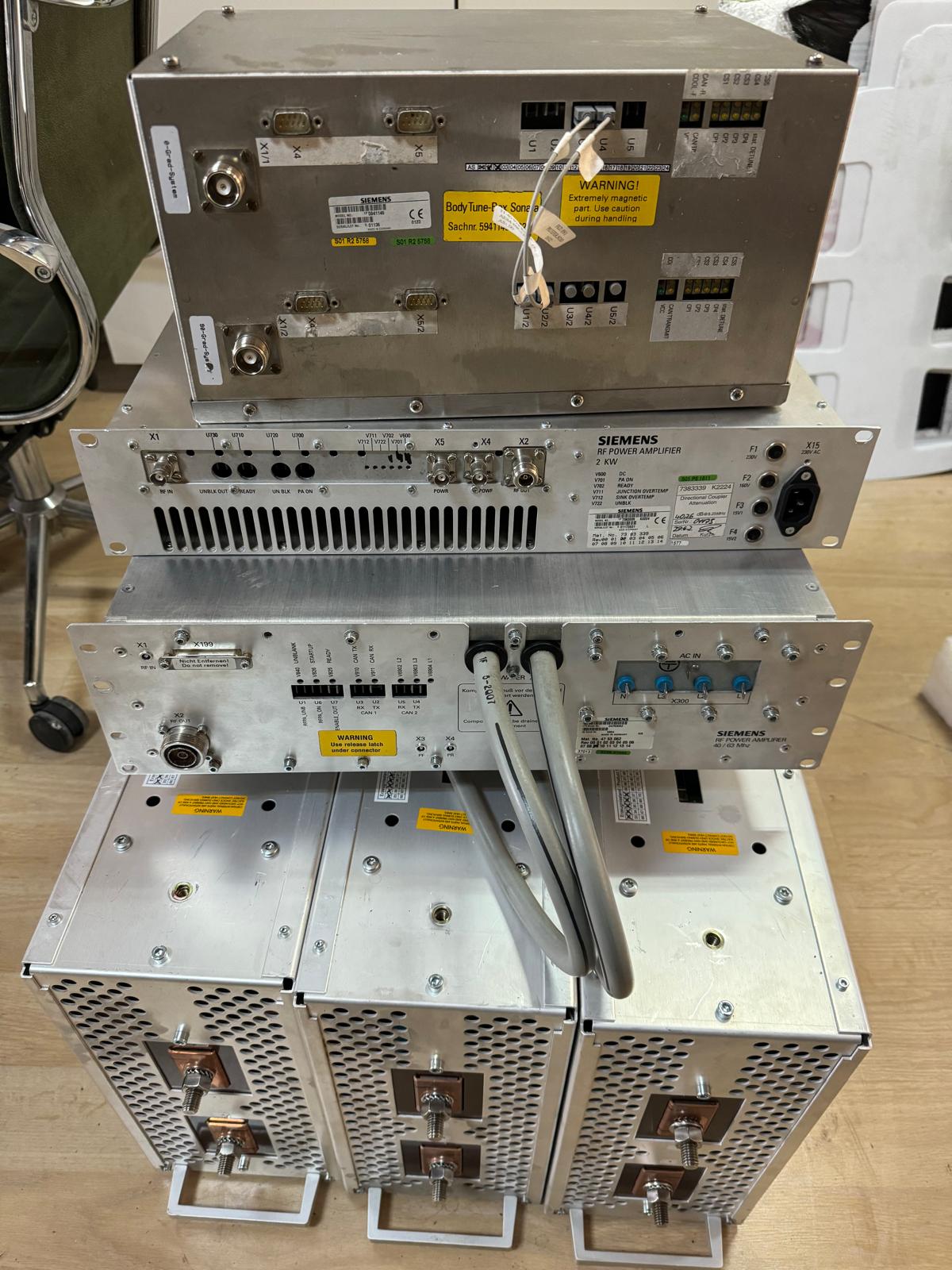

A total of 7 main units and their corresponding connection cables have been identified in the visuals. These units consist of different models.

Brand and Model Information

Upon detailed inspection, it is clearly visible that the brand of the devices is Siemens. There are labels belonging to multiple different models on the devices.

• Product Name: RF Power Amplifier 2 KW
  Brand: Siemens
  Model Number: 1P 7383339 K2224
• Product Name: RF Power Amplifier 40/63 MHz
  Brand: Siemens
  Material Number: 53 96 260 D3332
• Product Name: Body Tune
  Brand: Siemens

Physical Condition and Deformation Assessment

The overall condition of the devices is assessed as used. While their metal casings are generally in good condition, there are some small scratches and light stains due to use. No significant deformation such as serious dents, cracks, breaks, or discoloration is observed. The ventilation grilles and mechanical components of the devices appear visually problem-free and clean. One of the labels has handwritten notes and slight wear.

Technical Details and Label Information

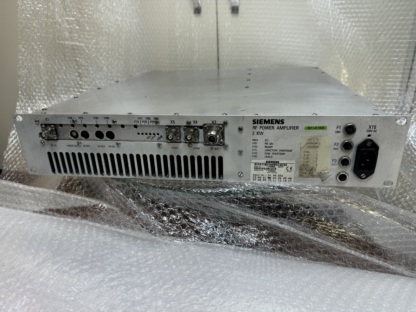

The following information is readable on the label belonging to the Siemens RF Power Amplifier 2 KW model:

• Model No: 1P 7383339 K2224
• Serial/Lot No: S 01173S01
• Mat. No: 73 83 339
• Revision: 06 (Revisions from 00 to 06 are listed on the label, and 06 is circled)
• Place of Manufacture: Made in GERMANY
• Fuse Ratings: F1 (230V), F2 (160V), F3 (15V1), F4 (15V2)

Additionally, there is another label on this unit titled “Directional Coupler Attenuation”. This label includes information such as “SerNr.: 01173” and technical measurement values like “40.26 [email protected]” and “27.62 dB”.

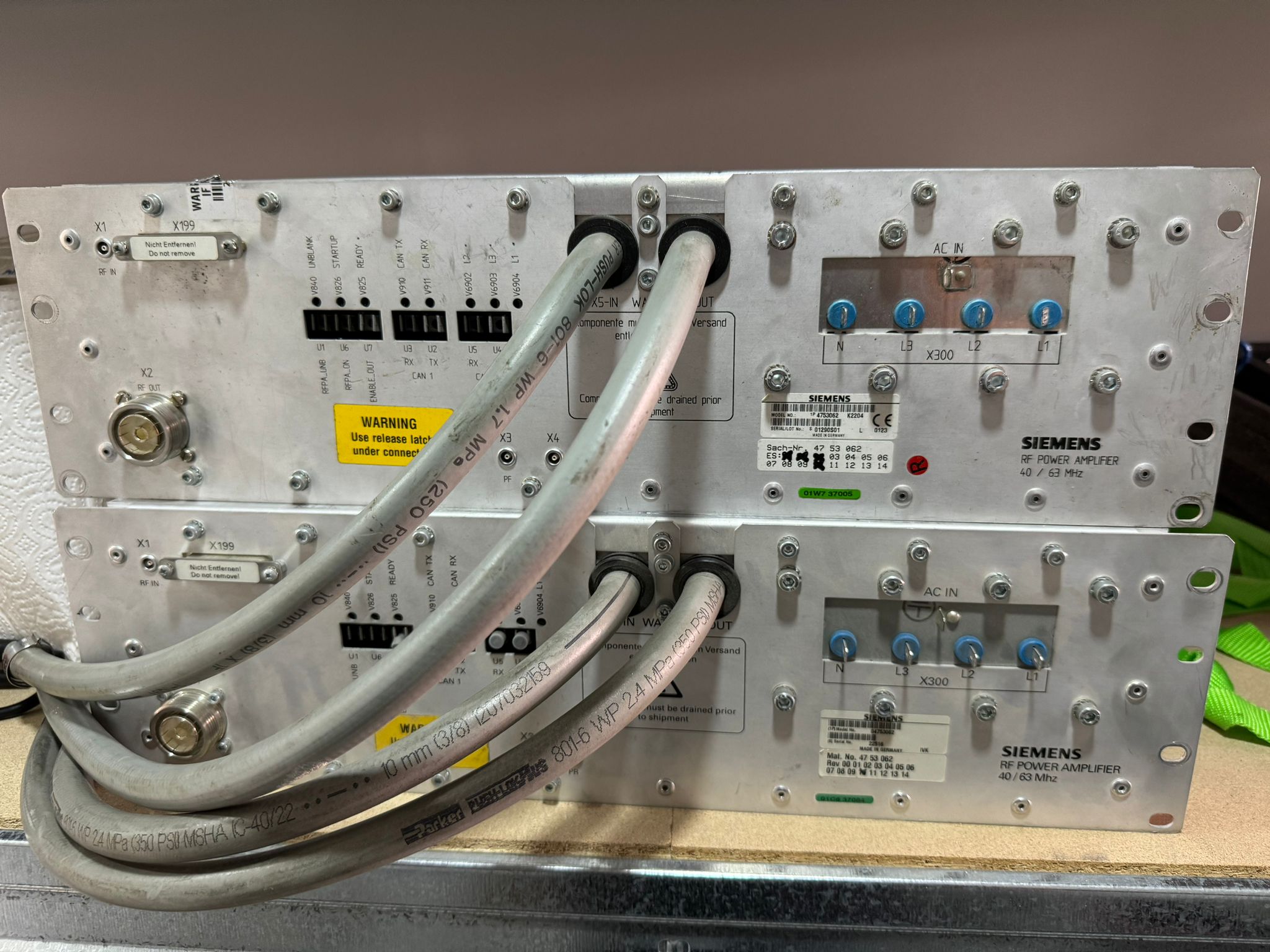

On the label belonging to the Siemens RF Power Amplifier 40/63 MHz model, “Ser. No: 12108 M2 101” and “Mat. No: 53 96 260 D3332” information is readable.

Accessories and Connection Ports

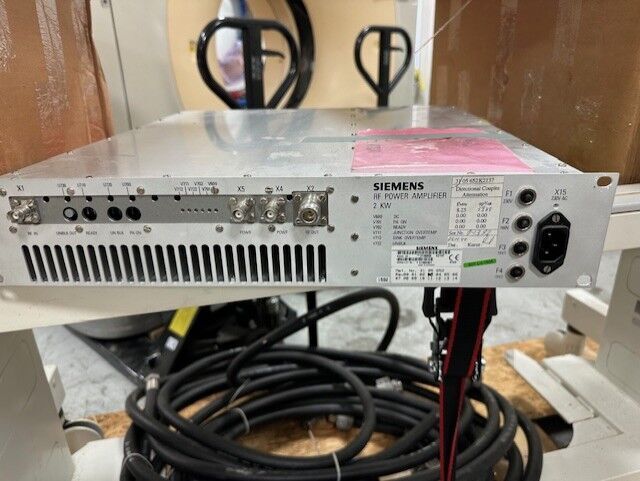

Accessories and connection elements understood to belong to the devices are present in the visuals. Thick, grey power and data cables connecting the units are visible. Numerous connection ports are located on the rear panels of the devices. These include specific sockets such as X1 (RF IN), X2 (RF OUT), X15 (230V AC) power input, UNIBUS IN/OUT, and various D-Sub connectors. The physical condition of all ports appears good.

Potential Risk Assessment

Upon inspecting the external casings and connection points of the devices, no critical findings such as severe wear, rust, cable crushing, or burn marks, which could indicate a potential malfunction, were observed. The general condition of the units suggests they have been well-maintained and used properly. Based on visual evidence, no obvious risk of malfunction stemming from the physical condition of the devices is observed.
