Secondhand Sinaps SNS 8000 T Positioning Air Mattress Motor

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 24.11.2025

Sinaps Trima SNS 8000 Air Mattress Pump Analysis Report

Device Identification

The device in the examined images is a pneumatic compressor/pump unit designed for medical use, specifically for anti-decubitus (bed sore) air mattress systems. The device is a control unit that adjusts and manages air pressure to ensure pressure distribution for patients in a supine position. The images do not show the mattress or hose assembly; only the motor (pump) unit is visible.

Brand and Model

Based on the data on the product’s front panel and rear label, the brand and model information is as follows:

• Brand: The Sinaps (Sinaps Grup) logo is visible on the front lower left part of the device and in the web address reference on the rear label. Additionally, the word TRIMA is prominently located at the top of the front control panel design.
• Model: The words SNS 8000 are clearly written on the “Pump Model” line of the label on the rear surface of the device.

General Condition and Physical Examination

The device generally maintains its integrity, and no breaks or cracks have been detected on its outer casing. However, some cosmetic flaws are noticeable:

• Front Panel: The device’s white plastic front casing shows brown/dark colored stains and scuff marks, especially on the left middle-edge section. These stains appear to be dirt or paint transfer.
• Rear Panel: The rear gray body appears clean. The hanging brackets and feet are sturdy.
• Buttons: The control buttons and switches on the front panel are in place and appear physically intact. There are no missing buttons.

Technical Specifications and Control Panel Analysis

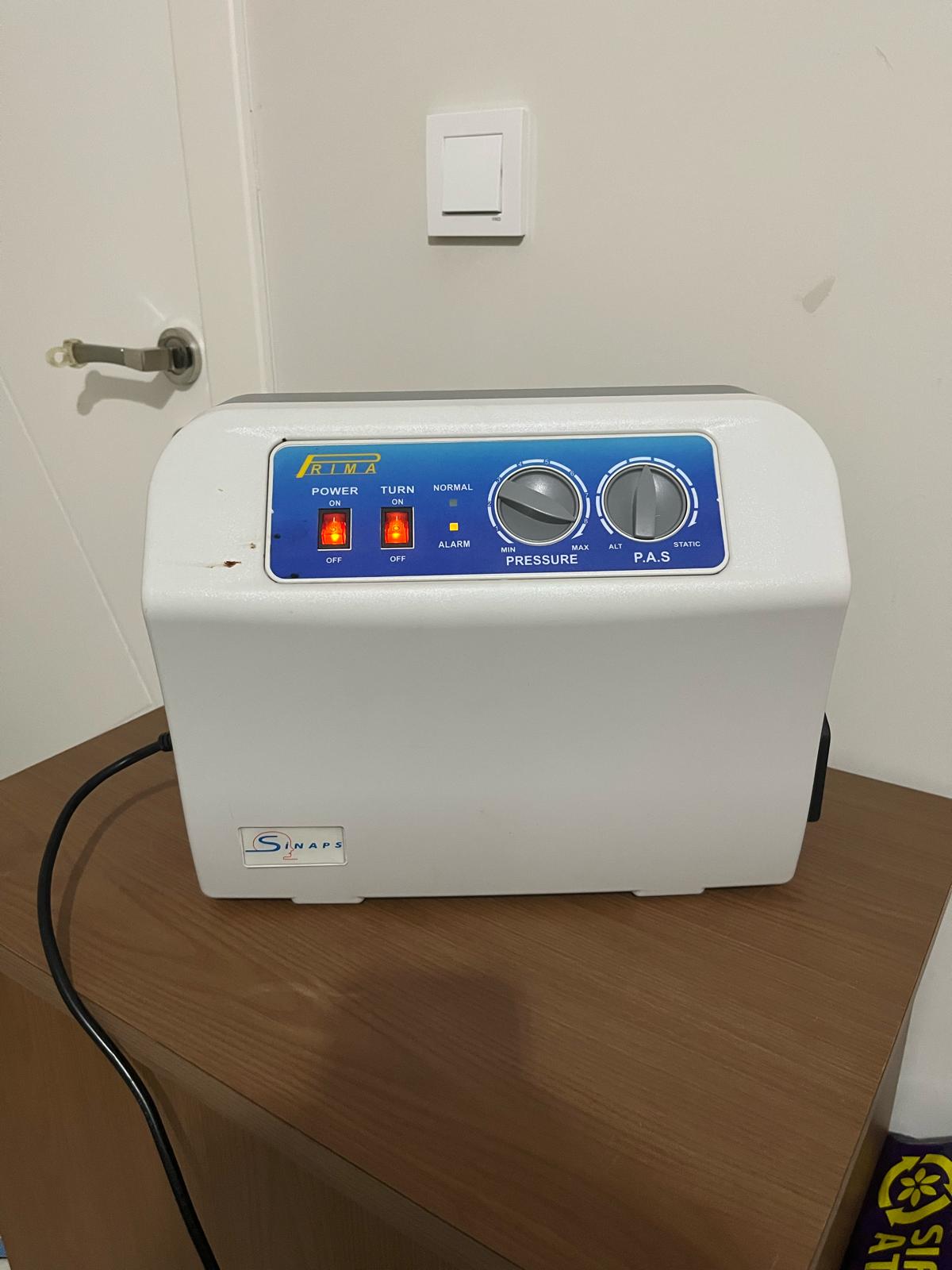

The controls on the device’s front panel provide the following details about its functionality:

• Power Switches: There are two illuminated type switches: “POWER ON/OFF” (Main Power) and “TURN ON/OFF” (likely a positioning or cycle start function).
• Indicators: LED indicator slots are available for “NORMAL” and “ALARM” statuses.
• Pressure Adjustment: The rotary knob on the left side allows pressure adjustment from “MIN” (Minimum) to “MAX” (Maximum) levels (numbered from 1 to 5).
• P.A.S Adjustment: The rotary knob on the right side is labeled “P.A.S” and provides switching between “ALT” (Alternating) and “STATIC” (Static) modes. Additionally, numerical values such as 10, 15, 20 (likely minute-based cycle durations) are visible around the knob.

Label Information and Serial Number

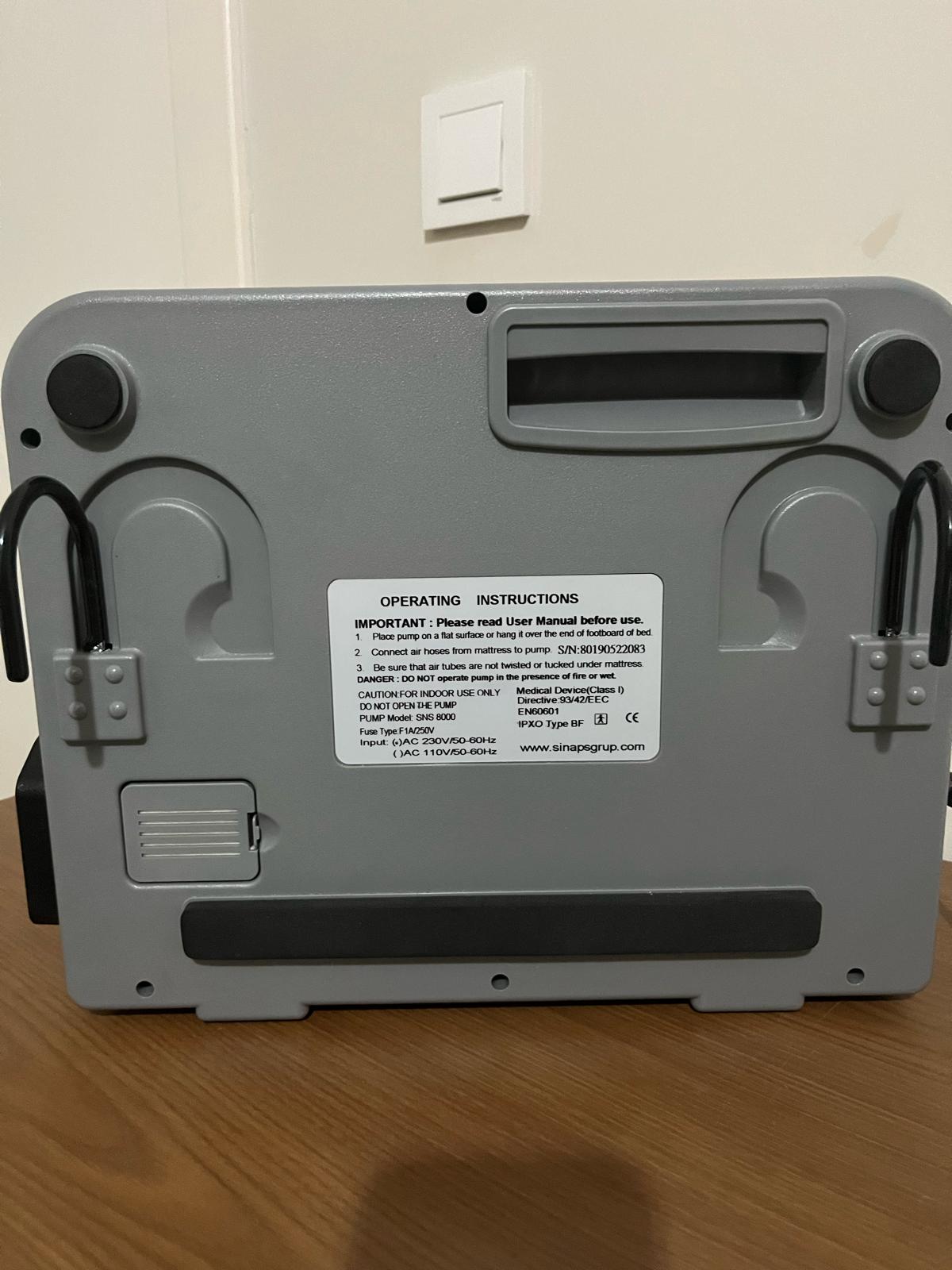

Critical information found on the label on the rear surface of the device is as follows:

• Serial Number (S/N): 80190522083
• Model Number: Pump Model: SNS 8000
• Electrical Input: The label lists AC 230V/50-60Hz and AC 110V/50-60Hz options. Given that the product originates from Turkey (Sinaps Grup), it is likely to be of the 230V standard.
• Fuse Type: F1A/250V
• Classification: Medical Device (Class I), IPX0 Type BF, CE marked.

Accessories and Connection Points

The following details regarding the device have been observed in the images:

• Power Cable: There is an integrated black power cable extending from the left side of the device. No visual crushing or breakage has been detected on the cable.
• Hanging Brackets: On the rear of the device, there are two black metal hooks for hanging it on the side of a bed. These hooks appear to be foldable inwards into the casing when not in use.
• Feet: For use on a flat surface, there are 4 black rubber feet on the base and a strip extending along the bottom body to reduce vibration.
• Filter Cover: A plastic flap providing access to the air filter is visible on the rear lower left corner.

Areas of Use

This device is used for inflating air mattresses and ensuring air circulation (pressure distribution) to prevent pressure sores (decubitus ulcers) caused by prolonged lying in the same position in bedridden patients, or to support their treatment process.

Assessment and Conclusion

As a result of the visual analysis, it has been determined that the Sinaps Trima SNS 8000 model air mattress pump is physically intact (no breaks or cracks in the casing), but it bears cosmetic stains due to use. The device’s technical label and serial number are legible. The product can be categorized as “Used”. While the operational status (whether it pumps air) cannot be determined solely from the images, there is no visible damage to its external components (switches, buttons, cable) that would impede its operation.
