Secondhand MIR Spirolab Spirometer

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 25.11.2025

MIR Spirolab Spirometer Device Analysis Report

Device Identification and Product Description

The main product featured in the visuals is a desktop-type spirometer (respiratory function test) device with a touchscreen and built-in printer. This device is designed to measure lung capacity and functions in professional medical environments. The set includes the main console, a handheld sensor unit (MiniFlowmeter), a power adapter, a turbine, mouthpieces, an interconnection cable, and an original carrying case.

Brand and Model Information

As a result of detailed visual analysis, the device’s brand and model have been identified as follows:

• Brand: MIR (Medical International Research)
• Model: Spirolab

This information is clearly visible on the front face of the main unit with the “MIR” logo in the upper right corner and “spirolab” in the upper left corner, on the back of the handheld sensor with “spirolab” and “MiniFlowmeter” inscriptions, and on the metal logo on the carrying case. The brand logo is also present on the turbine box.

Originality and Quality

The placement of logos on the product, the screen print quality, special production mold details (white casing design with a yellow stripe), and the font layout on the labels indicate that the device is a 100% original MIR production. There is no indication that it is an aftermarket or replica product.

Accessories and Package Contents

The total list of parts countable in the visuals and present in the set is as follows:

• 1 unit MIR Spirolab Main Console Unit.
• 1 unit wired MiniFlowmeter (Flow Sensor).

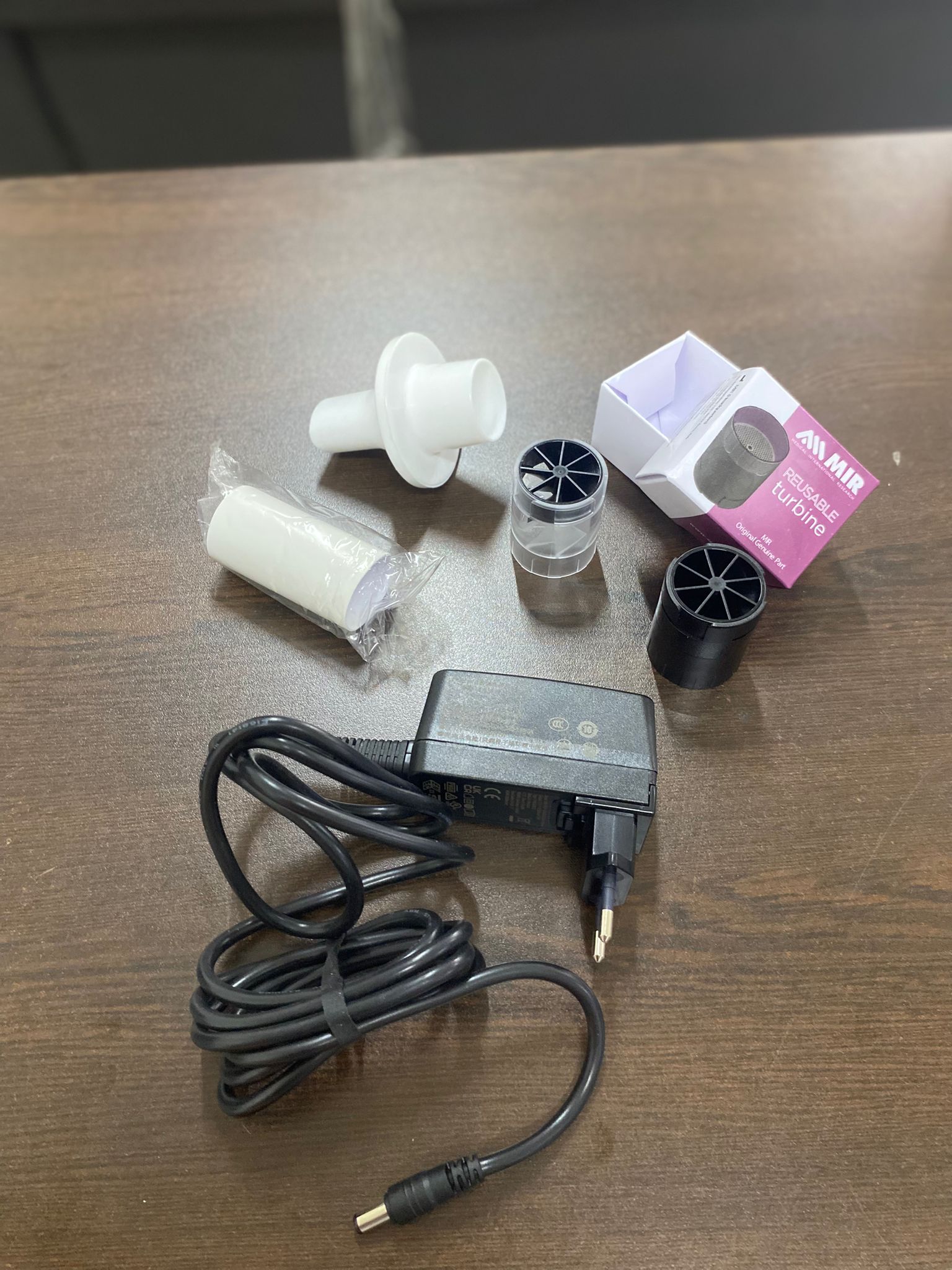

• 1 unit Black Power Adapter (Wall plug type).
• 1 unit MIR brand “REUSABLE turbine” box.
• 1 unit Turbine housing (Black colored).
• 1 unit Turbine (Transparent/White).
• 1 unit Paper/Cardboard Mouthpiece (White, disposable type).
• 1 unit Plastic Adapter/Mouthpiece (Cone-shaped).

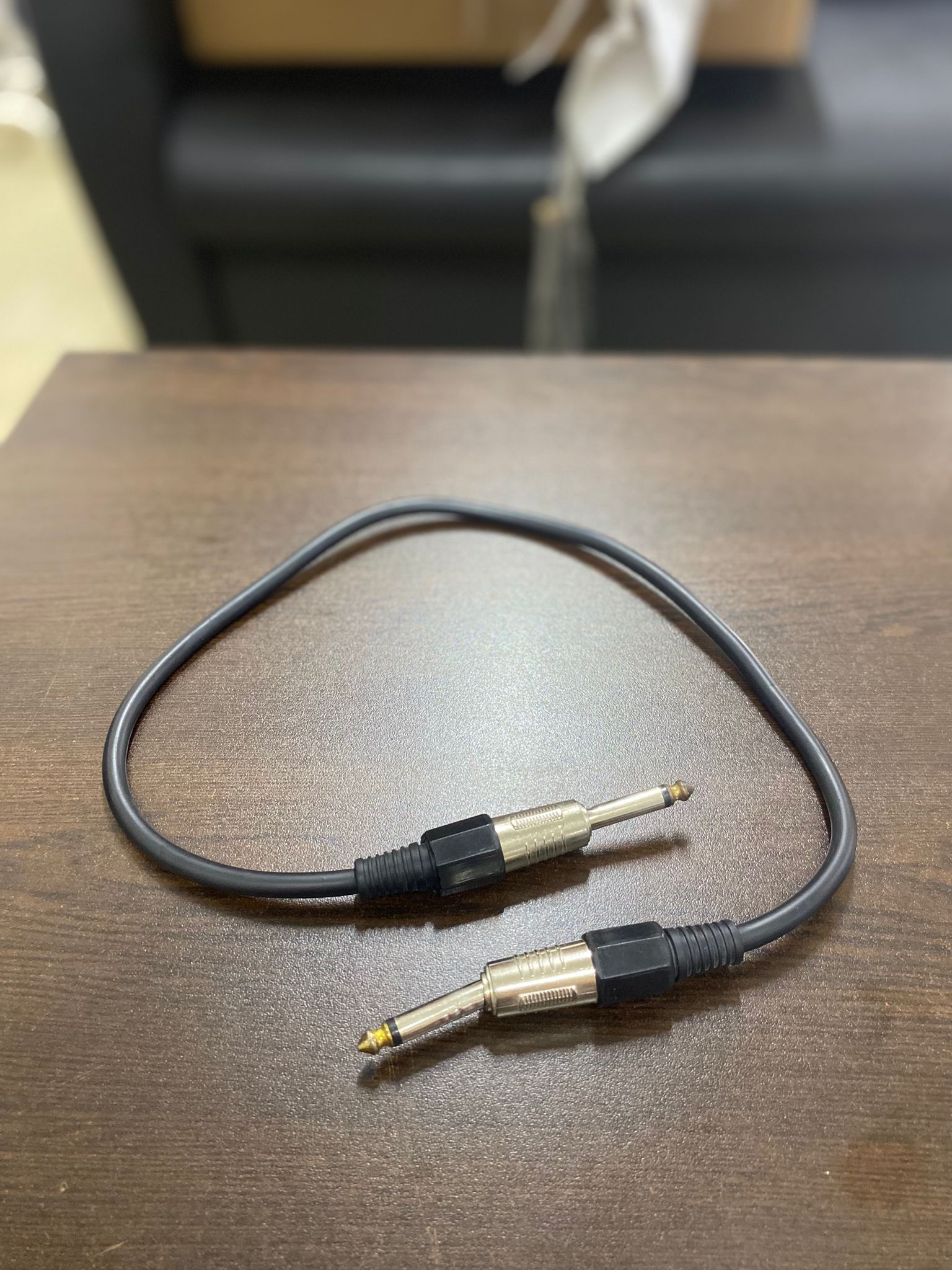

• 1 unit Interconnection Cable (Black colored, with two jack inputs).
• 1 unit Original Gray Carrying Case.

General Condition and Physical Condition

The product generally appears to be very clean, well-maintained, and in high condition. It can be classified as “New” or “Display/Very Lightly Used” product. The details supporting this assessment are as follows:

• Casing Condition: No yellowing, deep scratches, cracks, or impact marks are visible on the device’s white plastic casing. The yellow decorative stripe at the bottom retains its vibrancy.

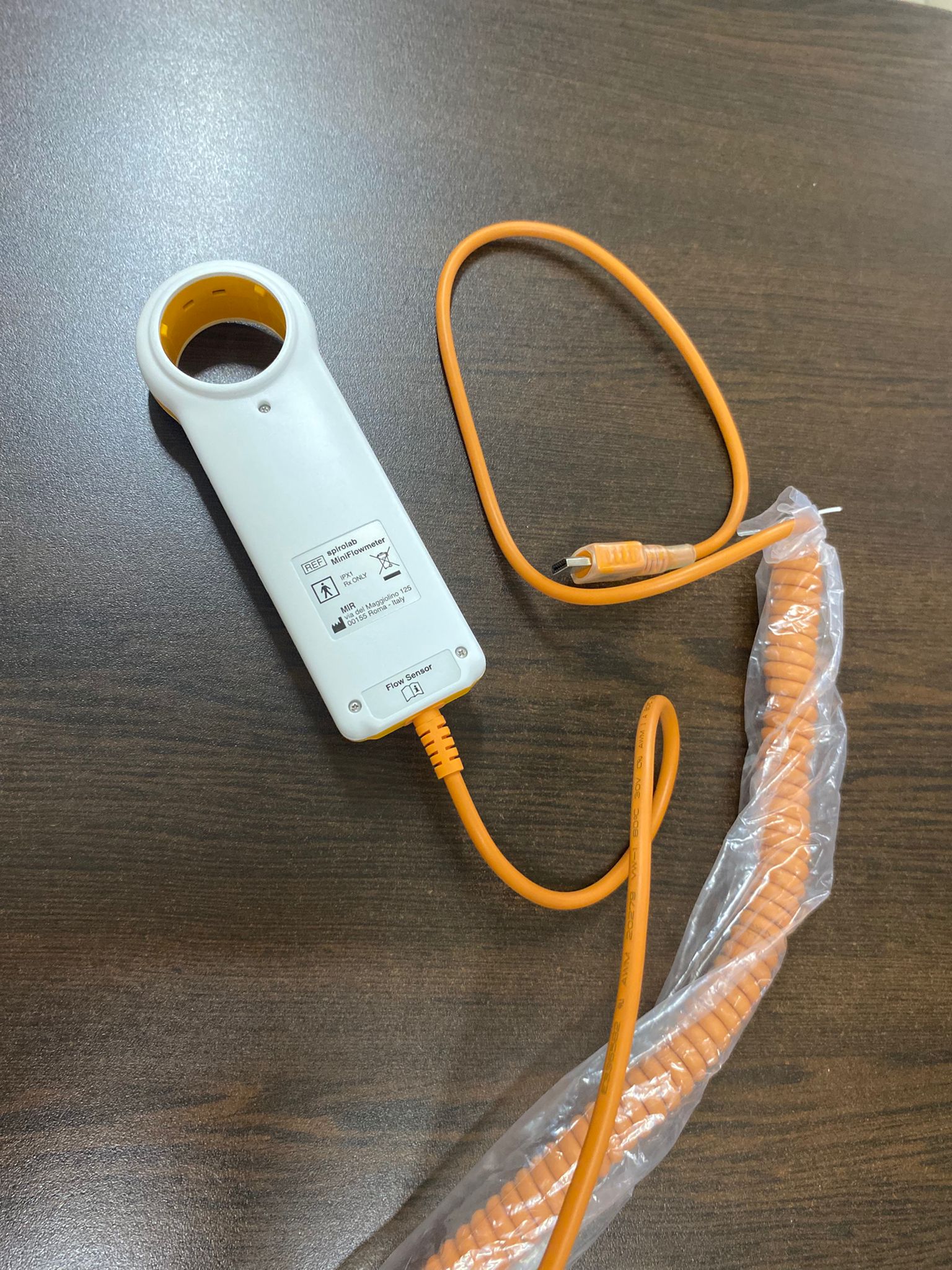

• Hand Sensor: A part of the orange spiral cable of the flowmeter unit still contains its original protective nylon. This is a strong indication that the device has been very lightly used or not used at all in the field.

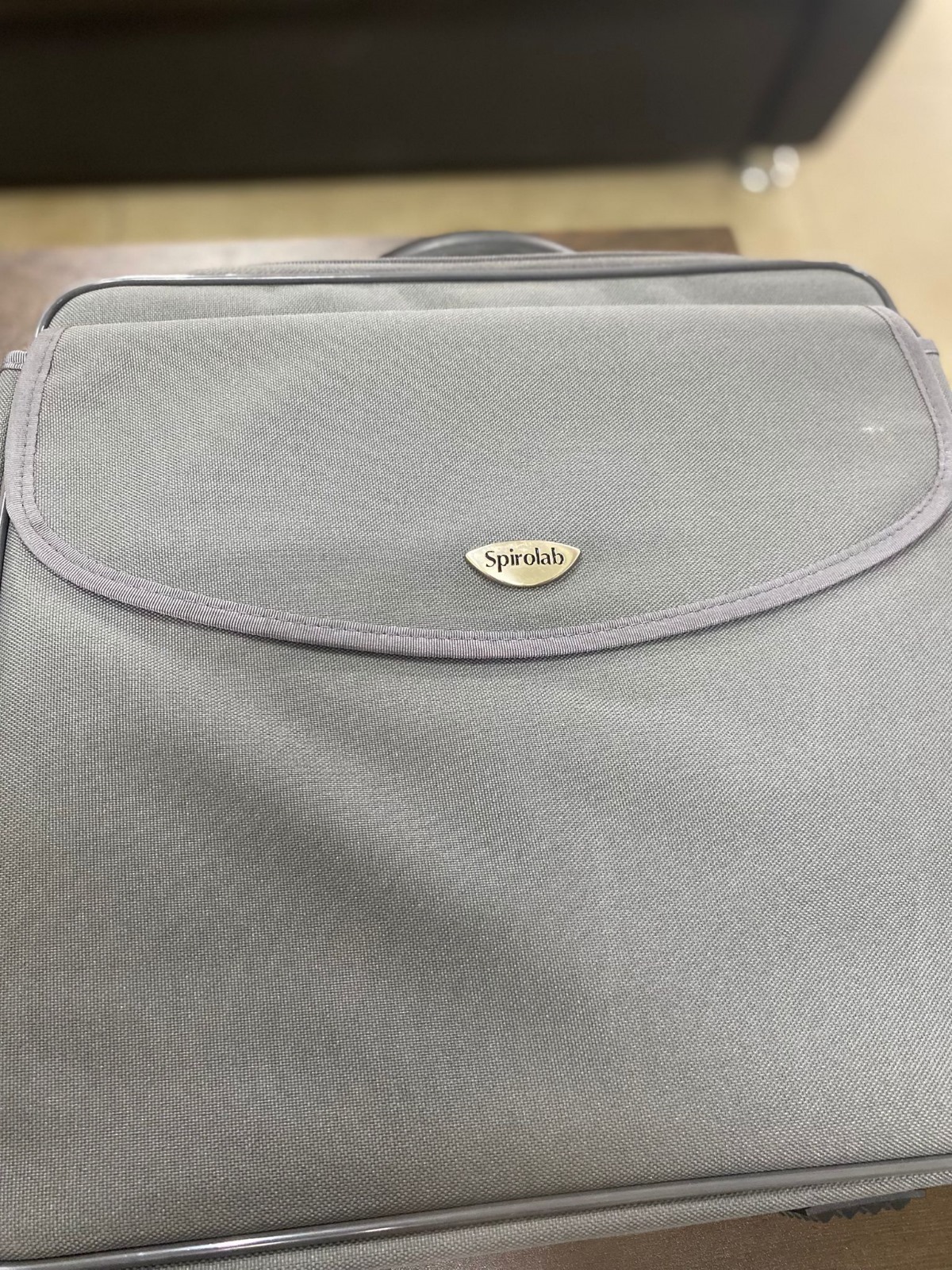

• Carrying Case: The fabric of the bag is clean; no wear, unraveling, or stains have been observed on it. The metal logo is shiny.

Screen Analysis

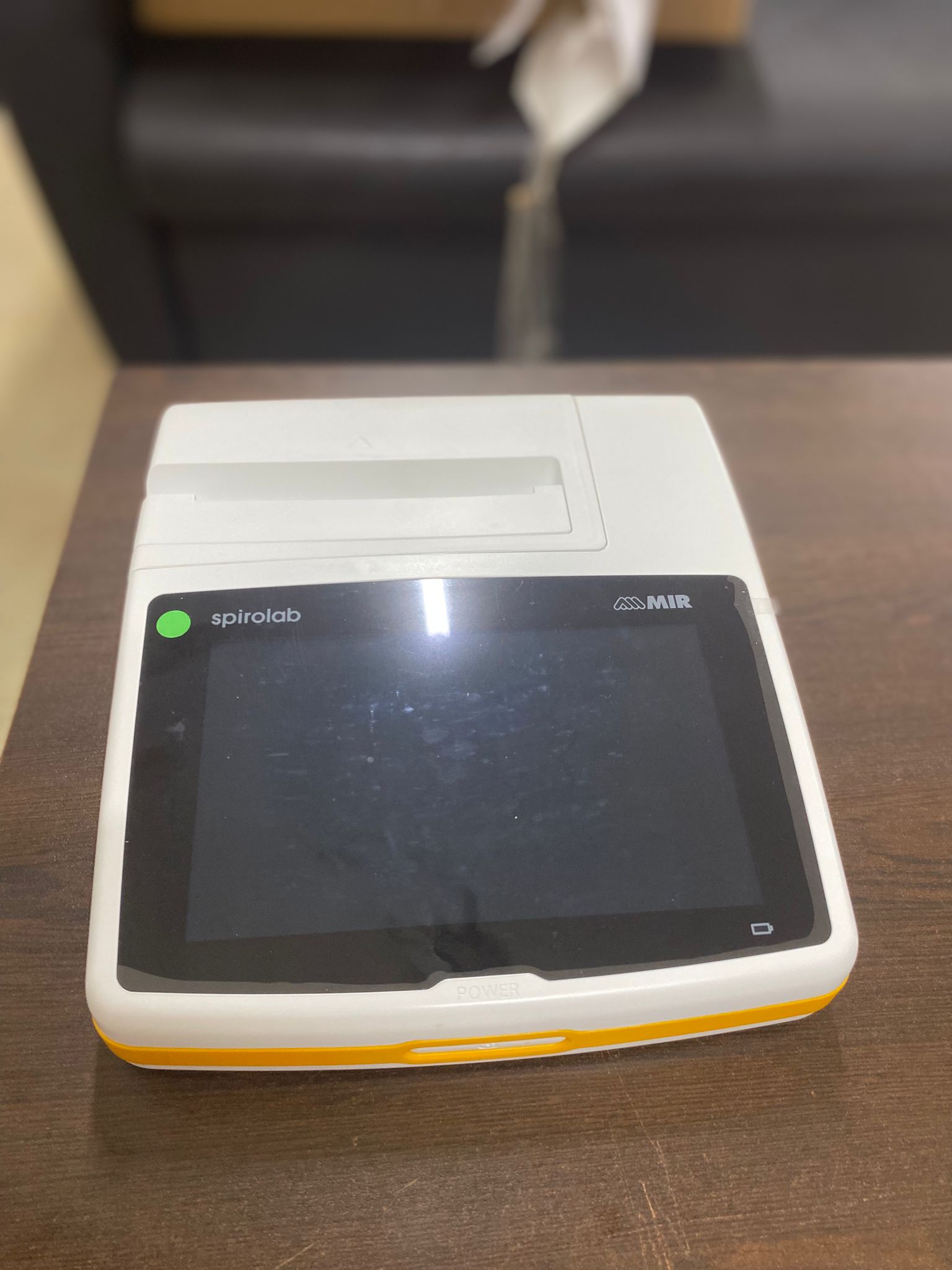

The device features a color touchscreen estimated to be 7 inches in size. In the visual, the device is in the off position. Fingerprint smudges and light dust accumulation are visible on the screen surface due to light reflection. However, no signs of deformation such as cracks, breaks, or ink bleeding have been found on the screen panel.

Mechanical and Electronic Components

The following observations were made regarding the mechanical and electronic components during the visual inspection:

• Printer Unit: The main console’s upper part contains a built-in thermal printer compartment and a paper output slot. The cover mechanism appears sturdy and properly seated.
• Cables: The spiral sensor cable retains its elastic structure, and no deformation is observed. There are no crushes or breaks in the power adapter cable.
• Sensor Connection: The port inputs on the MiniFlowmeter are clean. There is no damage to the plastic body of the sensor.

Label and Technical Information

According to the label information on the MiniFlowmeter (Handheld unit):

• Product Type: Spirolab MiniFlowmeter.
• Protection Class: IPX1 (Protected against vertically falling water drops).
• Warning: Rx ONLY (For prescription/expert use only).
• Origin and Address: MIR – Via del Maggiolino 125, 00155 Rome – Italy.

Areas of Use and Compatibility

This device is used by pulmonologists, family physicians, and hospital respiratory test laboratories for the diagnosis and monitoring of respiratory diseases such as COPD and asthma. The ports and sensor structure on the device are suitable for both adult and pediatric use. The “Reusable Turbine” box next to it indicates that the device is compatible not only with disposable turbines but also with long-life turbines that can be disinfected and reused.

Battery and Power Information

A battery (power) icon is located in the lower right corner of the main unit. This icon indicates that the device can operate not only when plugged into an outlet but also with a rechargeable internal battery (implying portability). The accompanying power adapter is used to charge the device. Although the current battery capacity cannot be determined from the visual, no physical issues such as swelling or leakage are observed on the external casing.

Potential Risk and Failure Assessment

Within the scope of the visual inspection, no broken parts, rust, burns, or missing components (in terms of critical components) that could hinder the product’s operation have been detected. The fact that the sensor cable is still packaged suggests it is at the beginning of its service life. The touchscreen, which is potentially the most sensitive part, is physically intact. The device is in a reassuring condition.
