Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI agent. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 11.11.2026
Report code: 1794411445
Bıçakcılar VACLİNE MAXİ-E Surgical Aspirator Analysis Report
Device Detection and Basic Identification

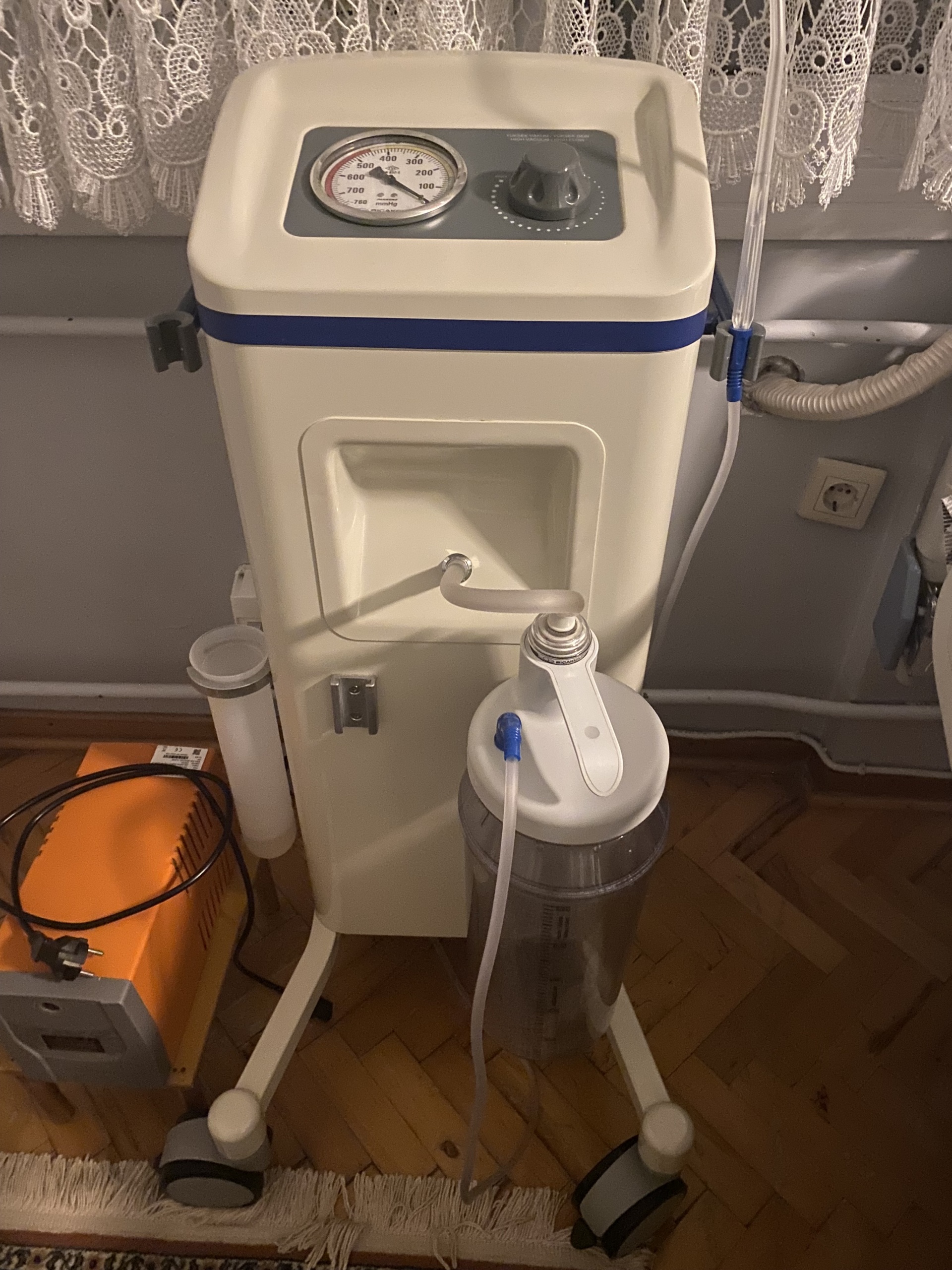

The product under examination is a wheeled surgical aspirator device used for medical purposes. The device features a vertical body designed for the removal of fluids in hospital and clinical environments.
- The main body of the device is manufactured from light cream-colored hard plastic material.

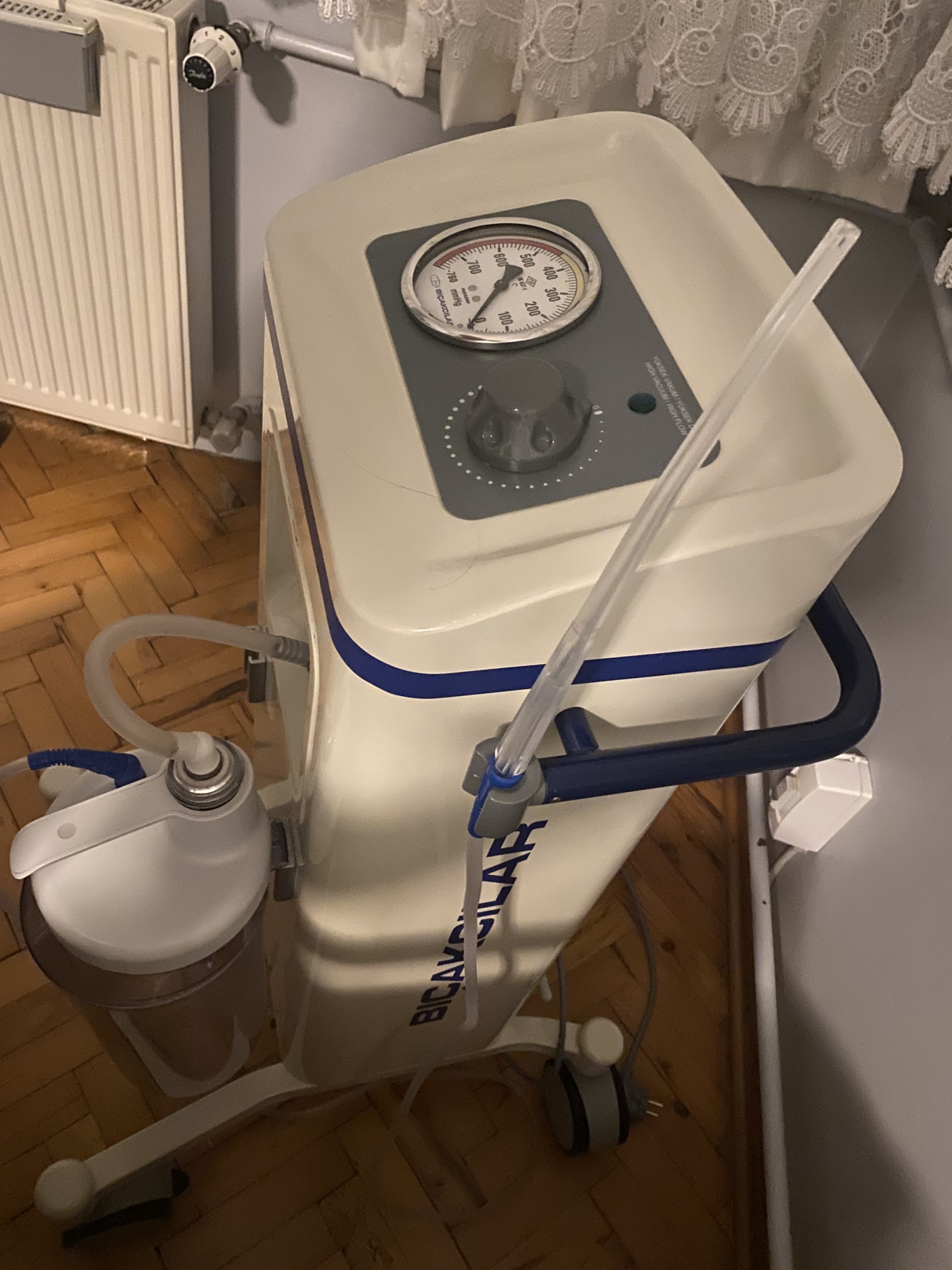

- A round mechanical manometer indicating vacuum pressure and an adjustment knob are located on the upper part.
- A fluid collection jar and connection hoses are attached to the front surface of the body.
Brand and Model Information
Brand and model information has been clearly identified by examining the labels and body prints on the device.
- Brand: Bıçakcılar
- Model Code: M4E 650 0 0
- Product Series: VACLİNE MAXİ-E SURGİCAL ASPİRATOR
- The surgical aspirator definition is present on the label in various languages.
Authenticity and Production Information
The label quality, logos on the body, and material workmanship of the device comply with the original manufacturer’s standards.
- Place of Production: Turkey
- Production Date: Indicated as 2019-09 on the technical label.
- Authenticity Status: It is understood to be an original medical device due to the official serial numbers and brand logos on it.
Usage Areas and Compatible Environments
This device is used in healthcare facilities to suction body fluids during surgical operations and treatment processes.
- Suitable for use in operating rooms, emergency services, and intensive care units.
- Ensures the safe vacuuming of medical waste fluids.
Quantity Information
The total main device, accessories, and components shown in the images have been counted individually.
- Main body quantity: 1
- Fluid collection jar quantity: 1
- Side accessory tube quantity: 1
- Power cable quantity: 1
General Status and Condition
The device is generally in a clean and usable condition.
- There is no significant discoloration or major deformation on the casing.
- It is portable due to its wheeled base structure.
Physical Deformation
No major physical damage was encountered on the outer surface of the device during visual inspection.
- No breaks or deep cracks are visible on the plastic casing, other than normal signs of use.
- Labels are legible and in good condition.
Mechanical Components
The wheels, vacuum adjustment knob, and mechanical parts of the device are in place.
- The adjustment knob on the top panel maintains its rotatable structure.
- The movable wheels at the bottom are mechanically in place.
Electronic Components

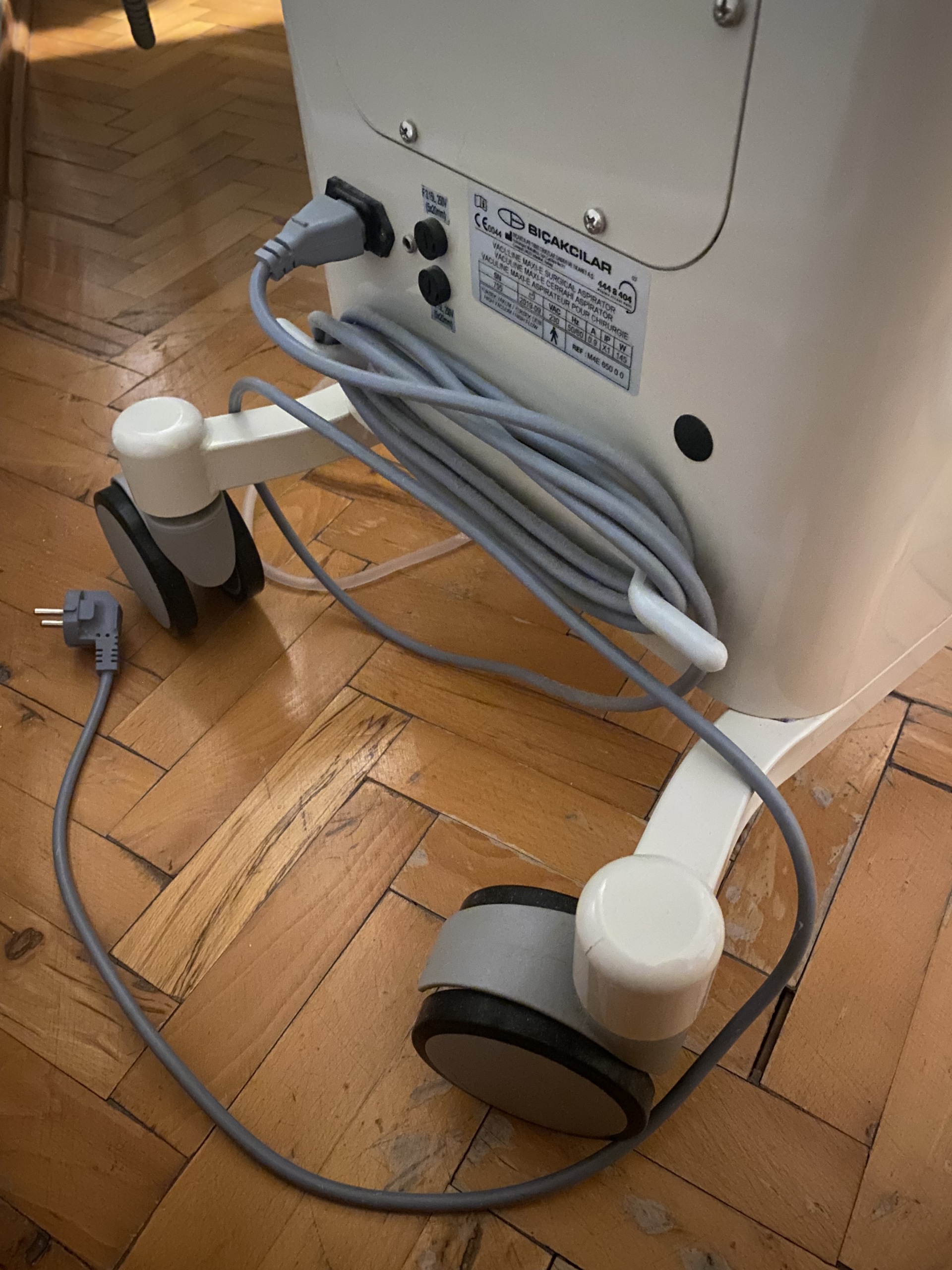

The electrical inputs, fuse slots on the rear panel, and the power cable of the device have been examined.
- The power supply socket and fuse covers are present on the rear panel.
- The power cable is connected to the device and the plug part is intact.
Accessories and Connection Parts
Additional equipment used with the device is clearly visible in the image.

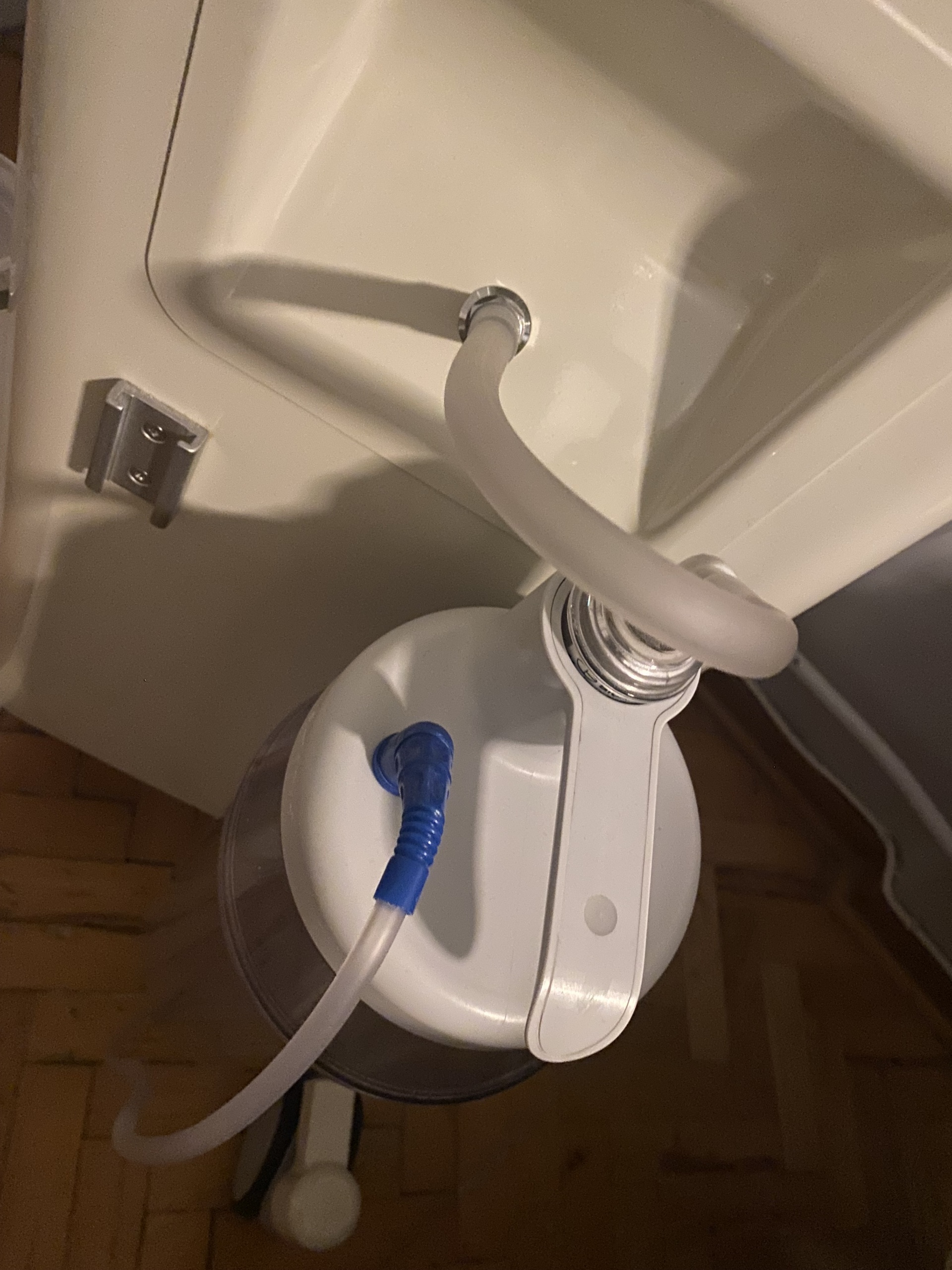

- A transparent polycarbonate fluid collection jar and lid mechanism are attached.
- Silicone connection hoses and a patient hose are present.

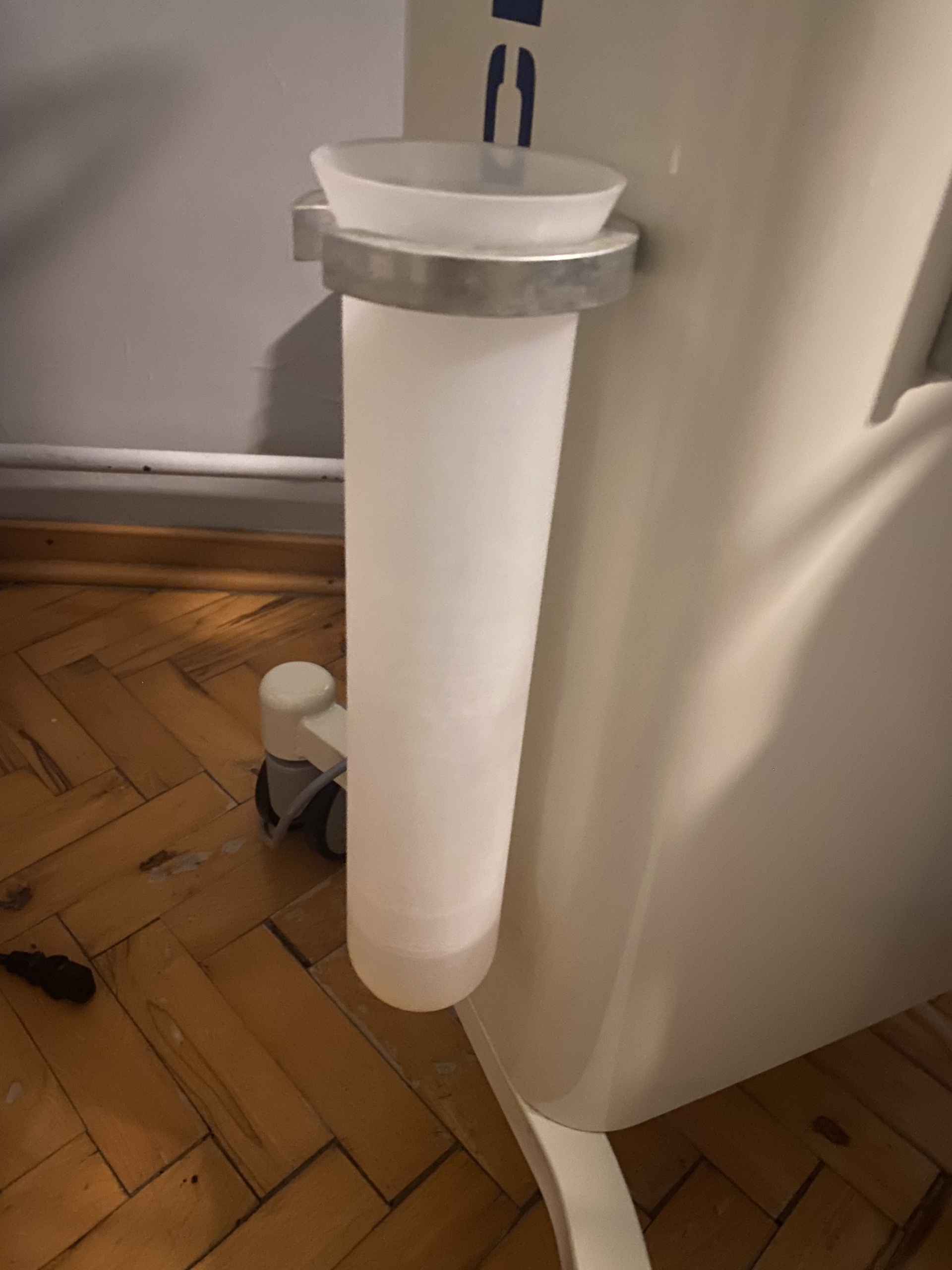

- A transparent cylindrical auxiliary apparatus is located on the side of the body.
- Socket inputs and ports are attached in their appropriate slots on the rear panel.
Battery Status
The device does not contain an internal or external battery; it is designed to operate directly with mains electricity.
- No battery component is present.

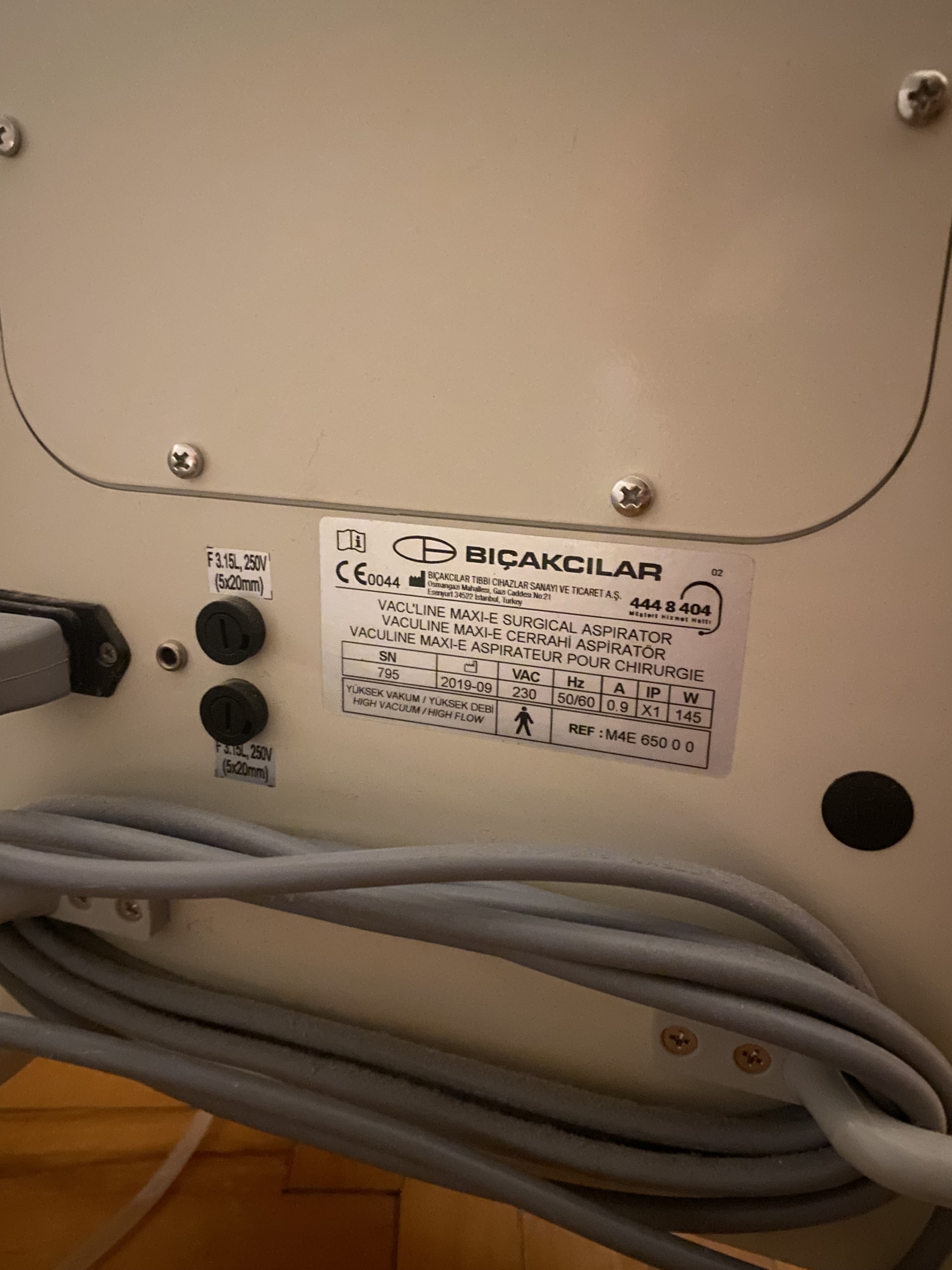

Label and Text Inventory
All texts and technical values read on the device are listed completely.
- Brand and Model Texts: Bıçakcılar, VACLİNE MAXİ-E SURGİCAL ASPİRATOR, VACLİNE MAXİ-E CERRAHİ ASPİRATÖR, VACLİNE MAXİ-E ASPİRATEUR POUR CHİRURGİE
- Serial and Reference Codes: SN: 795, REF: M4E 650 0 0, 02
- Electrical Information: 230 V, 50/60 Hz, 0.9 A, 145 W, IP X1
- Standard and Class Codes: CE 0044, protection class symbols
- Fuse Information: F 3.15L, 250V (5x20mm)
- Other Texts: YÜKSEK VAKUM / YÜKSEK DEBİ, HIGH VACUUM / HIGH FLOW
- Warnings and Instructions: Read user manual icon, electrical safety warnings
This label data informs the buyer that the device operates at 230 Volts, consumes 145 Watts of power, possesses a CE safety certificate, and specifies the appropriate fuse values.
Screen Analysis
There is no numerical or digital screen on the device; values are read via a mechanical manometer.
- The mechanical manometer located on the top panel displays values between 0 and 760 mmHg.
- The needle on the manometer allows for monitoring of the vacuum pressure.
Dimensions and Compatibility
Although the exact millimetric dimensions of the device are not written in the images, it appears to be of standard wheeled surgical aspirator size.
- Usage location compatibility complies with hospital and clinical standards.
Production Year
Based on the data on the technical label.
- The production period is clearly written on the label as 2019-09.
Documents
No documents such as printed invoices, warranty certificates, or user manuals are present in the images.
- No documents are present in the images.
Usage Duration
A digital counter showing the total operating hours of the device is not available in the image.
- Usage duration information is not present in the image.
Existing Fault
No clear evidence of a fault such as a broken part, error message, or severed cable was found during visual inspection.
- No existing fault has been detected.
Potential Fault Risk
The general physical condition of the device is in good state.
- No serious wear, rusting, or cable crushing was observed in the images.
