Alpinion E-CUBE 7 Ultrasound System Analysis Report
Device Detection and Identification

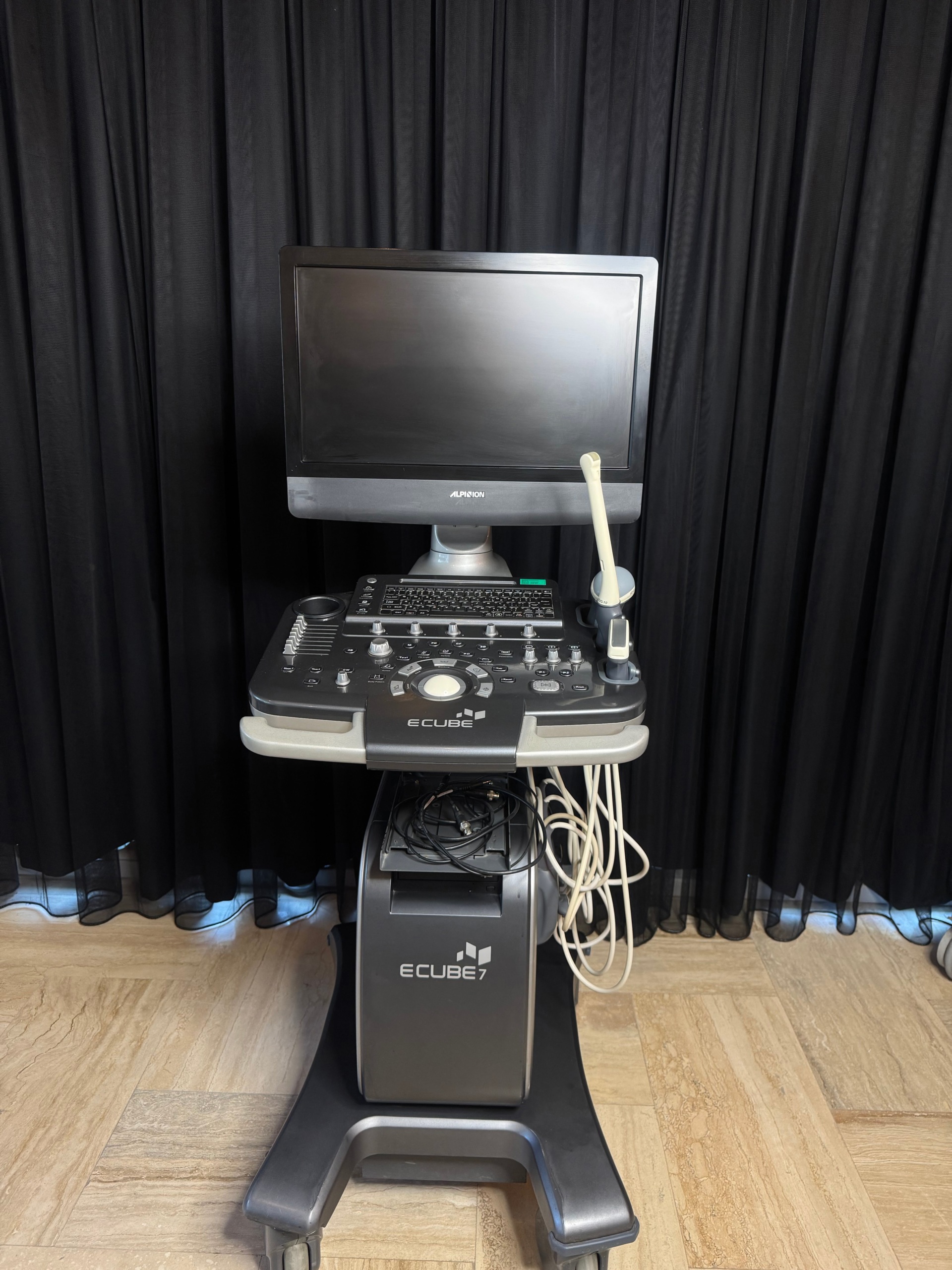

The examined images show a color Doppler ultrasonography system with a wheeled stand (cart) structure, used for medical imaging purposes. The system consists of a main console, monitor, control panel, and integrated probe ports.
Brand and Model Information
Upon examination of the logos and labels on the product, the following brand and model information has been definitively identified:
- Device Brand: ALPINION (Present on the monitor frame and probe bodies).
- Device Model: E-CUBE 7 (The phrases “E CUBE” and “ECUBE 7” are clearly readable on the front face of the main unit and on the control panel).
Identified Probes (Transducers)
The model codes of the probes displayed with the device have been read from the images as follows:

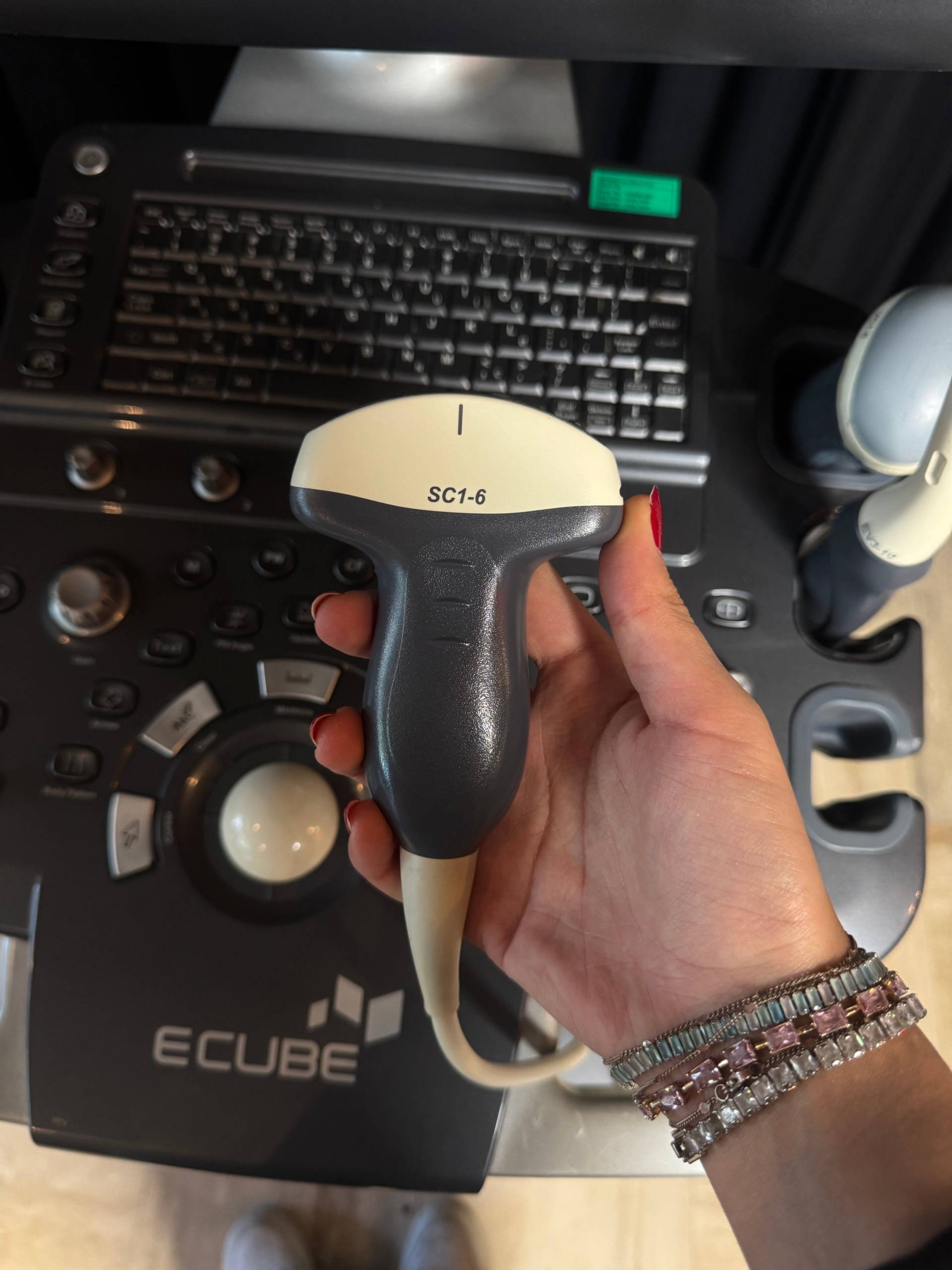

- Convex Probe: The code “SC1-6” was read on the probe head. It is in a standard convex form used for abdominal imaging.

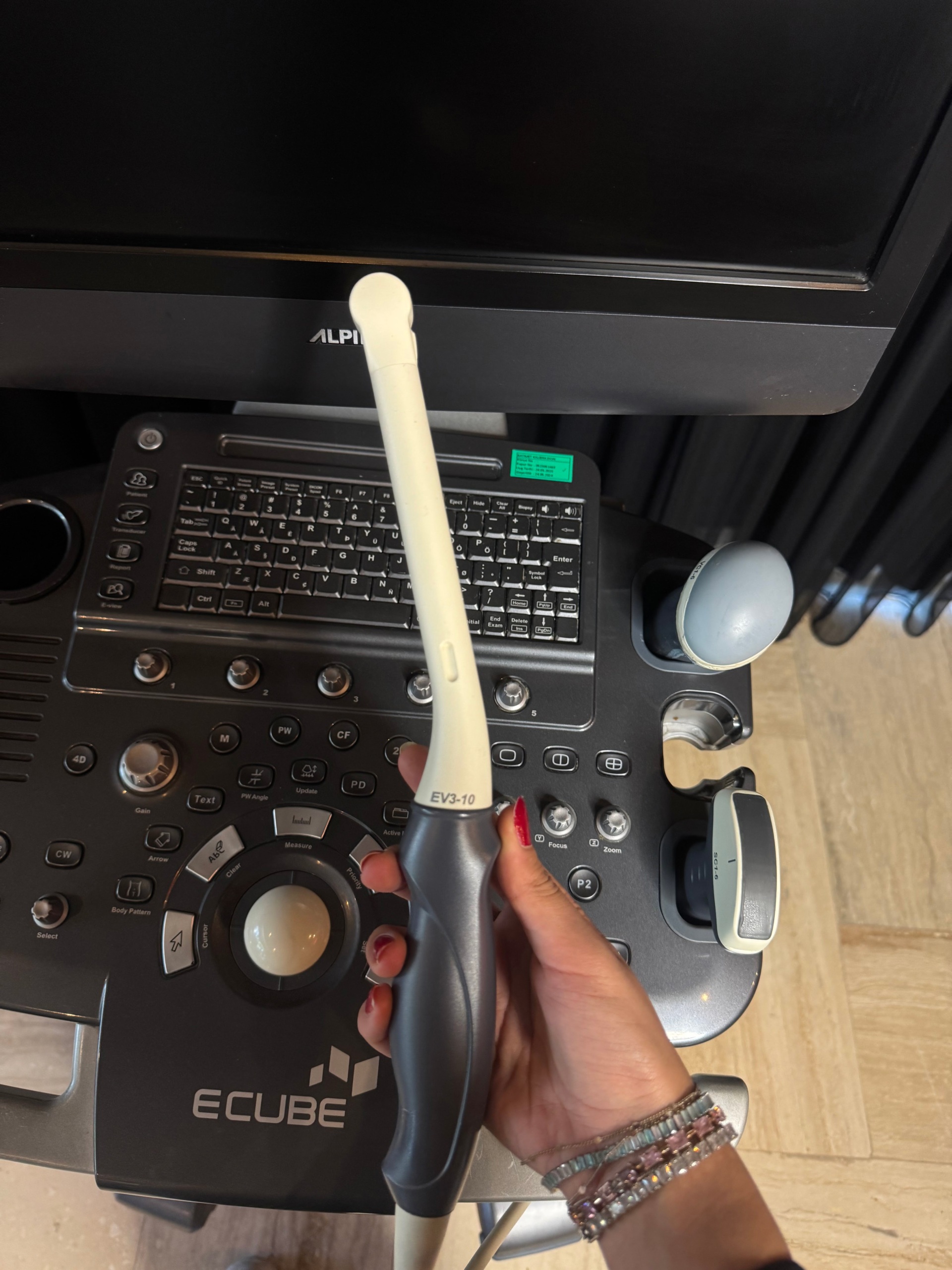

- Endocavitary (Vaginal) Probe: The code “EV3-10” was read on the probe handle. It is in a slender, elongated form designed for gynecological and urological examinations.

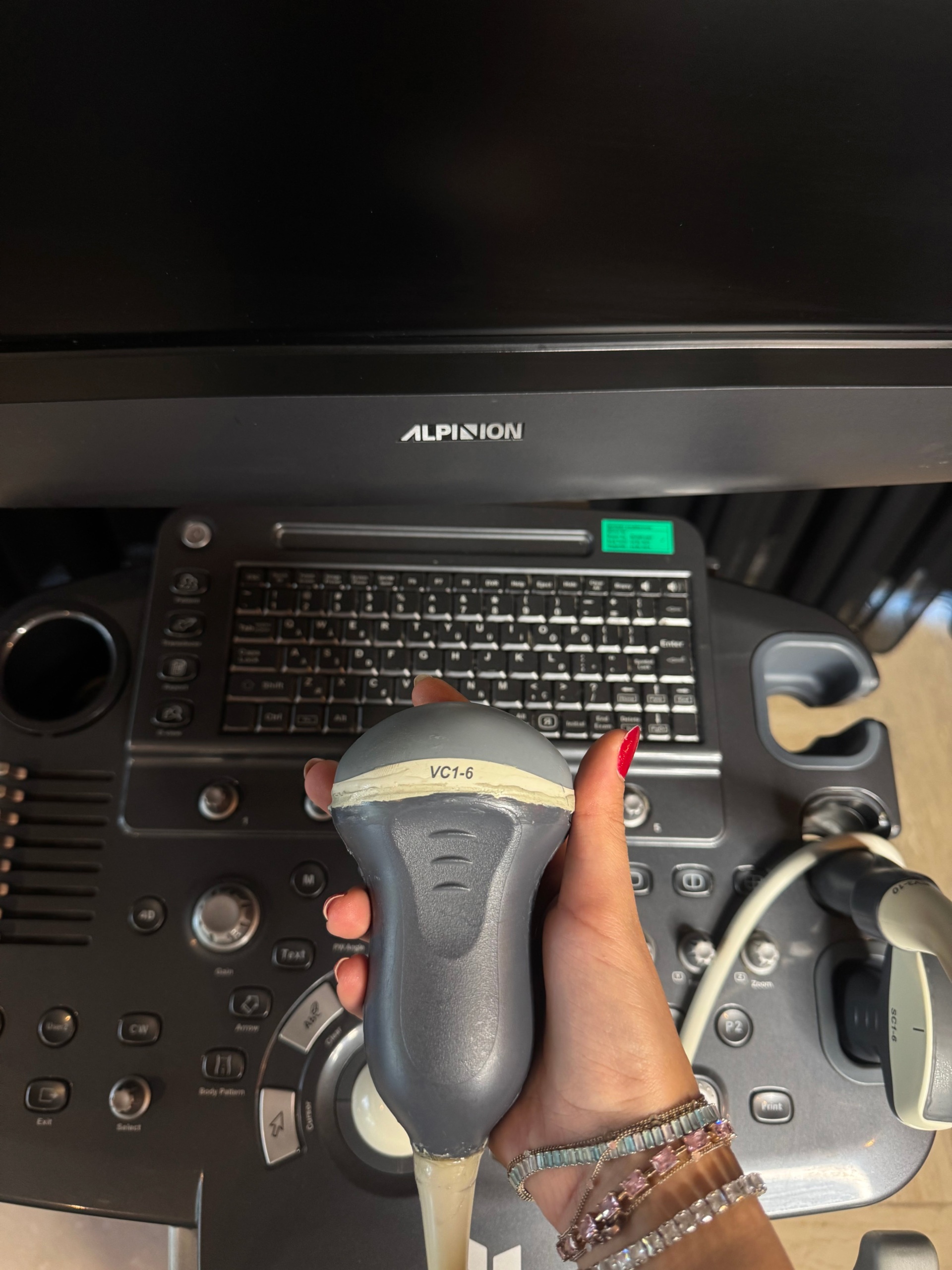

- Convex/Volumetric Probe: The phrase “VC1-6” is present on the probe held by hand in the image, where yellowing is observed on the label part. Visual details suggest that the label might have been affixed later or is deformed.
Areas of Use
The Alpinion E-CUBE 7 is a multi-purpose diagnostic device. Considering the existing probes (Convex and Endocavitary), it is understood that the device is ready for use in the following specialties:
- Obstetrics and Gynecology
- General Radiology (Abdominal Ultrasonography)
- Urology
- Internal Medicine examinations
Visual Condition and Physical State
Upon examination of the device’s external casing and overall integrity, the following details were observed:
- Monitor: The flat panel screen appears intact. No cracks or breaks were detected on the screen surface. The hinge mechanism remains stable.
- Control Panel: The QWERTY keyboard, TGC (Time Gain Compensation) sliders, and rotary knobs are complete. There is yellowing in the trackball (cursor ball) color due to use.
- Body Plastics: No significant cracks or fractures are visible on the main casing. The integrity of the dark gray and anthracite-colored plastic components has been preserved.
- Cables: Probe cables are loosely hung on the hangers on the side of the device. No deep cuts or breaks in the cable jackets were visually detected, but there is yellowing at the connectors and strain relief points of the probes.
Accessories and Connection Points
In addition to the system, the following accessories were identified in the images:
- Total Number of Probes: At least 3 probes (coded as SC1-6, EV3-10, and VC1-6) are shown in detail in the images.
- The device has multiple probe input ports.
- Peripherals such as a gel warmer or external printer are not present in the images.
Mechanical and Cosmetic Deformation Analysis
As a result of the visual inspection, the noticeable cosmetic and superficial wear and tear are as follows:
- Trackball: The white color of the ball located in the center of the control panel has yellowed due to prolonged use or UV exposure.
- Probe Labels: The label area of the “VC1-6” coded probe appears irregular and deformed, giving the impression of a label strip added later instead of the original print.
- Strain Relief Rubbers: There is discoloration (yellowing) in the rubber protectors at the neck areas where the probe cables connect. This indicates aging of the material.
Potential Malfunction Risk
Based on the data obtained from the images, the following points, solely due to physical aging, require attention:
- Yellowing in the neck areas (strain relief) of the probe cables indicates that the plastic may have hardened. This situation can increase the risk of internal cable conductor breakage during movement.
- The condition of the label on the VC1-6 coded probe suggests the possibility that the probe may have been previously repaired or that its outer surface has been exposed to intense disinfectant use.
Electronic Component Status
Due to the device being in the power-off position, electronic performance parameters such as image quality, software version, pixel errors, or crystal loss (dropout) could not be analyzed. Only the physical presence of the external hardware has been verified.
