Secondhand Mindray DP-8800 Plus Ultrasound Machine

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 10.02.2026

Mindray Digi Prince DP-8800 Plus Ultrasound Device Analysis Report

Device Identification

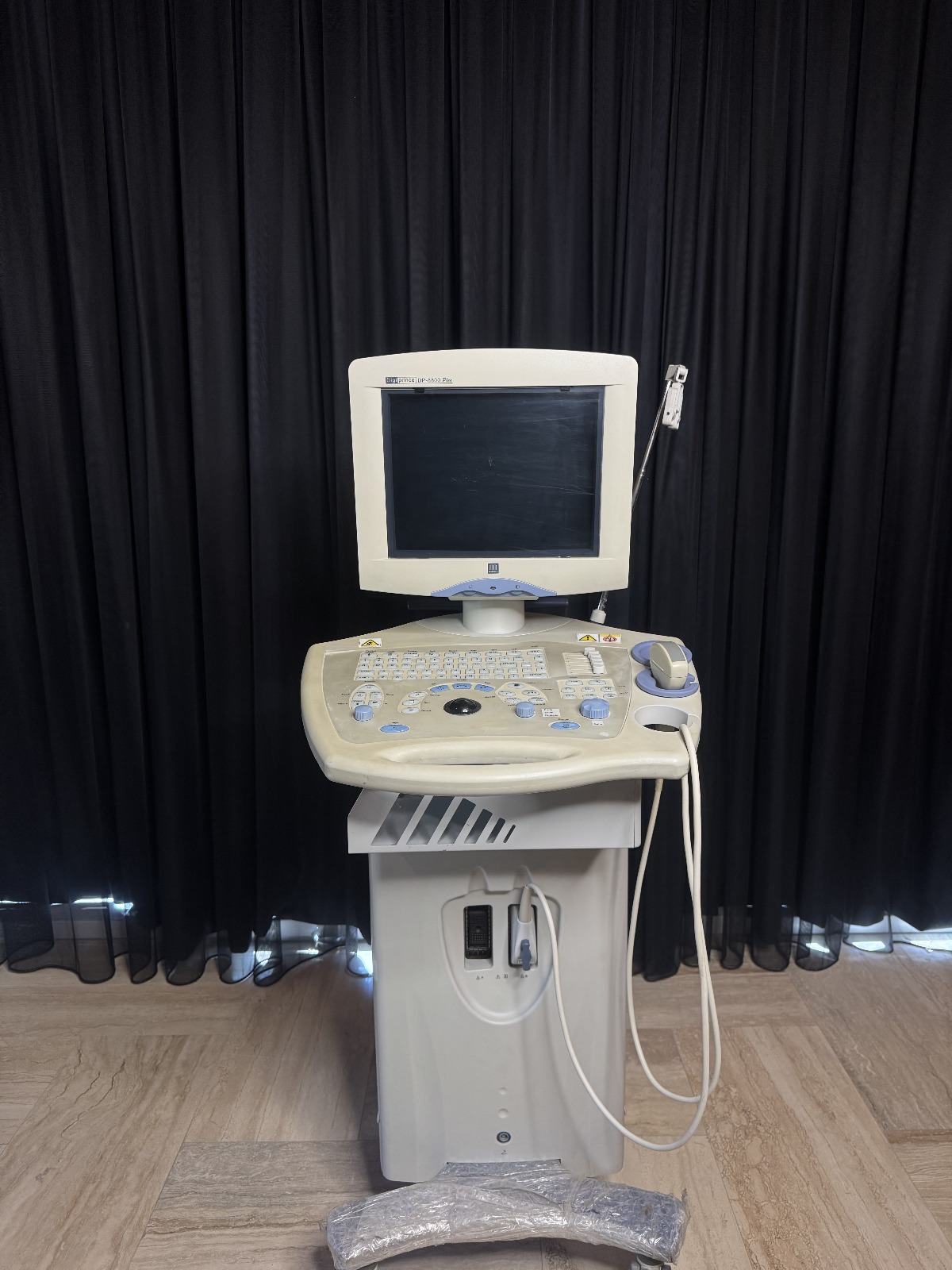

The product examined in the visuals is a medical digital ultrasonography device integrated onto a mobile stand with a wheeled structure. The system consists of a main unit, a control panel, a CRT monitor, and one connected probe. The device is designed for diagnostic imaging purposes in hospital or clinic environments.

Brand and Model

As a result of detailed visual inspections of the product, brand and model information has been definitively identified:

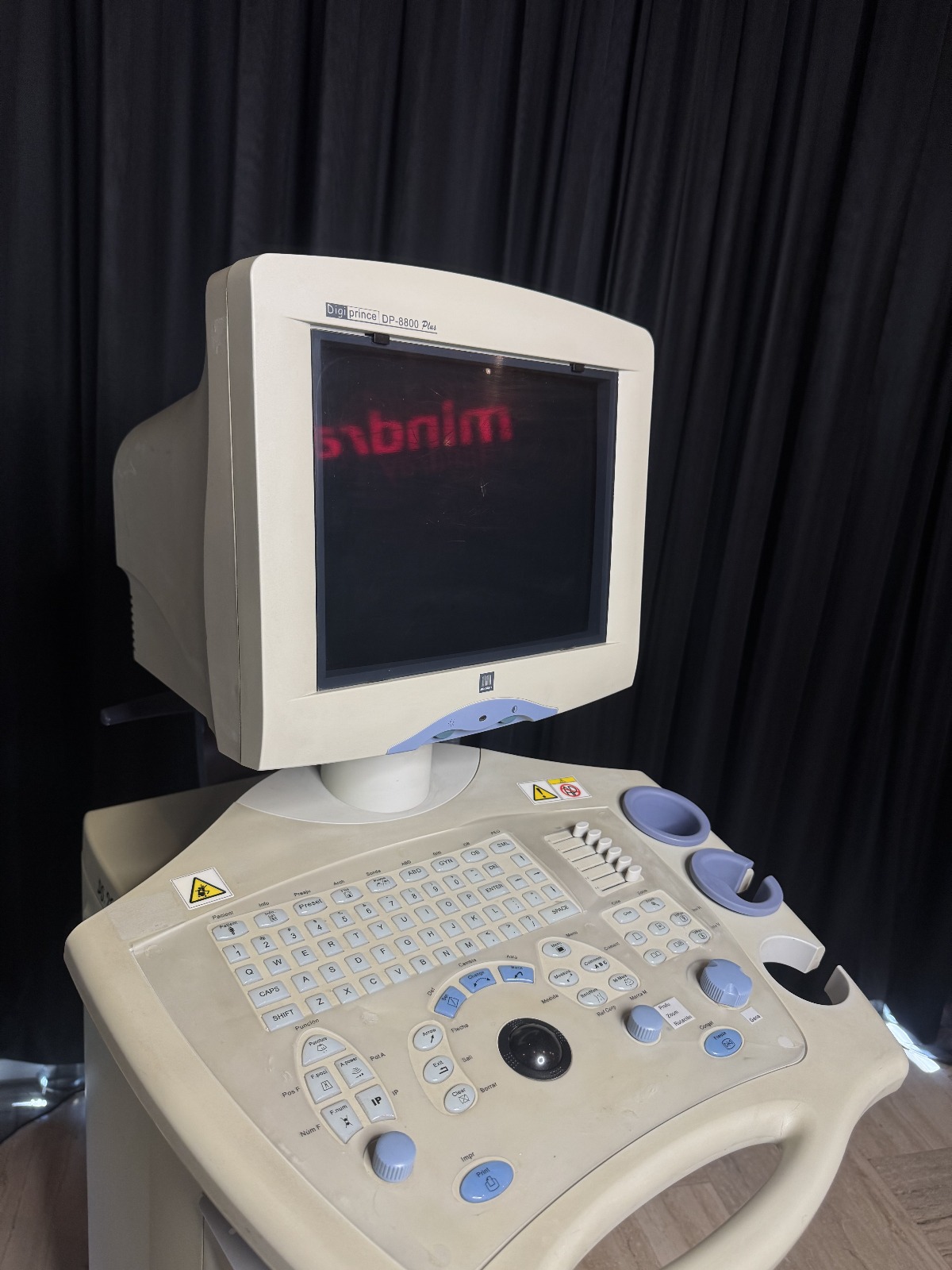

• Device Brand/Model: The inscription Digi prince DP-8800 Plus is clearly visible in the upper left corner of the main unit’s monitor frame. This model is part of a series belonging to Mindray, a medical imaging systems manufacturer (The word “mindray” can be faintly discerned in reverse in the screen reflection, but the primary model identification is taken from the label information).

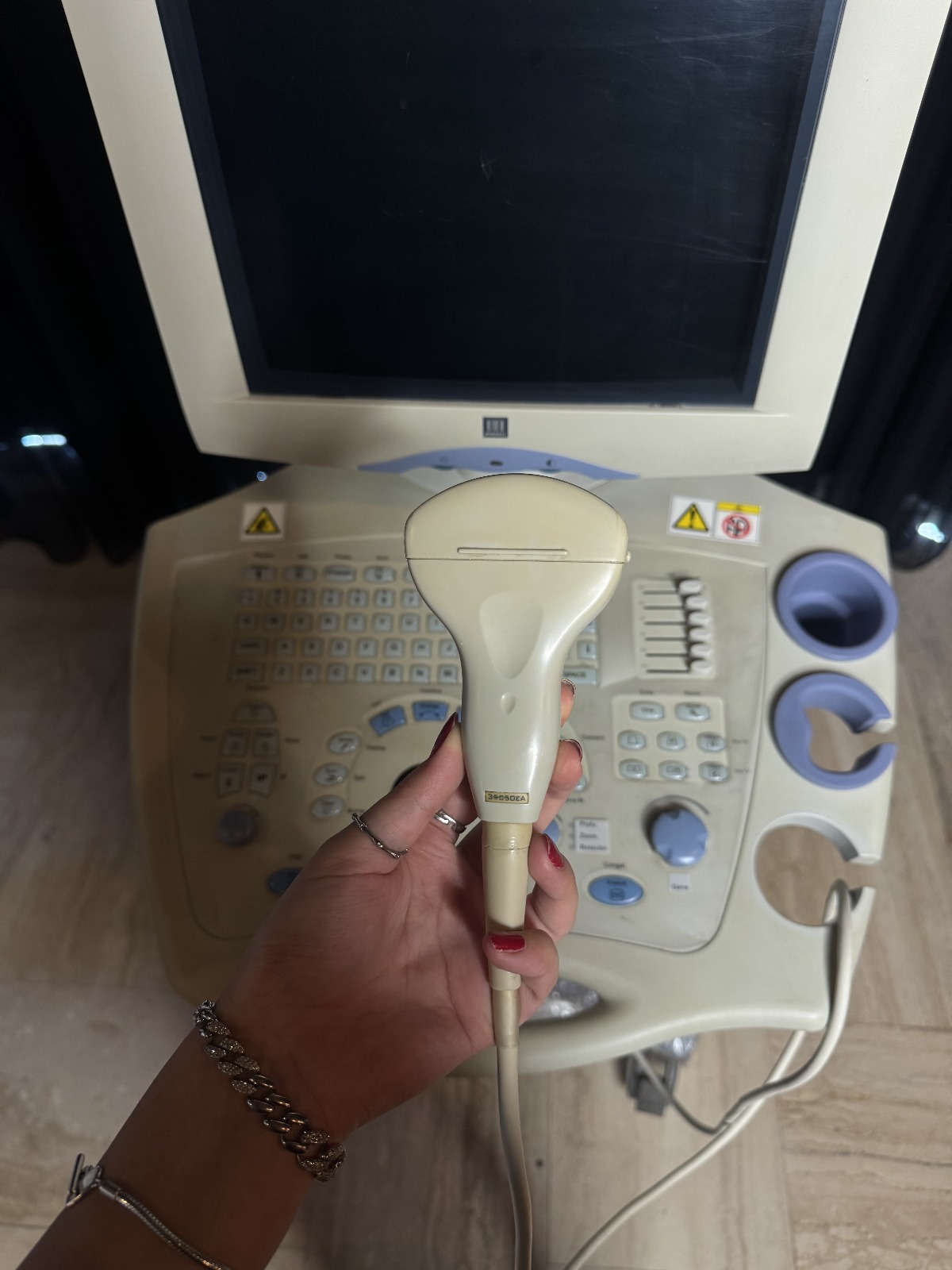

• Probe Brand/Model: The label on the connector neck of the ultrasound probe connected to the system shows the code 35C50EA. This code represents a Convex probe model belonging to the Mindray brand.
• Side Hardware Brand: A SONY logo is located on the drive unit embedded in the device’s left side panel.

Originality

The device’s outer casing, model label fonts, keypad layout, and materials used are consistent with the manufacturer’s (Mindray) standard design language. The “Digi prince” logo in the visuals and the specific model number (35C50EA) on the probe indicate that the product’s parts are original and compatible with each other.

Areas of Use

The Mindray Digi Prince DP-8800 Plus is a general-purpose ultrasound device that performs black-and-white imaging. Based on the existing probe, its areas of use are as follows:

• With the Existing Probe (35C50EA): This probe is a convex probe operating at 3.5 MHz frequency. It is typically used for deep tissue examinations such as abdominal ultrasound, gynecology, obstetrics (pregnancy monitoring), and urology.
• General System Compatibility: The device can also be used for superficial tissue, thyroid, or more specific examinations if appropriate probes (linear or transvaginal) are attached, but only a convex probe is present in the visual.

Quantity Information

Total number of parts displayed in the visuals:

• 1 Ultrasound Main Unit (Monitor and Keyboard integrated).
• 1 Ultrasound Probe (Connected by cable).

General Condition and Physical Condition

The general condition of the device has been assessed as second-hand and heavily used. Detailed analyses of its physical condition are provided below:

Physical Deformation and Cosmetic Examination

• Color Change (Yellowing): There is a noticeable yellowing on the device’s casing, particularly on the back and side plastics of the monitor. This indicates that the plastic material used has aged over time due to exposure to light and the environment (Especially evident in the side profile and behind the monitor in visual 4).
• Dirtiness: Accumulated dirt and dust have been observed between the buttons on the control panel, around the trackball, and in the crevices of the casing.
• Protective Film: At the very bottom foot part of the device, blue protective packaging foils from shipping or initial setup are still present, but they appear torn and heavily aged.

Mechanical and Electronic Components

• Monitor: The device features an older technology CRT (cathode ray tube) monitor, not an LCD. The screen is in the off position, so whether there are any pixel errors or burn-in cannot be determined from the visual. However, CRT monitors may experience a loss of brightness due to age.
• Control Panel: The QWERTY keyboard keys, TGC (time gain compensation) sliders, and functional buttons are mechanically in place. No missing keys have been observed.
• Wheels: The mobile unit’s wheels are present, but hardening in their mobility is likely due to their age.

Accessories and Connection Points

• Probe (Transducer): 1 model 35C50EA probe is attached. The probe head appears intact, but there is yellowing on the “strain relief” rubber part at the cable connection point. The probe holder tray is solid.
• Sony Drive Unit: On the left side of the device, a “SONY” branded unit is integrated, in the format of a standard PC floppy disk drive or a specialized recording device used during that era. The green button and ejector mechanism suggest this is a data recording or reading hardware component.
• Probe Inputs: The front face of the device has a total of 2 probe input sockets. One of them is occupied (active probe connected), and the other is empty and capped.

Estimated Manufacturing Year and Technology

Considering the CRT monitor technology used in the device, the type of floppy/data drive slot, and the overall design language of the casing, this product is estimated to belong to technology from the early 2000s (approximately 2000-2008 range).

Potential Malfunction Risk

The risks identified based on the visuals are as follows:

• Cable Wear: The probe cables hang from the side of the device and may carry a risk of internal breakage due to bending over time. There is no visible sheath tear.
• Plastic Component Fragility: Yellowing in the plastic indicates that the chemical structure of the material has deteriorated and hardened. The risk of the casing cracking from hard impacts is higher compared to a new device.

Summary Evaluation

The Mindray Digi Prince DP-8800 Plus in the visual is a complete ultrasound unit, compliant with medical standards, and comes with an abdominal probe (35C50EA). Although the device shows cosmetic fatigue (yellowing) due to its age, the keypad and probe integrity are preserved. Its underlying technological structure (CRT screen, old-type data drive) is older compared to current digital devices, but it appears to possess the hardware capable of performing basic ultrasound imaging functions.
