Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 02.06.2026
Report code: 1780395048
GE 9L-D and 9L Ultrasound Probe Analysis Report
Device Identification and Product Description

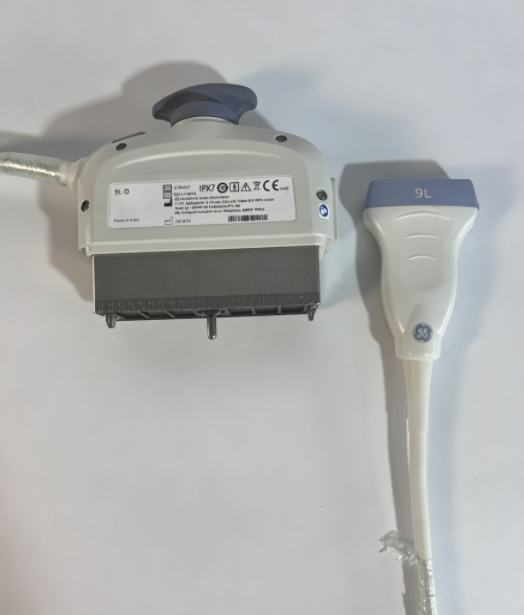

The images show an ultrasound probe and its corresponding connection adapter/connector unit. These two components are essential accessories for ultrasonography devices used in medical imaging systems. The probe is the main component that is placed in contact with the patient’s body to transmit and receive ultrasound waves to create images. The connection unit provides the interface between the probe and the ultrasound system.
Brand and Model Information
- Brand: GE
- Probe Model: 9L
- Connection Unit Model: 9L-D
Upon examining the labels and logos on the product, it is clearly visible that the brand of the device is GE. The “9L” marking is present on the probe, and the “9L-D” marking is on the label of the connection unit. This information indicates that the product is a 9L linear ultrasound probe belonging to the GE brand and a 9L-D connection adapter compatible with it.
Authenticity Assessment
When examining the logo quality, label layout, fonts, and general workmanship details in the images, it is understood that the product is an original GE production. The presence of the phrases “GE Healthcare Japan Corporation” and “Made by: WIPRO GE Healthcare Pvt. Ltd.” on the label supports that the product has undergone a corporate manufacturing process.
Usage Areas
This ultrasound probe and connection unit are used in conjunction with ultrasonography devices for medical diagnostic purposes. 9L series linear probes are generally preferred for imaging superficial organs (thyroid, breast), vascular structures (vessels), musculoskeletal system, and small organs. This probe is suitable for diagnostic imaging in many medical branches such as radiology, cardiology, general surgery, orthopedics, and obstetrics and gynecology. The 9L-D connection unit enables the integration of the 9L probe into compatible GE ultrasound systems.
Quantity Information
There are a total of two main product components in the images: one GE 9L ultrasound probe and one GE 9L-D connection unit. Integrated cables are present for both components.
General Condition and Physical Deformation
The general condition of the devices appears to be good. No significant scratches, dents, or cracks have been detected on the probe’s casing or scanning surface. No serious physical deformations such as discoloration, dirt, or dust have been observed on the body of the connection unit. Although the products have been used, they are in a visually well-preserved condition.
Mechanical and Electronic Component Inspection

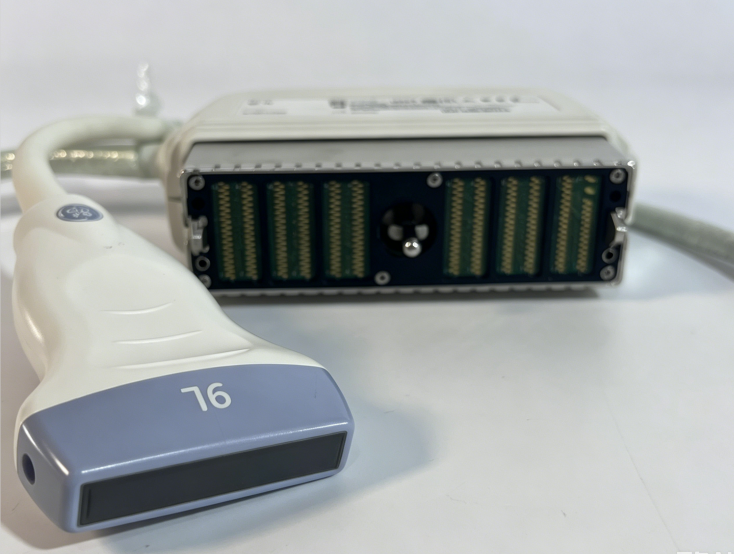

The cable connection point of the probe appears to be solid. The rotary knob on the top of the connection unit and the metal connection pins on the bottom are smooth and undamaged. The fact that the pins are aligned and clean suggests that the electronic connection interface is in good condition. Internal electronic components are not visible in the image.
Accessories and Socket Inputs
Integrated cables are included with the products. The probe’s cable is designed to connect to the connection unit, and the connection unit’s cable is designed to connect to the ultrasound system. There is a multi-pin socket input at the bottom of the connection unit to be plugged into the ultrasound system. No other accessories (e.g., carrying case, gel, or user manual) are present in the images.
Battery Status
No internal or external battery belonging to the devices has been detected in the images. Such ultrasound probes and adapters generally receive power from the ultrasound system to which they are connected.

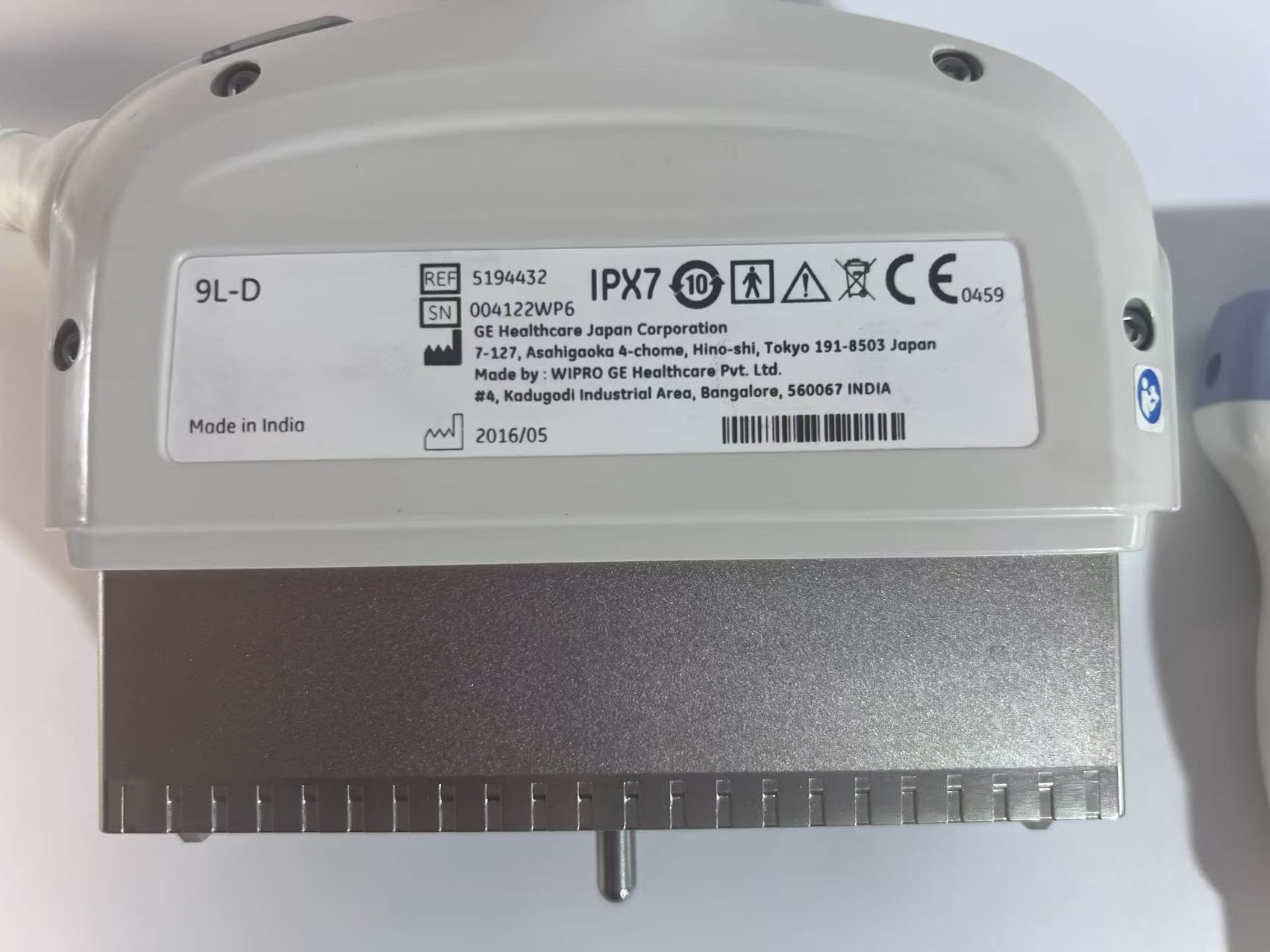

Label Information and Explanations
- REF 5194432: This is the reference code of the product. It is used to identify a specific model or configuration of the product and is important in inventory management and ordering processes.
- SN 004122WP6: This is the serial number of the product. It is unique to each device and is used for product tracking, warranty transactions, service, and maintenance records.
- IPX7: This is the Ingress Protection rating. “X” indicates that the protection level against solid particles is not specified, and “7” indicates that the device is protected against immersion in water under specific conditions (usually up to 1 meter depth for 30 minutes). This is important for water resistance during cleaning and disinfection.
- CE 0459: This is the Conformité Européenne (European Conformity) mark. It indicates that the product complies with the European Union’s health, safety, and environmental protection standards. “0459” is the identification number of the notified body that assessed this conformity.
- GE Healthcare Japan Corporation: This is the manufacturer of the product.
- Made by: WIPRO GE Healthcare Pvt. Ltd.: This indicates the subsidiary that carried out the production of the product.
- Made in India: This indicates the place of production of the product.
- 2016/05: This indicates the production date or the final inspection date of the product. It points to May 2016.
Screen Analysis
There are no screens belonging to the devices in the images. Therefore, no analysis could be made regarding texts, warnings, or values on a screen.
Dimensions and Compatibility
The 9L probe in the image has a linear structure and is a probe of standard dimensions generally used for superficial examinations. The 9L-D connection unit has a compact structure suitable for the dimensions of the probe. These components are designed to be compatible with GE brand ultrasound systems. While the “9L” marking provides information about the probe’s frequency range and usage type, the letter “D” may refer to a specific digital or compatibility standard of the connection unit.
Production Year
The phrase “2016/05” is clearly visible on the product label. According to this information, the production year of the product is 2016.
Documents
There are no invoices, warranty certificates, user manuals, or other documents accompanying the product in the images.
Usage Duration
No information regarding usage hours or total usage duration has been encountered on the devices or their labels. This information cannot be determined from the images.
Existing Faults
In the detailed examination performed on the images, no clear evidence of a fault such as a broken part, error message, severed cable, or missing component has been detected. The products appear visually sound and functional.
Potential Fault Risk
The general condition of the devices is good. No concrete situation that could pose a potential fault risk, such as serious wear, rust, or cable crushing, has been observed in the images. The physical condition of the products does not indicate any imminent risk of failure.
