Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 16.12.2025

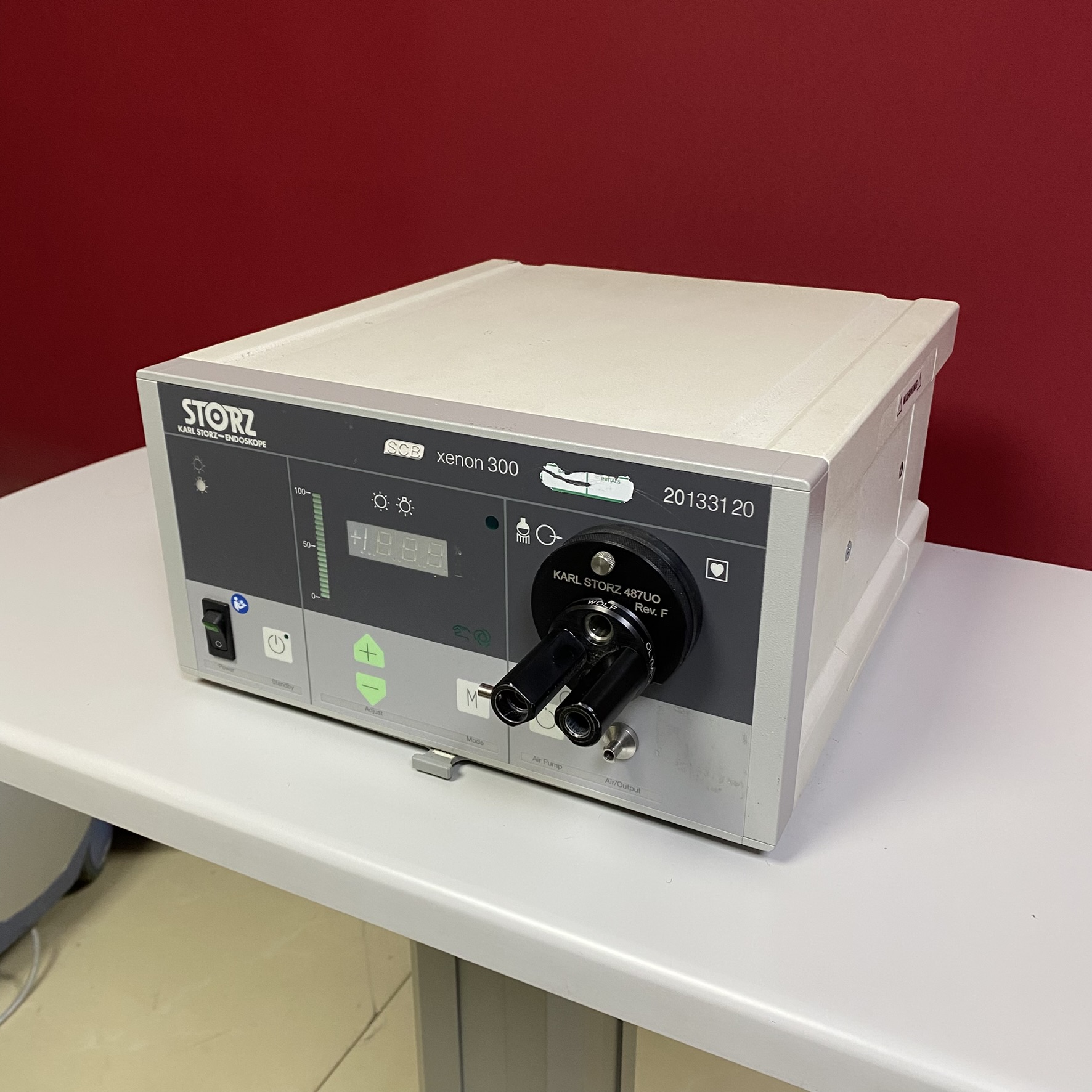

KARL STORZ Xenon 300 Cold Light Source Analysis Report
Device Identification, Brand and Model Information
As a result of the detailed visual inspection, the analyzed device has been identified as a medical endoscopic light source unit. The device is designed to provide high-intensity light to imaging systems during endoscopy and laparoscopy operations.
Based on the logos and typographical markings on the product’s front panel, the brand and model information is as follows:
- Brand: KARL STORZ (Logo is clearly visible on the top left corner and on the adapter.)
- Model: Xenon 300 (The model name “SCB xenon 300” is specified on the upper middle part of the device.)
- Product Code/Reference No: 201331 20 (Clearly printed on the top right corner of the front panel.)
- Adapter Model: KARL STORZ 487UO Rev. F (Written on the rotating adapter at the light cable input.)
Areas of Use and Purposes
This device is used in endoscopic procedures performed in branches such as gastroenterology, urology, general surgery, and gynecology. The term “Xenon” indicates that the device uses xenon bulb technology, providing high-intensity and clear vision with a whiteness close to daylight. The term “SCB” (Storz Communication Bus) indicates that the device can communicate with integrated operating room systems and can be controlled remotely.
Originality and General Condition
Upon examining the print quality, logo placements, material texture, and specific industrial design features on the device, the product is assessed to be an original KARL STORZ device. No signs of poor quality or incompatibility indicative of a counterfeit product have been found.
General Condition: The device is a used product. Although its body integrity is preserved, there is a torn label on it (“INITIALS” text is visible), indicating prior inventory tracking. The case condition appears clean for its age.
Physical Deformation and Mechanical Component Analysis
During the examination of the device’s outer casing and front panel, the following findings were observed:
- Casing: No noticeable large dents, cracks, or rust have been detected on the metal body. Corners and joints appear intact. Very slight friction marks or dirt due to use are present on the upper right edge area.
- Rotating Turret: The light cable input adapter (Turret) on the front appears sturdy. This mechanical part is designed to accommodate light cables from different brands (names like Wolf, Olympus are readable on the adapter) and is in place.
- Button Pad: The surface of the membrane buttons on the front panel is clean; no tearing or punctures are observed. The “Power” switch on the left side appears physically intact.
Accessories and Quantity Information
Only 1 unit of the main device (Light Source) is visible in the image. The power cable, fiber optic light cable, or any external accessories required for the device’s operation are not present in the image. Only the device body is being reported.
Electronic Components and Screen Analysis
As the device was not connected to power at the time of the visual (power switch is in “0” position), the active status of the screen cannot be seen. However, the front panel design incorporates the following electronic indicators:
- Vertical “Bar Graph” display area showing light intensity.
- Digital segment screen area showing light intensity percentage (off in the image).
- Warning LEDs with lamp and temperature/fan symbols, which could indicate bulb life or service warning.
- Buttons at the bottom: Standby mode, Brightness Adjustment (+/-), and Mode (M) button.
Potential Failure Risk and Assessment
As a result of the visual inspection, no “broken, missing parts, or severe damage” have been detected on the device. Its physical condition is compliant with second-hand medical device standards. However, the following technical risks, which cannot be ascertained from visual data, should be considered:
- Xenon Bulb Status: The lifespan of the xenon bulb, which is the most critical consumable for these devices, cannot be determined from the visual. The possibility of the bulb being depleted or having reached the end of its service life is a technical risk.
- Cooling System: As it is a device that generates high heat, the condition of the fans is important; while appearing clean externally, internal dust accumulation cannot be ascertained from the visual.
Summary
The KARL STORZ Xenon 300 is a high-end light source used in professional surgical operations. The device is physically robust, compatible with multiple brands of cables (thanks to the adapter), and visually clean. There are no cosmetic flaws other than the remnants of an old inventory label on it.
