GE Healthcare MR Coil Internal Component Analysis Report
Device Identification and Brand Model Information

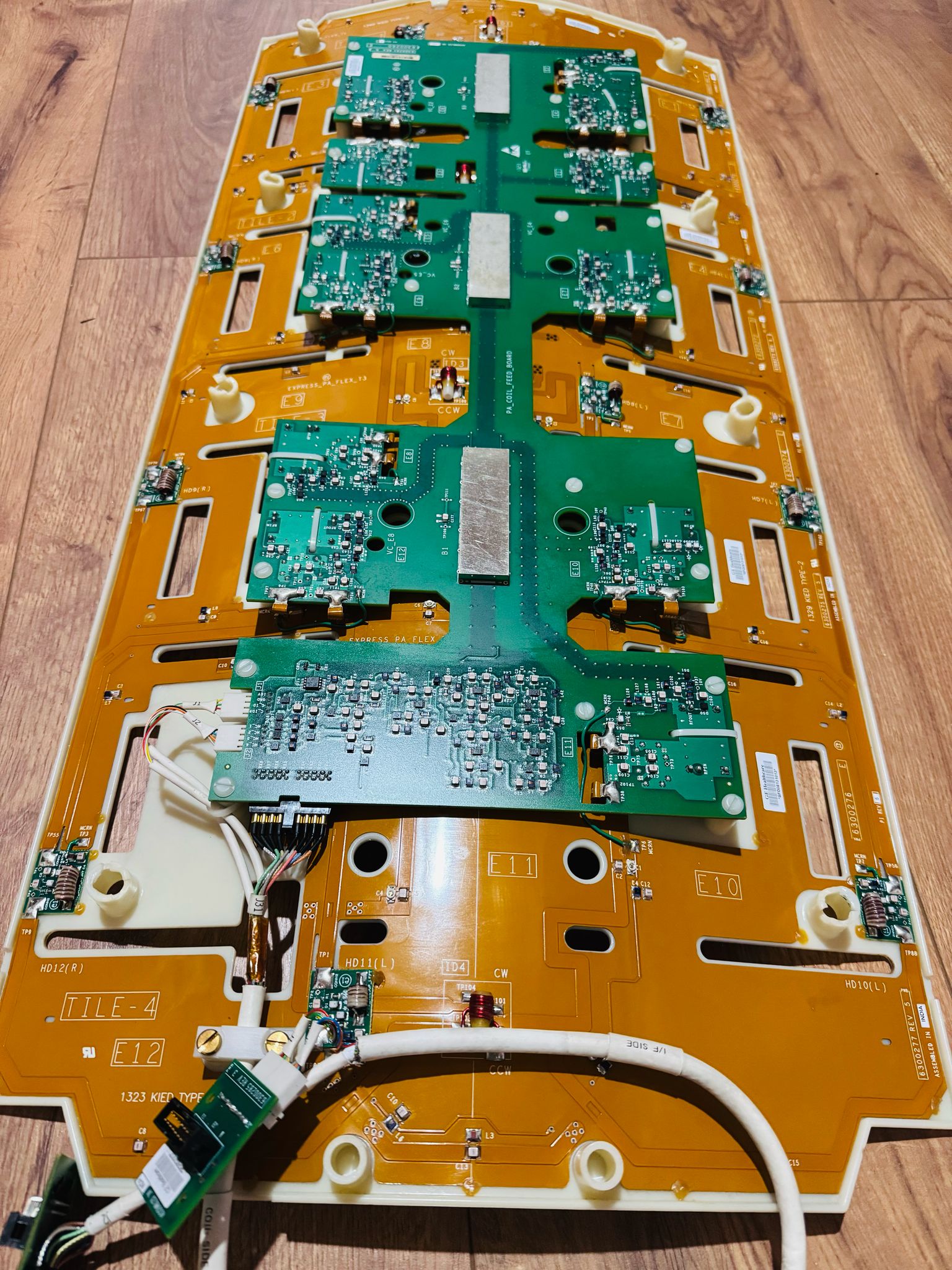

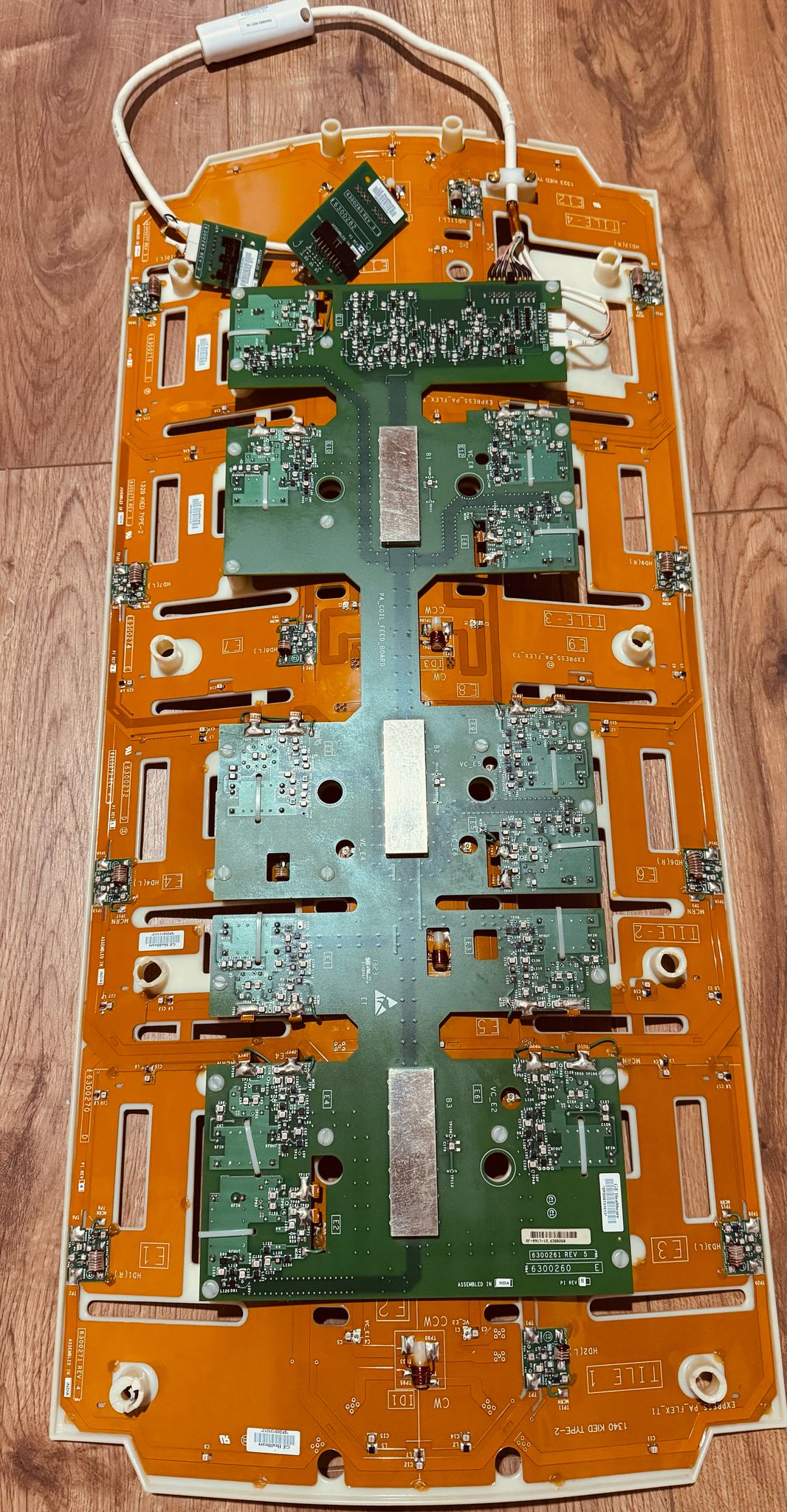

The images show the internal electronic components of a medical imaging device, likely an MR (Magnetic Resonance) coil. The product consists of numerous green rigid circuit boards mounted on an orange flexible circuit board (flex PCB). The GE Healthcare logo is clearly legible on the labels on the circuit boards. Based on this visual evidence, the brand of the product has been identified as GE Healthcare. Regarding model information, various revision and part numbers (e.g., 6300261 REV 5, 6300270 REV 4, 6300277 REV 5) are present on the boards; however, a single model name for the entire device could not be determined from the images.
Usage Areas
This product is an internal electronic component of a coil structure that serves the signal receiving or transmitting function of an MR device. It is a critical component of MR devices used in the field of radiology to obtain high-resolution images of patients’ body regions. As shown in the images, the product is a spare part or a disassembled sub-assembly group and can be used in compatible GE Healthcare MR devices.
Quantity Information
The images show a total of 6 large green circuit boards mounted on the main flexible circuit board, along with cables and small connector boards attached to them. This structure is considered a single integrated part. The total product quantity is 1.
General Condition and Physical Deformation
The general condition of the device appears to be used. No significant signs of contamination, dust, or oxidation were observed on the surfaces of the circuit boards or the solder points. No mechanical damage such as folding or tearing is visible on the flexible circuit board. The components on the green circuit boards maintain their integrity. No visible physical deformation, broken parts, or cracks were detected.
Mechanical and Electronic Components
The product consists entirely of electronic components. Numerous surface-mount technology (SMT) components, integrated circuits, capacitors, and connectors are present on the circuit boards. Cable connections and sockets are in place. The thick white cable and the connector structure at its end appear to be intact. There are no visual signs of failure in the electronic assembly, such as burn marks, swollen components, or broken cables. Mechanically, the screws and plastic supports holding the boards together are in place.
Labels and Technical Information
There are numerous labels and printed information on the circuit boards. Some of the identified information is as follows:
- Brand: GE Healthcare
- Part/Revision Numbers: 6300261 REV 5, 6300270 REV 4, 6300277 REV 5, 6300276, 6300272, 6300274, 6300275
- Type Information: 1329 KIED TYPE-2, 1340 KIED TYPE-2
- Region Definitions: TILE-1, TILE-2, TILE-3, TILE-4
- Other Text: PA_COIL_FEED_BOARD, EXPRESS_PA_FLEX_T1, EXPRESS_PA_FLEX_T2, EXPRESS_PA_FLEX_T3, ASSEMBLED IN INDIA
- Barcoded Labels: There are barcoded labels on some boards that may be serial numbers or lot numbers (e.g., the label on the 6300261 REV 5 board).
Dimensions, Compatibility, and Year of Manufacture
There is no visual information regarding the physical dimensions of the product or which patient group (infant/adult) it is suitable for. No clear date label regarding the year of manufacture could be identified. Compatibility with GE Healthcare MR devices can be verified via the part numbers.
Existing Faults and Potential Risk of Failure
There is no clear evidence in the images, such as broken parts, burn marks, or broken connections, to suggest that the device is faulty. The condition of the product is visually good. Since no serious wear, rust, or crushing of the cables was observed, no significant potential risk of failure has been detected.
