Secondhand Calmare MC-5A Pain Therapy System

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 16.01.2026

GEOMC MC-5A Pain Therapy System Analysis Report

Device Identification

The device in the examined images is a professional pain therapy (Pain Therapy System) unit used for medical purposes, mounted on a mobile stand. The device consists of a main control unit, a wheeled stand (trolley) supporting this unit, therapy cables, and electrode connection ends.

Brand and Model

Upon examining the visual data on the device’s front panel, control surface, and side parts, the following identification details have been definitively determined:

• Brand: GEOMC
• Model: MC-5A
• Product Description: Pain Therapy System
• Technology: Scrambler Therapy (Stated in screen messages and on the panel)

Originality and Manufacturer Information

The product’s panel design, the placement of the brand logo (both on the upper control panel and the stand body), typography quality, and screen interface indicate that the product is an original industrial production belonging to the GEOMC company. Labels and warning texts (e.g., “Remove the protection film before use”) are at factory standards.

General Condition

The device appears to be in very good visual and high condition. The most significant visual evidence leading to this conclusion is:

• Protective Films: The yellow labels stating “Remove the protection film before use” are still present on the control panel screen and to the right of the keypad. This indicates that the device has either never been used (New Old Stock) or has been used very carefully without removing its protective packaging.
• Cleanliness: No significant yellowing or discoloration is observed on the device’s white casing and stand. However, there are dust and stains on the surface (especially in the screen glass area) that may be due to the operating environment.

Screen Analysis and Operating Status

The device’s LCD screen is active, and its blue backlight is functioning. The images show the screen in two different states:

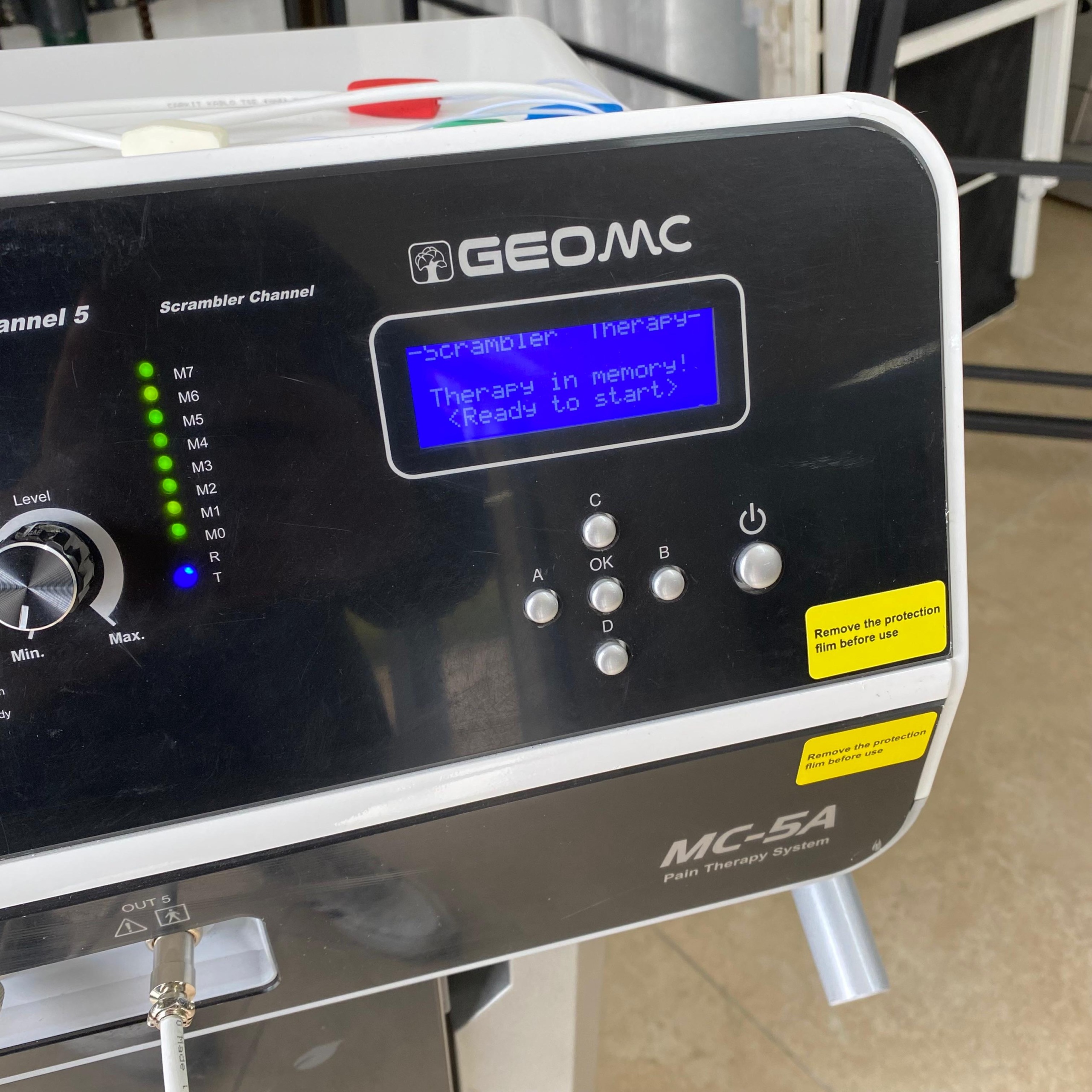

• State 1: The screen displays “-Scrambler Therapy-“, “Therapy in memory!”, “” phrases. This indicates that the device is ready to start a therapy from its memory.

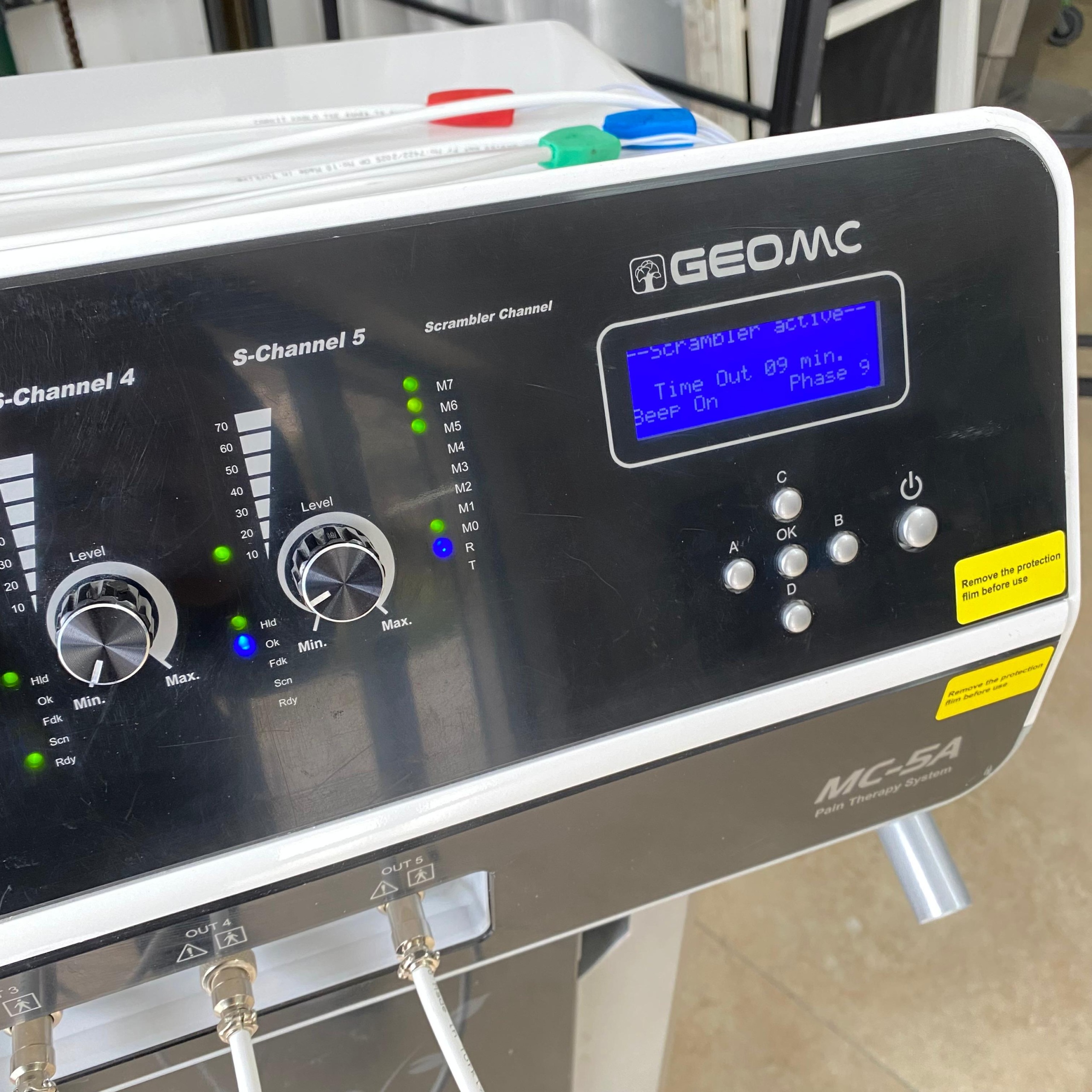

• State 2: The screen displays “–Scrambler Active–“, “Time Out 09 min.”, “Beep On”, “Phase 9” phrases. This proves that the device can perform its functions during an active therapy simulation or procedure.

Physical Deformation and Cosmetic Condition

The prominent physical elements observed during a detailed examination are:

• Control Panel Surface: The fine scratches on the screen and the left side of the panel are most likely on the protective gelatin/film that has not yet been removed. The original surface underneath the film is likely clean.
• Stand and Body: The physical integrity of the gray stand and the black patterned front panel is complete. No breaks, cracks, or deep impact marks are visible on the body.
• Cables: The cables are arranged haphazardly, but no visible breaks or fraying have been detected in their outer insulation.

Mechanical Components and Stand Structure

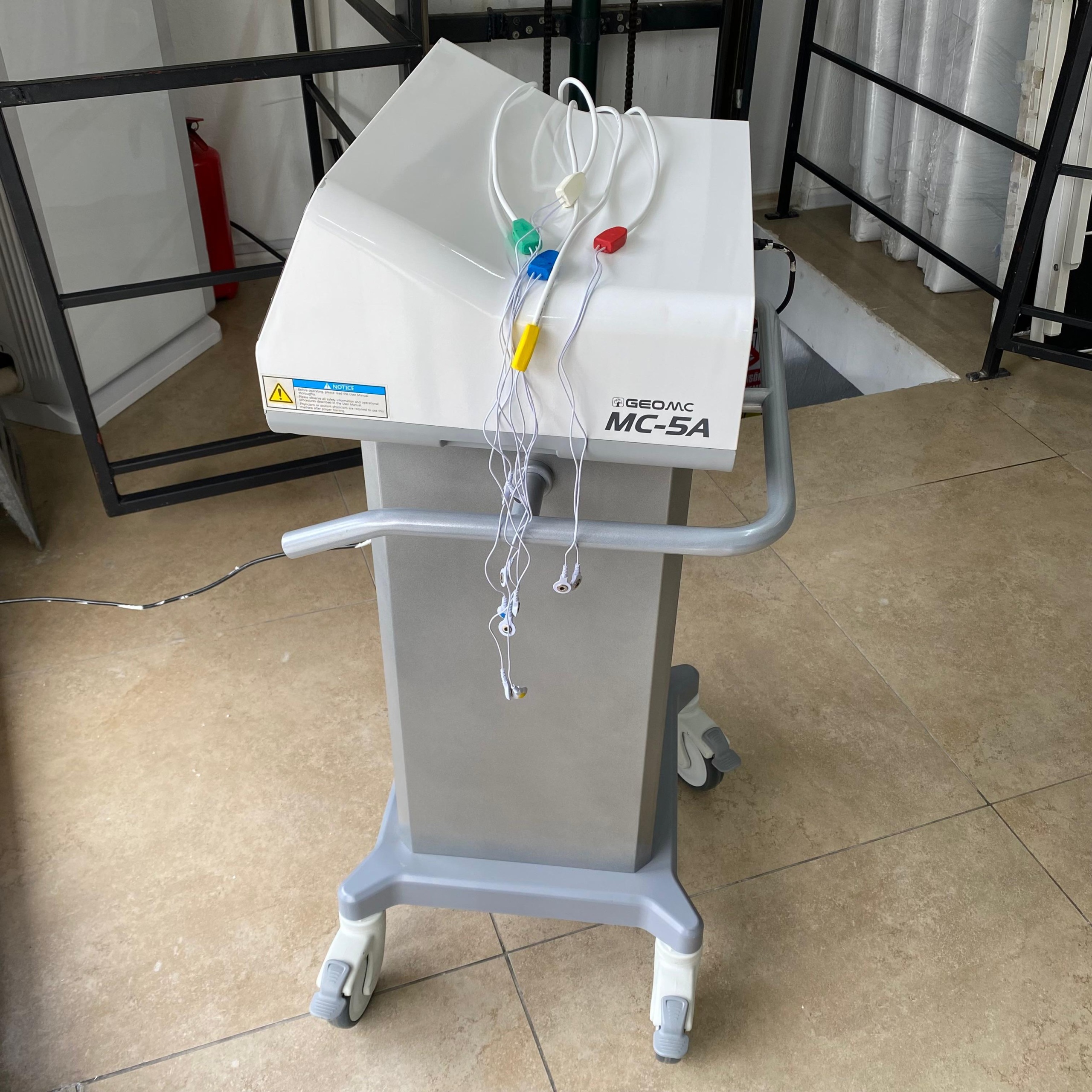

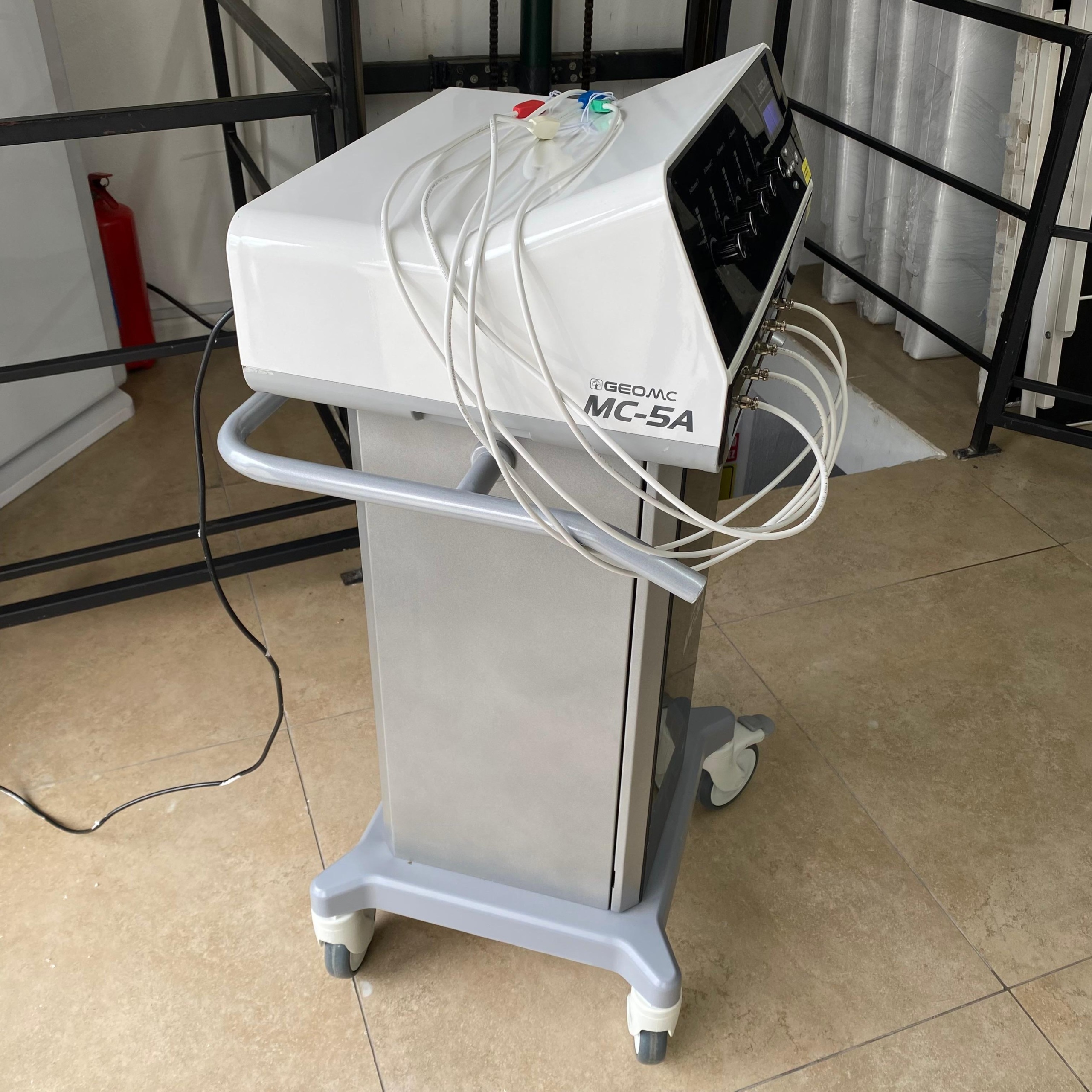

The device is on its specially designed original stand with the “GEOMC MC-5A” logo. Stand features:

• It has a gray body and a black covering on its front panel with decorative leaf patterns.
• There is a metal handle at the back of the device for moving it.
• There are 4 wheels for ground contact, and a brake mechanism is visible on these wheels (especially the gray pedals on the front wheels).

Electronic Components and Interfaces

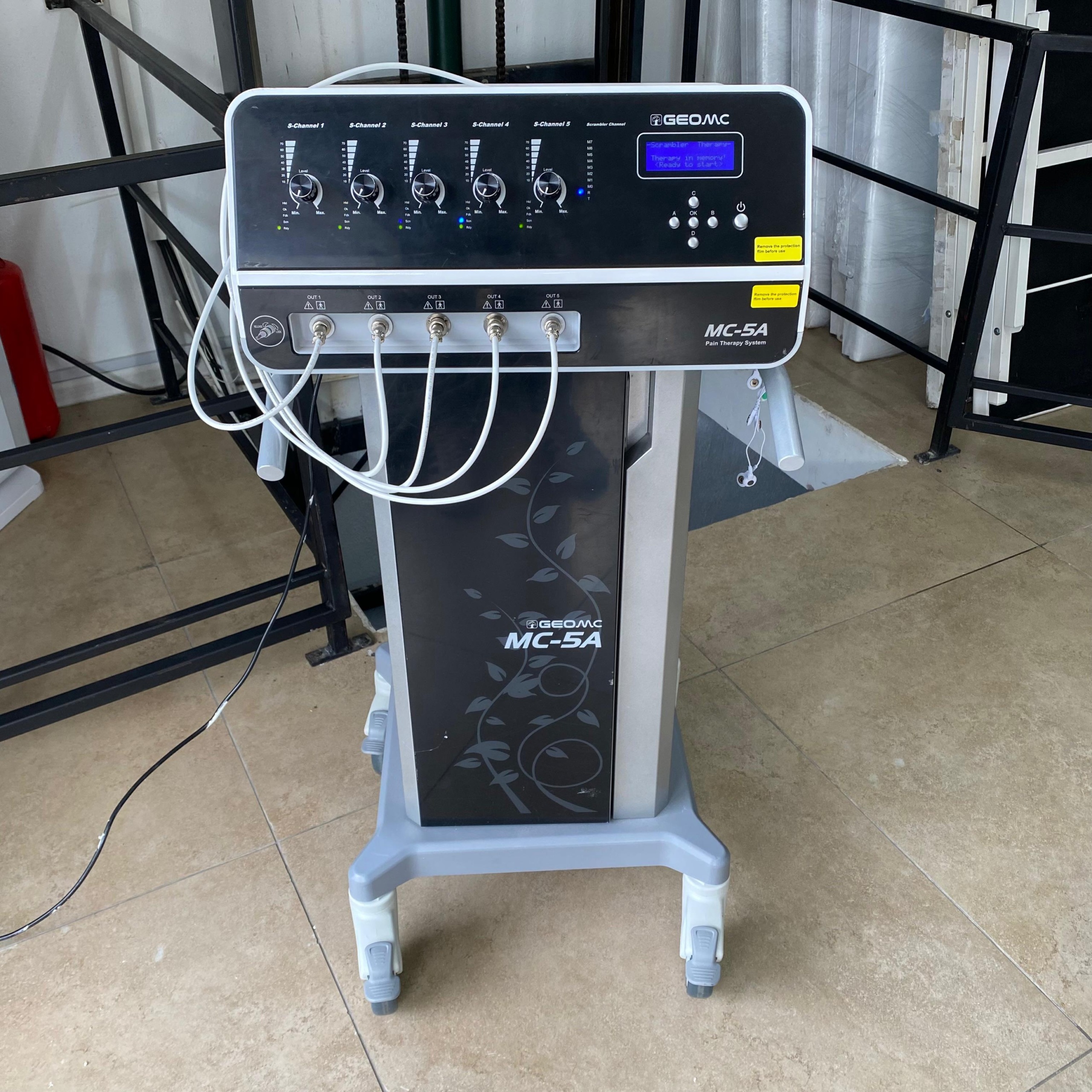

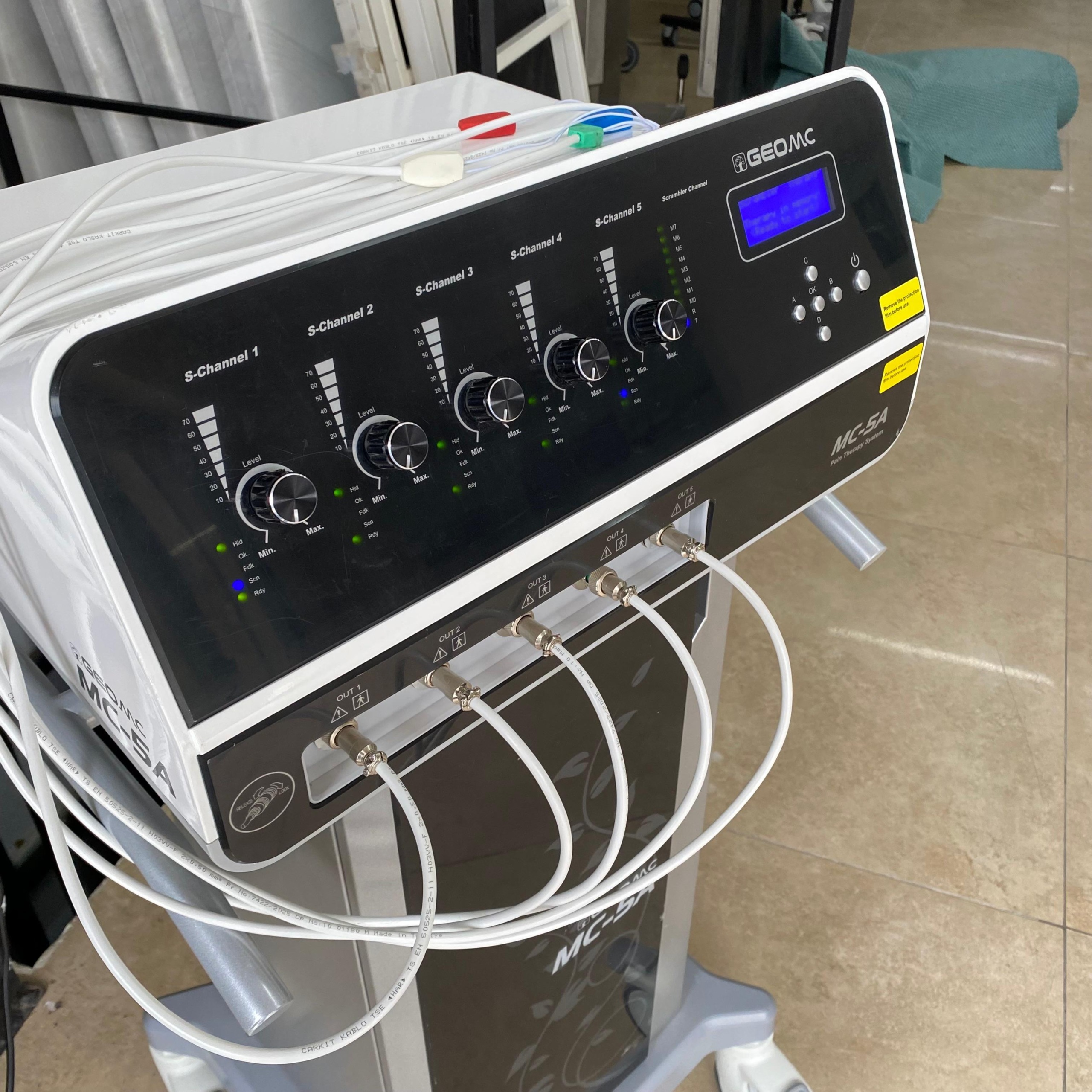

On the front panel, there are 5 independent channels used for pain therapy (S-Channel 1, S-Channel 2, S-Channel 3, S-Channel 4, S-Channel 5). Below each channel, there are LED bars indicating signal intensity and manual adjustment knobs (potentiometers). The images show the LED indicators (green and blue lights) actively lit.

• Keypad: On the right side, there are A, B, C, D directional keys, an OK button, and a Power button.
• Channel Outputs: Below the panel, there are 5 metal socket outputs labeled from OUT 1 to OUT 5.

Accessories and Cables

The accessory count in the images is as follows:

• 5 white therapy cables connected to the device.
• These cable ends have colored (Yellow, Red, Blue, Green, etc.) clips/electrode connection attachments.
• The device’s main power cable (the black cable descending from the back of the stand).

A detail on one of the cables reads “CARKIT KABLO TSE…”, which indicates that these cables might have been sourced locally or produced to a standard.

Areas of Use

This device (GEOMC MC-5A Scrambler Therapy) is a non-invasive medical device used in the treatment of chronic neuropathic pain and drug-resistant pain. It is suitable for use in physical therapy and rehabilitation centers, pain clinics, and relevant hospital departments.

Quantity Information

The images show 1 (one) main device (along with its stand) and a set of cables connected to the device.

Existing Malfunctions and Potential Risks

No error messages (“System Error”, “Fail”, etc.) or physical damage (broken screen, severed cable) that would impede the device’s operation have been detected in the images. As a potential risk, the haphazard arrangement of the cables might create a risk of poor contact at the connector bases in the long term, but currently, all appear intact. The device’s active lights and readable screen confirm the integrity of its electronic board and power unit.
