Chirana KDM-5 / C3115AX X-Ray Device Analysis Report
Device Identification and Brand Model Information

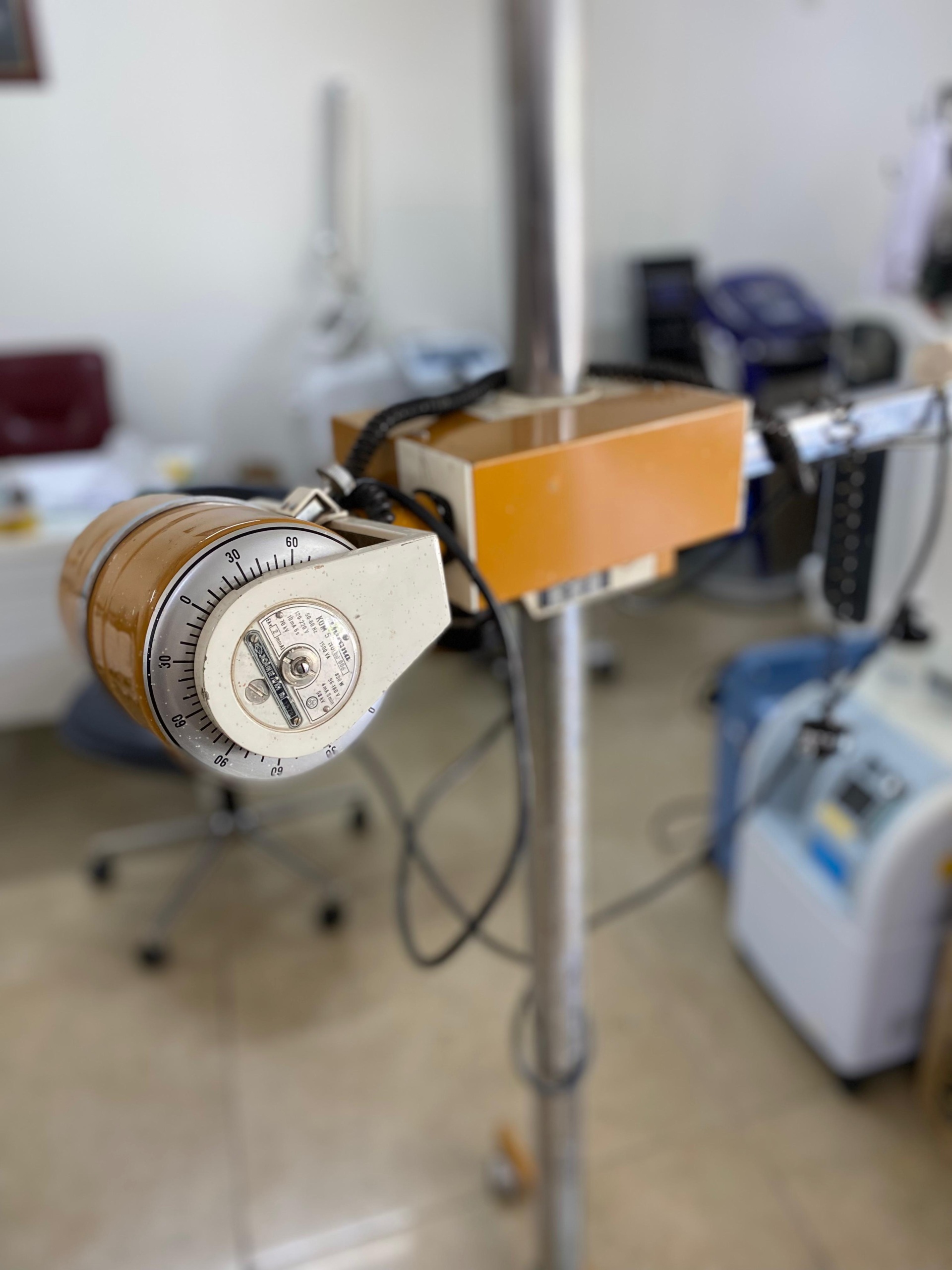

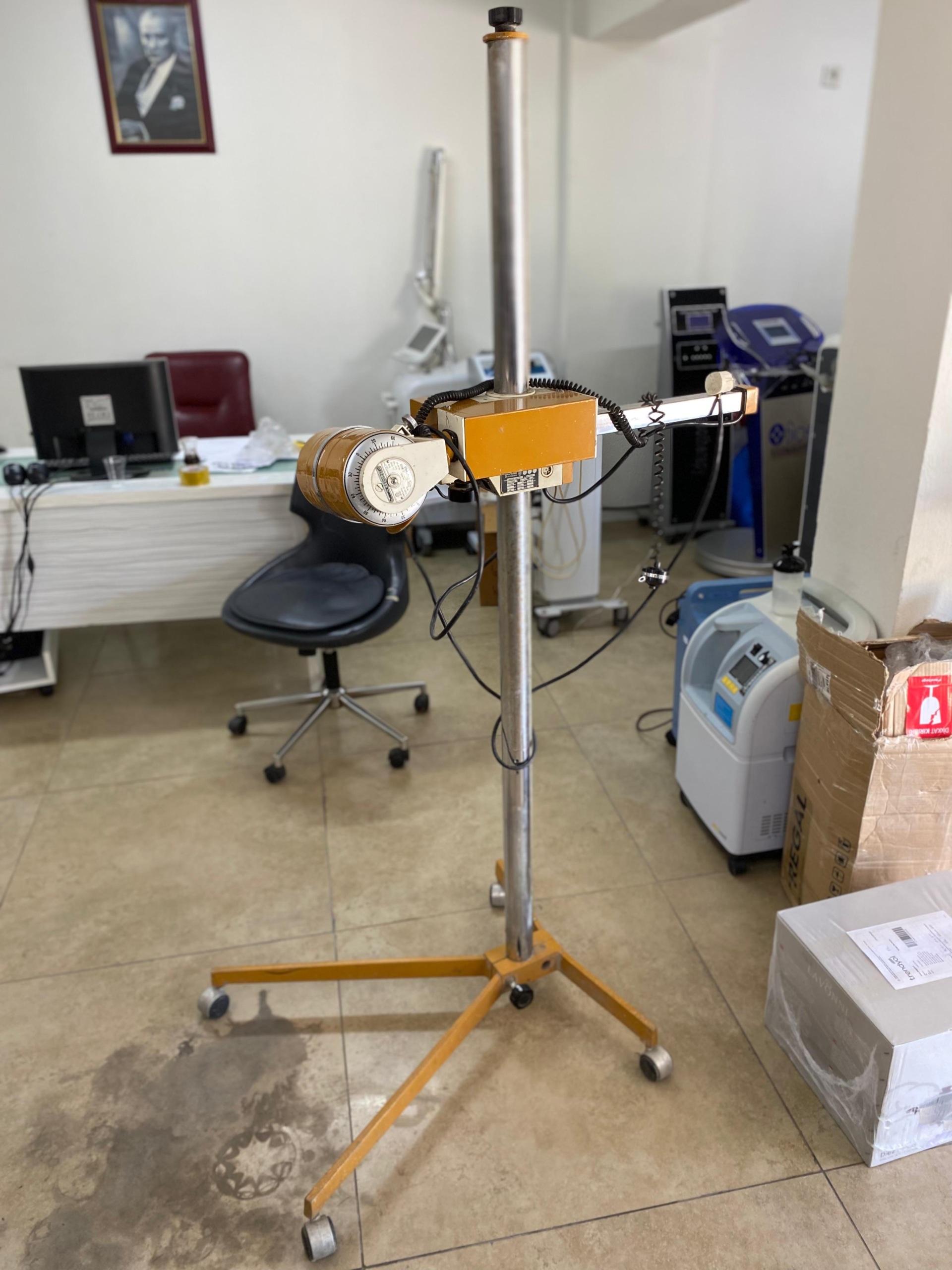

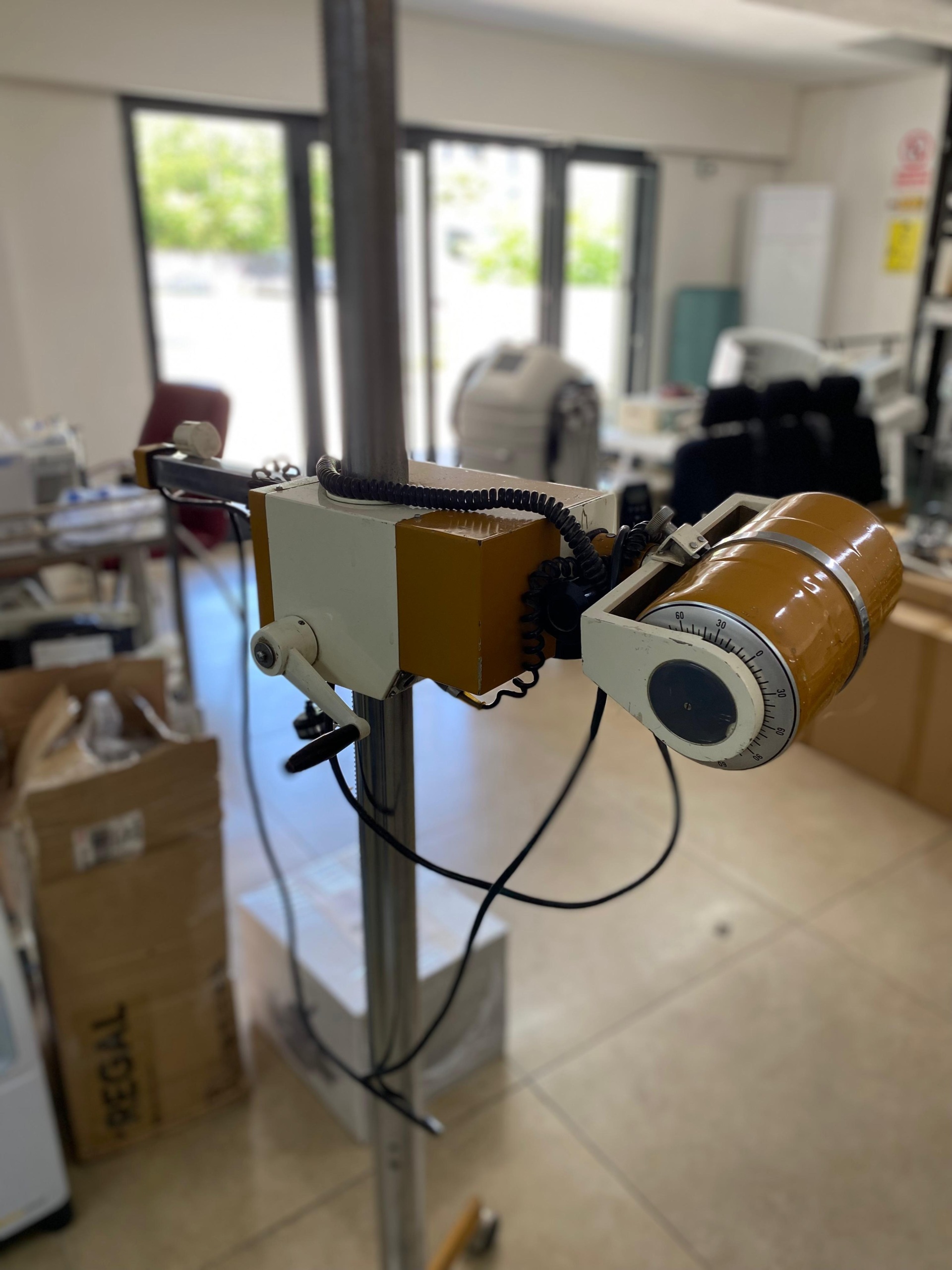

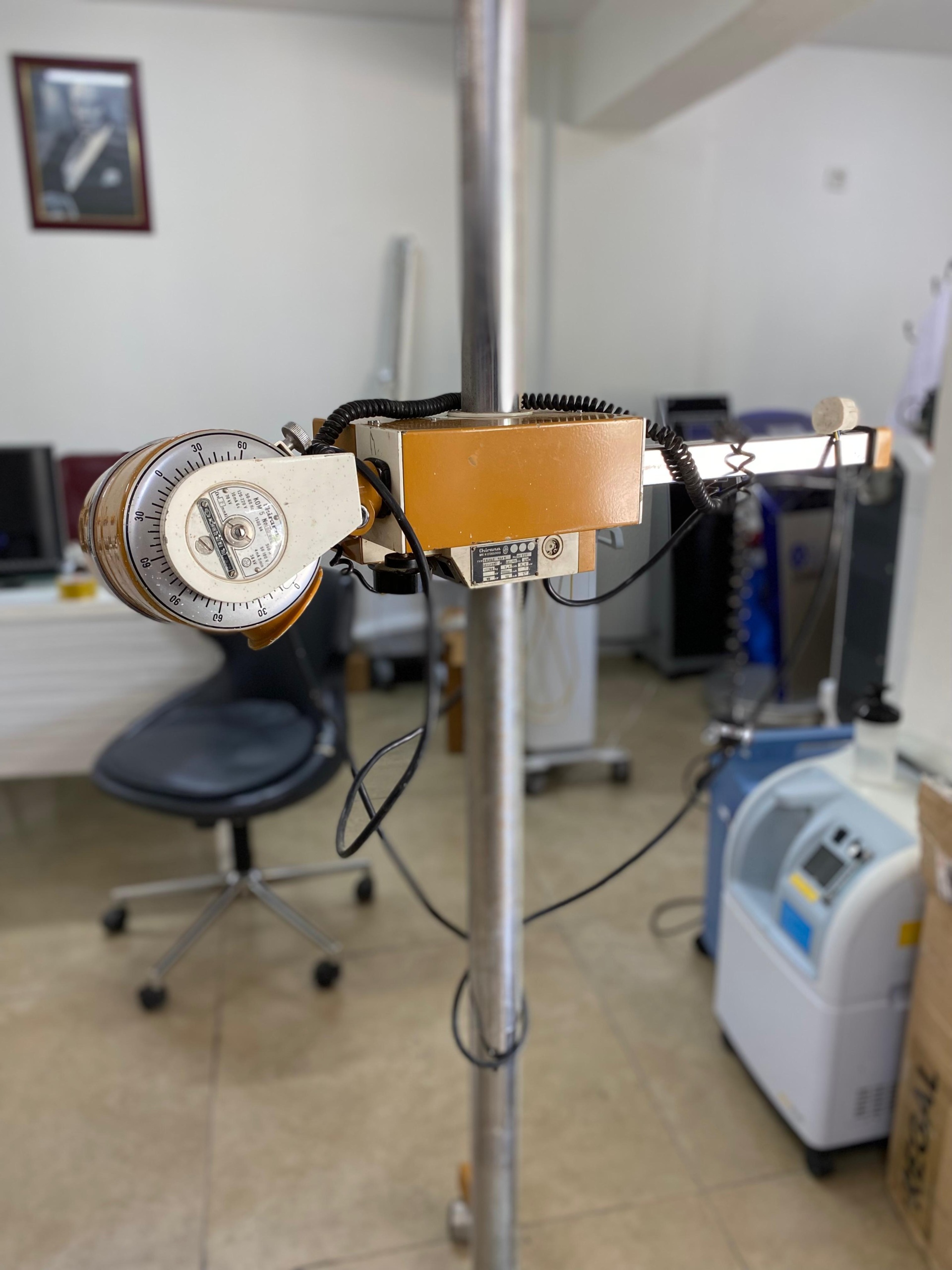

The images show an X-ray device designed for medical imaging, mounted on a wheeled stand. The main body of the device consists of a metallic pole and a three-legged base. Attached to the pole is an orange control unit and an integrated cylindrical X-ray tube head.
Upon examining the labels on the device, it is clearly visible that the brand of the product is Chirana. The label on the X-ray tube head contains the KDM-5 model information and technical details. The other label on the control unit contains the TYPE C3115AX 70/74 model code and additional technical information. This information indicates that the device is a Chirana X-ray unit.
Authenticity and General Condition Assessment
The details in the images suggest that the device is an original Chirana product. The print quality of the labels, the general craftsmanship of the device, and the design language appear to be consistent with the standards of the period. The general condition of the device is used, and it shows some signs of wear depending on its age. There are traces of dirt and rust on the metallic pole and base. Stains and color fading that have occurred over time are also observed on the surface of the orange control unit.
Usage Areas
This device is designed for medical diagnostic X-ray imaging. It is generally suitable for use in hospitals, clinics, or private practices to take X-rays of various parts of the body (e.g., bones, lungs). Especially since it is an older type of device, it is considered that it is used or can be used primarily for basic radiography needs.
Quantity Information
- X-ray Device (main unit): 1 piece
- Power/Control Cables: 2 pieces (visible in the image)
Physical Deformation and Mechanical Components
There are scratches, color fading, and slight rusting on the metallic pole and base of the device. Heavy dirt and rust marks are particularly noticeable on the wheels and metal surfaces of the base. The orange casing of the control unit also has stains and paint peeling on its surface. Yellowing and staining are also visible on the white part around the X-ray tube head. While the functionality of the wheels and the height adjustment mechanism on the pole (a lever of which is visible in the image) cannot be understood from the image as a mechanical component, it bears general signs of wear.
Electronic Components and Accessories
Internal details regarding the electronic components of the device are not clearly visible in the images. However, the externally visible control unit and X-ray tube head house the basic electronic components of the device. There are two spiral cables and one flat cable connected to the unit. No breaks or serious damage are observed in the outer insulation of these cables. There are various socket inputs on the device; these are used for power and control connections. No external box or additional parts are visible among the accessories.
Battery Status
No internal or external battery belonging to the device is visible in the images. It is assumed that the device operates directly on mains electricity.
Label Information
There are two main labels on the device:

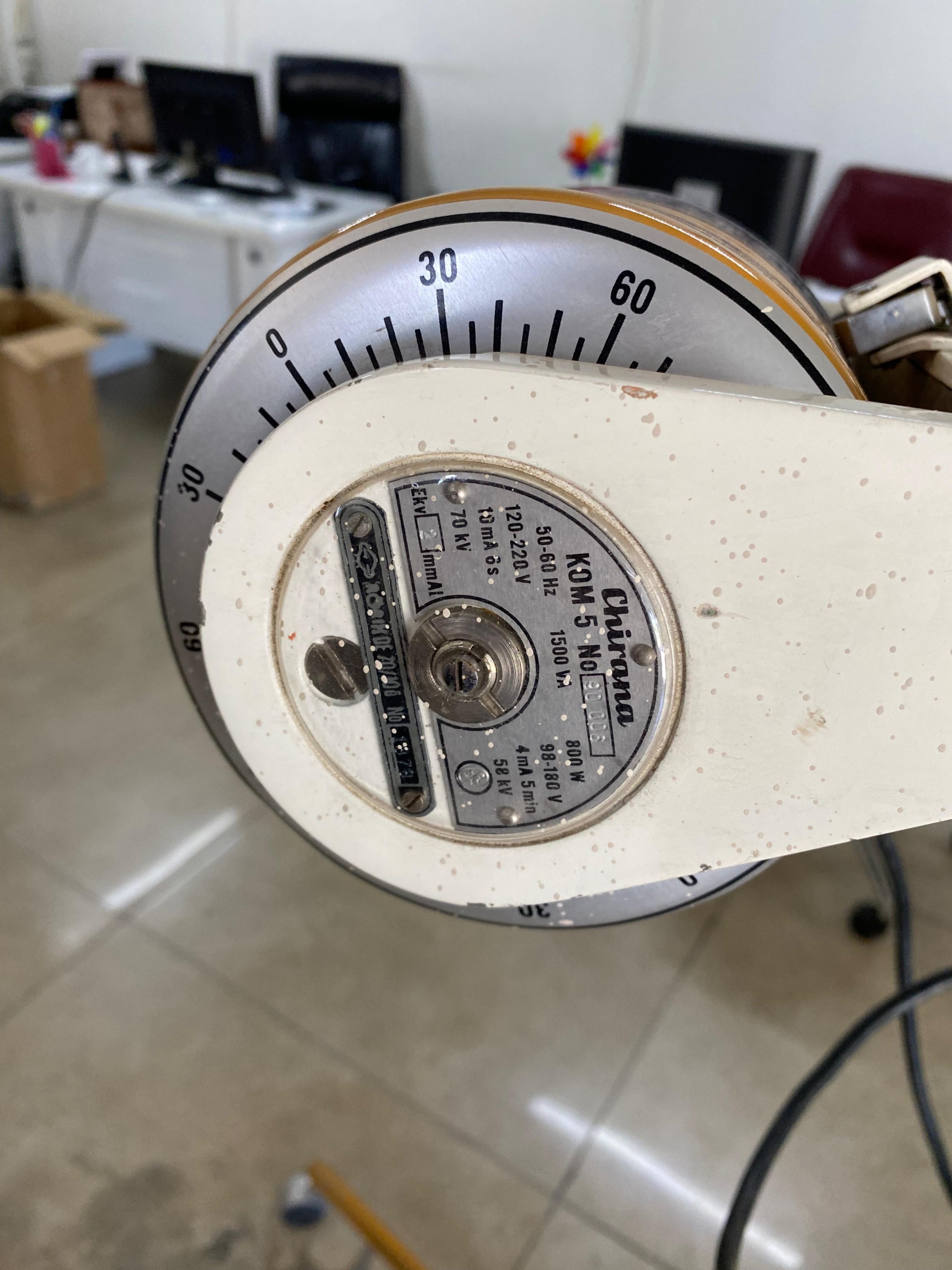

- Label on the X-ray Tube Head:
- Brand: Chirana
- Model: KDM-5 No:
- Technical Information:
- 50-60 Hz
- 120-220 V
- 1500 W
- 70 kV
- 13 mA 5s
- 4 mA 5 min
- 58 kV
- 400 W
- 95-180 V
- 0.9
- Evtl. 1mmAl
This information specifies the operating frequency of the X-ray tube (50-60 Hz), input voltage range (120-220 V), maximum power consumption (1500 W), maximum tube voltage (70 kV), tube current, and exposure times (13 mA 5s, 4 mA 5 min). The expression “Evtl. 1mmAl” likely refers to the aluminum equivalent filtration.

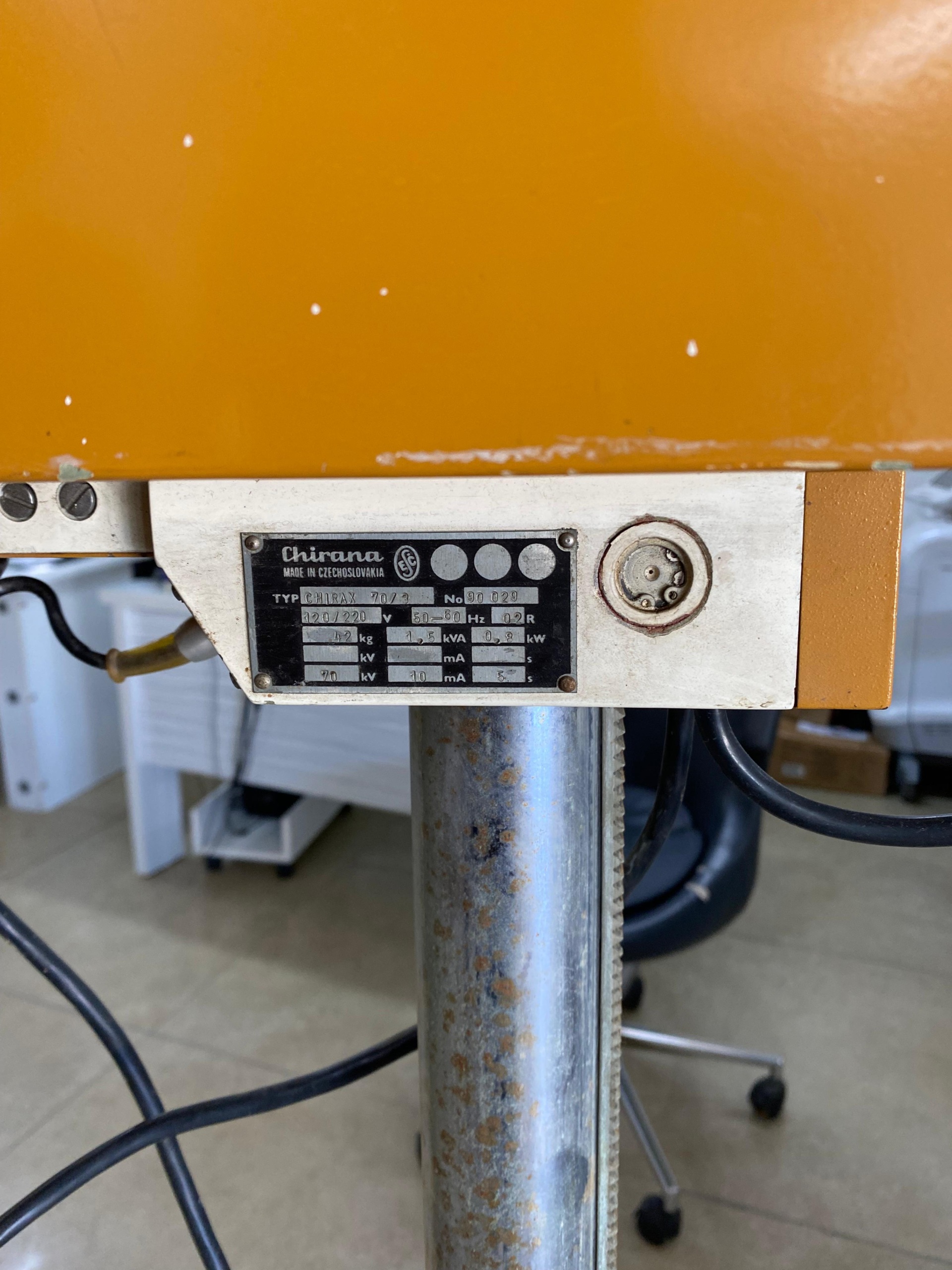

- Label on the Control Unit:
- Brand: Chirana
- TYPE: C3115AX 70/74
- No: 50 029
- MADE IN CZECHOSLOVAKIA
- Technical Information:
- 120/220 V
- 50-60 Hz
- 1.0 kVA
- 0.9
- kV
- mA
- s
This label shows the general type of the device (C3115AX), serial number (50 029), and place of manufacture (Czechoslovakia). It also presents general electrical specifications such as input voltage (120/220 V), frequency (50-60 Hz), power (1.0 kVA), and power factor (0.9). The “kV”, “mA”, and “s” values are the relevant units where X-ray parameters can be adjusted or displayed.
Screen Analysis
There is no digital screen or display panel visible on the device. There is an analog dial on the X-ray tube head that shows the angle setting. This dial is graduated from 0 to 90 and is used to adjust the position of the tube.
Dimensions and Compatibility
The general structure and wheeled stand of the device in the images suggest that it is a mobile X-ray unit. It is estimated to be approximately the height of a human. Such devices are designed to adapt to different patient positions and shooting angles. There is no clear measurement information in the image.
Year of Manufacture
The expression “TYPE C3115AX 70/74” on the label on the control unit offers a strong clue that the device was manufactured in the early 1970s, likely between 1970 and 1974. The general design of the device, the materials used, and the state of wear are consistent with production from this period.
Documents
No invoices, warranty certificates, user manuals, or other documents belonging to the device are visible in the images.
Usage Duration
There is no counter or information on the device or its labels indicating the hours of use or total usage duration.
Existing Faults
No clear evidence of a fault such as a broken part, severed cable, or error message that would prevent the device from operating has been detected in the images. However, there is general wear and a state of dirtiness.
Potential Fault Risk
Rusting and general wear on the metal parts of the device may affect the functionality of mechanical parts in the long term. It is considered that the wheels and moving parts, in particular, may need maintenance. No serious damage has been observed at the electrical connection points or cable entries, but as it is an old device, there may be potential risks in the internal electronic components. There is no concrete evidence of this in the image.
