Secondhand Toshiba Xario SSA-660A Ultrasound Machine

Objective AI Report

Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.

Report date: 26.02.2026

Toshiba Xario (SSA-660A) Ultrasound Imaging System Analysis Report

Device Identification

The device examined in the visuals is a mobile (wheeled) color Doppler ultrasonography system with an integrated monitor and control panel, used for medical imaging purposes.

Brand and Model Information

As a result of a detailed visual inspection of the device, the following brand and model information has been definitively identified:

• Brand: TOSHIBA
• System Commercial Name: Xario
• System Model Code: SSA-660A
• Sub-Module (Option Kit): Toshiba Dynamic Flow Kit – Model USDF-770A
• Monitor/Console Series: iSTYLE (Indicated on the monitor frame and body)

Originality

The “Toshiba Medical Systems Corporation” manufacturer labels, CE (0197) certification marks, “Quality Assurance” (QA) labels, and the original part numbering system on the device confirm that the product is an original Toshiba production. The industrial design language and logo placements are fully compliant with manufacturer standards.

Areas of Use

This device is a high-resolution diagnostic ultrasound system designed for use in Radiology, Obstetrics/Gynecology (OB/GYN), Cardiology, Urology, and general internal medicine imaging. Its Dynamic Flow Kit feature indicates advanced performance in vascular imaging and the detection of low-speed blood flow.

Quantity Information

The visuals show 1 unit of the main ultrasound console and parts integrated into this console. No external probe (transducer) is present in the visuals.

General Condition

The device is in “used” condition. There are signs of use on the outer casing, wheels, and control panel. The visuals show that the device is powered on and has entered the boot process. It possesses a physical integrity that can be described as “in working condition” in the second-hand medical device market.

Physical Deformations

The device’s external cosmetic condition is generally good. Superficial scratches and slight discoloration due to friction were observed on the blue plastic body panels at the bottom, especially in the areas above the wheels. No significant cracks, breaks, or missing keys were detected on the keyboard and control panel. The monitor casing and articulating arm mechanism appear solid.

Mechanical Components

The device’s wheels, brake mechanisms, the articulating (movable) arm supporting the monitor, and the keyboard drawer are visually sound. No breaks are observed in the ventilation grilles on the back and sides of the device. The probe holder slots and cable hangers are complete and in place.

Electronic Components

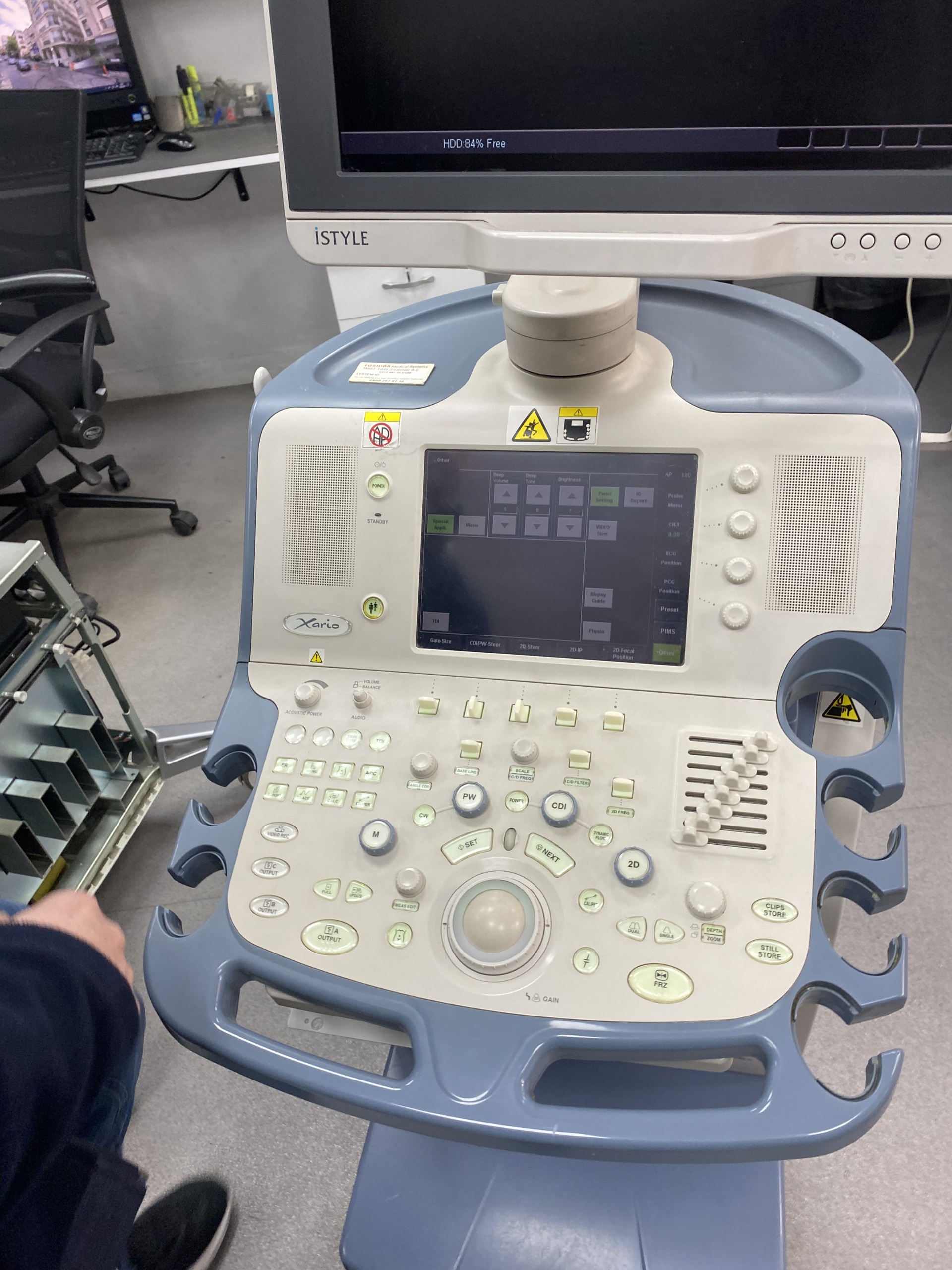

The main LCD monitor and the touch command screen on the control panel are functional. The main screen displays the “TOSHIBA” logo and the startup sequence. Although the light intensity of the backlit buttons on the control panel cannot be fully analyzed from the visual, the panel is physically clean.

Accessories and Connections

• Main Monitor: An integrated flat-panel LCD screen is present on the device.

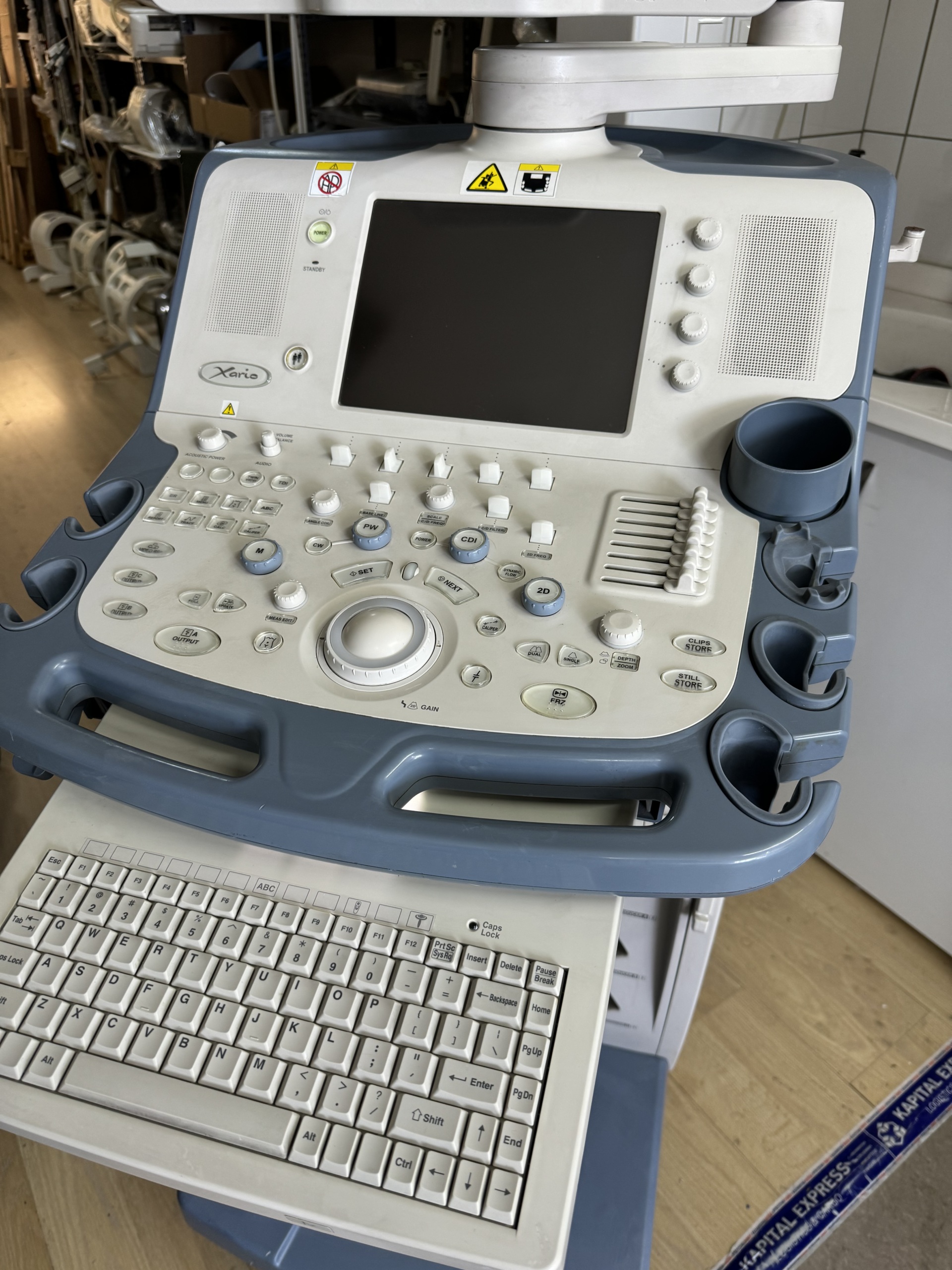

• Keyboard: A QWERTY alphanumeric keyboard is available on the device’s lower tray.
• Probe Sockets: Three active probe input ports and one park (dummy) port are visible on the front lower part of the device. No bending or physical damage appears in the socket inputs.
• Missing Parts: Ultrasound probes (convex, linear, or vaginal probe) are not present in the visuals. Probes should be considered separate.

Label Information

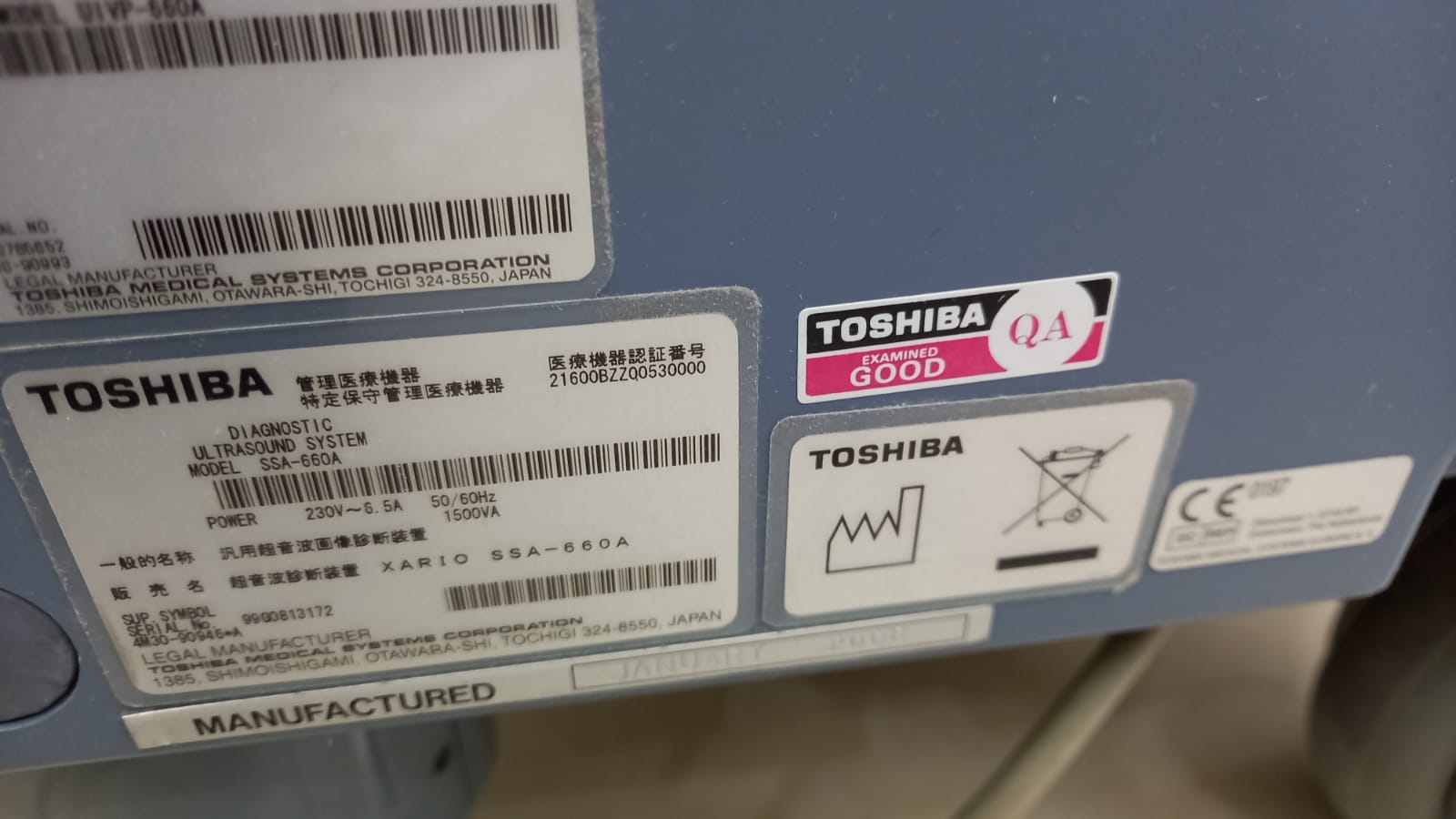

The data on the metal plate located at the back of the device is as follows:

• Serial Number (Main Unit): 99G0813172
• Model: SSA-660A
• Manufacturing Date: January 2008 (JANUARY 2008)
• Power Ratings: 230V ~ 6.5A, 50/60Hz, 1500VA
• Serial Number (Dynamic Flow Kit): A4602012
• Origin: Japan (Otawara-Shi, Tochigi)

Screen Analysis

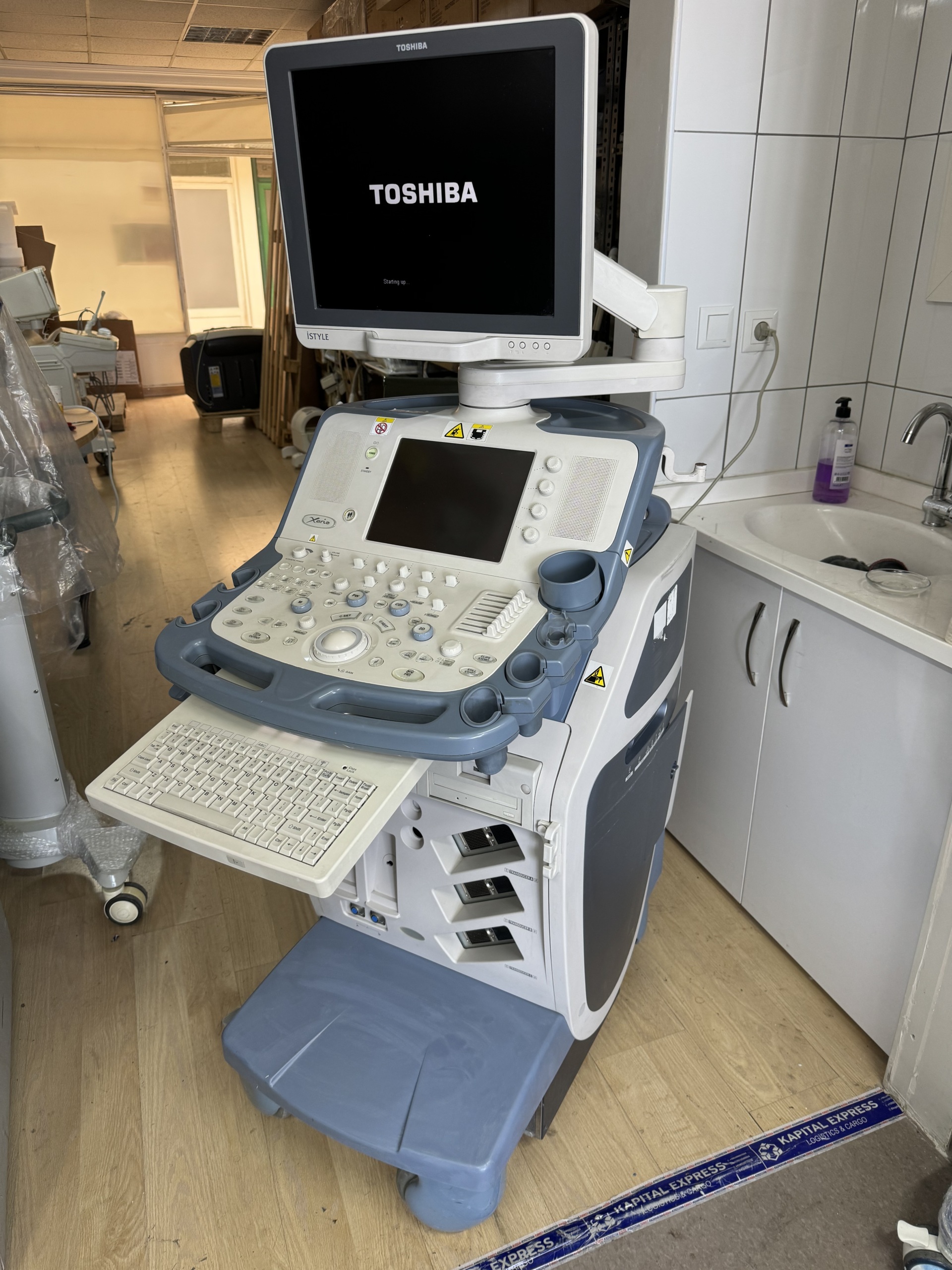

In one of the visuals, the main monitor shows a white “TOSHIBA” logo on a black background, with “Starting up…” displayed below it. This confirms that the system is in the BIOS/software loading phase and that the screen is capable of displaying images. On the smaller touch screen below, user interface menus are active, but the menu content cannot be read in detail.

Existing Faults and Potential Risks

No system error message (Error Code) or “System Failed” warning is visible in the visuals. Whether the system remains stuck on the “Starting up…” screen cannot be determined from a single frame. Mechanically, there are no major risks (rust, exposed cables, casing breaks). However, the internal pin condition of the probe input sockets cannot be confirmed in detail from the visual. Given the manufacturing year of 2008, an economic life assessment of the device’s internal power supply and hard disk units should be performed.
