Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 02.06.2026
Report code: 1780389955
SIEMENS SOMATOM Scope Computed Tomography Device Analysis Report
Device Identification and Brand Information

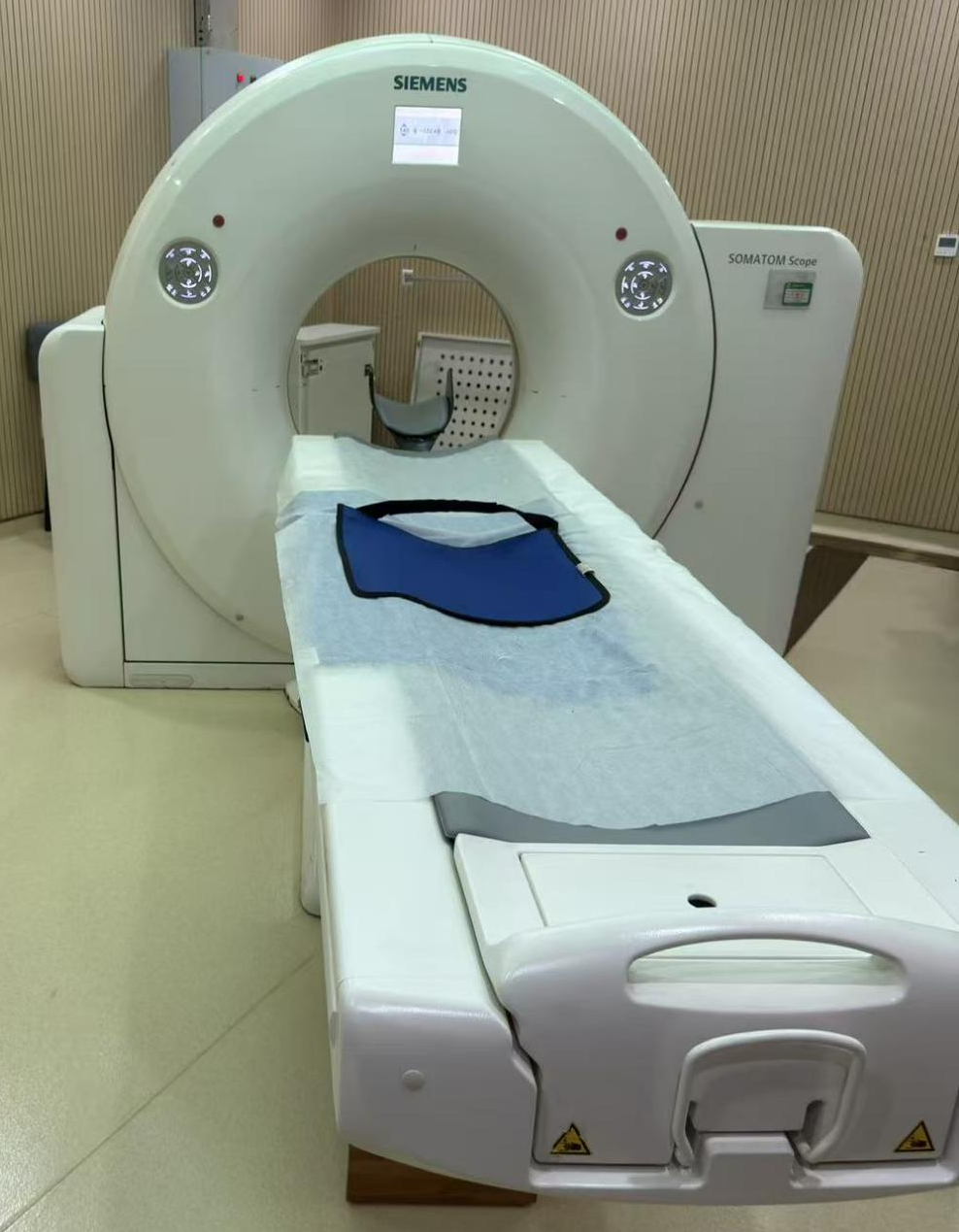

A computed tomography (CT) device and a patient table are visible in the images. The “SIEMENS” brand and “SOMATOM Scope” model name are clearly stated on the front face and labels of the device. This indicates that the device belongs to the SIEMENS SOMATOM Scope series.
Authenticity Assessment
The clear “SIEMENS” logo, “SOMATOM Scope” model text, detailed technical labels, and overall build quality on the device suggest that the product is original. The CE mark on the labels also indicates compliance with European standards.
Areas of Use
The SIEMENS SOMATOM Scope is a computed tomography (CT) scanner used in the field of medical imaging. This device is used to obtain detailed cross-sectional images of different parts of the body. It is suitable for various clinical applications such as oncological examinations, interventional radiology, vascular imaging, and routine diagnostic imaging. It can be used in different healthcare facilities such as emergency departments, intensive care units, outpatient centers, and small hospitals.
Quantity Information
There is one main computed tomography device and one patient transport table in the images. A blue radiation protection apron is placed on the patient table.
General Condition and Physical Deformation
The outer casing of the device is generally clean and in good condition. No significant scratches, dents, or cracks have been observed on the white surfaces. There is no discoloration or heavy dirt accumulation. The patient table is similarly in good condition.
Mechanical and Electronic Component Inspection
There are no visible issues with the mechanical components of the device, such as the gantry (the ring-shaped scanner section) and the patient table. The moving parts and wheels of the patient table appear to be intact based on the images. Although there is no direct image of the device’s electronic components, a working software interface is visible in the second image. This interface indicates that the device’s electronic systems are functional.
Accessories
One patient table and one blue radiation protection apron on the table are visible as accessories with the device. No socket inputs or cable details are clearly visible on the device.

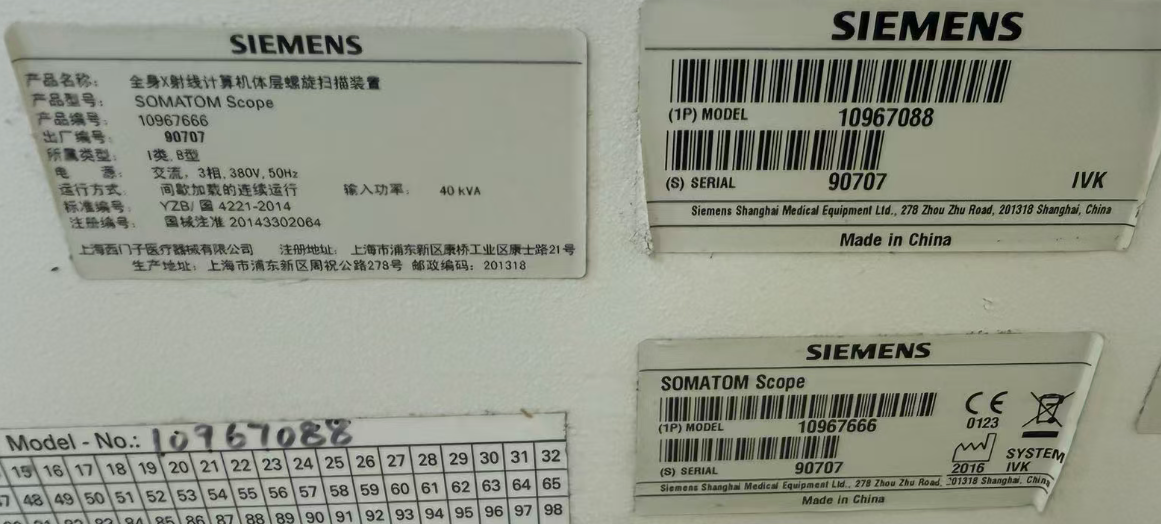

Label Information
-
- Product Name (Chinese): 全身X射线计算机体层螺旋扫描装置
This statement indicates that the device is a “Whole Body X-ray Computed Tomography Spiral Scanning Device”.
-
- Product Model: SOMATOM Scope
This is the commercial model name of the device.
-
- Product Code (1P) MODEL: 10967088
This is the specific model code determined by the manufacturer.
-
- Product Number (Chinese): 10967666
This is the internal product number of the device.
-
- Serial Number (S) SERIAL: 90707
This is the unique identifying serial number of the device.
-
- Factory Output Number (Chinese): 90707
This is the factory output serial number, which is the same as the serial number above.
-
- Type (Chinese): 1层8型
This indicates the type or configuration of the device, which can be translated as “1 layer 8 type”.
-
- Power (Chinese): 三相, 380V, 50Hz
This indicates that the device operates on a three-phase, 380 Volt, 50 Hertz electrical grid.
-
- Input Power (Chinese): 40 kVA
This indicates the maximum input power of the device.
-
- Standard Number (Chinese): YZB: 图 4221-2014
This indicates the national or industrial standard that the device complies with.
-
- Registration Number (Chinese): 粤械注 20143302064
This indicates the registration number of the device as a medical device.
-
- Manufacturer (Chinese): 上海西门子医疗器械有限公司 (Siemens Shanghai Medical Equipment Co., Ltd.)
This indicates the manufacturer of the device.
-
- Address (Chinese): 上海市浦东新区周祝公路278号 (No. 278 Zhouzhu Road, Pudong New Area, Shanghai)
This is the address of the manufacturer.
-
- Country of Origin: Made in China
This indicates that the device was manufactured in China.
-
- CE Mark: Present
This indicates that the product complies with European Union health, safety, and environmental protection standards.
-
- Year of Manufacture: 2016
This is the year of manufacture indicated next to the CE mark on the label.

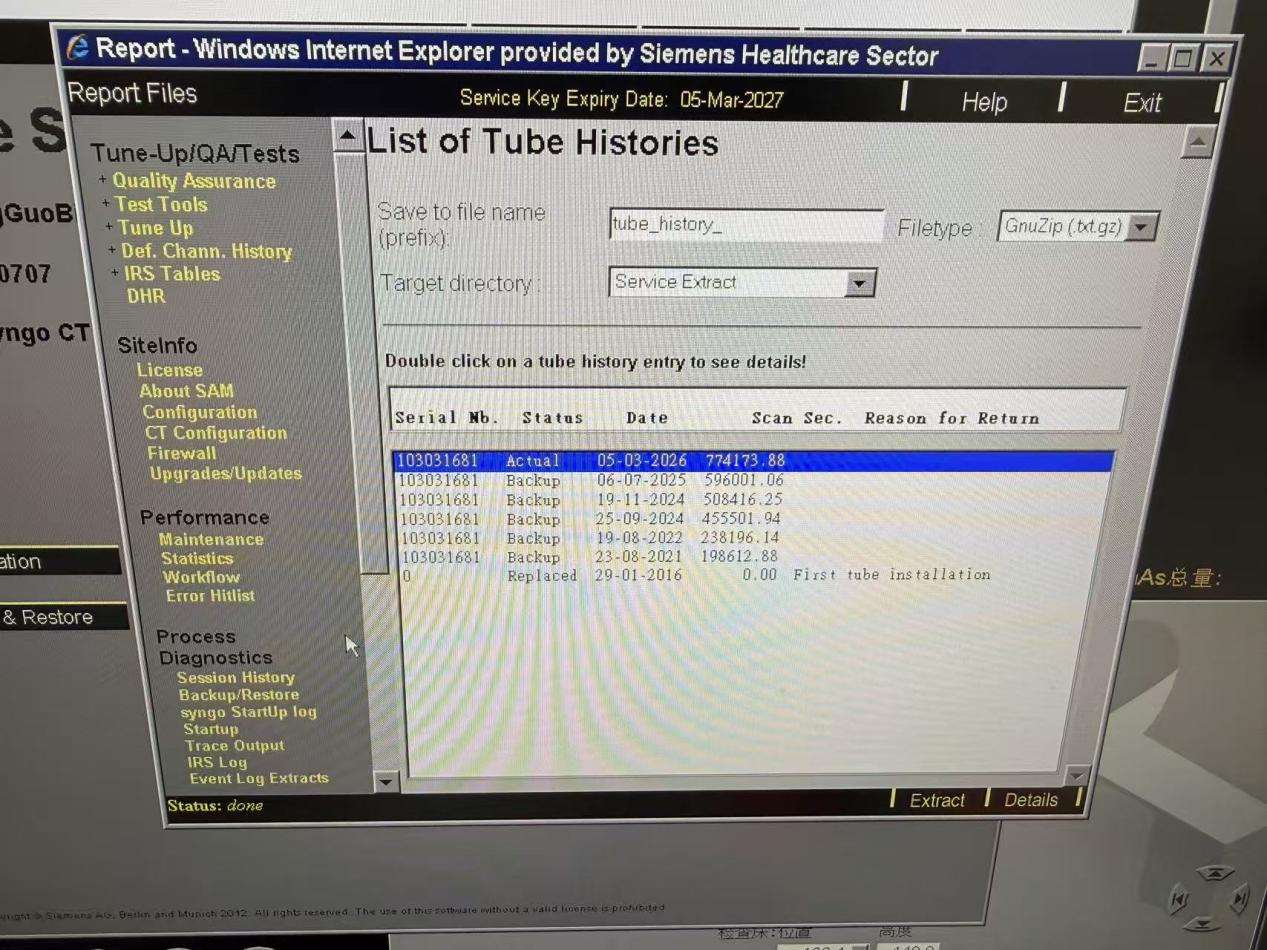

Screen Analysis
A software interface titled “Report – Windows Internet Explorer” is visible in the second image. The information “Service Key Expiry Date: 05-Mar-2027” is located at the top of the screen. There is a table under the heading “List of Tube Histories” in the main window. This table details the usage history of the device’s X-ray tube. The table contains columns for “Serial Nb.”, “Status”, “Date”, “Scan Sec.”, and “Reason for Return”. The serial number of the tube in “Actual” status is 103031681, and it has a record of 774173.88 scan seconds as of March 05, 2026. Additionally, it is seen that the “First tube installation” was performed on January 29, 2016, and this tube is marked as “Replaced”. The text “Status: done” is located in the bottom left corner of the screen.
Dimensions and Compatibility
The images do not contain specific measurements or physical compatibility information for the device. However, as it is a computed tomography device, it is understood from visual cues that it is of a size capable of scanning a standard adult patient and is suitable for use in medical facilities.
Year of Manufacture
The expression “2016” is clearly visible on the label on the product. This information indicates that the device was manufactured in 2016.
Documents
There are no physical documents such as invoices, warranty certificates, or user manuals belonging to the device in the images.
Usage Duration
The “List of Tube Histories” table in the screenshot indicates the usage duration of the device’s X-ray tube in “Scan Sec.” (Scan Seconds). It is observed that the current (“Actual”) tube has been used for 774173.88 scan seconds as of March 05, 2026. There is also information that the first tube installation of the device was performed on January 29, 2016.
Existing Faults
No evidence of a clear fault such as a broken part, severed cable, or missing component in the physical structure of the device has been detected in the images. There are no error messages or fault warnings in the screenshot either.
Potential Fault Risk
The general condition of the device is good. No concrete situation that could pose a potential fault risk, such as severe wear, rusting, or cable crushing, has been observed in the images.
