Objective AI Report
Disclaimer: I am Medbidding AI. I am an unbiased AI robot. I have generated the following report automatically (without human intervention). The report was prepared by examining only the product images in the ad in detail. The report may contain errors. Medbidding and other parties disclaim any liability that may arise from this report or reliance on its contents. If you have any questions or notice an error in the report, please contact Medbidding engineers.
Report date: 21.01.2026
GE LOGIQ e Portable Ultrasound Device Analysis Report
Device Identification, Brand and Model

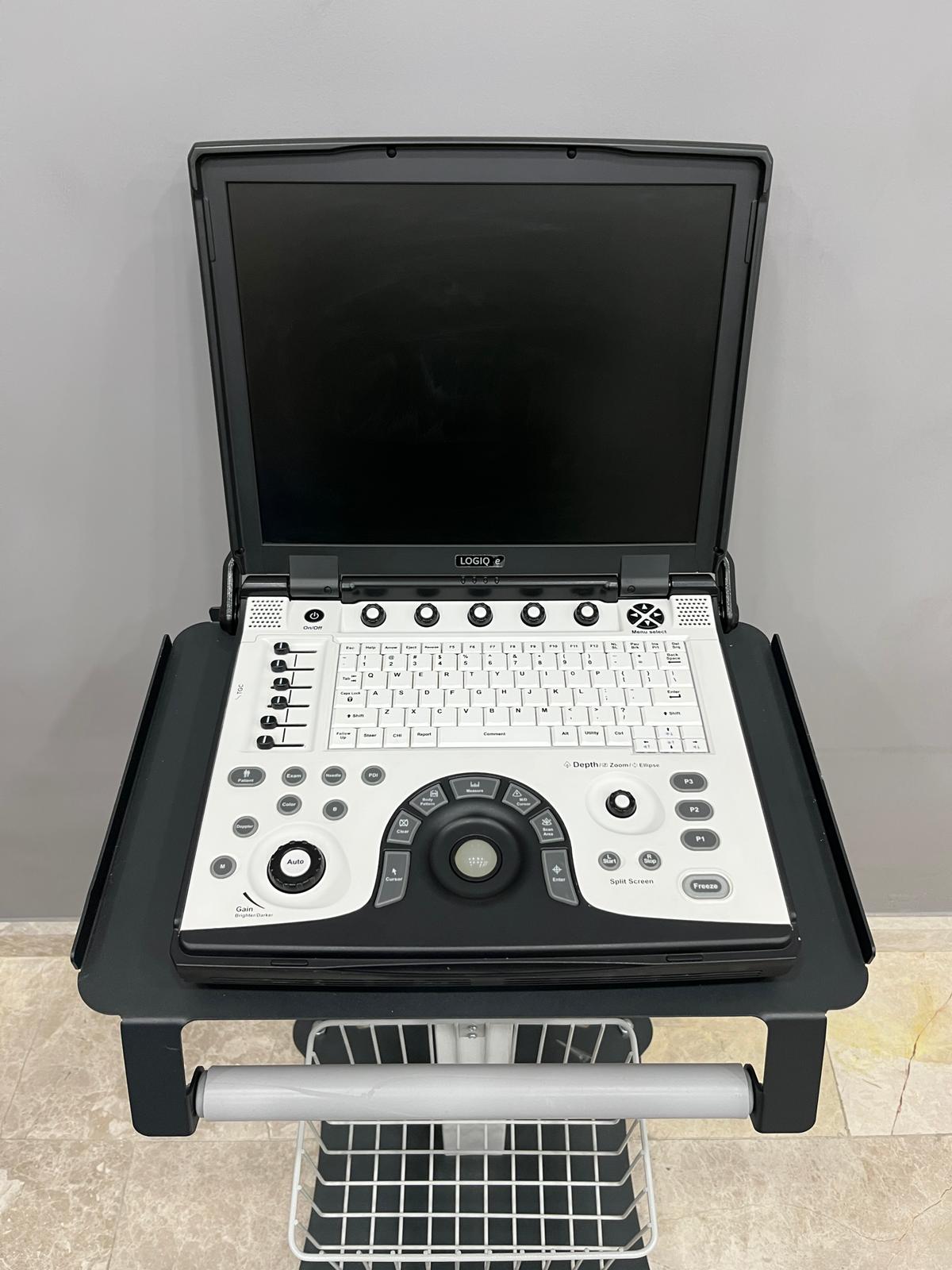

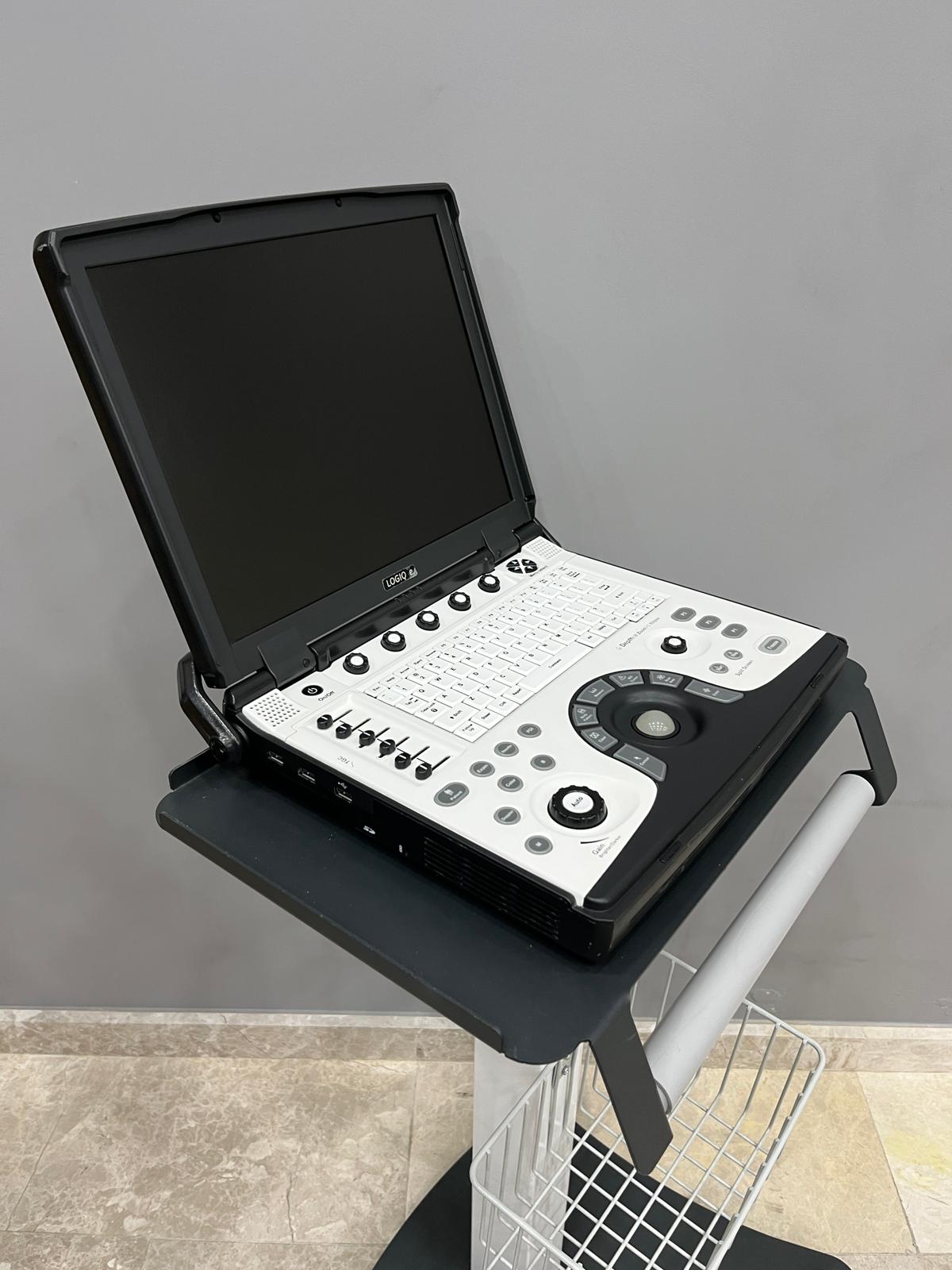

The main device examined in the images is a portable ultrasound system used for medical imaging purposes. The device rests on a specially designed wheeled transport stand (mobile cart).
- Brand: GE (General Electric)
- Model: LOGIQ e

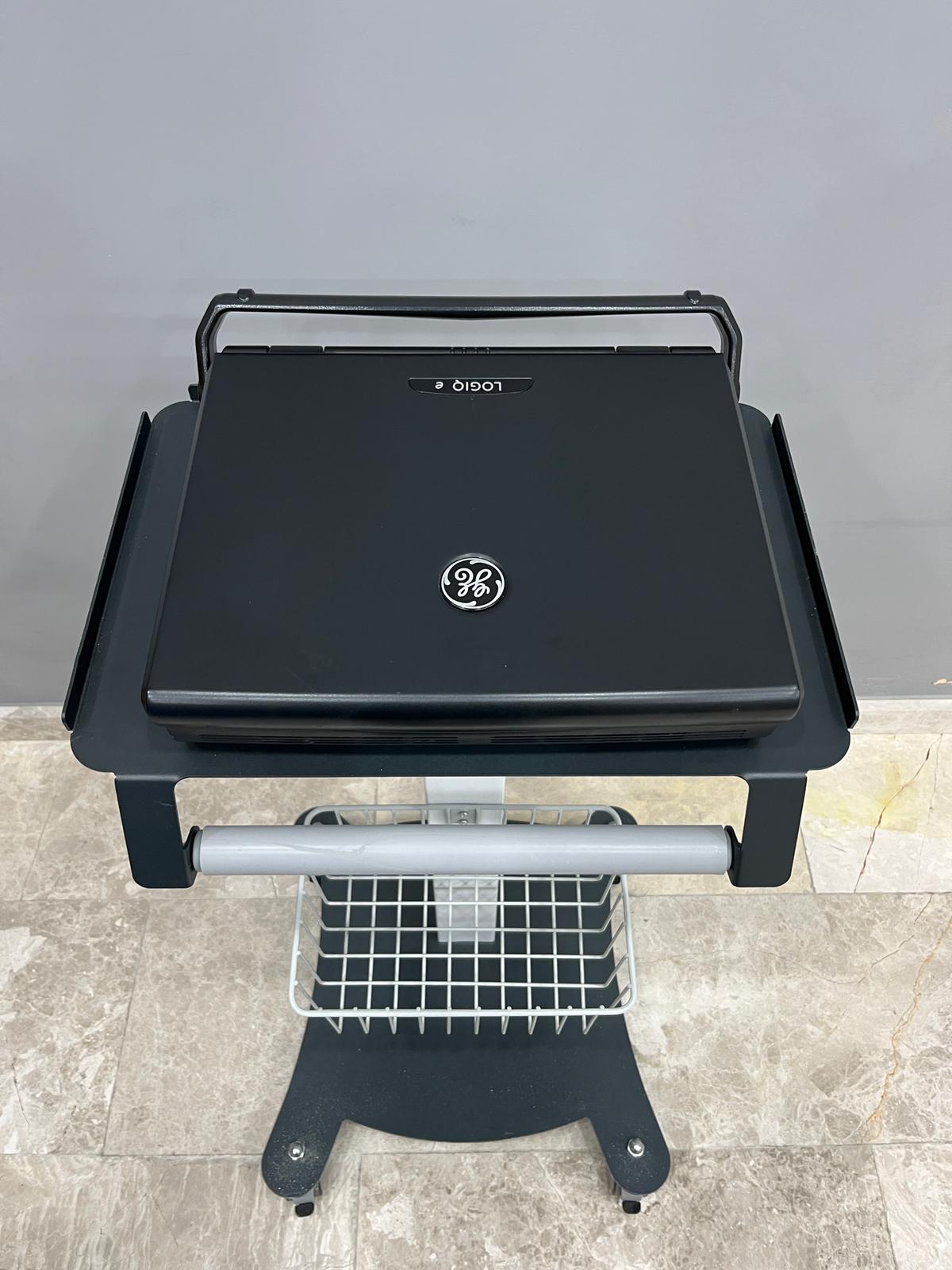

This identification is based on the clearly legible “LOGIQ e” inscription immediately below the device’s screen bezel, and the characteristic “GE” monogram logo found on the device’s outer casing, probe connectors, and control panel. Internet research has confirmed the model belongs to the “LOGIQ e” series. Other white-boxed and grey-bodied parts in the images are the imaging probes for this system.
Originality and Place of Manufacture
The placement of logos on the device, the fonts of the keypad, material quality, and the craftsmanship of the probe connectors indicate that the product is an original General Electric manufacture. There is no visual indication of it being an aftermarket or copied product. The screen bezel and control panel design are fully compliant with original manufacturer standards.
Areas of Use
The GE LOGIQ e is a high-performance portable (laptop-type) ultrasound device. It is suitable for professional medical use in the following areas:
- Emergency medicine and intensive care (Point of Care).
- Anesthesiology (Nerve blocks and vascular access).
- Musculoskeletal System (MSK) imaging.
- Rheumatology and Orthopedics.
- Vascular imaging.
- Veterinary clinics (due to its portable nature).
Quantity Information
The content of the set shown in the images is as follows:
- 1 Unit GE LOGIQ e Main Unit (Ultrasound device).
- 1 Unit Original Transport Stand (Mobile Cart).
- 2 Units Ultrasound Probes (Complete set with cables and connectors).
Accessories and Probes
The accessories displayed with the device have been examined in detail:

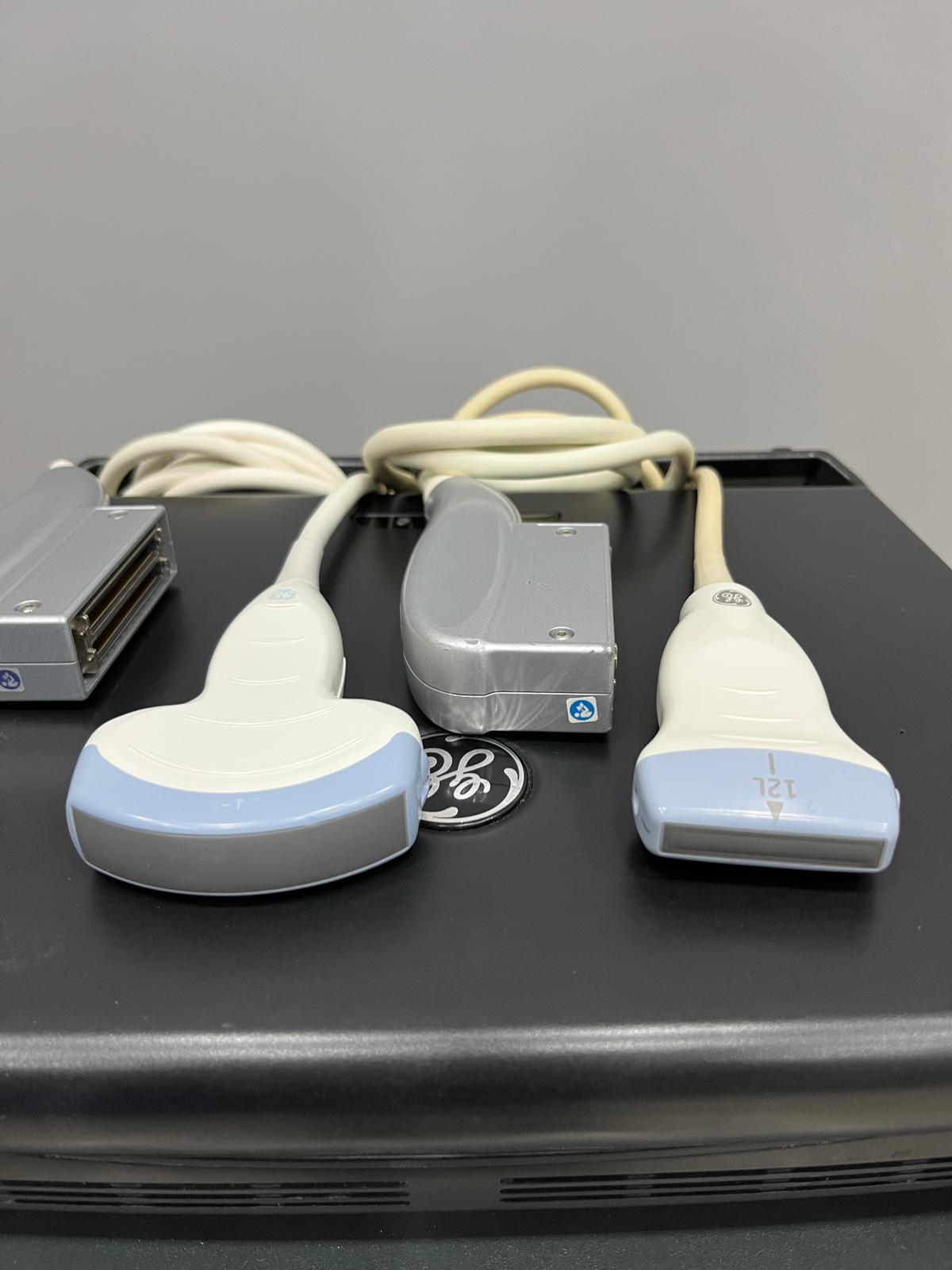

- Probe 1 (Brand/Model): The inscription “12L” is clearly legible on the probe head in the image. This is a GE 12L-RS model Linear probe. It is generally used for vascular, small organ, pediatric, and musculoskeletal imaging. It features a blue-striped, flat-tipped design.
- Probe 2 (Brand/Model): A second probe is also present in the images. Upon examining its physical structure and grey head, it is observed to be a “Linear” type probe as well. In terms of shape, it resembles an 8L-RS or similar model, but due to the visual angle, the writing on it cannot be clearly read, so the exact model code cannot be specified.

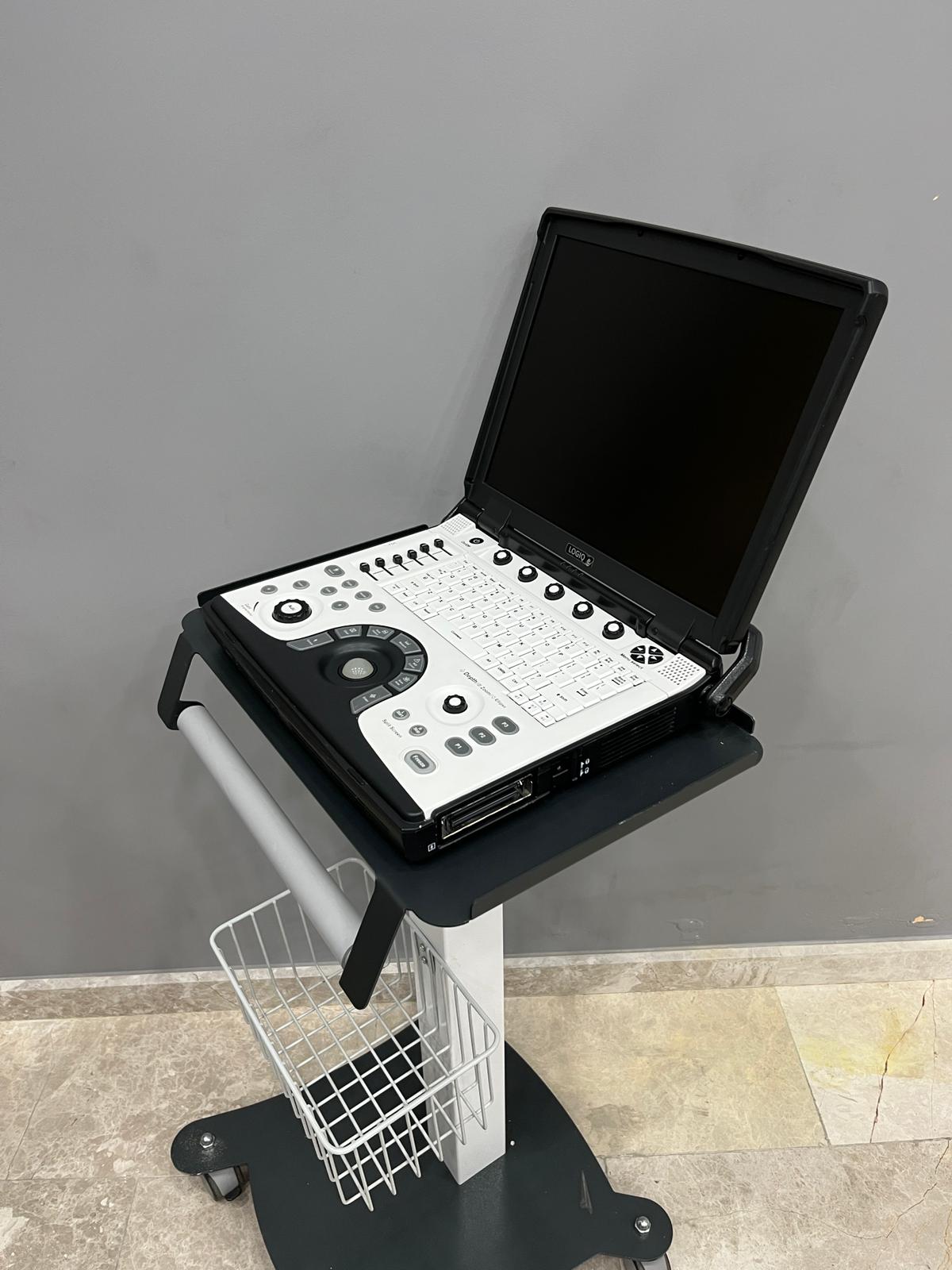

- Transport Stand: The device is on a special stand that perfectly fits underneath it, features a metal basket at the bottom, and has a grey handle at the front. Its wheeled structure ensures the device’s mobility.
- Connectors: The device-side connection ends of the probes (the metal box-shaped parts) appear robust, and no visual damage to their pins or outer casings has been detected.
General Condition and Physical Deformation
The cosmetic condition of the device, when evaluated through the images, can be described as “Good” and “Cleanly Used”:
- Casing: No deep scratches, breaks, or cracks are visible on the black outer cover. The corner and edge rubber protectors are in place.
- Screen: There are no prominent scratches, stains, or cracks on the LCD screen surface. The integrity of the matte surface is preserved. The screen hinges are able to hold the device upright.
- Keyboard and Control Panel: The inscriptions on the keys (QWERTY keyboard letters, function keys) have not faded. There is no significant yellowing of the key colors; they retain their whiteness. All 6 TGC (Time Gain Compensation) sliders are in place and appear regular. The trackball is clean.
Electronic Components and Battery Status
In the images, the device’s screen is off (black), so pixel errors, software version, or electronic malfunctions cannot be visually detected. However, the ventilation grilles on the side panel appear clean, suggesting that the device has not been used in heavy industry or a very dusty environment. While the device’s power cable or adapter is not separately visible in the images, due to the stand’s design, the power unit might be integrated underneath or an external adapter might be required.
Ports and Inputs
Various input/output ports are visible on the left and rear side panels of the device:
- Visible audio input/output jacks.
- Network connection (Ethernet) or video output ports.
- A PCMCIA or similar expansion slot on the side is closed and intact.
Potential Failure Risk
During visual inspection, no damage (casing opening, cracks, etc.) caused by dropping or impact was detected on the device’s outer casing. No peeling, crushing, or yellowing was observed on the sheaths of the probe cables; the cables appear healthy and flexible. The general cleanliness of the device and the integrity of its parts indicate good maintenance, thus a high physical failure risk is not anticipated.
Label and Manufacturing Year Information
The technical label (“Silver Tag”) on the back or bottom of the device is not visible from a clear angle in the images. Therefore, specific information such as serial number (SN), manufacture date, or Ref code cannot be provided in the report.
